Dell™ OptiPlex™ XE — Powered

Serial Port Configuration

Your Dell OptiPlex XE allows you to configure the power settings of the serial

connectors, based on the voltage requirements of the device attached to the

serial port.

To configure the power to the serial port, change the jumper settings on the

system board or the expansion card.

Setting the Jumpers on the System Board

The illustration below shows the location of the jumpers and the serial port on

the system board. For instructions to access the jumpers on the system board, see

the OptiPlex XE Service Manual available at support.dell.com/manuals.

NOTE: To locate the serial port on your computer, see the Setup and Features

Information Tech Sheet that shipped with your computer.

1 serial port 1 2 serial port 2

1

2

February 2010

59346.fm Page 9 Monday, January 11, 2010 6:03 PM

System Board Jumper Configuration — Serial Port 1

Serial Port Voltage Jumper 1 (J1)

Serial Port Voltage Jumper 2 (J2)

59346.fm Page 10 Monday, January 11, 2010 6:03 PM

System Board Jumper Configuration — Serial Port 2

Serial Port Voltage Jumper 3 (J3)

Serial Port Voltage Jumper 4 (J4)

59346.fm Page 11 Monday, January 11, 2010 6:03 PM

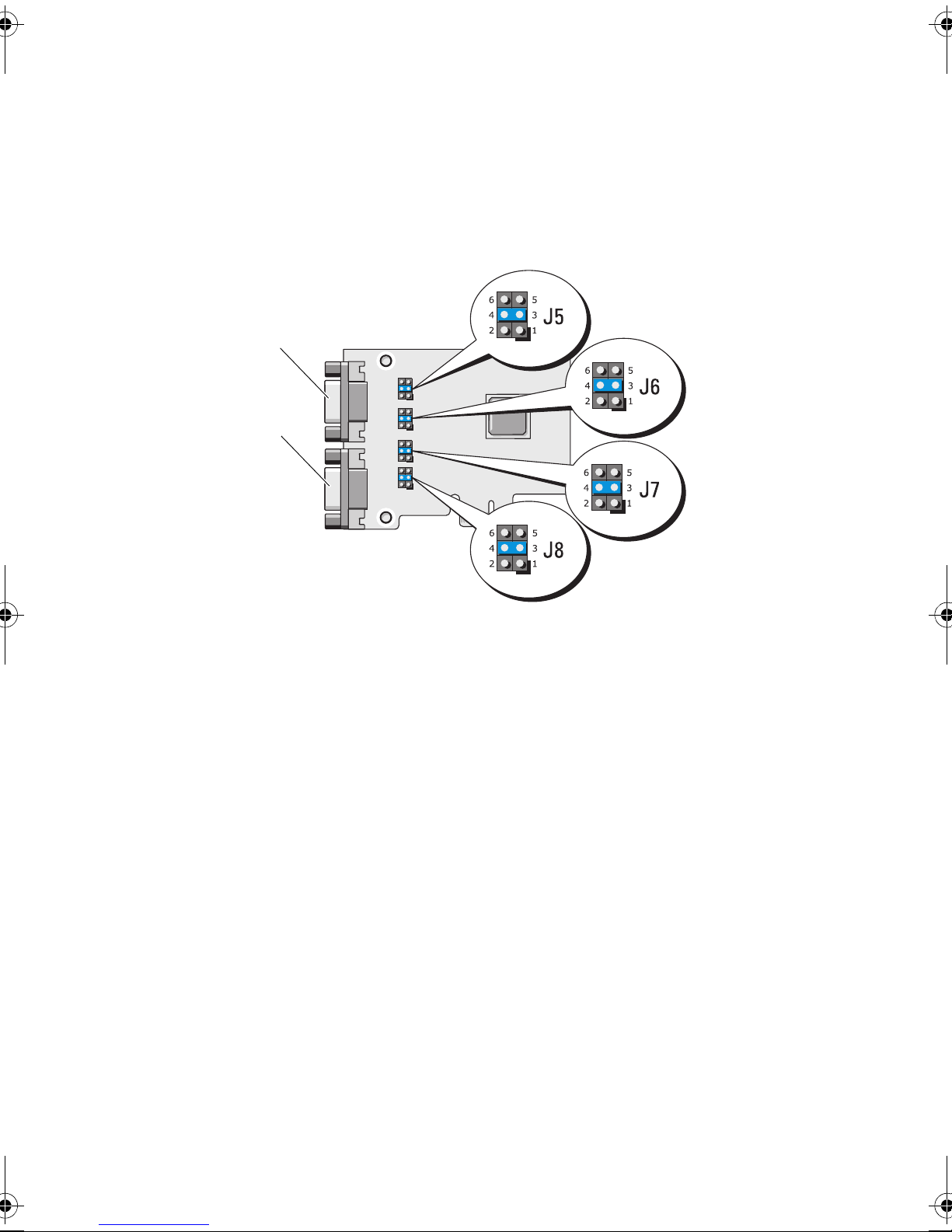

Setting the Jumpers on the Expansion Card

The illustration below shows the location of the jumpers and the serial port on

the expansion card.

1 serial port 3 2 serial port 4

1

2

59346.fm Page 12 Monday, January 11, 2010 6:03 PM

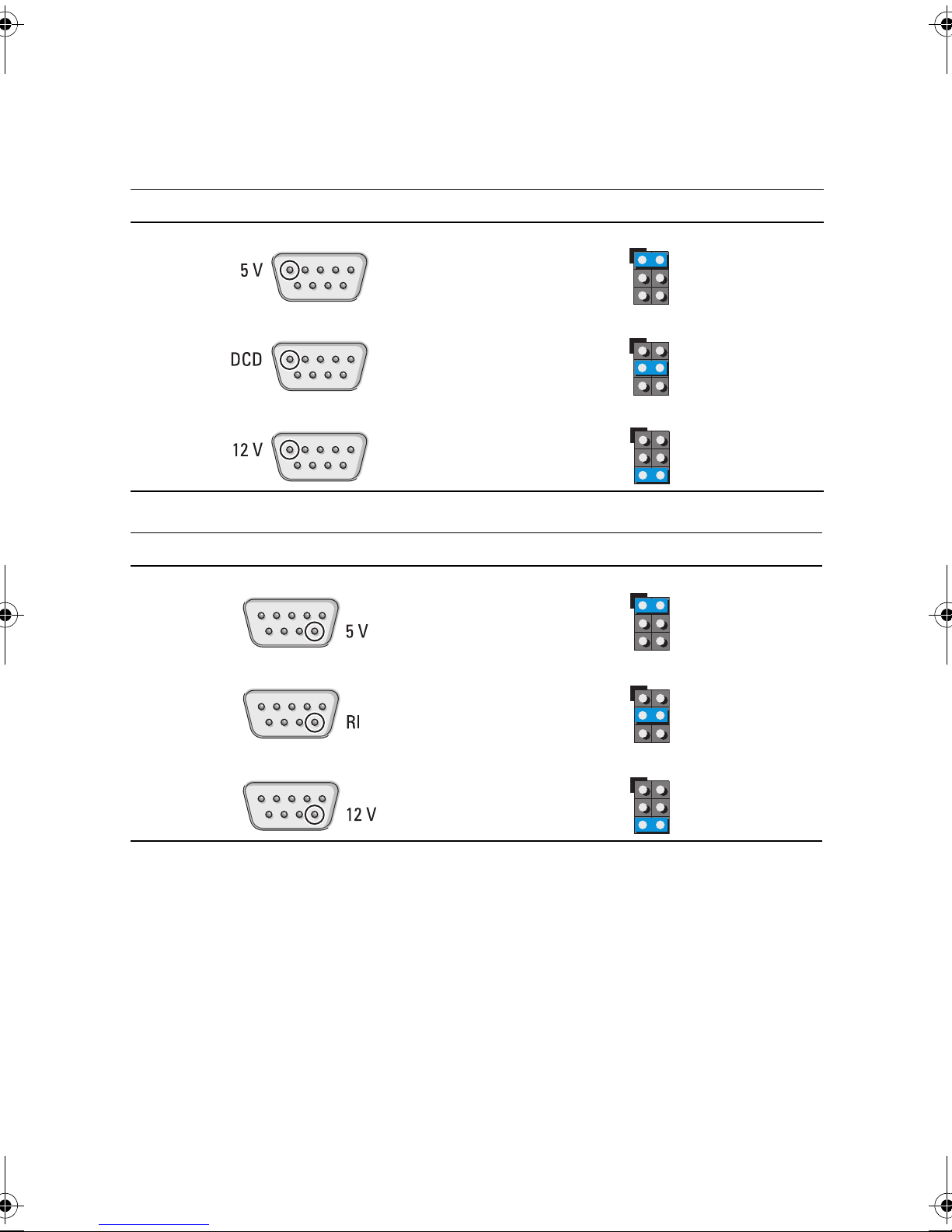

Expansion Card Jumper Configuration — Serial Port 3

Serial Port Voltage Jumper 5 (J5)

Serial Port Voltage Jumper 6 (J6)

59346.fm Page 13 Monday, January 11, 2010 6:03 PM

Expansion Card Jumper Configuration — Serial Port 4

____________________

Information in this document is subject to change without notice.

© 2010 Dell Inc. All rights reserved.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is

strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, and OptiPlex are trademarks of Dell Inc.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the

marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade

names other than its own.

Serial Port Voltage Jumper 7 (J7)

Serial Port Voltage Jumper (J8)

59346.fm Page 14 Monday, January 11, 2010 6:03 PM
