Dell Vostro 470 Manuel du propriétaire

Dell Vostro 470

Setup And Features Information

About Warnings

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Front And Back View

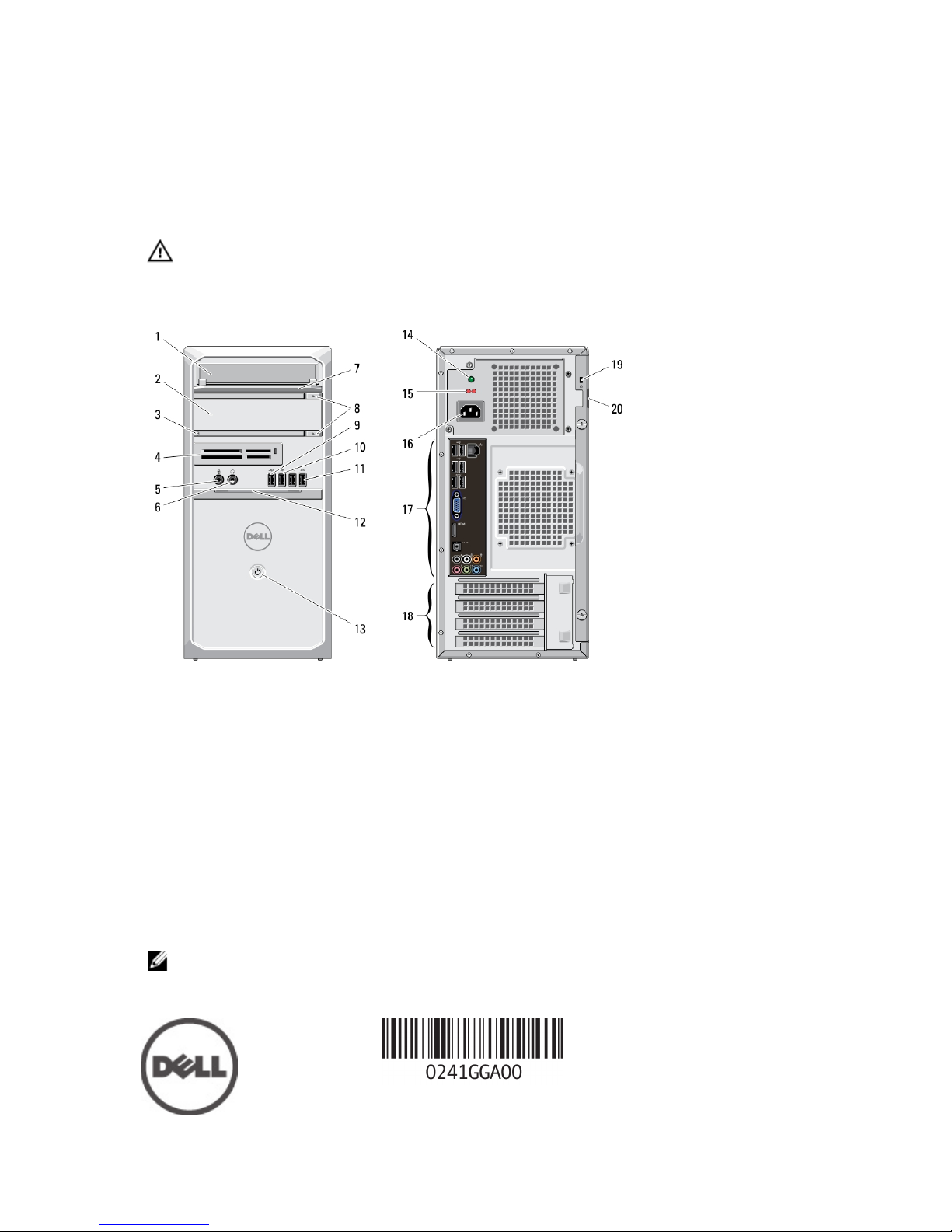

Figure 1. Front And Back View

1. CD/DVD drive

2. CD/DVD drive (optional)

3. hard-drive activity light

4. media card readers (optional)

5. microphone connector

6. headphone connector

7. drive bay front panel (open)

8. CD/DVD drive eject buttons (2)

9. powered USB 2.0 connector

10. USB 2.0 connector

11. USB 3.0 connectors (2)

12. front panel door (open)

13. power button

14. power supply diagnostic light

15. voltage selector switch

16. power connector

17. back panel connectors

18. expansion card slots (4)

19. security cable slot

20. padlock slot

NOTE: The second CD/DVD drive eject button is functional only if a second CD/DVD drive is installed in the

computer.

Regulatory Model: D10M

Regulatory Type: D10M002

2011 - 10

Back Panel

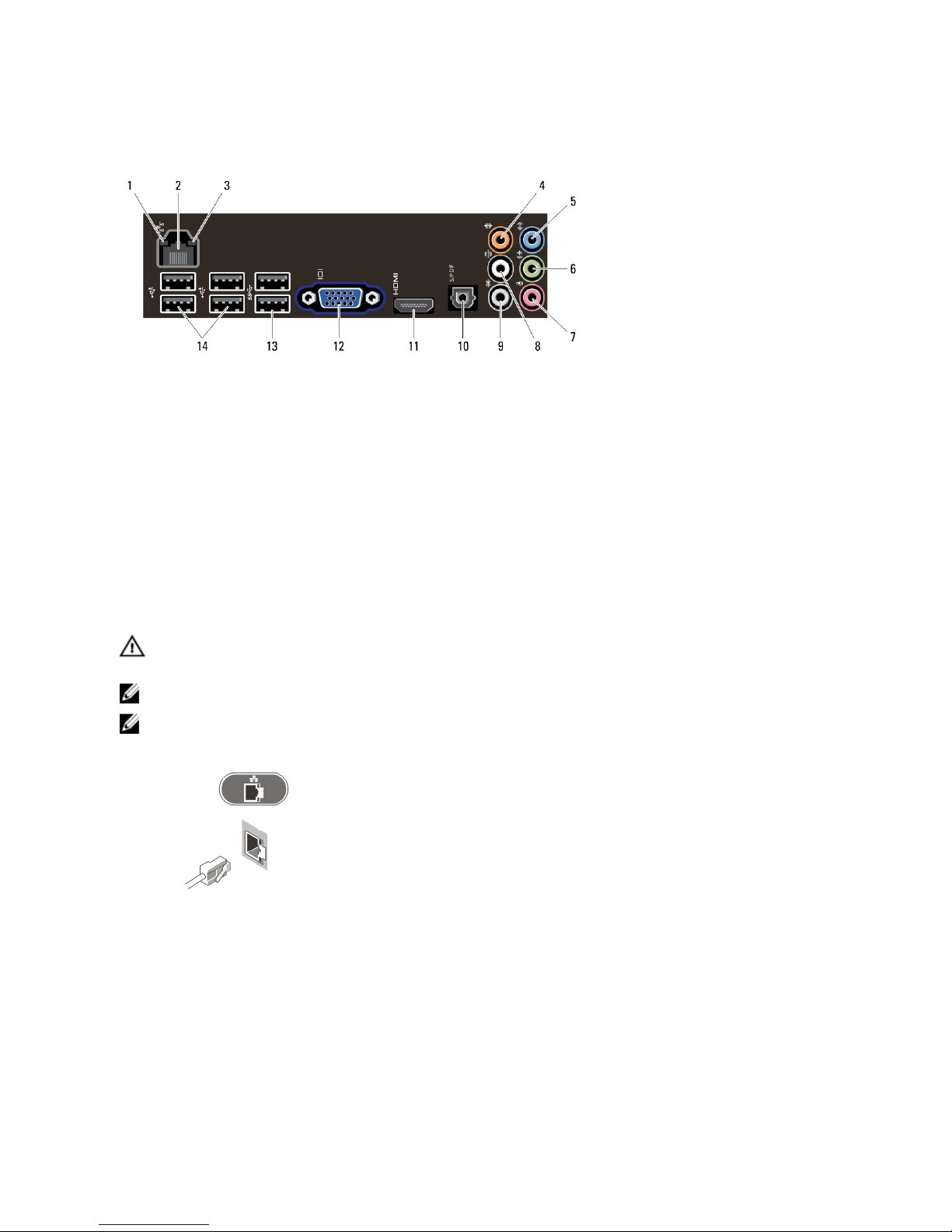

Figure 2. Back Panel

1. link integrity light

2. network adapter connector

3. network activity light

4. center/subwoofer connector

5. line-in connector

6. front L/R line-out connector

7. microphone connector

8. rear L/R speaker connector

9. side L/R surround connector

10. S/PDIF connector

11. HDMI connector

12. VGA connector

13. USB 3.0 connectors (2)

14. USB 2.0 connectors (4)

Quick Setup

WARNING: Before you begin any of the procedures in this section, read the safety information that shipped with

your computer. For additional best practices information, see www.dell.com/regulatory_compliance.

NOTE: Some devices may not be included if you did not order them.

NOTE: Some cables may not be shipped with your computer.

1. Connect the network cable (optional).

Figure 3. Network Connection

2. Connect the telephone cable (optional).

Figure 4. Telephone Connection

3. If you purchased the optional discrete graphics card, connect the display to the connector on the discrete graphics

card. Otherwise, connect the display using either the integrated VGA or HDMI connector. Connect the monitor

using only one of the following cables:

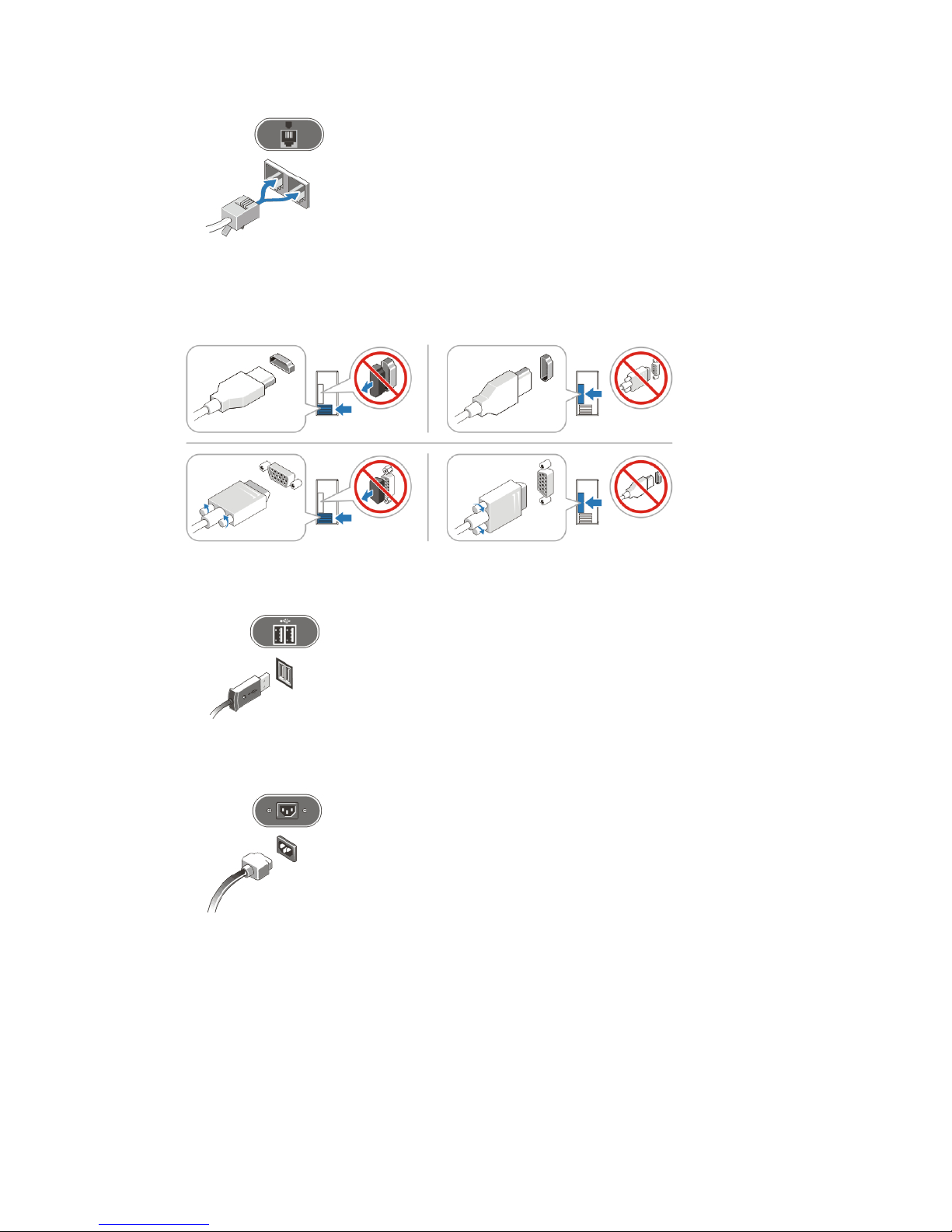

Figure 5. VGA Connector And HDMI Connector

4. Connect the USB keyboard or mouse (optional).

Figure 6. USB Connection

5. Connect the power cable(s).

Figure 7. Connecting Power

6. Press the power buttons on the monitor and the computer.

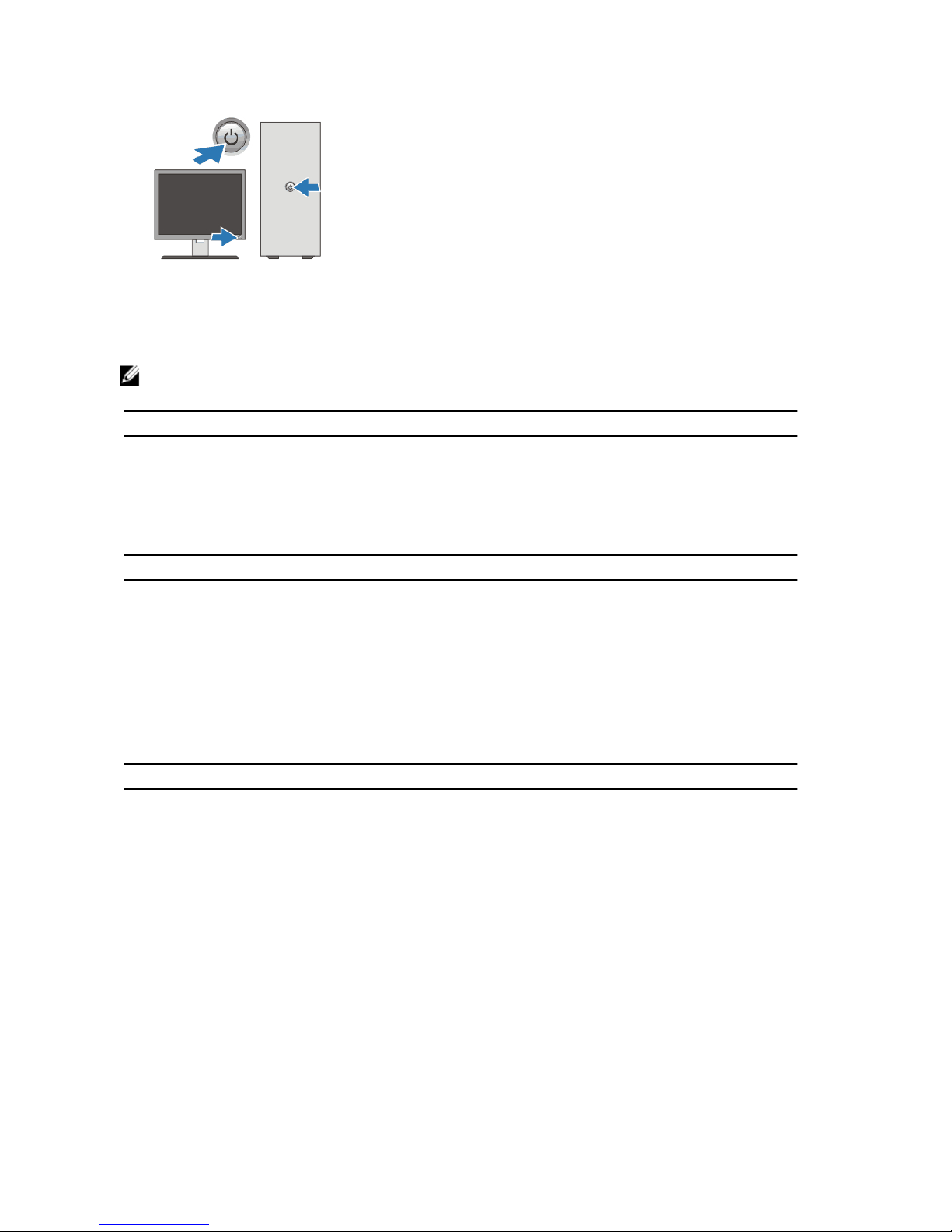

Figure 8. Turning On Power

Specifications

NOTE: The following specifications are only those required by law to ship with your computer. For a complete and

current listing of the specifications for your computer, go to support.dell.com.

Power

Wattage 350 W/460 W

Voltage (see the safety information that shipped with your

computer for important voltage–setting information)

100 V-127 V/200 V-240 V, 50 Hz/60 Hz, 8 A/4 A

Coin-cell battery 3 V CR2032 lithium coin cell

Physical

Height

without base 360.00 mm (14.17 inches)

with base 362.90 mm (14.29 inches)

Width 175.00 mm (6.89 inches)

Depth 445.00 mm (17.52 inches)

Weight 9.66 kg – 11.22 kg (21.30 lb – 24.74 lb)

Environmental

Operating Temperature: 10 °C to 35 °C (50 °F to 95 °F)

Information para NOM (únicamente para México)

Voltaje de alimentación 100 V CA – 127 V CA/ 200 V– 240 V CA

Frecuencia 50 Hz/60 Hz

Consumo eléctrico 8 A/4 A

Voltaje de salida N/A

Intensidad de salida N/A

Finding More Information and Resources

See the safety and regulatory documents that shipped with your computer and the regulatory compliance website at

www.dell.com/regulatory_compliance for more information on:

• Safety best practices

• Regulatory certification

• Ergonomics

See www.dell.com for additional information on:

• Warranty

• Terms and Conditions (U.S. only)

• End User License Agreement

Additional information on your product is available at support.dell.com/manuals.

Information in this publication is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell™, the DELL logo, Dell Precision™, Precision ON™,ExpressCharge™, Latitude™, Latitude ON™,

OptiPlex™, Vostro™, and Wi-Fi Catcher™are trademarks of Dell Inc. Intel®, Pentium®, Xeon®, Core™, Atom™, Centrino®, and Celeron®

are registered trademarks or trademarks of Intel Corporation in the U.S. and other countries. AMD®is a registered trademark and

AMD Opteron™, AMD Phenom™, AMD Sempron™, AMD Athlon™, ATI Radeon™, and ATI FirePro™are trademarks of Advanced Micro

Devices, Inc. Microsoft®, Windows®, MS-DOS®, Windows Vista®, the Windows Vista start button, and Office Outlook®are either

trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. Blu-ray Disc™is a trademark

owned by the Blu-ray Disc Association (BDA) and licensed for use on discs and players. The Bluetooth®word mark is a registered

trademark and owned by the Bluetooth®SIG, Inc. and any use of such mark by Dell Inc. is under license. Wi-Fi®is a registered

trademark of Wireless Ethernet Compatibility Alliance, Inc.

Other trademarks and trade names may be used in this publication to refer to either the entities claiming the marks and names or their

products, Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.
