Dell PowerEdge C6145 Manuel utilisateur

Dell PowerEdge

C6145

Using the Baseboard

Management

Controller

___________

Information in this publication is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission

of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell™, the DELL logo, and PowerEdge™ are trademarks of

Dell Inc. Microsoft®and Windows®are registered trademarks of Microsoft Corporation.

Linux®is a registered trademark of Red Hat, Inc. in the United States and/or other

countries.

Other trademarks and trade names may be used in this publication to refer to either the

entities claiming the marks and names or their products. Dell Inc. disclaims any

proprietary interest in trademarks and trade names other than its own.

June 2013 Rev. A01

Contents | 3

Contents

1 Introduction................................................................................5

BMC Key Features and Functions ............................................................5

2 Using the Web UI .......................................................................6

Logging in to the Web User Interface .......................................................6

Remote Management Controller GUI Explained .......................................8

Logout ......................................................................................................8

System Information...................................................................................8

Server Health .........................................................................................10

Configuration ..........................................................................................12

Remote Control ......................................................................................21

Maintenance...........................................................................................32

3 Sensors Threshold ..................................................................37

Contents | 4

4 Events Table.............................................................................40

5 IPMI 1.5 / 2.0 Command Support List .....................................44

6 IPMI OEM Command List.........................................................52

Extended Configurations ........................................................................61

Appendix ......................................................................................71

SSH/Telnet Enable and Disable .............................................................71

SSH/Telnet Redirect Enable and Disable ...............................................72

VLAN ID .................................................................................................73

BMC/BIOS Version Info ..........................................................................74

Introduction | 5

Introduction

This section introduces the BMC and includes the requirements for web-based

graphical user interface (GUI), keyboard, video, and mouse (KVM), and virtual

media.

BMC Key Features and Functions

The following lists the supported features of the BMC:

•

Support for IPMI v1.5 and v2.0

•

Out-of-band monitoring and control for sever management over LAN

•

Dedicated 10/100 NIC for remote management over a network

•

Information which includes main board part number, product name,

manufacturer, and so on.

•

Health status/hardware monitoring report

•

View and clear events log.

•

Event notification using chassis LED indicator and Platform Event Trap

(PET)

•

Platform Event Filtering (PEF) to take selected action for selected events,

including NMI and SMI

•

Chassis management including power control and status report, front panel

buttons, LED control, Secure Mode, and Boot Option

•

Watchdog and auto server re-start and recovery

•

Multi-session user and alert destination for LAN channel

•

IPMB connector to enable advanced server management communication

with BMC

•

Support for APML v1.03

Using the WEB UI | 6

Using the Web UI

The BMC firmware features an embedded web server, enabling users to connect

to the BMC using an Internet browser (Microsoft Internet Explorer) without

needing to install KVM and virtual storage software on a remote console.

Web-based GUI is supported on the following browsers:

Microsoft Windows:

•

Internet Explorer 6 or later

•

Mozilla

Firefox

2.0017 or later

Linux

Mozilla Firefox 2.0017 or later

NOTE:

Before using the web user interface, ensure that the firewall settings are

configured to enable access to the following ports: 7578 (KVM),USB-CDROM:

5120, USB-FLOPPY: 5123.

Logging in to the Web User Interface

Enter the BMC-embedded server IP address or URL into the address bar of the

web browser. The BMC interface has a default of (DHCP\Static). Enter the

system BIOS setup with <F2> to change these settings.

When connecting to the BMC, the login screen prompts for the username and

password. This authentication with Secure Sockets Layer (SSL) protection

prevents unauthorized intruders from gaining access to the BMC web server.

Once authentication is passed, you can manage the server by privilege. At the

same time, the PHP Hypertext Preprocessor (PHP) records all user information,

including user ID and privilege.

Using the WEB UI | 7

Using Your Remote Management Controller:

The Remote Management Controller has a user-friendly Graphics User Interface

(GUI) called the Remote Management Controller GUI. It is designed to be easy

to use. It has a low learning curve because it uses a standard Internet browser.

Default User Name and Password

When you first try to access your Remote Management Controller, you are

prompted to enter a user name and password. Table 1-1 lists the user name and

password for logging on to the Remote Management Controller.

Table 2-1. BMC Default User Name and Password

Field

Default

User Name

Root

Password

Root

NOTE:

The default user name and password are in lower-case characters.

NOTE:

When you log in using the root user name and password, you have

administrative powers. Change your root password after logging in for the first

time.

Using the WEB UI | 8

Remote Management Controller GUI Explained

After you successfully log in to your Remote Management Controller, you are

greeted with the Remote Management Controller GUI.

Logout

Log out from your Remote Management Controller

The default timeout value is 30 seconds.

System Information

Click the

System Information

tab to view the Remote Management Controller.

The

System Information

tab enables you to view the System Power Status,

firmware revision, aux firmware revision, and build time.

Table 2-2. BMC Information

BMC Information

Description

System Power Status

On or Off

Firmware Revision

Remote Management Controller firmware revision.

Aux Firmware

Revision

Remote Management Controller firmware

aux revision.

Build Time Date the firmware was last built in the form:

MM DD YYYY HH:MM:SS

Using the WEB UI | 9

List FRU

The List FRU page shows a list of the detected Field Replaceable Units (FRUs)

in the system. Select a FRU item from the drop down list to show more

information.

Chassis Information

Lists the Type, Part Number and the Serial Number of the FRU.

Board Information

Lists the Manufacturer, Product Name, Serial Number and Part Number.

Product Information

Lists the Manufacturer Name, Product Name, Serial Number, Version, and Part

Number.

Using the WEB UI | 10

Server Health

The

Sensor

menu provides information about system hardware such as the fan

speed, internal temperature, and voltage.

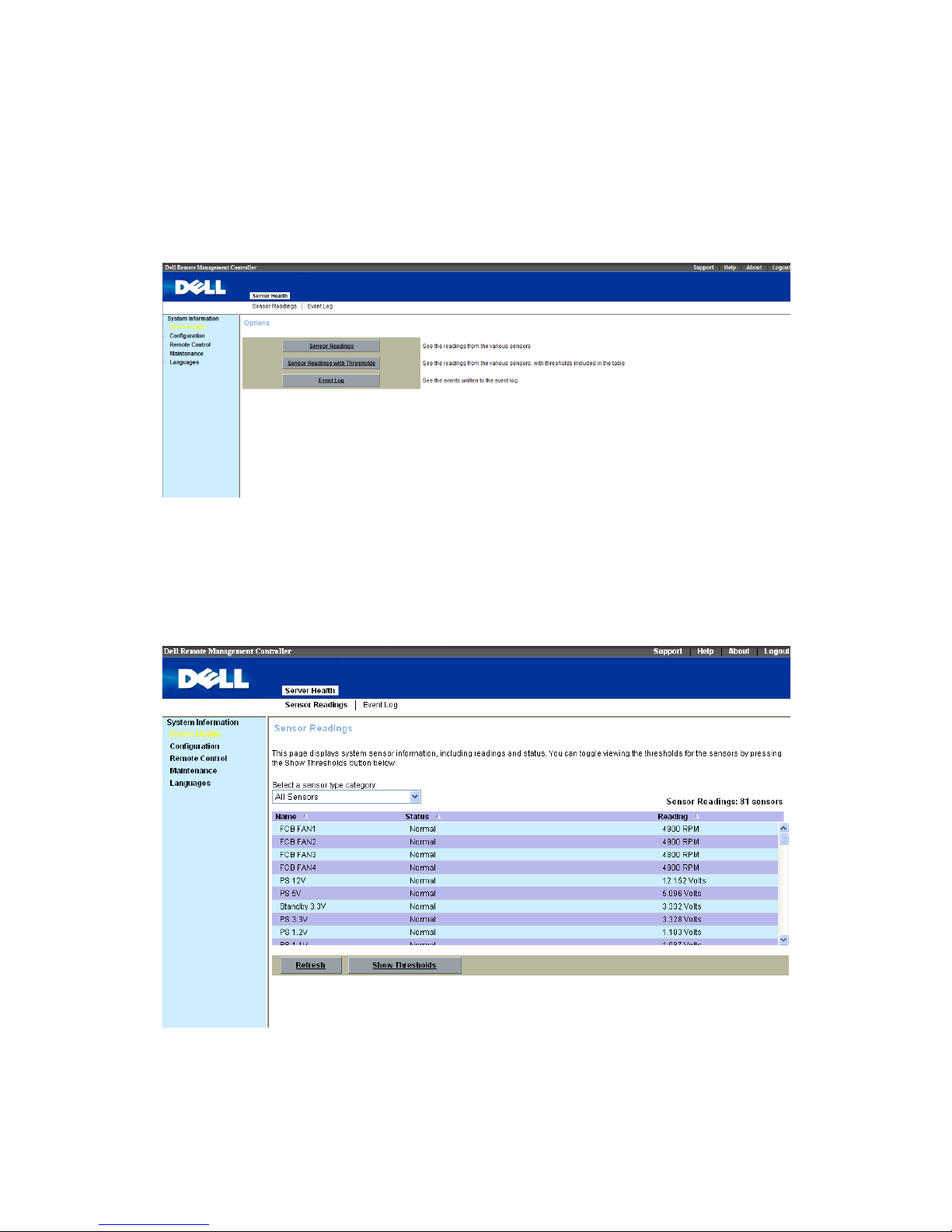

Sensor Readings & Sensor Readings with Thresholds

It reads the sensor information the system. You can

select a sensor type
