Datamax ST-3210 Manuel utilisateur



Connecting the

Printer

Serial Port

!Turn off the printer before

connecting cables

AC Power Connector

Parallel Port

Power On/Off Switch

USB Port

AC Power Connector

Serial Port

Parallel Port

Power On/Off Switch

USB Port



Controlling the

Printer

Indicator Lights:

ONLINE Indicates the printer is ready to accept data.

FAULT Indicates no ticket stock is detected or that a

mechanical malfunction has occurred.

POWER Indicates that main power to the printer is ‘On.’

Buttons:

PAUSE / F1 Allows the operator to temporarily stop printing

(pause mode) or to enter off-line mode.

FEED / F2 Allows the operator to advance the ticket stock to

the next print position.

TEST / F3 Allows the operator to print test tickets when the

printer is in off-line mode.

;

Note: More information

on the Front Panel can be

found in Section 3.4 of the

Operator’s Manual.

ST/SV 3210 & ST/SV 3306

Quick Start

Guide

Datamax International

Herbert House

12 Elizabeth Way, Pinnacles

Harlow, Essex CM19 5FE UK

Phone: +44 1279 772200

Fax: +44 1279 424448

Asia-Pacific

19 Loyang Way

#01-01 CILC Building

Singapore 508724

Phone: +65 542-2611

Fax: +65 542-3611

Corporate Headquarters

4501 Parkway Commerce Blvd.

Orlando, Fl 32808

Phone: 407-578-8007

Fax: 407-578-8377

For the latest products, news, and support visit

our web page at

www.datamaxcorp.com

With USB



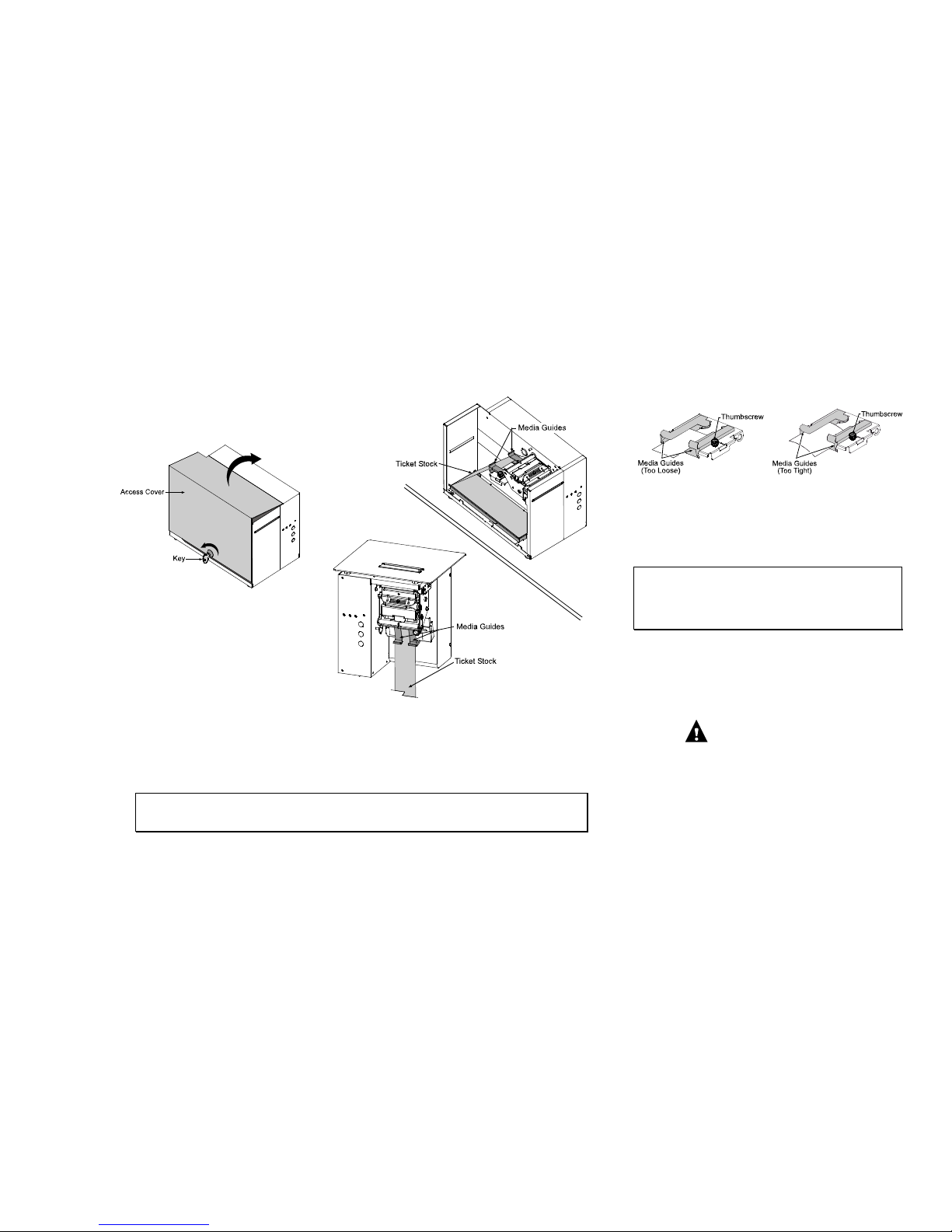

Ticket Stock

¾ST Models only: Unlock the Access

Cover then lift to open (for

convenience, the cover may be

removed by sliding it forward and

then lifting up).

¾Install Ticket Stock and insert it between the Media Guides.

¾Adjust the Media Guides to fit the Ticket Stock, then tighten

the Thumbscrew to secure.

¾Turn ‘On’ the Power Switch.

¾Slide the media through the Media Guides, continue until the

printer grabs the media and automatically completes the

loading process.

;

Note: When loading, ensure that the black marks on the

ticket stock face away from you. If the ticket stock does not

feed to the proper position, the Media Sensor may need

adjustment (see Section 4 of the Operator’s Manual for

instructions).



Printing a

Configuration

and Test

Pattern Ticket

¾With the Power Switch turned ‘Off’ and ticket stock loaded, press and hold the FEED Button while turning

the Power Switch ‘On.’ Continue to depress the FEED Button until printing begins.

¾After printing is complete, cycle the Power Switch ‘Off’ and ‘On’ to return the printer to the normal

operating mode.

;

Note: The printer maintains a selection of user-modifiable ticket setups, each with a specific print

width, start of print position, and cut/tear position. The default setting for these setups is Stock ID 5 (see

Section 4 of the Operator’s Manual for details).



Additional

Information

Be sure to follow and perform the

suggested cleaning schedule explained

in the Operator’s Manual.

Contacting Datamax…

Corporate Headquarters (407) 578-8007

Technical Support (407) 523-5540

For the latest products, news, and

support visit our web page at

www.datamaxcorp.com
