Datamax PrintPAD CN70 Manuel utilisateur

PrintPAD CN70

110287-000

User Guide

TABLE OF CONTENTS

PrintPAD CN70 Printer Views..................................................................................................... 1

Open View................................................................................................................................1

Closed View..............................................................................................................................1

Using Batteries: General Guidelines .......................................................................................... 1

Installing and/or Replacing Batteries ..........................................................................................2

Charging the Batteries and Handheld Computer ...................................................................... 2

Determining Battery Condition .................................................................................................. 3

Installing the Driver .................................................................................................................. 3

Using a Handheld Computer (HHC) ........................................................................................... 3

Compatible Handheld Computers ............................................................................................... 3

Loading Paper ............................................................................................................................. 4

Printing a Self-Test..................................................................................................................... 5

Configuring the Printer .............................................................................................................. 5

Using the Printer Data Cables.................................................................................................... 5

Using Bluetooth .......................................................................................................................... 6

Bluetooth Parameters................................................................................................................ 6

PrintPAD CN70 Indicators.......................................................................................................... 6

Power LEDs .............................................................................................................................. 6

Audio Indicators........................................................................................................................ 7

Radio LED ................................................................................................................................7

Power LED................................................................................................................................7

CardReader Audio Indicators......................................................................................................7

Using DEX/UCS Capabilities....................................................................................................... 7

Using a CardReader .................................................................................................................... 8

General Guidelines .................................................................................................................... 8

CardReader Indicators............................................................................................................... 8

Using External Charging............................................................................................................. 8

Overview.................................................................................................................................. 8

Agency Approvals ..................................................................................................................... 10

Copyright and Supplies ............................................................................................................ 11

PrintPAD CN70 USER'S GUIDE

PrintPAD CN70 Printer Views

Open View

Closed View

Using Batteries: General Guidelines

The printer ships with two batteries installed, but they are not operational. Before operating the printer,

remove the two red, battery isolator labels either by gently pulling the labels out, or by lifting the batteries up.

If you are storing your printer for a long period of time or shipping it, reinstall the battery isolator labels.

Both batteries must be installed for your printer to operate properly.

Roller

Battery/battery cavity

Battery clip

Paper/paper cavity

Data port

Bluetooth button

Self-test/paper feed button

Battery Status LED

Radio LED

Power LED

Reset button

2.5 mm DC jack port

Battery

Status

Power LED

Handheld cavity

Latch

Paper opening

LEDs

DC power port

DEX/UCS port

Card Reader slot

Radio LED

PrintPAD CN70 USER'S GUIDE

Installing and/or Replacing Batteries

1. Open the printer by unsnapping the latch on the front of the case (Figure 1).

2. Lift the battery cover up by pushing the retainer clip inward with your finger (Figure 2).

3. Lift up the outside end of the battery to remove it.

4. Insert the new batteries. Verify the battery contacts are facing down and are facing the outside edge of the printer

(Figure 3).

5. Close the battery cover by snapping it into place.

Charging the Batteries and Handheld Computer

If the battery is low when the printer “wakes up,” the printer sounds three short beeps.

1. Remove the red battery isolator labels, if necessary.

2. Plug the power supply connector into the printer's external DC port. The DC port is located on the side of the

printer's case (Figure 4).

3. Plug the adapter in an appropriate power source.

Figure 1 Figure 2

Figure 3

Contacts

Figure 4

DC power port

(Input Voltage: 12V 1.5A MIN)

DEX/UCS port

PrintPAD CN70 USER'S GUIDE

The Charge LED flashes red when charging and flashes green when fully charged. The Charge LED is visible when the

printer's lid is open or closed. A complete charge takes approximately 7-9 hours. For more information on the Charge

LEDs, see

PrintPAD CN70 LEDs and Indicators on page 6

Determining Battery Condition

You can determine the relative battery condition by printing a self-test. For more information, see

Printing a Self-Test

on page 5

. On the printout, “Battery Volt” varies between 6.8 and 8.4 volts.

Installing the Driver

1. Go to www.datamax-oneil.com and click

Support

to obtain the appropriate driver for the PrintPAD CN70.

2. Install the driver onto the handheld computer.

Using a Handheld Computer (HHC)

1. Insert the handheld into the cavity by sliding it in from the top.

2. Press down until the handheld is fully latched and seated.

Compatible Handheld Computers

Note: To obtain full battery capacity, a new battery must cycle through two to three charges. To restart a charge,

unplug the power cord. Wait 30 seconds, then replug the power cord.

The CN70 Handheld Computer will charge while power is plugged into the DC power port.

Caution: Do not plug DC power into the internal and external power ports at the same time.

Do not plug the DC power supply into the printer if the printer is being charged by means of external charge

contacts.

Caution: There is a risk of explosion if the battery is replaced by an incorrect type. Dispose of used batteries

according to the instructions.

The operating temperature of this portable printer is 50° C. However, the operating temperature when used with

Datamax-O’Neil power supply for charging the portable printer is limited to 40° C. Charge the printer in a suitable

location that meets this temperature requirement.

(For US/Canada) Use only the Datamax-O’Neil part number 220240-100 power supply with this product.

Note: Before using the CN70, it is necessary that the appropriate USB driver is installed. Refer to the USB

Installation Guide for more information.

Note: The PrintPad CN70 series is intended for use with the UL Listed Accessory Handheld Computer Intermec

Technologies Corp 1000CP01 series or the UL Listed Accessory Handheld Computer Intermec Technologies Corp

1000CP02 series.

PrintPAD CN70 USER'S GUIDE

Loading Paper

1. Press a new roll of paper into the paper cavity. The end of the roll should exit from the bottom of the paper cavity

and face the printer's roller (Figure 8). When properly installed, the roll of paper “latches” into place.

2. Raise the printhead release lever until it is fully open. The lever clicks midway at the partially open position;

however, do not stop here, continue to raise the lever until it is fully open (Figure 9).

3. Wake up the printer by momentarily pressing the red self-test button (Figure 10).

4. Feed the end of the paper and center it under the roller until the paper exits from the top of the printhead (Figure

11). The printer has an auto advance feature that will aid moving the paper through the printer. Verify the paper

exits straight.

5. Lower the printhead release lever (Figure 12).

6. Remove any excess paper by grasping the top corner of the paper and pulling it up and away.

7. Close and latch the printer's cover.

Figure 8

Roller

End of paper roll

Paper latch

Figure 9 Figure 10

Printhead

release lever

Self-test

button

Figure 11 Figure 12

PrintPAD CN70 USER'S GUIDE

Printing a Self-Test

1. Open the printer's cover.

2. Press and hold the red self-test button for 4-5 seconds, until the printer starts to print (Figure 13).

3. After printing starts, release the red self-test button.

Configuring the Printer

The printer has many configurable settings. To configure or upgrade firmware, download the Windows configuration

program at www.datamax-oneil.com.

Using the Printer Data Cables

1. Select the appropriate cable for use with the host and/or device you are using.

2. Insert the plug into the printer’s data port (Figure 14).

Note: Do not close the lid or damage will occur to the cable. The data cable is intended only for reflashing the

printer.

Figure 13

Figure 14

PrintPAD CN70 USER'S GUIDE

Using Bluetooth

Radio printers are configured with default factory settings. To determine your printer's radio configuration, print a

self-test. (For more information, see

Printing a Self-Test on page 5

.) If you have multiple printers, configure them

specifically for use in your environment.

For proper system operation, set the following parameters on your printer and host computer:

Bluetooth Parameters

Device Name

Authentication

Bondable

Discoverable

Connectable

Encryption

Contact your network administrator to verify the proper radio settings for your environment.

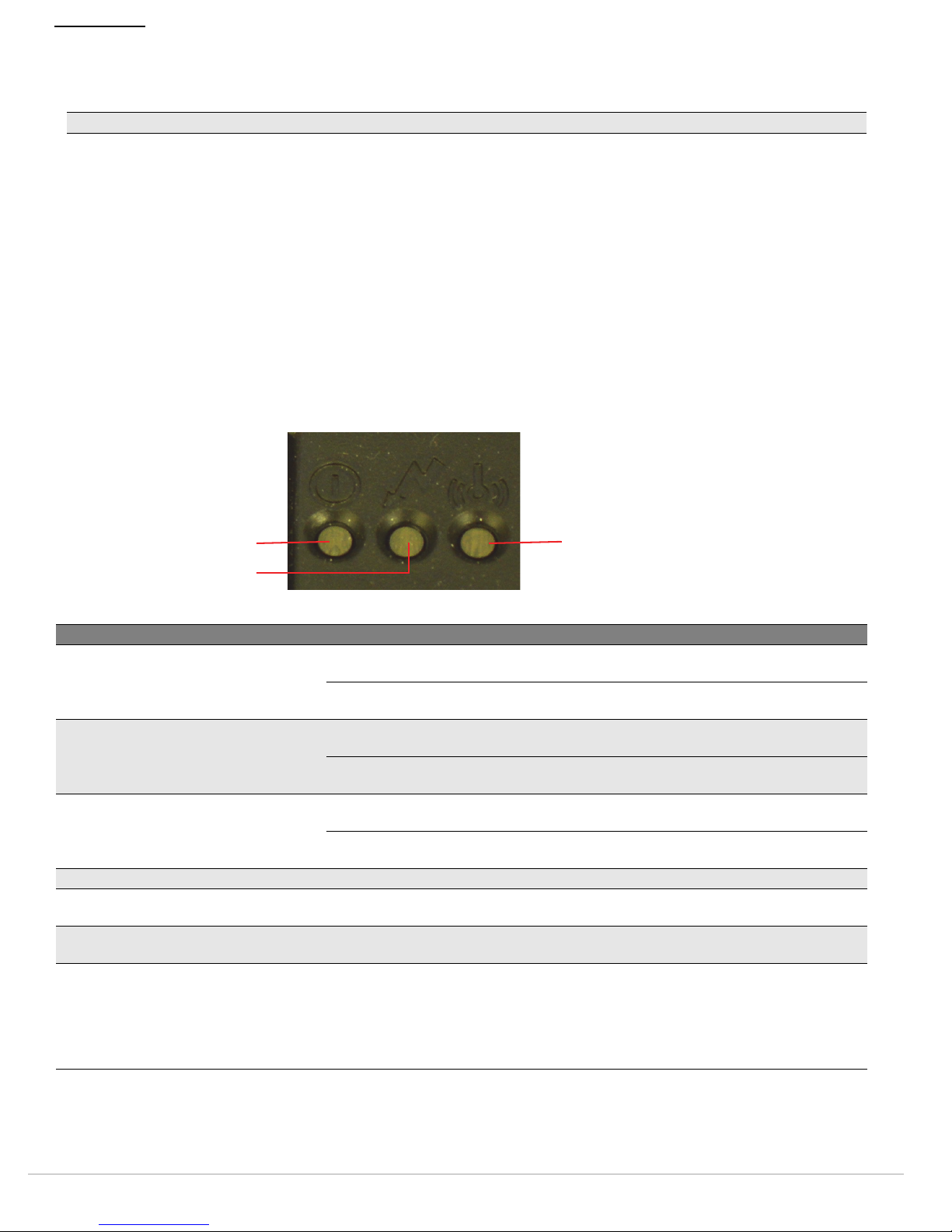

PrintPAD CN70 LEDs and Indicators

Power LEDs

Note: The following information applies to printers with Bluetooth capabilities.

Battery Status LED Description Action

Red (solid):

The battery has less than 5% power.

• If A/C power is not plugged in, the

printer will soon turn off.

• Charge the battery.

• If A/C power is plugged in, the LED

flashes and charging is in progress.

• None. Wait for the charge LED to turn

green.

Orange (solid):

The battery has less than 25% power.

• If A/C power is not plugged in, indicates

the battery charge is low.

• Charge the battery.

• If A/C power is plugged in, the LED

flashes and charging is in progress.

• None. Wait for the charge LED to turn

green.

Green (solid):

The battery is near, or at, full capacity.

• If A/C power is not plugged in, the

battery is well charged.

None.

• If A/C power is plugged in, the LED is

solid and charging is complete.

None.

Red to orange flash - fast Battery voltage is too high. Replace battery.

Orange flash - slow Charge has timed out. Restart battery charge (battery may be

bad).

Orange flash - fast Internal code error. Remove the battery, then re-connect A/C

power.

Orange, red, or green flash - fast When the AC adapter is plugged into the

printer's power port, the battery status

LED flashes orange, red, or green

(depending on the battery status LED color

that is initially displayed) to indicate the AC

adapter is plugged in.

None.

Power LED Radio LED

Battery Status LED

PrintPAD CN70 USER'S GUIDE

Audio Indicators

Radio LED

Power LED

CardReader Audio Indicators

Magnetic

Using DEX/UCS Capabilities

The direct exchange (DEX)/UCS port can only be used with the Datamax-O’Neil approved DEX cable (P/N 210237-

xxx). When the DEX cable is plugged into the data port, the printer automatically turns off to allow data transfer

between the handheld and the DEX port. Remove the DEX cable to resume connection to the printer.

Beep(s) Description Action

1 Printer wakes up. None.

2Out of paper. Install paper.

3 Low battery. Charge battery.

1 short RF power is on (when blue, RF power button is pressed and

power was turned off).

None.

2 short RF power is off (when blue, RF power button is pressed and

power was turned on).

None.

1 long Boot code is starting or restarting (when downloading new

firmware).

Redownload firmware.

8 short CRC error in firmware. Redownload firmware.

Radio LED

Blue flash - slow RF power is on and printer is asleep.

Blue flash - fast RF power is on and printer is awake.

Off RF power is off.

Power LED Description

Off Printer is asleep.

Red flash Paper out.

Green Unit is awake.

Beep(s) Description Action

1 long Bad read. None.

2 short Good read. None.

Note:

Do not unplug the cable in the middle of a data transfer session.

Your application needs to be programmed to communicate in the DEX/UCS language.

Figure 15

DEX/UCS port

PrintPAD CN70 USER'S GUIDE

Using a CardReader

General Guidelines

To wake up the CardReader, insert a card into the CardReader slot. One short beep indicates the CardReader/

printer is awake.

If you are using a Magnetic CardReader, insert a card with the stripe facing away from the printer. The card

can be swiped in either direction.

For information on CardReader LED indicators and audio indicators, see

CardReader Indicators on page 8.

CardReader Indicators

Audio Indicators

Using External Charging

Overview

External charge-capable printers have two charging contact points located on the back of the printer's case (Figure

17).

Note:

The following information applies to printers with the CardReader option.

Beep Description Action

1 long Bad read. Swipt card again.

2 short Good read. None.

Note:

he following information applies to printers installed with external charge capabilities.

Figure 16

Figure 17

(2) Charging contact points

Autres manuels pour PrintPAD CN70

Table des matières

Autres manuels Datamax Imprimante

Datamax

Datamax MP Compact4 Mark II Manuel utilisateur

Datamax

Datamax ANDES 3 Manuel utilisateur

Datamax

Datamax H Class Manuel utilisateur

Datamax

Datamax Mark II E-4205e Manuel utilisateur

Datamax

Datamax OC-3 Series Manuel utilisateur

Datamax

Datamax ST-3210 Manuel utilisateur

Datamax

Datamax E-Class Mark II Manuel utilisateur

Datamax

Datamax A-Class A-4310 Manuel d'utilisation et d'entretien

Datamax

Datamax H-4212X Manuel utilisateur

Datamax

Datamax MICROFLASH 4TE Manuel utilisateur

Datamax

Datamax MP-Compact4 Manuel utilisateur

Datamax

Datamax I-4206 Manuel utilisateur

Datamax

Datamax M-Class Mark II M-4206 Manuel utilisateur

Datamax

Datamax MICROFLASH 4T Manuel utilisateur

Datamax

Datamax I-Class Mark II Manuel utilisateur

Datamax

Datamax PrintPAD CN70 Manuel utilisateur

Datamax

Datamax Mark II M-4210 Mode d’emploi

Datamax

Datamax Performance series Manuel utilisateur

Datamax

Datamax A-Class Mark II Manuel utilisateur

Datamax

Datamax OC2 BT Mode d’emploi

Datamax

Datamax H-Class H-6 Series Manuel utilisateur

Datamax

Datamax Label Printer Manuel utilisateur

Datamax

Datamax M-Class Mark II Manuel utilisateur

Datamax

Datamax W-6208 Manuel utilisateur

Manuels Imprimante populaires d'autres marques

Lexmark

Lexmark 1400 Series Manuel

Canon

Canon i70 Series Manuel utilisateur

Evolis

Evolis Elypso Manuel utilisateur

Kyocera

Kyocera FS-9530DN Manuel utilisateur

Canon

Canon LASER SHOT LBP-1210 Manuel utilisateur

Samsung

Samsung BIXOLON SRP-350plusF Manuel utilisateur

Canon

Canon PIXMA PRO-1 Series Manuel utilisateur

Canon

Canon PIXMA G3560 Guide de configuration

Dell

Dell Color Laser Printer 2130cn Manuel utilisateur

Tektronix

Tektronix Phaser 840 Manuel utilisateur

Epson

Epson ET-7750 Mode d'emploi

Canon

Canon CLBR 460ps Manuel utilisateur

Eltron

Eltron P210 Guide Manuel utilisateur

Ricoh

Ricoh MD-P1 Manuel utilisateur

Epson

Epson SC-F7100 series Manuel utilisateur

Epson

Epson Stylus C40UX Manuel utilisateur

Canon

Canon imagePASS-A2 Manuel utilisateur

Canon

Canon S820D Manuel utilisateur
