Datamax H-Class Manuel utilisateur
Linear Scanner Option
92-2435-01 Rev.C
1
Overview
With the H-Class Linear Scanner option and menu-selectable functions that include voiding and
replacement generation, labels can be interrogated at up to 700 times per second to ensure that correct,
readable symbologies have been printed.
Use the sections of this document to find needed information. As a starting point, if your Linear Scanner
arrived factory-installed, see “Controls and Features, Performance, and Configuration” to begin use;
otherwise, proceed to “Installation.”
Installation
If installing the kit, verify the experience level of the installer, the package contents, and the tools needed
before following the steps below.
CAUTION
Only qualified service personnel should perform this installation. For your safety and to
avoid printer damage, always turn OFF the power switch and unplug the AC power cord
before this installation and whenever performing service.
Contents of the Linear Scanner Kit
In addition to this document, this kit contains the following items:
Scanner and Mounting Assembly
Philips Screw (3), M4 x 12
Nut (2), M3 x .5
Philips Screw (2), M3 x 20
Cable Assembly
5
1
2
4
3
Tools Required
To install this option a small standard screwdriver and a Philips screwdriver are needed.
2
1) Turn OFF the Power Switch and unplug the
power cord from the AC Receptacle.
AC Receptacle
Power Switch
2) Press down on the Catch, then pull forward to remove
the Door.
Door
Catch
3) Raise the Cover. Loosen both Hinge
Screws. Remove the three Cover Screws,
and then lift the Cover off the printer.
Remove any media and ribbon from the
printer.
Cover
Cover
Screws
Hinge
Screws
3

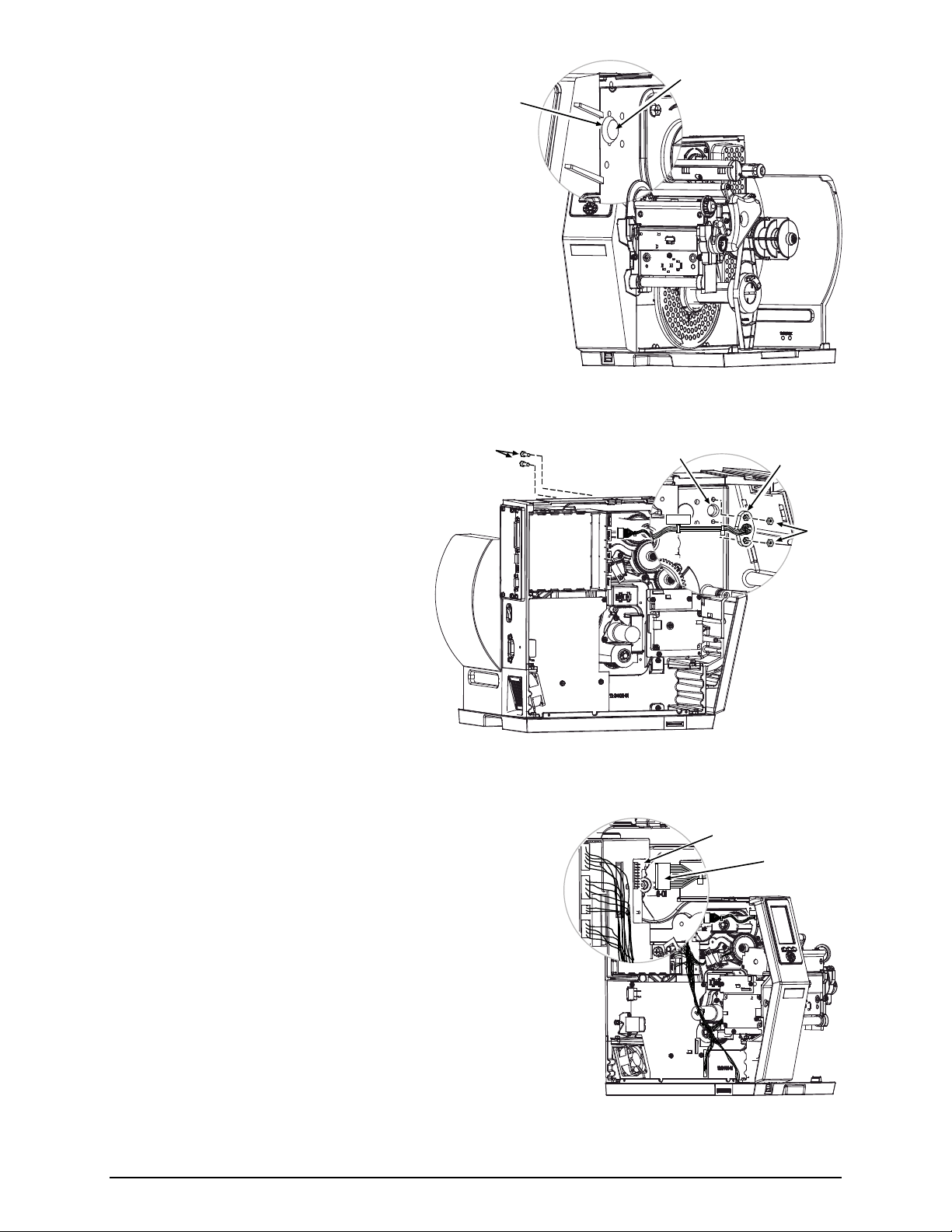

4) Remove the Plug from the Center Plate
Aperture.
Center Plate
Aperture Plug
5) Secure the mini-din connector of the
Cable Assembly (Item 5) to the Center
Plate Aperture using two Screws (Item
4) and two Nuts (Item 3).
Screws Center Plate
Aperture
Nuts
Cable
Assembly
6) After routing the Cable Assembly away from movable
parts, attach its 8-pin connector to J13 of the Backplane
CCA.
Cable
Assembly
J13
Backplane
CCA
4
7) Secure the Scanner and Mounting
Assembly (Item 1) to the Center Plate
using three Screws (Item 2).
Screws Scanner and
Mounting Assembly
Center Plate
8) Connect the Scanner Cable to the Center
Plate Connector.
Center Plate
Connector Scanner
Cable
9) Remove the five Screws that secure the Fascia to the
Cover.
Screws
Cover
Fascia
5
10) Press the Tabs of the Lens together. Then slide the Lens off
the Fascia. (Store the Lens in a safe place, for future use.)
Lens
Fascia
Tabs
11) Secure the Fascia to the Cover using the five
previously removed Screws.
Fascia
Screws
12) Lower the Cover onto the printer. Reinstall and
tighten the three Cover Screws.Tighten both
Hinge Screws. Reinstall the Door and lower
the Cover.Plug the power cord into the AC
Receptacle. Align the scanner; see “Alignment”
section, below.
Door
Cover
Hinge
Screws
Cover
Screws
6
Controls and Features, Performance, and Configuration
This section includes topics on operations.
Controls and Features
Item Function Location
Connector Cable Scanner to printer interface.
Horizontal Mount Lateral position adjustment.
Mounting Bracket Horizontal support.
Pivoting Mount Spring-loaded holder, also for vertical
Scanner positioning (scan resolution).
Scanner CCD scanning device.
Thumbscrew
Secures the Scanner to the
Horizontal Mount, for lateral
positioning.
Mounting
Bracket
Thumbscrew
Pivoting
Mount
Horizontal
Mount
Scanner
Connector
Cable
LED Goes green to signify a “good” read.
Window Portal for image illumination and
capture; glows red.
Window
LED
Scanner
CAUTION
The Pivot Mount should never be over-extended. The use of controls, adjustments, or
procedures other than those specified herein may result in hazardous LED light exposure.
Class 1 LED power up to 15 mW in a 0.1 ms pulse at 635-670 nm could be accessible in
the interior of the Linear Scanner.
Performance Considerations
Printing with the scanner is a seamless operation; however, consider some important factors that can
affect performance:
7
Integrity and Speed
If the primary objective is to ensure that correct data is read over a significant region of the
symbology, maximize integrity by (1) increasing the REDUNDANCY LEVEL or the MIN
READABLE HEIGHT setting, (2) slowing the print speed, and (3) increasing the bar code height.
When emphasizing data accuracy, the allowable maximum throughput rate may be affected.
If the primary objective is to achieve the highest label throughput rate, maximize speed by (1)
decreasing the REDUNDANCY LEVEL or the MIN READABLE HEIGHT setting, and (2)
increasing the print speed. When emphasizing throughput, data reliability may be affected.
Media and Ribbon Selection
For best results use carbon-based inks on matte-finished label stocks to achieve a high print contrast.
Label Layout
For proper recognition, the Linear Scanner must be positioned over the bar codes, and the codes
used and the label layout must meet certain requirements:
The bar codes must be placed in the picket fence orientation, with proper quiet zones, and a
narrow bar resolution that is no less than the scan resolution position.
If encoding the same information in multiple-up bar codes arranged in ordered columns (see
below), allow at least ¼ inch of white space between the rows.
104 104 104
104 104 104
1/4 inch (6.5 mm)
Row
Column
Print
Direction
When printing bar codes on small labels, avoid the possible need for backup repositioning by
placing the code(s) near the leading edge of the label.
Although a reduction of print speed may actually improve throughput, to maintain proper
detection when printing small bar codes at high speeds the following parameters should not be
exceeded:
Minimum Bar Code Height Maximum Print Speed (IPS)*
1/16 inch (1.5 mm) 8
1/8 inch (3 mm) 10
* Inches per Second
8
Configuration
A printer equipped with the Linear Scanner arrives with these default settings:
Menu Location Function and Default Setting
PRINTER OPTIONS SCANNER
MODE = Auto
BARCODES = All, except IATA and codes with
certain addendums
BAR CODE COUNT = 00 (Auto Mode)
MIN READABLE HEIGHT = Disabled
REDUNDANCY LEVEL = 2X
IGNORE NO DATA = Disabled
SYSTEM SETTINGS FAULT HANDLING
FAULT HANDLING = Standard
VOID DISTANCE = 0.5 Inches
RETRY COUNT = 1
BACKFEED ON CLEAR = Disabled
COMMUNICATIONS HOST SETTINGS OPTION FEEDBACK = Disabled
Most settings can be changed via the User Interface, as described below:
Note: Before proceeding, ensure that the ADVANCED MENU is selected: Press MENU then go to
SYSTEM SETTINGS
MENU MODE
ADVANCED MENU and press ENTER.
WED 09:32A 06NOV2006
OFFLINE
PRINTER OPTIONS
EXIT ENTERSYSTEM
MODULES
PRESENT SENSOR
CUTTER
SCANNER
RFID
GPIO PORT
REWINDER
RFID
UP & DOWN
Buttons
ENTER Key
EXIT Key
MENU Button
To change SCANNER settings –
1) Press MENU. Use DOWN or UP to scroll to PRINTER OPTIONS, and then press ENTER.
2) Scroll to SCANNER and then press ENTER.(See table below for listing.)
3) When finished, press EXIT and then YES at the SAVE CHANGES prompt to complete setup.
