Datalogic DX8200A-3002 Manuel utilisateur

DX8200A-3002 QUICK GUIDE

DX8200A-3002

General View:

Figure A

Laser Beam Output Windows

Mounting Slots

Laser Safety Label

Mounting Reference Label

Figure B

Programming Keypad

Phase On LED (Yellow)

Power On LED (Green)

TX Data LED (Green)

Network LED (Red)

Encoder LED (Yellow)

LCD Display

Figure C

Lonworks 17-pin Male Connector

Lonworks 17-pin Female Connector

NOTE

For further details on product installation, see the complete Reference Manual available on the

configuration CD-ROM included with this product.

34 5 6

1 2

DX8200A-3002 QUICK GUIDE

Technical Features:

ELECTRICAL FEATURES

Supply voltage 20 to 30 Vdc

Power consumption 30 W typical

35 W Max. (including startup current)

Communication Interfaces Auxiliary Baud Rate

RS232 1200 to 115200

Other

Lonworks 1.25 Mb/s

OPTICAL FEATURES

Light receiver Avalanche photodiode

Wavelength 630 to 680 nm

Safety class Class 2 - EN60825-1; Class II - CDRH

Light source Up to 4 semiconductor laser diodes

Laser control Security system to turn laser off in case of motor slow down

READING FEATURES

Scan rate ≤1000 scans/s (500 per leg)

Maximum resolution

Max. reading distance

Max. reading width

Max. depth of field

(see reading diagrams on page 9)

USER INTERFACE

LCD Display 2 lines by 20 characters LCD

Keypad 3 keys

LED indicators Power On (green)

Phase On (yellow)

Encoder (yellow)

TX Data (green)

Network (red)

SOFTWARE FEATURES

Readable Codes Interleaved 2/5

Code 39 Standard

Codabar

Code 128

EAN 128

Code 93 (standard and full ASCII)

EAN/UPC (including Add-on 2 and Add-on 5)

Code selection Up to 10 codes during one reading phase

Operating modes PackTrack™

Configuration modes Genius™ utility program

Parameter storage Non-volatile internal FLASH

DX8200A-3002 QUICK GUIDE

ENVIRONMENTAL FEATURES

Operating temperature 0° to +50 °C (+32° to +122 °F)

Storage temperature -20° to +70 °C (-4° to +158 °F)

Humidity 90% non condensing

Ambient light immunity 20000 lux

Vibration resistance:

EN 60068-2-6

2 hours on each axis

Frequency range from 5 to 150 Hz;

Constant displacement 3 mm pk-pk from 5 to 9 Hz;

Constant acceleration 0.5 g from 9 to 150 Hz;

Shock resistance:

IEC 68-2-27 test EA

3 shocks on each axis 30 g; 11 ms

Protection Class IP65*

PHYSICAL FEATURES

Mechanical dimensions 470 x 300 x 141 mm (18.50 x 11.81 x 5.55 in)

Weight about 11 kg (24 lbs 3 oz)

* IP65 cables and connectors required (CAB-850x or BTK-8500).

Accessories:

NAME Description Part Number

PWO-480 Power and Connect System 480W 93ACC1767

FS-1 Frame Shaper (8 pcs) 93ACC1750

S30 Photocell Kit 93ACC1782

MEP-542 Photocell Kit - PNP 93ACC1727

MEP-543 Photocell Kit - NPN 93ACC1728

OEK-2 Optical Encoder Kit + 10 m cable + Spring 93ACC1770

OEK-1 Optical Encoder Kit + 10 m cable 93ACC1600

BTK-8100 Bus Terminator Kit (5 pcs) 93ACC1090

BTK-8500 IP65 Terminator Kit (2 pcs) 93A051286

PLL-8000 Optocoupled PLL device 93ACC1280

CAB-8100 10 wire shielded cable D 9.5 mm – 50 m 93ACC1120

CAB-8101 17-pin scanner/scanner connection cable 1.2 m 93A051020

CAB-8102 17-pin scanner/scanner connection cable 2.5 m 93A051030

CAB-8105 17-pin scanner/scanner connection cable 5 m 93A051040

CAB-8501 IP65 Cable Fam 8K 1,2 m 93A051283

CAB-8502 IP65 Cable Fam 8K 2,5 m 93A051284

CAB-8505 IP65 Cable Fam 8K 5 m 93A051285

Sentinel-5 Supervisor (up to 5 arrays) 93A101004

Sentinel-10 Supervisor (up to 10 arrays) 93A101005

Sentinel-32 Supervisor (up to 32 arrays) 93A101007

DX8200A-3002 QUICK GUIDE

Electrical Connections:

Two 17-pin connectors provide access to the scanner’s local Lonworks network used for both input and output

connections to build a multi-sided or omni-station system.

17-pin Lonworks Connector Pinout

Pin Name Function

A1 GND Supply voltage (negative pin)

A2 VS Supply voltage 20 to 30 Vdc (positive pin)

Cable shield A - internally connected by

1 CHASSIS capacitor to chassis

2 n.c. Not connected

Cable shield B - internally connected by

3 CHASSIS capacitor to chassis

4 TXAUX Transmit data of auxiliary RS232

(referred to SGND)

5 SGND Signal ground (connected to GND)

6 RXAUX Receive data of auxiliary RS232

(referred to SGND)

7 VS_I/O Supply voltage of I/O circuit

8 Lon A+ Lonworks a line (positive pin)

9 Lon A- Lonworks a line (negative pin)

10 Lon B+ Lonworks b line (positive pin)

11 Lon B- Lonworks b line (negative pin)

12 SYS_I/O System signal

13 SYS_ENC_I/O System signal

14 Reserved Internally connected

15 Ref_I/O Reference voltage of I/O circuit

A1 A2

Female - Output

A1 A2

Male - Input

17-pin Local Lonworks Connectors

DX8200A-3002 QUICK GUIDE

Connectivity:

DX8200A-3002 Typical Layout

Extended I/O

Host

HUB

ETHERNET

SC6000 AUX

CAB-SC6003

Power/Net

VAC INPUT

CAB-SC6103

Cable

PWO

LONWORKS

ENCODER

PS Aux

CAB-850x

CAB-850x CAB-850x

up to 3

scanners

per

branch

BTK8500

Bus Return

DX8200A-3002

DS8100A-3002

CAB-850x

up to 4

scanners per

branch

BTK8500

Bus Return

DX8200A-3002 DX8200A-3002

DS8100A-3002

CAB-850x CAB-850x

DX8200A-3002 QUICK GUIDE

Example of Redundant System Layout

AUX

CAB-SC6103

Extended I/O

ETHERNET

SC6000

CAB-SC6003

Power/Net

VAC INPUT

PWO

LONWORKS

ENCODER

PS Aux

CAB-850x

BTK8500

CAB-850X

CAB-850x CAB-850x

Extended I/O

ETHERNET

SC6000

CAB-SC6003

Power/Net

VAC INPUT

PWO

CAB-PWO 03

Redundancy

CAB-850X

CAB-850x CAB-850x BTK8500

DX8200A DX8200A DS8100A DS8100A

ENCODER

PS Aux

LONWORKS

Working

Controller

Protecting

Controlle

to Host

DX8200A DX8200A DS8100A DS8100A

DX8200A-3002 QUICK GUIDE

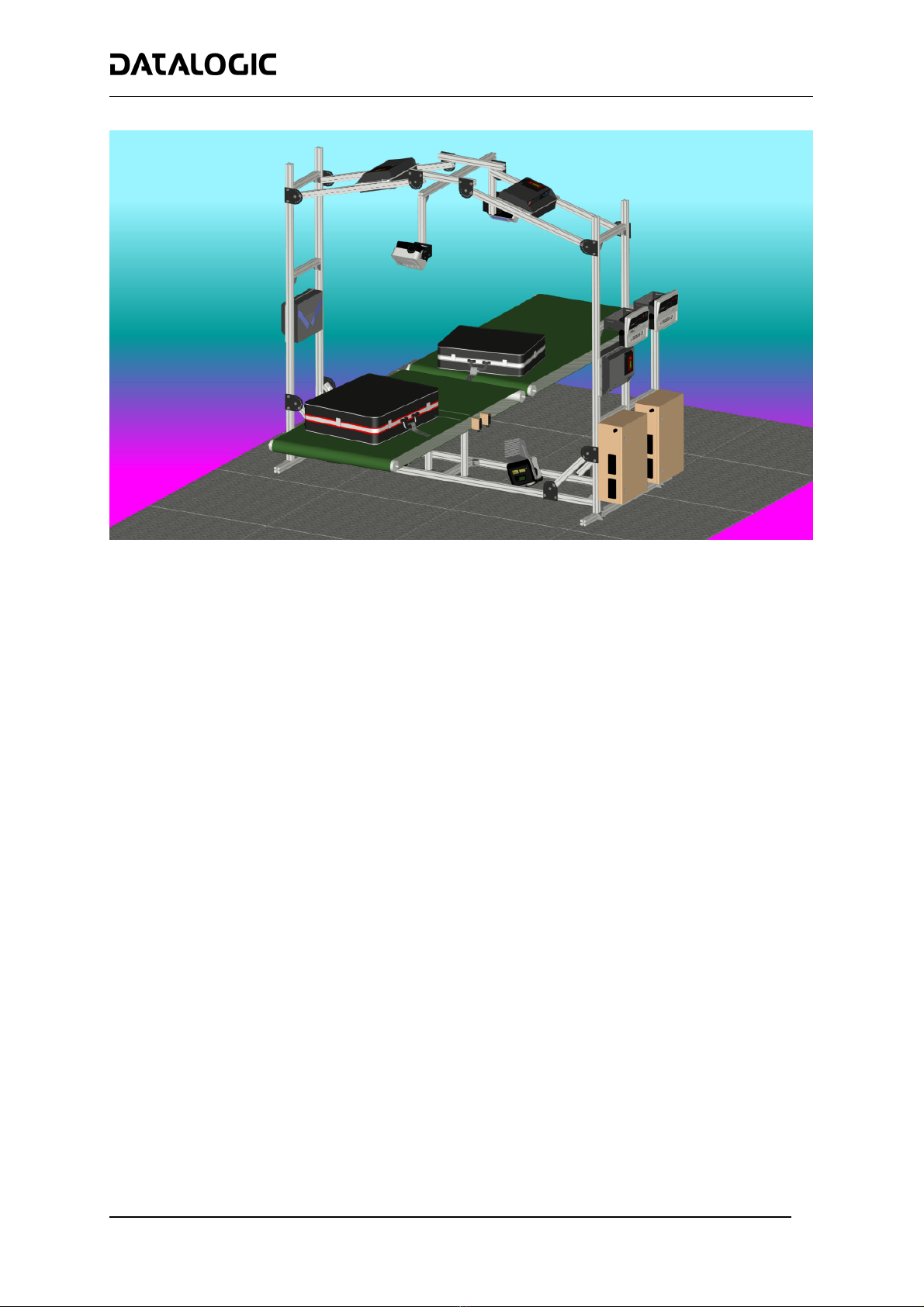

Example of Redundant System

DX8200A-3002 QUICK GUIDE

Mechanical Installation:

DX8200A-3002 can be installed to operate in any position. There are 4 slots (dia. 8.5 mm) on the sides of the

scanner for mounting. The diagram below can be used for installation; refer to the Reading Diagrams for correct

positioning of the scanner with respect to the reading zone and scanner orientation.

470

[18.50]

300

[11.81]

== 180

[7.09]

[0.87]

406

[15.98]

[0.87]

8.5

[0.33]

141

[5.55]

147

[5.79]

[0.39]

370

[14.57] ==

370

[14.57]

= =

60.5

[2.38]

70.5

[2.78]

N° 4

DX8200A-3002 Overall Dimensions

Scanner Direction

The different scanner orientations are illustrated in the following figures:

DX8200A-3002 Scanner Direction 0° (Forward) DX8200A-3002 Scanner Direction 180° (Reverse)

PackTrack™ Coordinate Reference Point

where x, y, z = 0

Top View

Conveyor Direction

Top View

Conveyor Direction

DX8200A-3002 QUICK GUIDE

Reading Diagrams:

Note: x = 0 and z = 0 correspond to the edge of the DX8200A-3002 scanner as shown in the figure below.

DX8200A-3002 (0.50 mm/20 mils)

CONDITIONS

Code = Interleaved 2/5 or Code 39

PCS = 0.90

0-24 -40 (in)

-32 -48

0-60 -80 (cm)

-100 -120 -140 -160

-56 -64

(in)

-30

-20

-10

(cm)

-50

-60

-70

-40

-12

-8

-4

-20

-24

-28

-16

-40

-15

Compliance:

Laser Safety

Figure A

Warning and Device Class Label

Figure B

Device Identification Label

The scanner is classified as a Class 2 laser product according to EN60825-1 regulations and as a Class II laser

product according to CDRH regulations.

Disconnect the power supply when opening the device during maintenance or installation to avoid exposure to

hazardous laser light.

There is a safety device, which allows the laser to be switched on only if the motor is rotating above the threshold

for its correct scanning speed.

DX8200A-3002 QUICK GUIDE

The laser beam can be switched off through a software command (see also the Genius™ Help On-Line).

LASER LIGHT

DO NOT STARE INTO BEAM

CLASS 2 LASER PRODUCT

MAXIMUM OUTPUT RADIATION 1 mW

EMITTED WAVELENGTH 630~680 nm

TO EN 60825-1:2001

CAUTION-CLASS 3B LASER LIGHT WHEN OPEN

AVOID EXPOSURE TO BEAM

LASER LIGHT EMITTED

FROM THIS

APERTURE

Warning and Device Class Label

Model No. Amp.

Serial No.

DATALOGIC S.P.A. Via Candini, 2

40012 Calderara di Reno - Bologna - Italy

Manufactured Volt

This product conforms to the applicable requirements

of 21CFR1040 at the date of manufacture.

Device Identification Label

The laser diodes used in this device are classified as Class 3B laser products according to EN 60825-1 regulations

and as Class IIIb laser products according to CDRH regulations. As it is not possible to apply a classification label

on the laser diodes used in this device, the following label is reproduced here:

LASER LIGHT

AVOID EXPOSURE TO BEAM

CLASS 3B LASER PRODUCT

MAXIMUM OUTPUT RADIATION 30 mW

EMITTED WAVELENGTH 630~680 nm

TO EN 60825-1 (2001)

Laser Diode Class Label

Any violation of the optic parts in particular can cause radiation up to the maximum level of the laser diode

(30 mW at 630~680 nm).

Power Supply

This product is intended to be installed by Qualified Personnel only.

- This scanner is intended to be supplied by either a UL Listed power supply marked 'Class 2' or 'LPS', output

rated 20 - 30 V dc, minimum 1.75 A or by a UL Listed computer with LPS outputs.

- This scanner must be supplied by a Class II Power Supply Unit conforming to the EN 60950 safety

regulation.

WEEE Compliance

Autres manuels pour DX8200A-3002

Table des matières

Autres manuels Datalogic Scanner

Datalogic

Datalogic MAGELLAN 3510HSi Manuel utilisateur

Datalogic

Datalogic PWR-480W Manuel utilisateur

Datalogic

Datalogic Matrix 120 Manuel d'installation et d'exploitation

Datalogic

Datalogic DLL2020 Manuel utilisateur

Datalogic

Datalogic Magellan 1100i Manuel utilisateur

Datalogic

Datalogic Matrix 450 Manuel utilisateur

Datalogic

Datalogic HS7500 Manuel utilisateur

Datalogic

Datalogic DS8100A Manuel utilisateur

Datalogic

Datalogic Magellan 9300i Manuel d'installation et d'exploitation

Datalogic

Datalogic Magellan 3450VSi Manuel d'installation et d'exploitation

Datalogic

Datalogic Heron HD3130 Manuel utilisateur

Datalogic

Datalogic DS2200 SH2348 Manuel utilisateur

Datalogic

Datalogic DS1100 SH2347 Manuel utilisateur

Datalogic

Datalogic Magellan 1100i Manuel utilisateur

Datalogic

Datalogic LS2200-1 Series Manuel utilisateur

Datalogic

Datalogic DS6300 Manuel utilisateur

Datalogic

Datalogic DLL5000 Series Manuel utilisateur

Datalogic

Datalogic BASIC HOLDER Manuel technique

Datalogic

Datalogic Matrix 300N Manuel d'installation et d'exploitation

Datalogic

Datalogic Magellan 9800i Manuel d'installation et d'exploitation

Datalogic

Datalogic Falcon 4410 Manuel d'installation et d'exploitation

Datalogic

Datalogic TC1100 Manuel utilisateur

Datalogic

Datalogic Magellan 1500i Manuel d'installation et d'exploitation

Datalogic

Datalogic Gryphon I GPS4400 Manuel utilisateur

Manuels Scanner populaires d'autres marques

Plustek

Plustek Scanner Manuel utilisateur

Z/I Imaging

Z/I Imaging PhotoScan 2001 Manuel utilisateur

Renkforce

Renkforce DS100-5M Manuel utilisateur

Image Access

Image Access WideTEK A2 Manuel utilisateur

Canon

Canon imageFORMULA CR-120N Manuel utilisateur

Fujitsu

Fujitsu FI-4860C2 Manuel utilisateur

GeoSlam

GeoSlam ZEB Horizon Instructions d'installation

Kodak

Kodak i5800 Scanner Manuel utilisateur

Kodak

Kodak i7300 Manuel utilisateur

Revopoint

Revopoint POP Manuel utilisateur

Fujitsu

Fujitsu fi-4860C Manuel utilisateur

Eddyfi Technologies

Eddyfi Technologies Floormap X Manuel utilisateur

Faselase

Faselase F6 Manuel utilisateur

Fujitsu

Fujitsu CardMinder Manuel utilisateur

Uniden

Uniden BC340CRS Manuel utilisateur

Infinite Peripherals

Infinite Peripherals INFINEA TAB M Manuel utilisateur

Mustek

Mustek PageExpress 4800 Pro Manuel utilisateur

Optex

Optex 750830 Manuel utilisateur
