Datalogic PWR-480W Manuel utilisateur

Datalogic S.r.l.

Via S. Vitalino 13

40012 Calderara di Reno

Italy

PWR-480W Installation Manual

Ed.: 05/2023

rights under copyright, no part of this documentation may be reproduced, stored in or introduced into a

retrieval system, or transmitted in any form or by any means, or for any purpose, without the express

written permission of Datalogic S.p.A. and/or its affiliates.

Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries,

including the U.S.A. and the E.U.

All other trademarks and brands are property of their respective owners.

Datalogic shall not be liable for technical or editorial errors or omissions contained herein, nor for

incidental or consequential damages resulting from the use of this material.

801000220 (Rev. B)

iii

CONTENTS

SAFETY REGULATIONS ...........................................................................................iv

GENERAL VIEW .........................................................................................................vi

1OPERATING FEATURES ............................................................................................1

1.1 Description....................................................................................................................1

1.2 Output Protection..........................................................................................................1

1.2.1 Short-Circuit Protection.................................................................................................1

1.2.2 Overload Protection ......................................................................................................2

2PRE-INSTALLATION CHECKLIST .............................................................................4

3MECHANICAL INSTALLATION ..................................................................................5

3.1 Cabinet Mounting..........................................................................................................5

3.2 Cable Insertion..............................................................................................................6

3.2.1 Cable Entry Plate..........................................................................................................6

3.2.2 Cable Compression Connector.....................................................................................7

4ELECTRICAL CONNECTIONS ...................................................................................8

4.1 DC Voltage Terminal Block...........................................................................................8

4.2 DM3610 Two-Head Dimensioning System Wiring........................................................9

5AC LINE INPUT VOLTAGE .......................................................................................12

6MAINTENANCE .........................................................................................................13

6.1 Air Filter Cleaning .......................................................................................................13

6.2 Cooling Fan Cleaning .................................................................................................13

7TECHNICAL FEATURES...........................................................................................14

SAFETY REGULATIONS

ELECTRICAL SAFETY

This product conforms to the applicable requirements contained in the following European

Standards:

•EN 61439-1

•EN 60204-1

•EN 60950-1 +A11 +A1 +A12 +A2

IMPORTANT:This symbol is used to bring the user’s attention to details that

are considered IMPORTANT.

HIGH VOLTAGE CAUTION: This symbol alerts the user they are about to

perform an action involving, either a dangerous level of voltage, or to warn

against an action that could result in damage to devices or electrical shock.

It also identifies a hazard or procedure that, if inco

rrectly performed, could

cause personal injury or result in equipment damage. Operations having this

symbol must be performed by qualified personnel only.

PRODUCT DATA LABEL

The Product data label is located on the outside door panel.

Figure 1 – Product Data Label

EUROPEAN DECLARATION OF CONFORMITY

Hereby, Datalogic S.r.l. declares that the full text of the European Declaration of Conformity

is available at: www.datalogic.com. Select the Support & Service > Downloads > Product

Certifications link where you can search your specific product certification.

UKCA DECLARATION OF CONFORMITY

Hereby, Datalogic S.r.l. declares that the full text of the UKCA Declaration of Conformity is

available at: www.datalogic.com. Select the Support & Service > Downloads > Product

Certifications link where you can search your specific product certification.

SUPPORT THROUGH THE WEBSITE

Datalogic provides several services as well as technical support through its website. Log on

to www.datalogic.com and click on the SUPPORT link which gives you access to:

•Downloads by selecting your product model from the dropdown list in the Search by

Product field for specific Data Sheets, Manuals, Software & Utilities, and Drawings;

•Repair Program for On-Line Return Material Authorizations (RMAs) plus Repair

Center contact information;

•Customer Service containing details about Maintenance Agreements;

•Technical Support through email or phone.

GENERAL VIEW

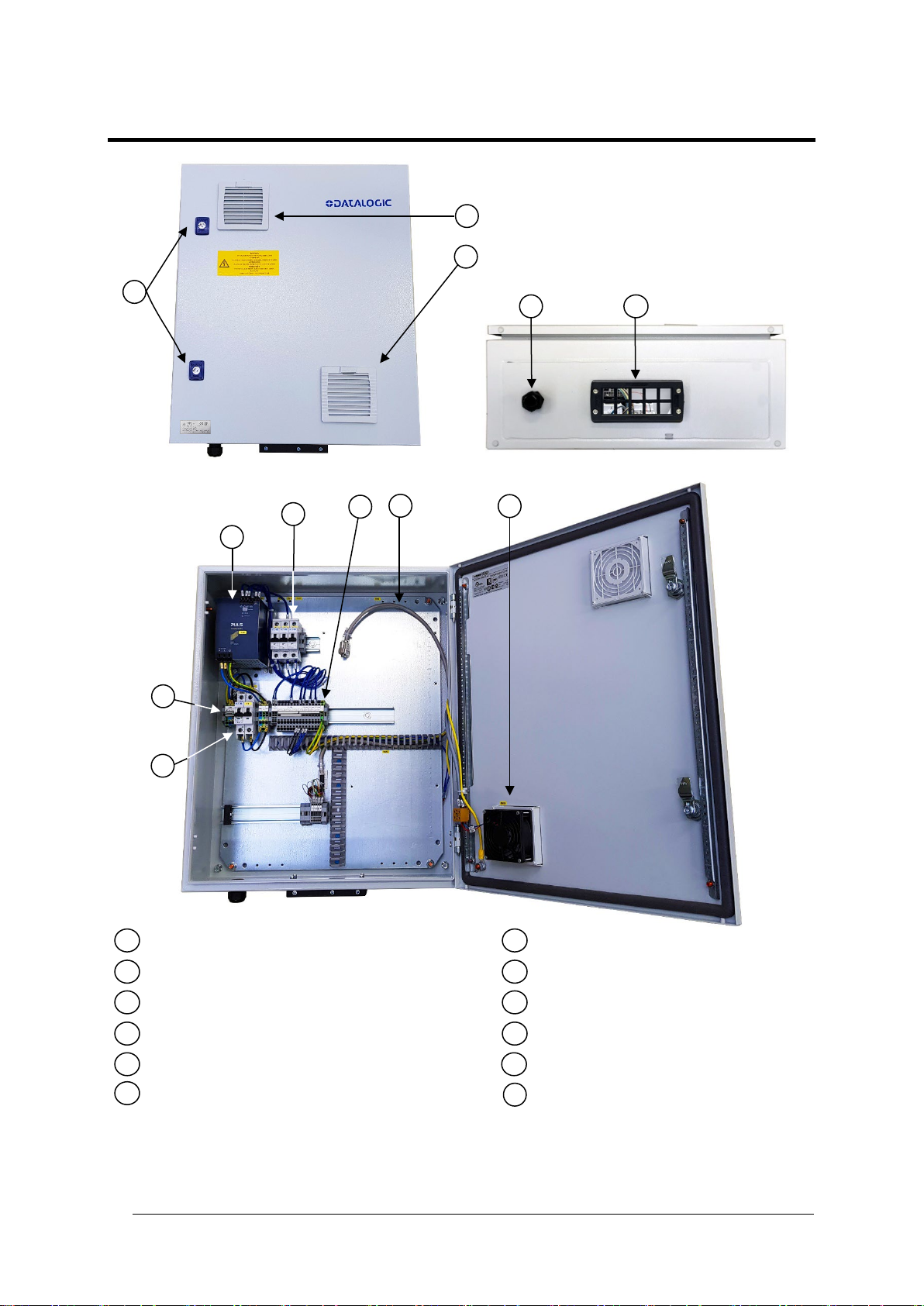

Figure 2 – PWR-480W General View

Key Locks

Filtered Air Intake

Filtered Cooling Fan Out

AC Line Input Compression Connector

Cable Entry Plate

Thermal-magnetic circuit breaker

Monophase Switching Power Supply

Low voltage thermal-magnetic circuit breakers

Serial Host Cable

AC Line Input Terminal Block

24 Vdc Terminal Block

Cooling Fan

OPERATING FEATURES

1 OPERATING FEATURES

1.1 DESCRIPTION

The PWR-480W is an electrical cabinet housing a 24 Vdc power supply which is used to

power up a varying number of reading devices (depending on the product), along with their

relative accessory devices. See chapter 4 for details.

As shown in the Electrical Diagram in Appendix A, the AC Input Line passes through a

protective thermo-magnetic circuit breaker and connects to the monophase switching power

supply.

The 24 Vdc output power is connected to the output terminal blocks divided into two

sections: a direct connection block and a current-limiting block (composed of three sections).

While the direct connection block is protected by the internal power supply features, the

current limiting block is protected by three Miniature circuit breakers (MCB), 4 A, 1p, C-Char.

Two output power supply status monitoring signals (DC-OK) are provided to connect to an

optional digital alarm. If for some reason the output voltage is reduced by less than 90% of

nominal, these lines open.

1.2 OUTPUT PROTECTION

The power supply implements both output short-circuit and overload protection.

1.2.1 Short-Circuit Protection

If a short-circuit occurs on the output lines causing the output voltage to drop below 20 Vdc,

the power supply enters hiccup mode where power is supplied for 2 seconds and then shuts

off for 17 seconds. This procedure is repeated until the short-circuit is resolved. Refer to the

diagram below.

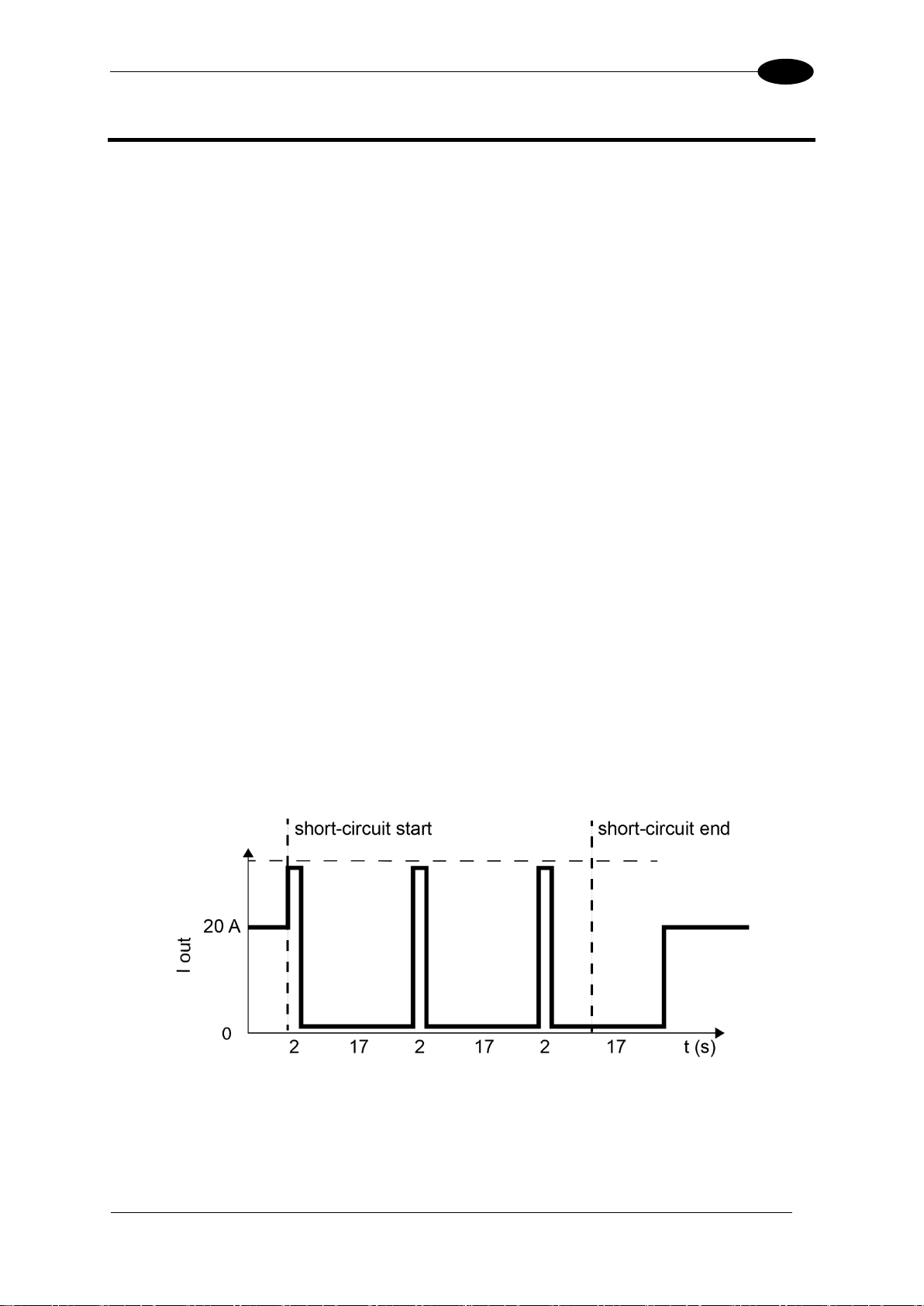

Figure 3 – Short-Circuit Protection Hiccup Mode

PWR-480W INSTALLATION MANUAL

1.2.2 Overload Protection

In the event of sustained output current overloading, overload protection is provided where

overload power is supplied as explained in the examples below:

Example 1: Up to 120% power overload

The overload is supplied for approximately 12 seconds and then is reduced (Voltage and

Current) to about 104% power continuously. In this case output voltage is reduced but

remains above 20 Vdc.

Figure 4 – Overload Protection up to 120%

OPERATING FEATURES

Example 2: 125% power overload

The overload is supplied for approximately 10 seconds and then is reduced (Voltage and

Current) to about 95% power for another 10 seconds. In this case the output voltage falls

below 20 Vdc and therefore the power supply shuts down for a recovery time of 17 seconds.

This procedure is repeated until the excessive current overload is resolved.

Figure 5 – Overload Protection at 125%

Example 3: 150% power overload

The overload is supplied for approximately 4 seconds and then is reduced (Voltage and

Current) to about 48% power for another 2 seconds. In this case the output voltage falls

below 20 Vdc and therefore the power supply shuts down for a recovery time of 17 seconds.

This procedure is repeated until the excessive current overload is resolved.

Figure 6 – Overload Protection at 150%

PWR-480W INSTALLATION MANUAL

2 PRE-INSTALLATION CHECKLIST

This chapter can be used as a checklist to verify all the steps necessary to complete

installation of the PWR power supply.

CAUTION: Opening the cabinet requires a key that should be used by a

person adequately advised or supervised by an electrically skilled person to

enable him or her to perceive risks and avoid hazards which electricity can

create. Internal components guarantee an IP20 degree of protection against

direct contact.

1) Read all information in this manual before installation, paying particular attention to all

Caution and Warning notes.

2) Mount the PWR to the Station frame using the brackets and bolts provided in the

package. See par. 3.1.

SYSTEM WIRING: DC OUTPUT

3) Plan all the cable entry points to avoid unnecessary holes and pass the cables through

the Cable Entry Plate as described in par. 4.

4) Connect your devices to the PWR according to the information in par. 4.2.

SYSTEM WIRING: AC INPUT

5) To comply with EN 60950-1:2007 par.1.7.2.2, par. 2.7.1, par 2.7.4, par. 3.4.6, and to

protect the AC input connection to the device; a disconnecting device with built in

overcurrent and earth protection shall be installed external to the equipment according

to local regulations.

According to EN 60950-1:2007 par. 3.2.3; the AC input cable must have a maximum

diameter of 14mm and the conduit a max diameter of 16mm.

6) With AC line voltage OFF, wire the AC Line to the AC Line Input Terminal Block (see

par. 5).

SYSTEM WIRING: TEST

7) Apply the AC line voltage from the building installation or the DWS-SWITCH and check

that the PWR powers up correctly. The green DC-OK light should be on steady and the

overload light (red) should be off.

8) Close and lock the PWR enclosure and check that it does not open (lock functions

correctly).

The PWR-480W installation is now complete.
