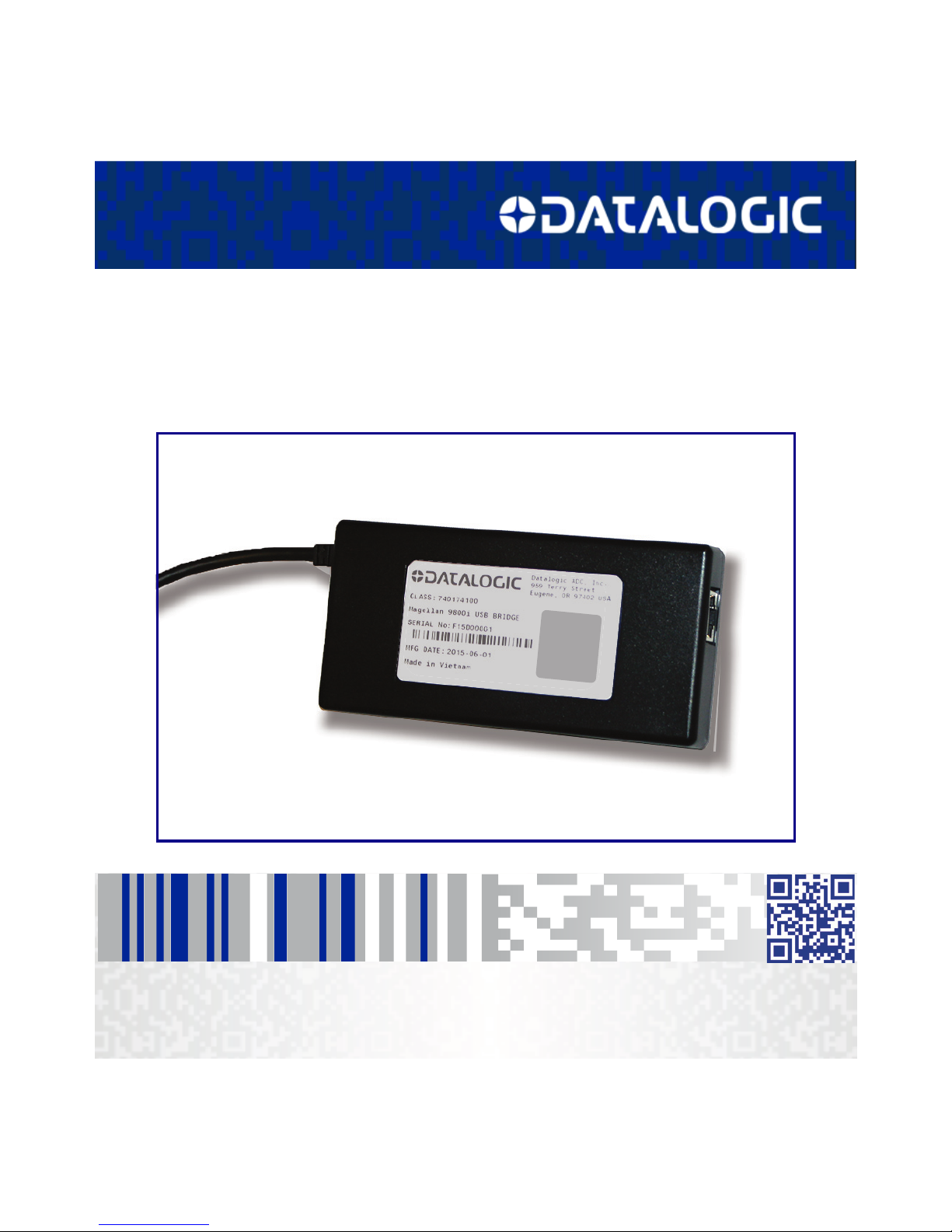

Datalogic Magellan 9800i Manuel utilisateur

Magellan™ 9800i

USB Bridge

Quick Reference Guide

Datalogic ADC, Inc.

959 Terry Street

Eugene, OR 97402

USA

Telephone: (541) 683-5700

Fax: (541) 345-7140

procedures described therein may be reproduced or transmitted in any form or by any means

without prior written permission of Datalogic ADC, Inc. or its subsidiaries or affiliates ("Datalogic"

or “Datalogic ADC”). Owners of Datalogic products are hereby granted a non-exclusive, revocable

license to reproduce and transmit this documentation for the purchaser's own internal business

purposes. Purchaser shall not remove or alter any proprietary notices, including copyright notices,

contained in this documentation and shall ensure that all notices appear on any reproductions of

the documentation.

Should future revisions of this manual be published, you can acquire printed versions by contact-

ing your Datalogic representative. Electronic versions may either be downloadable from the Data-

logic website (www.datalogic.com) or provided on appropriate media. If you visit our website and

would like to make comments or suggestions about this or other Datalogic publications, please let

us know via the "Contact Datalogic" page.

Disclaimer

Datalogic has taken reasonable measures to provide information in this manual that is complete

and accurate, however, Datalogic reserves the right to change any specification at any time with-

out prior notice.

Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries,

including the U.S.A. and the E.U. All other brand and product names may be trademarks of their

respective owners.

See the Regulatory Addendum included with

your product for additional regulatory,

safety and legal information.

Table of Contents

Magellan™ 9800i USB Bridge ..................................................................................... 1

Overview ......................................................................................................................1

Installation ...................................................................................................................2

Compatible Operating Systems and Software ........................................................2

Linux ....................................................................................................................2

- VLC (for Linux)......................................................................................... 2

- Gstreamer ............................................................................................... 3

- Cheese..................................................................................................... 3

Microsoft Windows® OS ....................................................................................4

- VLC (for Windows).................................................................................. 4

- WebcamViewer ...................................................................................... 8

Other Windows Resources ...............................................................................8

Troubleshooting ..........................................................................................................9

Warranty ....................................................................................................................10

Appendix .................................................................................................................... 15

NOTES

Quick Reference Guide 1

Magellan™ 9800i USB Bridge

Overview

The Magellan™ 9800i USB Bridge is an accessory that facilitates the streaming

of data from Magellan scanners to a host computer. The USB Bridge connects a

Magellan 9800i USB host port to a PC's USB port, allowing it to function as a

USB camera device.

USB

Host

Port

2 Magellan™ 9800i USB Bridge

Installation

Plug the cable from the Scanner USB host port to the USB Bridge.

Compatible Operating Systems and Software

To view data from the Scanner, you must have video viewing software installed

on your host system. The USB Bridge is compatible with the following operat-

ing systems and video application software.

Linux

Following are examples of tested compatible software for Linux using the v4l2

(Video for Linux 2) Driver. Tested on distributions: Ubuntu 12.04 and Fedora 16:

- VLC (for Linux)

VLC media player 2.0.8

* Example Invocation, Graphical:

1. Open VLC, Click the Play Button,

USB

Connect to Host/Terminal

Scanner Side

USB Host Port

Quick Reference Guide 3

2. Select the "Capture Device" Tab,

3. Ensure the Capture mode is set to: "Video for Linux 2",

4. Under Device Selection set the Video device name to your video device:

(/dev/video0 if Video Bridge is the only USB camera device connected),

5. Click the "Play" Button.

* Example Invocations, Command Line:

- Gstreamer

gst-launch-1.0, gstreamer-properties

* Example Invocation, Command Line:

- Cheese

Cheese Webcam Booth 3.4.1 (uses gstreamer)

%vlcv4l2:///dev/video0

%cvlcv4l2:///dev/video0#(nointerface)

%gst‐launchv4l2srcdevice=/dev/video0!xvimagesink

4 Magellan™ 9800i USB Bridge

Microsoft Windows® OS

If using Windows (Windows Vista/XP, Windows or Windows 8), Microsoft pro-

vides the USB Video Class (UVC) driver. It is an AVStream minidriver that pro-

vides driver support for USB Video Class devices. The device works

automatically with the system-supplied driver. Windows uses the (USB) Video

Class driver, Usbvideo.sys.

For Windows 7 or 8, you must download and install a video software program.

Many are available free, following are some recommended video software pro-

grams:

- VLC (for Windows)

VLC media player 2.2.1

1. Open VLC. Click the Play Button,

Quick Reference Guide 5

2. The Open Media dialog will open. Select "Capture Device",

6 Magellan™ 9800i USB Bridge

3. Ensure the Capture mode is set to: "DirectShow",

4. Under Device Selection set the Video device name to "UVC Camera",

5. Click "Play".
