DX8200A QUICK GUIDE

DX8200A

General View:

Figure A

Laser Beam Output Windows

1 Mounting Slots

2 Laser Safety Label

3Mounting Reference Label

Figure B

Programming Keypad

Phase On LED (Yellow)

Power On LED (Green)

TX Data LED (Green)

Network LED (Red)

Encoder LED (Yellow)

LCD Display

Figure D

(VAC Models Only)

Line Fuses

Line Switch

Power Inlet

Cord Retaining Clamp

Standard

Ethernet

Profibus

DeviceNet

Figure C

Lonworks 17-pin Male Connector

Lonworks 17-pin Female Connector

Serial Interface and I/O 26-pin male Connector

Harting RJ Industrial® Modular female Connector

DeviceNet 5-pin male Connector

Profibus 9-pin female Connector

NOTE

For further details on product installation, see the complete Reference Manual available on the

configuration CD-ROM included with this product.

2 3 4 5 6

1 3 4

DX8200A QUICK GUIDE

Technical Features:

ELECTRICAL FEATURES

VAC models VDC models

Supply voltage 110 to 230 Vac 20 to 30 Vdc

Power consumption 30 VA typical 30 W typical

35 W Max. (including startup current)

Main Baud Rate

RS232

RS485 full-duplex

RS485 half-duplex

1200 to 115200

20 mA C.L. (INT-30 with C-BOX

100 only) 19200

Auxiliary

RS232 1200 to 115200

Other

Common Communication Interfaces

Lonworks 1.25 Mb/s

Model-Dependent Communication

Interfaces

Ethernet

Profibus

DeviceNet

100Mb/s

up to 12 M/bs

up to 500 K/bs

Inputs

Ext. Trigger 1,

3 aux. digital inputs

(optocoupled NPN or PNP)

Outputs

3 software programmable digital

outputs

(optocoupled)

OPTICAL FEATURES

Light receiver Avalanche photodiode

Wavelength 630 to 680 nm

Safety class Class 2 - EN60825-1; Class II - CDRH

Light source Up to 4 semiconductor laser diodes

Laser control Security system to turn laser off in case of motor slow down

READING FEATURES

Scan rate ≤1000 scans/s (500 per leg)

Maximum resolution

Max. reading distance

Max. reading width

Max. depth of field

(see reading diagrams on page 14)

USER INTERFACE

LCD Display 2 lines by 20 characters LCD

Keypad 3 keys

LED indicators Power On (green)

Phase On (yellow)

Encoder (yellow)

TX Data (green)

Network (red)

DX8200A QUICK GUIDE

SOFTWARE FEATURES

Readable Codes Interleaved 2/5

Code 39 Standard

Codabar

Code 128

EAN 128

Code 93 (standard and full ASCII)

EAN/UPC (including Add-on 2 and Add-on 5)

Code selection Up to 10 codes during one reading phase

Headers and Terminators Up to 128-bytes headers and 128-bytes terminators

Operating modes On Line, Serial On Line, Automatic, Test, PackTrack™, Continuous

Configuration modes Genius™ utility program

Parameter storage Non-volatile internal FLASH

ENVIRONMENTAL FEATURES

Operating temperature 0° to +50 °C (+32° to +122 °F)

Storage temperature -20° to +70 °C (-4° to +158 °F)

Humidity 90% non condensing

Ambient light immunity 20000 lux

Vibration resistance:

EN 60068-2-6

2 hours on each axis

Frequency range from 5 to 150 Hz;

Constant displacement 3 mm pk-pk from 5 to 9 Hz;

Constant acceleration 0.5 g from 9 to 150 Hz;

Shock resistance:

IEC 68-2-27 test EA

3 shocks on each axis 30 g; 11 ms

Protection class IP64*

PHYSICAL FEATURES

Mechanical dimensions 470 x 300 x 141 mm (18.50 x 11.81 x 5.55 in)

Weight about 11 kg (24 lbs. 3 oz.)

* sealed connectors required, use Harting RJ Industrial® Push Pull Ethernet connector for Ethernet models.

DX8200A QUICK GUIDE

Model Description:

DX8200A - 3 X Y Z

Power:

0 = VDC

tical Resolution:

1 = Medium resolution

Communication Type:

0 = Standard version

1 = Ethernet version 2 = High resolution

3 = Very High resolution

1 = VAC

2 = Profibus version

3 = DeviceNet version

Accessories:

NAME Description Part Number

PWR-120 J-box power unit 110/230 VAC 24 V 120 W 93ACC1530

PWR-240 J-box power unit 110/230 VAC 24 V 240 W 93ACC1070

PWR-480 J-box power unit 110/230 VAC 24 V 480 W 93ACC1080

BTK-8100 Bus terminator kit (5 pcs) 93ACC1090

BTK-8102 Double terminator kit (2 pcs) 93A051287

PLL-8000 Optocoupled PLL device 93ACC1280

US-BOX C-BOX mounting bracket to station frame (10 pcs) 93ACC1777

FS-1 Frame shaper (8 pcs) 93ACC1750

CAB-DX8000 DX8200A Power Cable VAC 93A051333

CAB-DX8001 DX8200A Power Cable VAC (US) 93A051334

CAB-8100 10 wire shielded cable D 9.5 mm – 50 m 93ACC1120

CAB-8101 17-pin scanner/scanner connection cable 1.2 m 93A051020

CAB-8102 17-pin scanner/scanner connection cable 2.5 m 93A051030

CAB-8105 17-pin scanner/scanner connection cable 5 m 93A051040

CAB-8305 Power and bus return cable (last Slave) 5 m 93A051268

CAB-8310 Power and bus return cable (last Slave) 10 m 93A051336

CAB-8402 No power cable 2.5 m 93ACC1758

CAB-8405 No power cable 5 m 93ACC1759

CAB-6011 26-pin scanner to C-BOX 100 1 m 93A051221

CAB-6012 26-pin scanner to C-BOX 100 2 m 93A051222

CAB-6015 26-pin scanner to C-BOX 100 5 m 93A051223

CAB-6502 Fam 6K-8K cross cable 2.5 m 93A051288

CAB-6505 Fam 6K-8K cross cable 5 m 93A051289

CAB-8605 Power and Lonworks termination cable (Master) 5 m 93A051290

CAB-DX8000 Power cable DX8200A VAC (EU) 93A051333

CAB-DX8001 Power cable DX8200A VAC (US) 93A051334

Sentinel-5 Supervisor (up to 5 arrays) 93A101004

Sentinel-10 Supervisor (up to 10 arrays) 93A101005

Sentinel-32 Supervisor (up to 32 arrays) 93A101007

C-BOX 100 Passive Connection Box 93ACC1510

MEP-542 Photocell kit – PNP 93ACC1727

MEP-543 Photocell kit – NPN 93ACC1728

OEK-2 Optical encoder kit (10 m cable + spring) 93ACC1770

OEK-1 Optical encoder kit + 10 m cable 93ACC1600

US-BOX C-BOX Mounting Bracket to station frame (10 pcs) 93ACC1777

UPT-80 DX8200A – DX8200 Adapter 93ACC1757

DX8200A QUICK GUIDE

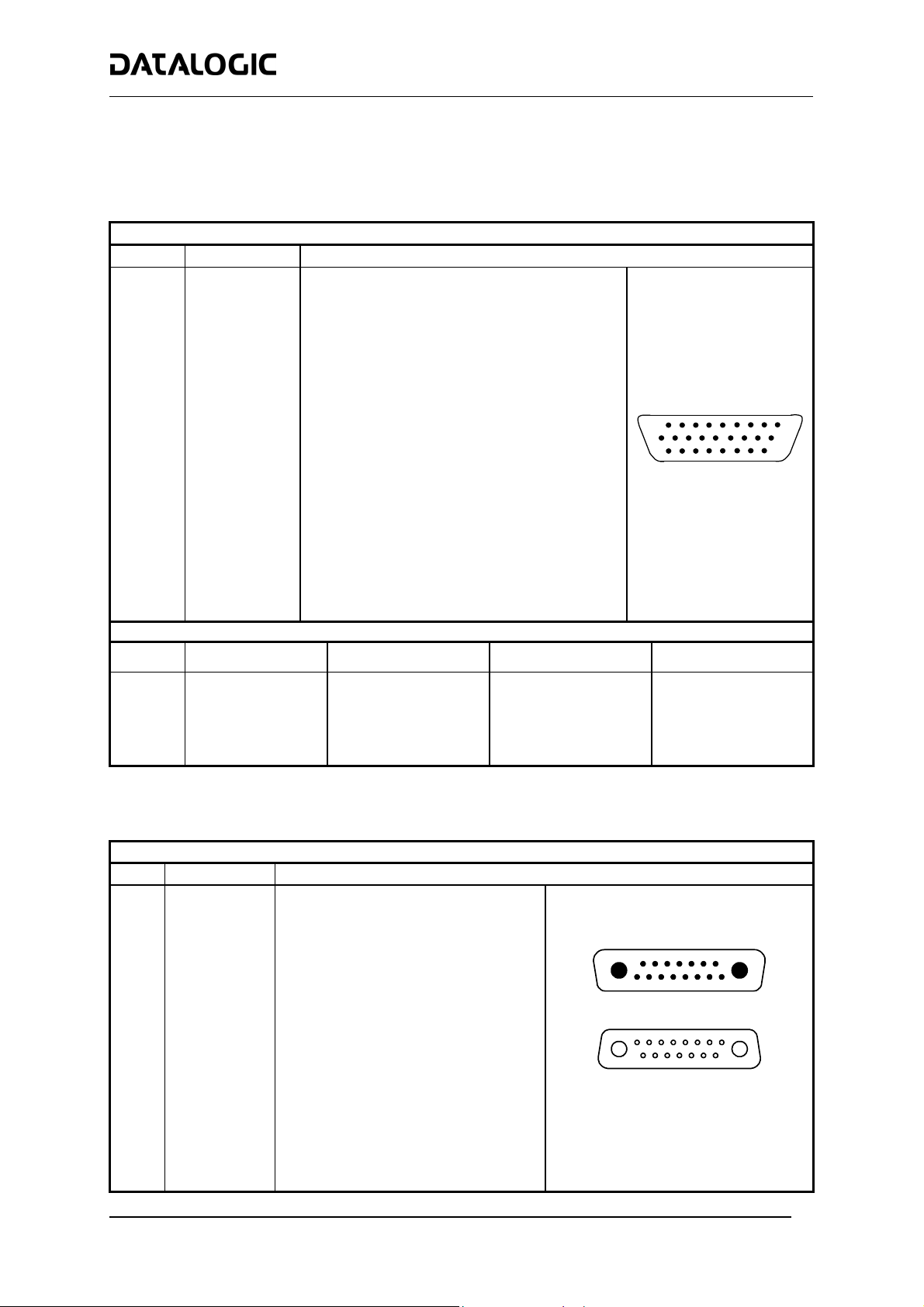

Electrical Connections:

The details of the connector pins are indicated in the following tables:

The DX8200A scanner provides a 26-pin male D-sub connector for connection to power supply, Host interface

(Main and Aux), and input/output signals.

26-pin D-Sub Connector Pinout

Pin Name Function

Chassis - internally connected to GND

1 CHASSIS Cable shield connected to chassis

20 RXAUX Receive data of auxiliary RS232 (referred to GND)

21 TXAUX Transmit data of auxiliary RS232 (referred to GND)

8 OUT 1+ Configurable digital output 1 – positive pin

22 OUT 1- Configurable digital output 1 – negative pin

11 OUT 2+ Configurable digital output 2 – positive pin

12 OUT 2- Configurable digital output 2 – negative pin

16 OUT 3A Configurable digital output 3 – polarity insensitive

17 OUT 3B Configurable digital output 3 – polarity insensitive

18 EXT_TRIG/PS A External trigger (polarity insensitive) for PS

19 EXT_TRIG/PS B External trigger (polarity insensitive) for PS

6 IN2/ENC A Input signal 2 (polarity insensitive) for Encoder

10 IN2/ENC B Input signal 2 (polarity insensitive) for Encoder

14 IN3A Input signal 3 (polarity insensitive)

15 IN4A Input signal 4 (polarity insensitive)

24 IN_REF Common reference of IN3 and IN4 (polarity insensitive)

9, 13 VS Supply voltage – positive pin

23, 25, 26 GND Supply voltage – negative pin

26-pin male D-sub Connector

Main Interface Connector Pinout

Pin RS232 RS485 Full-Duplex RS485 Half-Duplex 20 mA C.L.

(INT-30 with C-BOX 100 only)

2 TX TX485+ RTX485+

3 RX RX485+

4 RTS TX485- RTX485-

5 CTS RX485-

7 GND_ISO GND_ISO GND_ISO

see INT-30 instructions

Two 17-pin connectors provide access to the scanner’s local Lonworks network used for both input and output

connections to build a multi-sided or omni-station system.

17-pin Lonworks Connector Pinout

Pin Name Function

A1 GND Supply voltage (negative pin)

A2 VS Supply voltage 20 to 30 Vdc (positive pin)

Cable shield A - internally connected by

1 CHASSIS capacitor to chassis

2 n.c. Not connected

Cable shield B - internally connected by

3 CHASSIS capacitor to chassis

4 n.c. Not connected

5 n.c. Not connected

6 n.c. Not connected

7 VS_I/O Supply voltage of I/O circuit

8 Lon A+ Lonworks a line (positive pin)

9 Lon A- Lonworks a line (negative pin)

10 Lon B+ Lonworks b line (positive pin)

11 Lon B- Lonworks b line (negative pin)

12 SYS_I/O System signal

13 SYS_ENC_I/O System signal

14 Reserved Internally connected

15 Ref_I/O Reference voltage of I/O circuit

A1 A2

Female - Output

A1 A2

Male - Input

17-pin Local Lonworks Connectors

DX8200A QUICK GUIDE

Ethernet Version

Harting RJ Industrial® Modular Connector

DX8200A

HUB / SWITCH

RX+

TX-

TX+

RX-

n. c.

n. c. = not connected

1 8

Harting RJ Industrial Female Connector

Profibus Version

Profibus Connector

Pin Name Function

1 Shield* Shield, protective ground resp.

2 Free

3 B-LINE (RxD/TxD-P) Received/Transmitted data-P

4 CNTR-P** Repeater control signal

5 DGND Data ground (M5V)

6 +5 V Voltage plus (P5V)

7 Free

8 A-LINE (RxD/TxD-N) Received/Transmitted data

9 CNTR-N** Repeater control signal

Profibus 9-pin D-sub Female

Connector

* signal is optional

** signal is optional; RS485 level

DeviceNet Version

DEVICENET CONNECTOR

Pin Name Function

2 V+ Supply voltage – positive pin

5 CAN_L CAN bus data line – L

1 SHIELD Shield

4 CAN_H CAN bus data line – H

3 V- Supply voltage – negative pin

5-pin male DeviceNet Connector

DX8200A QUICK GUIDE

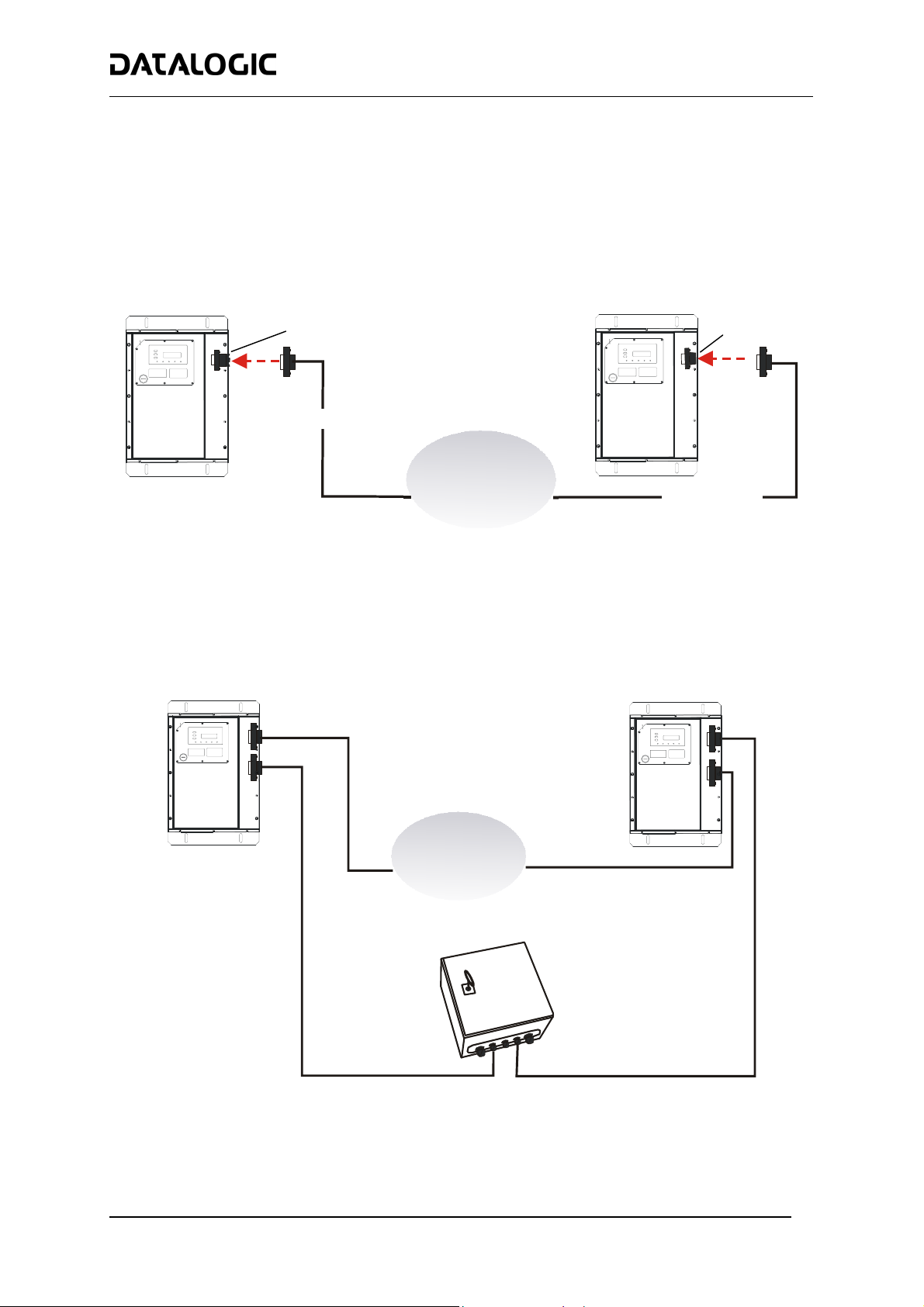

Network Termination:

When building a Lonworks system the network must be properly terminated by positioning the BTK-8102

Lonworks terminator in the DX8200A master reader and the BTK-8100 Lonworks bus return in the last DX8200A

slave reader.

The BTK-8100 bus return provides a connector to be inserted in the Lonworks 17-pin female connector of the last

slave reader in the network; while the BTK-8102 Lonworks terminator provides a different connector to be

inserted in the Lonworks 17-pin male connector of the master reader:

BTK-8102 and BTK-8100

Two cables are also provided as accessories to terminate and power the network: CAB-8605 and CAB-8305.

CAB-8605 is a power and Lonworks termination cable to be used for connecting the DX8200A master to an

external power unit within the network; while CAB-8305 is a power and bus return cable to be used for connecting

the last DX8200A slave to an external power unit. This two cables must be used only for VDC models.

CAB-8605 and CAB-8305

DX8200A Last Slave

Network

BTK-8102

DX8200A Master

BTK-8100

CAB-810X

CAB-8605 CAB-8305

DX8200A Master DX8200A Last Slave

Network

Power Unit

DX8200A QUICK GUIDE

Connectivity:

Examples of the most common system layouts are shown in this section, for additional layouts refer to the

Reference Manual.

Point-to-Point Layout

* P.S. (Presence Sensor) connected to External Trigger/PS input.

Point-to-Point for Standard DC Models

* P.S. (Presence Sensor) connected to External Trigger/PS input.

** C-BOX 100 modified to accept scanner power

Point-to-Point for Standard AC Models

Standard

Presence

Sensor*

C-BOX 100

Local Host

CAB601X

PWR-120

Standard

Presence

Sensor*

C-BOX 100**

Local Host

CAB601X

110 - 230 Vac

DX8200A QUICK GUIDE

Local Lonworks Networks

* P.S. (Presence Sensor) connected to External Trigger/PS input.

** C-BOX 100 modified to accept scanner power

Small Synchronized Network with 2 Readers

* P.S. (Presence Sensor) connected to External Trigger/PS input.

** C-BOX 100 modified to accept scanner power

*** Encoder connected to IN2/ENC input.

Small Synchronized Network with more than 2 Readers and Single Power Unit

PWR-120

Local Host

C-BOX 100**

Maste

Slave 1

CAB601X

CAB810X

P.S.*

BTK-8102

CAB830X

C-BOX 100**

Local Host

Maste

Slave 1Slave 2

Slave 3

PWR-240

P.S.*

CAB810X

CAB601X

CAB810X CAB810X

CAB810X

Slave 4

CAB860X

CAB830X

Encoder***

DX8200A QUICK GUIDE

Local Lonworks Networks

Large Synchronized Network with DX8200A and DS8100A Scanners

Large Synchronized Network Reading Station

Extended I/O

Host

HUB

ETHERNET

SC6000 AUX

CAB-SC6003

Power/Net

VAC INPUT

CAB-SC6103

Cable

PWO

LONWORKS

ENCODER

PS Aux

CAB-810x

CAB-810x CAB-810x

CAB-810X

up to 3

scanners

per

branch

BTK8100

Bus Return

DX8200A DX8200A DX8200A

DS8100A DS8100A DS8100A DS8100A

CAB-810x CAB-810x

up to 4

scanners per

branch

BTK8100

Bus Return

Conveyor

SC6000

Autres manuels pour DX8200A

Table des matières

Autres manuels Datalogic Lecteur de codes-barres

Datalogic

Datalogic Gryphon 4200 Series Manuel utilisateur

Datalogic

Datalogic PowerScan PD96 Series Manuel d'installation et d'exploitation

Datalogic

Datalogic QuickScan QBT2400 Manuel utilisateur

Datalogic

Datalogic PowerScan 9100 Series Manuel d'installation et d'exploitation

Datalogic

Datalogic FireScan D141 Manuel utilisateur

Datalogic

Datalogic PowerScan PD8530 Manuel utilisateur

Datalogic

Datalogic QuickScan i QD2100 Manuel d'installation et d'exploitation

Datalogic

Datalogic Gryphon I GM410X Manuel utilisateur

Datalogic

Datalogic Matrix 300 Manuel utilisateur

Datalogic

Datalogic Matrix 220 Manuel d'installation et d'exploitation

Datalogic

Datalogic MAGELLAN 1400I Manuel utilisateur

Datalogic

Datalogic MAGELLAN 8200 Manuel d'installation et d'exploitation

Datalogic

Datalogic PowerScan PD9530 Manuel d'installation et d'exploitation

Datalogic

Datalogic DS2200 SH2348 Manuel utilisateur

Datalogic

Datalogic DS8100 Manuel utilisateur

Datalogic

Datalogic Gryphon DX30 Manuel utilisateur

Datalogic

Datalogic QuickScan QM2430 Manuel utilisateur

Datalogic

Datalogic Gryphon DX30 Manuel utilisateur

Datalogic

Datalogic Magellan 2200VS Manuel d'installation et d'exploitation

Datalogic

Datalogic Gryphon I GD44XX Manuel d'installation et d'exploitation

Datalogic

Datalogic DS8100A-3002 Manuel utilisateur

Datalogic

Datalogic DS4800 OM Manuel utilisateur

Datalogic

Datalogic MAGELLAN 3200VSI Manuel utilisateur

Datalogic

Datalogic Magellan 800i Manuel d'installation et d'exploitation

Manuels Lecteur de codes-barres populaires d'autres marques

POSMicro

POSMicro Datalogic PowerScan D7100 Manuel utilisateur

Marson

Marson MT780 Guide de configuration rapide

NCR

NCR RealPOS Manuel utilisateur

Motorola

Motorola SE3300 Guide de configuration rapide

Element

Element P130BT Manuel utilisateur

Motorola

Motorola Symbol LS3008 Manuel d'installation et d'exploitation

Meec tools

Meec tools OBD-II / VAG Manuel utilisateur

SICK

SICK CLP 100 Manuel utilisateur

Royal Tag SA

Royal Tag SA I-Read Manuel utilisateur

Welch Allyn

Welch Allyn IMAGETEAM 3800 Manuel utilisateur

Meteor

Meteor 8310 Manuel utilisateur

Denso

Denso BHT-500B Manuel utilisateur

Motorola

Motorola MP6000 Instructions de montage

Newland

Newland NLS-HR15-BT Manuel utilisateur

ARTDEV

ARTDEV AS-1310 Manuel utilisateur

Aopos

Aopos AS290 Manuel utilisateur

ENS

ENS 367-5455 Manuel utilisateur

Atid

Atid AT188N Plus Manuel utilisateur
