Data Video DAC-50 Manuel utilisateur

HD/SD-SDI to Component-YUV Converter

DAC-50

Quick Start Guide

Rev 100510

www.datavideo-tek.com

Table of Contents

Warnings and Precautions ................................. 3

Warranty ............................................................. 4

Standard Warranty ............................................. 4

Two Year Warranty............................................. 4

Disposal.............................................................. 5

Packing List ........................................................ 5

Introduction......................................................... 5

Features ............................................................. 6

Functions ............................................................ 7

DIP Switch Function ........................................... 7

Specification ..................................................... 18

Service & Support............................................. 19

Warnings and Precautions

1. Read all of these warnings and save them for later reference.

2. Follow all warnings and instructions marked on this unit.

3. Unplug this unit from the wall outlet before cleaning. Do not use liquid or

aerosol cleaners. Use a damp cloth for cleaning.

4. Do not use this unit in or near water.

5. Do not place this unit on an unstable cart, stand, or table. The unit may fall,

causing serious damage.

6. Slots and openings on the cabinet top, back, and bottom are provided for

ventilation. To ensure safe and reliable operation of this unit, and to protect

it from overheating, do not block or cover these openings. Do not place this

unit on a bed, sofa, rug, or similar surface, as the ventilation openings on

the bottom of the cabinet will be blocked. This unit should never be placed

near or over a heat register or radiator. This unit should not be placed in a

built-in installation unless proper ventilation is provided.

7. This product should only be operated from the type of power source

indicated on the marking label of the AC adapter. If you are not sure of the

type of power available, consult your Datavideo dealer or your local power

company.

8. Do not allow anything to rest on the power cord. Do not locate this unit

where the power cord will be walked on, rolled over, or otherwise stressed.

9. If an extension cord must be used with this unit, make sure that the total of

the ampere ratings on the products plugged into the extension cord do not

exceed the extension cord’s rating.

10. Make sure that the total amperes of all the units that are plugged into a

single wall outlet do not exceed 15 amperes.

11. Never push objects of any kind into this unit through the cabinet ventilation

slots, as they may touch dangerous voltage points or short out parts that

could result in risk of fire or electric shock. Never spill liquid of any kind onto

or into this unit.

Warnings and Precautions

12. Except as specifically explained elsewhere in this manual, do not attempt to

service this product yourself. Opening or removing covers that are marked

“Do Not Remove” may expose you to dangerous voltage points or other

risks, and will void your warranty. Refer all service issues to qualified

service personnel.

13. Unplug this product from the wall outlet and refer to qualified service

personnel under the following conditions:

a. When the power cord is damaged or frayed;

b. When liquid has spilled into the unit;

c. When the product has been exposed to rain or water;

d. When the product does not operate normally under normal

operating conditions. Adjust only those controls that are

covered by the operating instructions in this manual; improper

adjustment of other controls may result in damage to the unit

and may often require extensive work by a qualified technician

to restore the unit to normal operation;

e. When the product has been dropped or the cabinet has been

damaged;

f. When the product exhibits a distinct change in performance,

indicating a need for service.

Warranty

Standard Warranty

Datavideo equipment is guaranteed against any manufacturing

defects for one year from the date of purchase.

The original purchase invoice or other documentary evidence

should be supplied at the time of any request for repair under

warranty.

Damage caused by accident, misuse, unauthorized repairs, sand,

grit or water is not covered by this warranty.

All mail or transportation costs including insurance are at the

expense of the owner.

All other claims of any nature are not covered.

Cables & batteries are not covered under warranty.

Warranty only valid within the country or region of purchase.

Your statutory rights are not affected.



Two Year Warranty

All Datavideo products purchased after 01-Oct.-2008 qualify for a free

one year extension to the standard Warranty, providing the product is

registered with Datavideo within 30 days of purchase. For information

on how to register please visit www.datavideo-tek.com or contact

your local Datavideo office or authorized Distributors

Certain parts with limited lifetime expectancy such as LCD Panels,

DVD Drives and Hard Drives are only covered for the first 10,000

hours, or 1 year (whichever comes first).

Any second year warranty claims must be made to your local

Datavideo office or one of its authorized Distributors before the

extended warranty expires.

Disposal For EU Customers only - WEEE Marking

This symbol on the product indicates that it

should not be treated as household waste. It

must be handed over to the applicable take-

back scheme for the recycling of Waste Electrical and

Electronic Equipment. For more detailed information about

the recycling of this product, please contact your local

Datavideo office.

Packing List

Items Description Q’ty

1 DAC-50 1

2 Switching Adaptor 12V/1.5A 1

3 DAC-50 Instruction Manual 1

Introduction

The Datavideo DAC-50 is stand alone SDI or HD-SDI to

YUV or HD-YUV video converter. The format of the

component output is chosen based on the supplied SDI

input and a combination of dip switch choices. This unit

allows conversion from HD to SD, SD to HD, Aspect Ratio

change from 4:3 to 16:9 and even standard conversion from

PAL to NTSC or vice versa.

Features

6 Mode Resolutions

DC 12V input

1x HD/SD-SDI Video Input (BNC x1)

1x HD/SD YUV component output (BNC x3)

Accepted HD/SD-SDI Input Resolutions:

720x480 Interlace

720x576 Interlace

1280x720 / 59.94Hz Progressive

1280x720 / 50Hz Progressive

1920x1080 / 59.94Hz Interlace

1920x1080 / 50Hz Interlace

HD/SD YUV Output Resolutions:

720x480 Interlace

720x576 Interlace

1280x720 / 59.94Hz Progressive

1280x720 / 50Hz Progressive

1920x1080 / 59.94Hz Interlace

1920x1080 / 50Hz Interlace

Functions

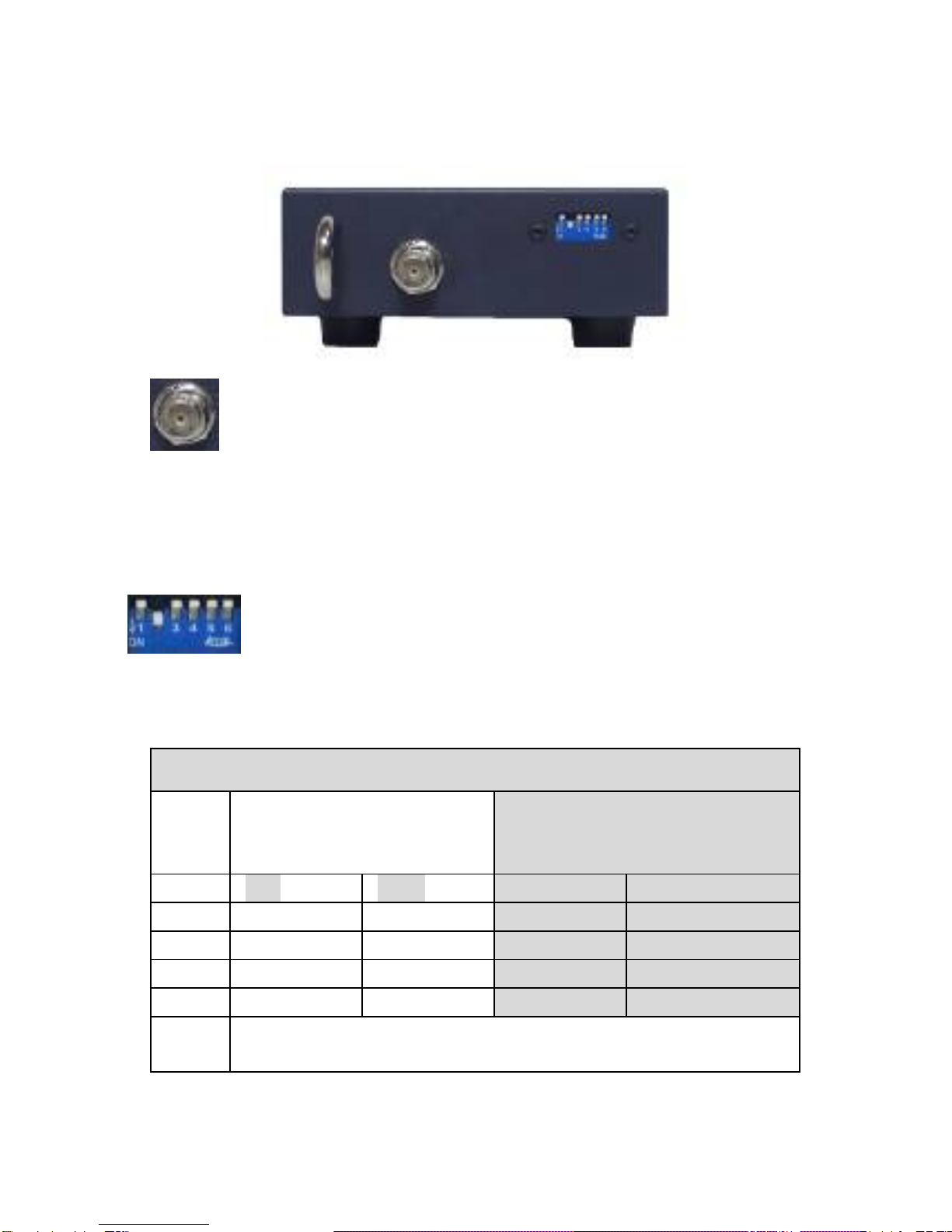

Front Panel

HD/SD - SDI Input

4:2:2 SDI Video data supports SMPTE 292M

standard at 1.5G Mbps.

SDI delivers professional level video signals over

long distances when using the correct cabling and

repeaters.

DIP Switch

Use the dip switches to select the required output

format.

DIP Switch Function

DIP Switches setting for video output

ON-SD output Mode

OFF - HD output Mode

ON OFF ON OFF

D2 50Hz 59.94Hz 50Hz 59.94Hz

D3 0 IRE 7.5 IRE 1080i 720p

D4 16:9 4:3 16:9 4:3

D5 CVBS YUV YUV YUV

D6 On: Aspect ratio conversion is enabled

Off: Aspect ratio conversion is disabled

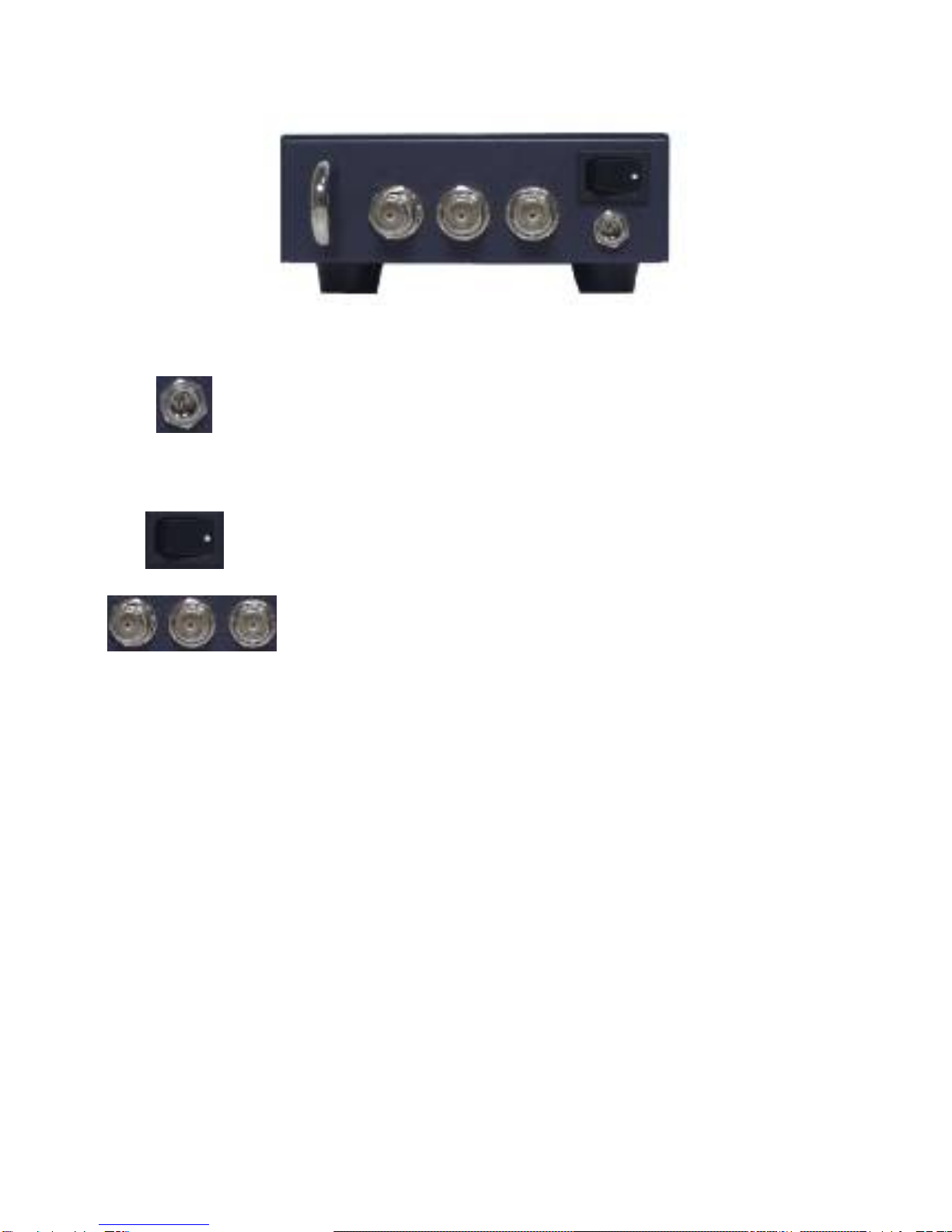

Rear Panel

DC In Socket

Connect the supplied 12V 1.5A PSU to this socket.

The connection can be secured by screwing the

outer fastening ring of the DC In plug to this socket.

Power Switch

Switches the power On / Off.

HD/SD YUV

HD/SD YUV component analogue output connectors

Alternatively the Y BNC connector can be used as a

Composite (CV) output connector when dip switches

1 and 5 are moved to the ON position.

Up Conversion

No SDI Input YUV Output DIP Switch Setup (D6 reserved)

1 480i

4:3

720/59.94p

16:9

D1 D2 D3 D4 D5

OFF OFF OFF ON OFF

2 480i

4:3

720/59.94p

4:3

D1 D2 D3 D4 D5

OFF OFF OFF OFF OFF

3 480i

4:3

720/50p

16:9

D1 D2 D3 D4 D5

OFF ON OFF ON OFF

4 480i

4:3

720/50p

4:3

D1 D2 D3 D4 D5

OFF ON OFF OFF OFF

5 480i

4:3

1080/59.94i

16:9

D1 D2 D3 D4 D5

OFF OFF ON ON OFF

6 480i

4:3

1080/59.94i

4:3

D1 D2 D3 D4 D5

OFF OFF ON OFF OFF

7 480i

4:3

1080/50i

16:9

D1 D2 D3 D4 D5

OFF ON ON ON OFF

8 480i

4:3

1080/50i

4:3

D1 D2 D3 D4 D5

OFF ON ON OFF OFF

No SDI Input YUV Output DIP Switch Setup (D6 reserved)

9 576i

4:3

720/59.94p

16:9

D1 D2 D3 D4 D5

OFF OFF OFF ON OFF

10 576i

4:3

720/59.94p

4:3

D1 D2 D3 D4 D5

OFF OFF OFF OFF OFF

11 576i

4:3

720/50p

16:9

D1 D2 D3 D4 D5

OFF ON OFF ON OFF

12 576i

4:3

720/50p

4:3

D1 D2 D3 D4 D5

OFF ON OFF OFF OFF

13 576i

4:3

1080/59.94i

16:9

D1 D2 D3 D4 D5

OFF OFF ON ON OFF

14 576i

4:3

1080/59.94i

4:3

D1 D2 D3 D4 D5

OFF OFF ON OFF OFF

15 576i

4:3

1080/50i

16:9

D1 D2 D3 D4 D5

OFF ON ON ON OFF

16 576i

4:3

1080/50i

4:3

D1 D2 D3 D4 D5

OFF ON ON OFF OFF
