Data Video DAC-9P Manuel utilisateur

DAC-9P

HDMI TO HD-SDI

CONVERTER

Quick Start Guide

www.datavideo.com

Instruction Manual

Warranty

Standard Warranty

•Datavideo equipment is guaranteed against any manufacturing defects for one

year from the date of purchase.

•The original purchase invoice or other documentary evidence should be supplied

at the time of any request for repair under warranty.

•Damage caused by accident, misuse, unauthorized repairs, sand, grit or water is

not covered by this warranty.

•All mail or transportation costs including insurance are at the expense of the

owner.

•All other claims of any nature are not covered.

•Cables & batteries are not covered under warranty.

•Warranty only valid within the country or region of purchase.

•Your statutory rights are not affected.

Two Year Warranty

All Datavideo products purchased after 01-Oct.-2008 qualify for a free one year

extension to the standard Warranty, providing the product is registered with

Datavideo within 30 days of purchase. For information on how to register please visit

www.datavideo.com or contact your local Datavideo office or authorized Distributors

Certain parts with limited lifetime expectancy such as LCD Panels, DVD Drives and

Hard Drives are only covered for the first 10,000 hours, or 1 year (whichever comes

first).

Any second year warranty claims must be made to your local Datavideo office or one

of its authorized Distributors before the extended warranty expires.

Disposal For EU Customers only - WEEE Marking

This symbol on the product indicates that it should not be

treated as household waste. It must be handed over to the

applicable take-back scheme for the recycling of Waste Electrical

and Electronic Equipment. For more detailed information about

the recycling of this product, please contact your local Datavideo

office.

Connections & Controls

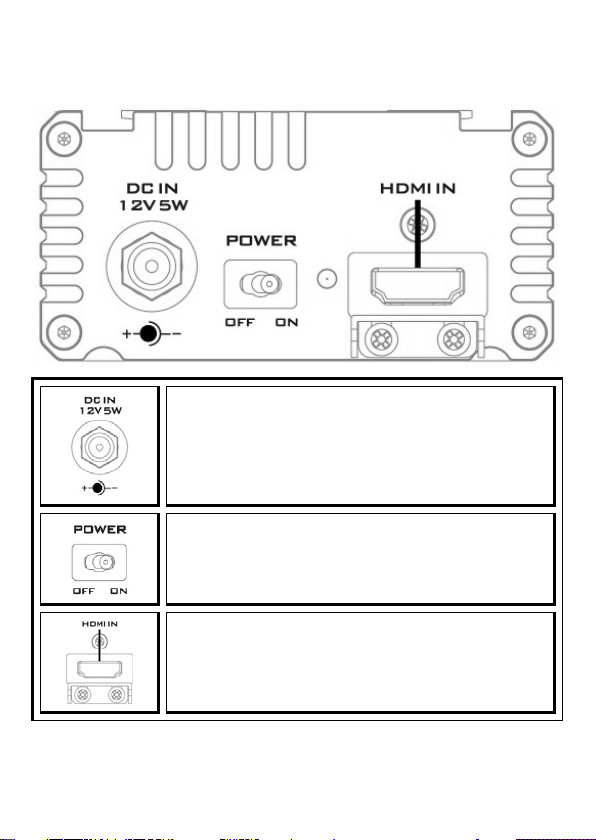

Front Panel

DC In Socket

Connects the supplied 12V PSU to this socket. The connection can

be secured by screwing the outer fastening ring of the DC In plug

to the socket.

Power Switch

Switches power ON/OFF

HDMI Input

HDMI digital signal input connector

Note: two channels of HDMI Audio are embedded into HD/SD-SDI

signal.

Rear Panel

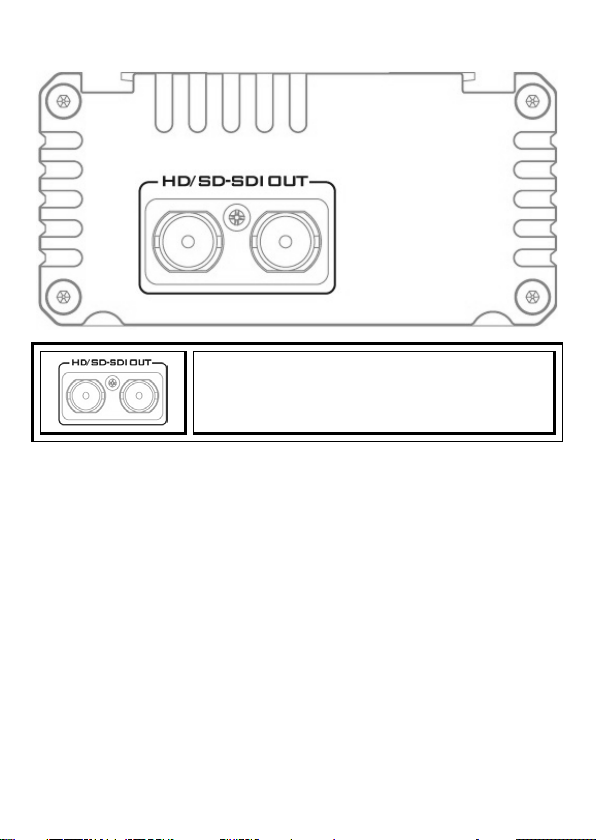

HD/SD-SDI Output

SDI provides video signals for professional applications and

allows long distance signal transmission.

Specifications

Input Interface 1 x HDMI (V1.3) Input

Output Interface 2 x 3G/HD/SD-SDI Output

Video Support Format

(HDMI Input)

720 x 480 Interlace

720 x 576 Interlace

1280 x 720 / 50 Hz Progressive

1280 x 720 / 59.94 Hz Progressive

1280 x 720 / 60 Hz Progressive

1920 x 1080 / 50 Hz Interlace

1920 x 1080 / 59.94 Hz Interlace

1920 x 1080 / 60 Hz Interlace

1920 x 1080 / 50 Hz Progressive

1920 x 1080 / 59.94 Hz Progressive

1920 x 1080 / 60 Hz Progressive

3G SDI Signal

SMPTE 292 Standard complied with

Output Return Loss: More than 4.5 dB (3 GHz)

Output Level: 0.8 Vpp ± 10%

Rise Time: Less than 130 ps

Fall Time: Less than 130 ps

Difference between rise time and fall time is within 50 ps.

Alignment Jitter: Less than 0.3 UI

Timing Jitter: Less than 2.0 UI

Rise time overshoot: 10%

Fall time overshoot: 10%

Equalizer uses 5C-FB cable supporting 100 meters.

SD SDI Signal

SMPTE 292M Standard complied with

Output Return Loss: More than 15 dB (5 MHz to 750 MHz)

More than 10 dB (750 MHz to 1.5 GHz)

Output Level: 0.8 Vpp ± 10%

Transition Time: 0.4 ∼1.5 ns

Difference between rise time and fall time is within 100 ps.

Alignment Jitter: Less than 0.2 UI

Timing Jitter: Less than 0.2 UI

Eye Aperture Ratio: More than 90%

DC Offset: 0 ± 0.5V

Operating Temperature 0°C to 40°C (32°F to 102°F)

Humidity 10% to 90% (non condensing)

Dimensions & Weight 145 mm (W) x 85 mm (D) x 30 mm (H) / 0.33 Kg

Power DC 12V / 500 mA

It is our goal to make owning and using Datavideo products a satisfying

experience. Our support staff is available to assist you to set up and

operate your system. Contact your local ofce for specic support requests.

Plus, please visit www.datavideo.com to access our FAQ section.

Datavideo Technologies (S) PTE Lt

No. 178 Paya Lebar Road #06-03

Singapore 409030

Tel:+65-6749 6866

Fax:+65-6749 3266

E-mail:[email protected]g

Datavideo United Kingdom

Datavideo Singapore

Datavideo UK Limited

Units1 & 2 Waterside B usiness Par

Hadfield, Glossop, Derbyshire

SK13 1 BE, UK

Tel:+44-1457 851 000

Fax:+44-1457 850 964

E-mail:sales@datavideo.co. uk

Datavideo India

Datavideo Technologies India Pvt Ltd

Fax:+91-0120-2427338

E-mail: [email protected]

Tel:+91-0120-2427337

A-132, Sec-63,Noida-201307,

Uttar Pradesh (UP), India.

S.A.

tavideo Corporation

704

8 Elmer Avenue.

hittier, C A 90602,

el:+1-562-696 2324

ax:+1-562-698 6930

-mail:sales@datavideo.us

Datavideo USA

.O.C.

tavideo Technologies Co. Ltd

F. No. 176, Jian 1st Rd.,Chung Ho

District, New Taipei City 235

, Taiwan,

el: +886-2-8227-2888

ax: +886-2-8227-2777

-mail:service@datavideo.com.tw

Datavideo Taiwan

Datavideo Hong Kong

Data

video Hong Kong Ltd

/F.,26 Cross Lane

anchai, Hong Kong

el: +852-2833-1981

ax: +852-2833-9916

-mail:[email protected]k

Datavideo Technologies Europe BV

Floridadreef 106

3565 AM Utrecht,

Th e Netherlands

Tel:+31-30-261-96-56

Fax:+31-30-261-96-5 7

E-mail:info@datavideo.nl

Datavideo Europe

Datavideo China

Datavideo Technologies China Co

101,NO.618,LiuYing Rd,Zhabei District,

Shanghai,China

Tel: +86 21-5603 6599

Fax: +8 6 21-5603 6770

E-mail:service@datavideo.cn

Datavideo France

Datavideo France s.a.r.l

Cité Descartes 1,rue Albert Einstein

Champs sur Marne

774477-Marne la Vallée cedex 2

Tel:+33-1-60370246

E-mail: [email protected]

All the trademarks are the properties of their respective owners.

Service & Support

Jan.07.2015 P/N: G082060580B5

Please refer to our website for update the latest

version manual.

www.datavideo.com/Converters/DAC-9P

Dec.04.2015 P/N: G082060580B6

Mar.16.2016 P/N: G082060580B6
