Data Video DAC-60 Manuel utilisateur

Warranty

Standard Warranty

•Datavideo equipment is guaranteed against any manufacturing defects for

one year from the date of purchase.

•The original purchase invoice or other documentary evidence should be

supplied at the time of any request for repair under warranty.

•Damage caused by accident, misuse, unauthorized repairs, sand, grit or

water is not covered by this warranty.

•All mail or transportation costs including insurance are at the expense of

the owner.

•All other claims of any nature are not covered.

•Cables & batteries are not covered under warranty.

•Warranty only valid within the country or region of purchase.

•Your statutory rights are not affected.

Two Year Warranty

•All Datavideo products purchased after 01-Oct.-2008 qualify for a free one

year extension to the standard Warranty, providing the product is registered

with Datavideo within 30 days of purchase. For information on how to register

please visit www.datavideo.com or contact your local Datavideo office or

authorized Distributors

•Certain parts with limited lifetime expectancy such as LCD Panels, DVD

Drives, Hard Drives are only covered for the first 10,000 hours, or 1 year

(whichever comes first).

Any second year warranty claims must be made to your local Datavideo office

or one of its authorized Distributors before the extended warranty expires.

Disposal For EU Customers only - WEEE Marking

This symbol on the product indicates that it will not be

treated as household waste. It must be handed over to the

applicable take back scheme for the recycling of electrical

and electronic equipment. For more detailed information

about the recycling of this product, please contact your

local Datavideo office.

1. Front Panel

HD/SD - SDI IN / OUT

HD/SD - SDI input and pass-through output connectors.

Power Switch

Switches the power On / Off.

DC In Socket

Connects the supplied 12V PSU to this socket. The connection

can be secured by screwing the outer fastening ring of the DC

In plug to the socket.

USB

Firmware Upgrade by PC or Box Controller

2. Rear Panel

VGA Output

Connects your VGA equipment to this connector

LED

The LEDs indicate VGA output format

Mode Select

Selects VGA Output Format (Please see Page 9 for more

details).

Press and hold the MODE button for 3 second to enter TV

SCREEN MODE, and then press this button again to switch

screen ratio mode.

Note: OPTIMAL RATIO = 16:9 mode

3. Aspect Ratio Modes

The DAC-60 has three aspect ratio modes, which are Full Screen, Dot by Dot

and Optimal Ratio.

Source = 1920x1080 (16:9)

1. Full Screen Mode

Source = 1920x1080 (16:9)

Output = 800x600 (4:3)

2. Dot by Dot Mode

A. Source = 1920 x 1080 (16:9)

Output = 800 x 600 (4:3)

B. Source = 720 x 480i 60

Output = 800 x 600 (4:3)

3. Optimal Ratio Mode

Source = 1920 x 1080 (16:9)

Output = 800 x 600 (4:3)

4. DAC-60 installation

1. First make sure your equipment is not connected to power or disconnect all

power connectors before connecting the video equipment.

2. Connect Video Source (SDI) to the BNC input connector.

3. Connect VGA equipment to the VGA connector.

4. Connect optional SDI equipment to the BNC output connector.

5. Connect the +12V DC power adapter to the converter.

5. LED Indication

The DAC-60 works with nine presets, which can be selected by pressing the menu

button.

Resolution

LED Indication

800 x 600 60Hz

●○○

○○○

1024 x 768 60Hz

○●○

○○○

1280 x 800 60Hz

○○●

○○○

1280 x 1024 60Hz

○○○

●○○

1366 x 768 60Hz

○○○

○●○

1400 x 1050 60Hz

○○○

○○●

1600 x 1200 60Hz

●●○

○○○

1920 x 1080 60Hz

○●●

○○○

1920 x 1200 60Hz

○○●

●○○

●: LED ON ○: LED OFF

6. Firmware Upgrade

Firmware is upgradable in the field using the integrated USB port.

Step 1- Connect the DAC-60 to PC by USB cable. Connect the supplied 12V

PSU to DC IN socket and turn off the power.

Step 2- Open the “Datavideo Upload Firmware” program and turn on the

DAC-60 power.

Step 3 - Press the Connect button.

Step 4 - Press Open File button to select firmware.

Step 5 - Press Start button to update the firmware.

Step 6 – Close the “Datavideo Upload Firmware” program

Note: The latest Firmware updates and Software applications for the DAC-

60 can be obtained by contacting your local Datavideo office or

dealer. A list of regional Datavideo offices is provided at the rear of

this manual.

Autres manuels pour DAC-60

Table des matières

Autres manuels Data Video Convertisseur de média

Data Video

Data Video NVS-40 Manuel utilisateur

Data Video

Data Video DAC-30 Manuel de service

Data Video

Data Video DAC-5 Manuel utilisateur

Data Video

Data Video DAC-50 Manuel utilisateur

Data Video

Data Video DAC-100 Manuel utilisateur

Data Video

Data Video RP-64 Manuel utilisateur

Data Video

Data Video DAC-7L Manuel utilisateur

Data Video

Data Video Tally Box TB-20 Manuel utilisateur

Data Video

Data Video DAC-30 Manuel utilisateur

Data Video

Data Video DAC-9P 4K Manuel utilisateur

Data Video

Data Video DAC-70 Manuel utilisateur

Data Video

Data Video DAC-200 Manuel utilisateur

Data Video

Data Video DAC-60 Manuel utilisateur

Data Video

Data Video DVK-400 Manuel utilisateur

Data Video

Data Video DAC-2 Manuel utilisateur

Data Video

Data Video NVD-30 Manuel utilisateur

Data Video

Data Video DAC-60 Manuel utilisateur

Data Video

Data Video DDC-2512 Manuel utilisateur

Data Video

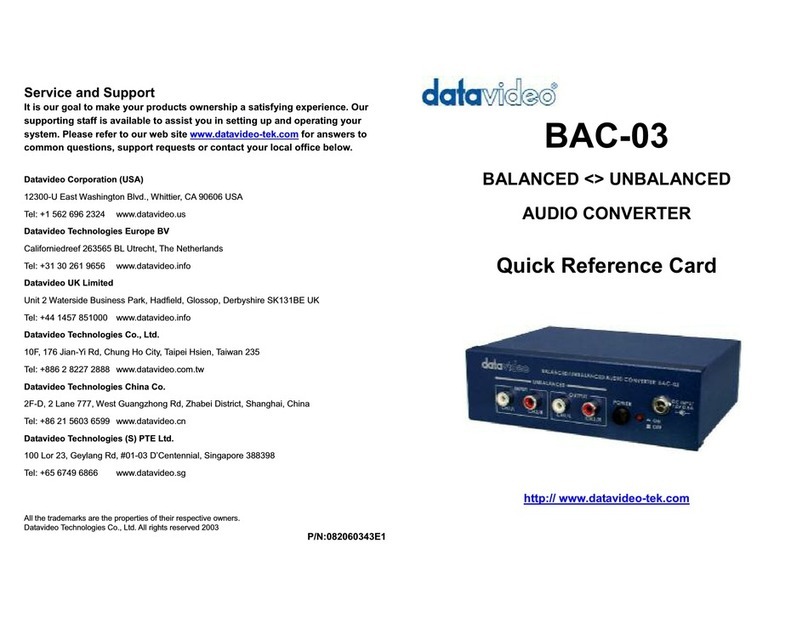

Data Video BAC-03 Guide de référence
