Danfoss Colibri ETS 12C Manuel utilisateur

ENGINEERING

TOMORROW

Installation guide

Colibri® Electric Expansion Valves

Type ETS 12C, ETS 24C, ETS 25C, ETS 50C, ETS 100C

Colibri® Electric Regulating Valves

Type KVS 2C, KVS 3C KVS 5C

034R9806

DKRCC.PI.VD1.F6.ML | 1

Danfoss

R64-3051.10

oss

64-3051.1

Place the valve close to the evaporator.

It is recommended to use Danfoss ﬁlter drier before

the expansion valve or a strainer for particles of 150

micron or smaller.

Application ETS Colibri®

Flow direction

Allowable ambient temperature:

Min. -40 °C / -40 °F

Max. 70 °C / 158 °F

Max. working pressure:

50 bar(g) / 725 psi(g)

Refrigerants : R410A, R404A, R507, R134a, R407A, R407B, R407C, R407F, R32, R290, R1234ze, R1234yf, R449A,

R449B, R452A, R1270, R600, R600a, R22, R23, R227, R417A, R444B, R447A, R448A, R454B, R422A, R422D, R427A,

R502, R513A, R413A, R438A, R450A, R455B, R454C, R454A, R452B and *L40

*R-number allocation by ASHRAE is pending

Fluid temperature:

Min. -40 °C / -40 °F

Max. 70 °C / 158 °F

Total steps:

600 full steps

Phase current:

800 mA peak /

600 mA RMS

Coil resistance:

10 Ω (20 °C / 68 °F)

Stepper motor type:

Bipolar

Do not connect directly to AC/DC power source.

Connect valve to appropriate controller/driver only.

ETS / KVS Colibri® valves are delivered in open position, ready for brazing.

An AST –g service driver is available for manual operation / service of ETS / KVS Colibri® valves.

English

Bi-ﬂow

Reverse ﬂow Normal ﬂow

(Using sight glass for ﬂash gas detection - ETS 25C to ETS 100C)

KVS Colibri® valves have no sight glass integrated

Danfoss

34G231.10

Application KVS Colibri®

ETS Colibri®

KVS Colibri®

NormalReverse

GREEN: DRY

YELLOW: WET

Danfoss

34G136.12

MADE IN DENMARK

ETS XXXC

10 Ω, 800mA peak

N0311A

Colibri® Electric

Expansion valve

-40/+70°C / -40/+158°F

PS 50bar / MWP 735psig

034GXXXX

NormalReverse

Danfoss

34G156.12

MADE IN DENMARK

ETS XXXC

10 Ω, 800mA peak

N0311A

Colibri® Electric

Expansion valve

-40/+70°C / -40/+158°F

PS 50bar / MWP 735psig

034GXXXX

DKRCC.PI.VD1.F6.ML | 2

Danfoss

34G58.15

Danf

oss

34G116.11

B2 A1

Danfoss

34G152.10

Danfoss

34G153.11

MADE IN DENMARK

ETS XXXC

10 Ω, 800mA peak

N0311A

Colibri® Electric

Expansion valve

-40/+70°C / -40/+158°F

PS 50bar / MWP 735psig

034GXXXX

Danfoss

34G60..16

+90°

-90°

Danfoss

34G59.11

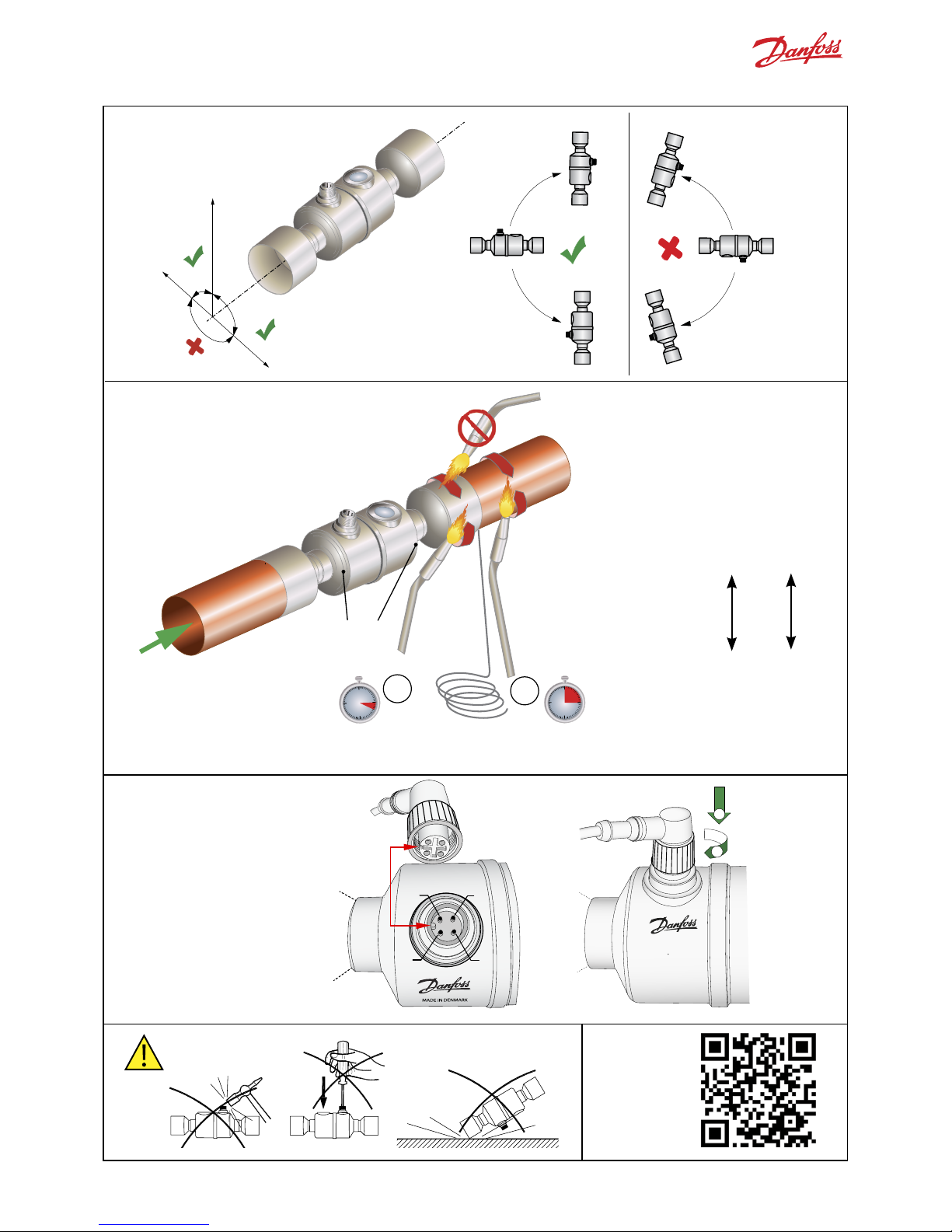

Brazing

Motor coil resistance check.

Coil A = Coil B = 10 Ω (20 °C / 68 °F)

Min.

5 % Ag

Mounting

N2gas from opposite

site of soldering point.

Max.

30 sec.

Max.

15 sec.

M12 Connection

N2Max. 150 °C

Installation

video

Recommended:

Connector Nozzle size

1/2inch 2 mm 1/16 inch

5/8inch

7/8inch

1 1/8inch

1 3/8inch

1 5/8inch 9 mm 3/8inch

ENGINEERING

TOMORROW

Installation guide

Colibri® Electric Expansion Valves

Type ETS 12C, ETS 24C, ETS 25C, ETS 50C, ETS 100C

Colibri® Electric Regulating Valves

Type KVS 2C, KVS 3C KVS 5C

034R9806

DKRCC.PI.VD1.F6.ML | 3

NormalReverse

GREEN: DRY

YELLOW: WET

Danfoss

34G136.12

MADE IN DENMARK

ETS XXXC

10 Ω, 800mA peak

N0311A

Colibri® Electric

Expansion valve

-40/+70°C / -40/+158°F

PS 50bar / MWP 735psig

034GXXXX

NormalReverse

Danfoss

34G156.12

MADE IN DENMARK

ETS XXXC

10 Ω, 800mA peak

N0311A

Colibri® Electric

Expansion valve

-40/+70°C / -40/+158°F

PS 50bar / MWP 735psig

034GXXXX

Danfoss

R64-3051.10

oss

64-3051.1

Es wird empfohlen Filtertrockner von Danfoss vor dem

Expansionsventil oder einen Filter für Partikel von 150 µm

oder kleiner zu verwenden.

Il est recommandé d’utiliser un ﬁltre déshydrateur Danfoss

avant la vanne de détente, ou un ﬁltre à particules de

150 microns ou moins.

ETS Colibri®

Ne pas raccorder directement le moteur à

une alimentation AC / DC. Raccorder la vanne

au régulateur approprié.

Das Ventil direkt am Verdampfer montieren.

Placez la vanne près de l’évaporateur.

Bi-ﬂow /

Bi-directionnel

Normaler Durchﬂuss

(ETS 25C und ETS 100C mit Schauglas für Flashgas Erkennung) Sens normal

(ETS 25C pour ETS 100C - à l’aide du voyant de détection de gaz ﬂash)

KVS Colibri® haben kein Schauglass

Les détendeurs KVS Colibri® n’ont pas de voyant intégré

Umgekehrt

Durchﬂuss /

Direction inverse

Anwendung / Application ETS Colibri®

Durchﬂussrichtung /

Sens d’écoulement

Umgebungstemperatur:

Température ambiante:

Min. -40 °C, Max. 70 °C

Max. Betriebsdruck:

Pression de service max.:

50 bar(g)

Kältemittel / Fluides: R410A, R404A, R507, R134a, R407A, R407B, R407C, R407F, R32, R290, R1234ze, R1234yf,

R449A, R449B, R452A, R1270, R600, R600a, R22, R23, R227, R417A, R444B, R447A, R448A, R454B, R422A, R422D,

R427A, R502, R513A, R413A, R438A, R450A, R455B, R454C, R454A, R452B and *L40

*R-number allocation by ASHRAE is pending.

Kältemitteltemperatur:

Température du ﬂuide:

Min. -40 °C, Max. 70 °C

Max. Schritte:

Nombre de pas total:

600 full steps

Stromaufnahme:

Courant de phase:

800 mA Peak (600 mA RMS)

Widerstand, Spule:

Résistance de la bobine:

10 Ω (20 °C)

Schrittmotortyp:

Type de moteur pas à pas:

Bipolar

Bitte das ETS / KVS Colibri® nicht direkt

mit einer Spannungsquelle verbinden.

Schließen Sie das Ventil nur an geeignete

Regler/ Steuergeräte an.

Ventile werden in oﬀener Position geliefert,

bereit zum Löten. Für den manuellen

Betrieb / Wartung von ETS / KVS Colibri®

Ventilen, ist ein AST -g-Servicemodul als

Zubehör erhältlich.

Les vannes sont livrées en position ouverte, prêtes

pour le brasage.

Un pilote d’entretien AST-g est disponible pour

manœuvrer les vannes ETS C / KVS Colibri®.

Deutsch, French

Danfoss

34G231.10

Anwendung / Application KVS Colibri®

KVS Colibri®

DKRCC.PI.VD1.F6.ML | 4

Danfoss

34G58.15

Danf

oss

34G116.11

B2 A1

Danfoss

34G152.10

Danfoss

34G153.11

MADE IN DENMARK

ETS XXXC

10 Ω, 800mA peak

N0311A

Colibri® Electric

Expansion valve

-40/+70°C / -40/+158°F

PS 50bar / MWP 735psig

034GXXXX

Danfoss

34G60..16

+90°

-90°

Danfoss

34G59.11

Löten / Soudure

Wicklungswiderstand prüfen.

Vériﬁcation de la résistance de

la bobine du moteur.

Wicklung A = Wicklung B = 10 Ω (20 °C)

Bobine A = Bobine B = 10 Ω (20 °C)

Min.

5 % Ag

Max. 150 °C

Einbaulage / Montage

Schutzgas gegenüber der

Lötstelle einströmen lassen.

Refroidissement gaz ci-contre

site de point de soudure. Max.

30 sec.

Max.

15 sec.

M12 Connection /

M12 Raccordement

Installation

Video

Installation

vidéo

Empfehlung /

Recommendation

Anschluss Brennerdüse

Raccord Buse de brasage

1/2inch 2 mm 1/16 inch

5/8inch

7/8inch

1 1/8inch

1 3/8inch

1 5/8inch 9 mm 3/8inch

ENGINEERING

TOMORROW

Installation guide

Colibri® Electric Expansion Valves

Type ETS 12C, ETS 24C, ETS 25C, ETS 50C, ETS 100C

Colibri® Electric Regulating Valves

Type KVS 2C, KVS 3C KVS 5C

034R9806

DKRCC.PI.VD1.F6.ML | 5

Se recomienda utilizar un ﬁltro deshidratador Danfoss

antes de la válvula de expansión o un ﬁltro para partículas

de 150 micras o menores.

建议在膨胀阀前使用丹佛斯干燥过滤器或使用过滤目

数小于等于150微米的过滤网

ETS Colibri®

请仅将阀门连接于合适的控制器/驱动器，勿直

接与交流或直流电源连接。

Colocar la válvula próxima al evaporador.

阀关闭位置，靠近蒸发器侧

Bi-ﬂow

双向流

Flujo normal

(ETS 25C a ETS 100C incorpora un visor de líquido para detector ﬂash-gas)

正常流动方向（视液镜，用于闪发气体检测–ETS 25C 和 ETS 100C）

Las válvulas KVS Colibri® no tienen visor integrado

KVS Colibri® 电子膨胀阀没有集成观察镜

Flujo reversible

反向流动方向

Aplicación / 应用 ETS Colibri®

Dirección del ﬂujo /

流向

Temperatura ambiente permisible:

允许运行的环境温度:

Min. -40 °C / Max. 70 °C

Presión de trabajo máx.:

最大工作压力:

50 bar(g)

Refrigerantes / 制冷剂适用:R410A, R404A, R507, R134a, R407A, R407B, R407C, R407F, R32, R290, R1234ze,

R1234yf, R449A, R449B, R452A, R1270, R600, R600a, R22, R23, R227, R417A, R444B, R447A, R448A, R454B, R422A,

R422D, R427A, R502, R513A, R413A, R438A, R450A, R455B, R454C, R454A, R452B and *L40

*R-number allocation by ASHRAE is pending

Temperatura líquido:

流体温度:

Min. -40 °C / Max. 70 °C

Número de pasos total:

总步数:

600 full steps /

600 步

Intensidad:

相电流:

800 mA Pico/peak

(600 mA RMS)

Resistencia:

电阻:

10 Ω (20 °C)

Tipo de motor a pasos:

步进电机形式:

Bipolar

双极

No aplicar tensión directamente a la

válvula. Conectar la válvula a un

controlador/driver adecuado.

Las válvulas se entregan abiertas listas para

soldar. Existe un driver de servicio AST-g

para la operación manual y servicio de las

válvulas ETS / KVS Colibrí®.

交付时阀门处于全开状态 ,再进行焊接

一切就绪，准备铜焊. 提供AST -g手操器用于

ETS/KVS Colibri® 电子膨胀阀的手动操作和维修.

español, 汉语

Danfoss

R64-3051.10

oss

64-3051.1

Danfoss

34G231.10

KVS Colibri®

Aplicación / 应用 KVS Colibri®

NormalReverse

GREEN: DRY

YELLOW: WET

Danfoss

34G136.12

MADE IN DENMARK

ETS XXXC

10 Ω, 800mA peak

N0311A

Colibri® Electric

Expansion valve

-40/+70°C / -40/+158°F

PS 50bar / MWP 735psig

034GXXXX

NormalReverse

Danfoss

34G156.12

MADE IN DENMARK

ETS XXXC

10 Ω, 800mA peak

N0311A

Colibri® Electric

Expansion valve

-40/+70°C / -40/+158°F

PS 50bar / MWP 735psig

034GXXXX

DKRCC.PI.VD1.F6.ML | 6

Danfoss

34G58.15

Danf

oss

34G116.11

B2 A1

Danfoss

34G152.10

Danfoss

34G153.11

MADE IN DENMARK

ETS XXXC

10 Ω, 800mA peak

N0311A

Colibri® Electric

Expansion valve

-40/+70°C / -40/+158°F

PS 50bar / MWP 735psig

034GXXXX

Danfoss

34G60..16

+90°

-90°

Danfoss

34G59.11

Soldadura / 焊接

Veriﬁcar la resistencia de la bobina

del motor.

Bobina A = Bobina B = 10 Ω (20 °C)

电机线圈电阻检查

在20℃时，线圈A=线圈B=10Ω

Min.

5 % Ag

Max. 150 °C

Instalación / 安装

Corriente de N2 desde el lado

opuesto a la soldadura.

气体冷却对面的焊点（氮气保护）

Max.

30 sec.

Max.

15 sec.

M12 Conexión / M12 链接

Instalación

vídeo

安裝

視頻

Recomendación/
