SLD 138" Installation Manual

DD5065834

Rev 01

01 November 2022

201 Daktronics Drive

Brookings, SD 57006-5128

www.daktronics.com/support

800.325.8766

Page 1 of 34

DAK PROVIDE CUSTOMER PROVIDE

HC-4084277 M8X50 SOCKET HEAD SCREW

0M-4671476 CABINET FLATNESS JIG

HC-1855 M6X16 SOCKET HEAD SCREW

HC-4827328 M8X15 COUNTERSUNK SOCKET HEAD SCREW

TH-4896295 M6 (5#) ALLEN KEY

MOUNTING ANCHOR BOLT

CORDLESS DRILL

DRILL BIT (WORK WITH ANCHOR BOLT / CORDLESS DRILL )

TAPE MEASURER

4FT LEVEL

(OPTIONAL WHEN WITHOUT LASER LEVEL)

INSTALL PARTS AND TOOLS

0A-2238-9999 MODULE TOOL (INSTALL AND REMOVAL)

TH-4176465 MODULE ADJUSTMENT TOOL

TH-4896293 PHILLIPS SCREW DRIVER

TH-4964504 GLOVE

2 LADDERS

LASER LEVEL

W-4137608 POWER INPUT CABLE

SOCKET FOR ANCHOR BOLT (WORK WITH CORDLESS DRILL)

SLD 138"

INSTALLATION MANUAL

HC-4827329 M6X40 JACK PIN

Table Of Contents

Unpacking - Page 2

Installation Parts and Tools - Page 3

Part A: Upper Beam Installation - Page 4

Part B: Cabinets Installation - Page 10

Part C: Bottom Beam Installation - Page 22

Part D: Power Box Installation - Page 27

Part E: LED Module Installation - Page 32

Warnings and Disclaimers

• Ensure that all electrical work meets or

exceeds all local or national electrical codes.

• Provide the required power to the display as

listed on the product labels, specications,

or site-specic riser drawings. The conductor

size may vary based on the length of the

power run.

• Consider implementing a separate circuit for

the display using an isolation transformer or

dedicated transformer.

• Daktronics assumes no liability for any issues

caused by line voltage uctuations or other

improper power conditions.

SLD 138" Installation Manual

DD5065834

Rev 01

01 November 2022

201 Daktronics Drive

Brookings, SD 57006-5128

www.daktronics.com/support

800.325.8766

Page 2 of 34

Unpacking

SLD 138" UNPACKING INSTRUCTION

STEP 2: TAKE OUT THE PACKAGESSTEP 1: OPEN CRATE

Crate 1

CONTROL BOX & REAR BEAMS

CONTROL BOX @2 REAR BEAM @2

HARDWARE & TOOL BOX @7

Crate 2

5 CABINETS & MODULES & SPARE PARTS

187x125x101 cm 74x549x40 inch

180x132x80 cm

STEP 2: TAKE OUT THE FILLER BOXSTEP 1: OPEN CRATE

THE CONCEPTS EXPRESSED AND DETAILS SHOWN ON THIS DRAWING

ARE CONFIDENTIAL AND PROPRIETARY. DO NOT REPRODUCE BY

ANY MEANS WITHOUT THE EXPRESS WRITTEN CONSENT OF

DAKTRONICS, INC. OR ITS WHOLLY OWNED SUBSIDIARIES.

THIRD ANGLE PROJECTION

REV

TITLE:

PROJECT:

DESIGN:

SCALE:

DIM UNITS:DATE: SHEET

DO NOT SCALE DRAWING

FUNC - TYPE - SIZE

DRAWN: -

JOB NO.

MILLIMETERS

SLD SERIES DISPLAY PROJECT

SLD 138" UNPACKING INSTRUCTION

27-OCT-2022

F 10 A3

NO SCALE

JW 5159990

001 OF 1

A3H

STEP 3: TAKE OUT MODULES & SPARES PACKAGES STEP 4: TAKE OUT CABINETS PACKAGES

MIDDLE CABINETS @3 LEFT CABINET @1

RIGHT CABINET @1

MODULE BOX @5 SPARE PARTS BOX @1

REAR BEAM EXTENSION @2

FILLER (FILLED EMPTY SPACE)

SLD 138" Installation Manual

DD5065834

Rev 01

01 November 2022

201 Daktronics Drive

Brookings, SD 57006-5128

www.daktronics.com/support

800.325.8766

Page 3 of 34

Installation Parts and Tools

DAKTRONICS PROVIDED CUSTOMER PROVIDED

HC-4084277

M8X50 SOCKET HEAD BOLT

0M-4671476

CABINET FLATNESS JIG

HC-1855

M6X16 SOCKET HEAD BOLT

HC-4827328

M8X15 COUNTERSUNK SOCKET HEAD BOLT

TH-4896293

PHILLIPS SCREWDRIVER

0A-2238-9999

MODULE TOOL (INSTALL AND REMOVAL)

TH-4964504

GLOVES

W-4137608

POWER INPUT CABLE

MOUNTING ANCHOR BOLT

CORDLESS DRILL

SOCKET FOR ANCHOR BOLT

(WORK WITH CORDLESS DRILL)

DRILL BIT

(WORK WITH ANCHOR BOLT / CORDLESS DRILL)

TAPE MEASURE

LASER LEVEL

4FT LEVEL

(OPTIONAL WHEN WITHOUT LASER LEVEL)

2 LADDERS

SCISSORS

HC-4827329

M6X40 SET-SCREW

TH-4896295

ALLEN KEY SET

DAK PROVIDE CUSTOMER PROVIDE

HC-4084277 M8X50 SOCKET HEAD SCREW

0M-4671476 CABINET FLATNESS JIG

HC-1855 M6X16 SOCKET HEAD SCREW

HC-4827328 M8X15 COUNTERSUNK SOCKET HEAD SCREW

TH-4896295 M6 (5#) ALLEN KEY

MOUNTING ANCHOR BOLT

CORDLESS DRILL

DRILL BIT (WORK WITH ANCHOR BOLT / CORDLESS DRILL )

TAPE MEASURER

4FT LEVEL

(OPTIONAL WHEN WITHOUT LASER LEVEL)

INSTALL PARTS AND TOOLS

0A-2238-9999 MODULE TOOL (INSTALL AND REMOVAL)

TH-4176465 MODULE ADJUSTMENT TOOL

TH-4896293 PHILLIPS SCREW DRIVER

TH-4964504 GLOVE

2 LADDERS

LASER LEVEL

W-4137608 POWER INPUT CABLE

SOCKET FOR ANCHOR BOLT (WORK WITH CORDLESS DRILL)

SLD 220"

INSTALLATION MANUAL

HC-4827329 M6X40 JACK PIN

HC-4305316 M4X10 COUNTERSUNK PHILLIPS SCREW

0M-4685011 POWER BOX LINK PLATE

0M-5018247

MODULE ADJUSTMENT KEY

SLD 138" Installation Manual

DD5065834

Rev 01

01 November 2022

201 Daktronics Drive

Brookings, SD 57006-5128

www.daktronics.com/support

800.325.8766

Page 4 of 34

Part A: Upper Beam Installation

Step 1: Location

TAPE MEASURE

1 LADDER

LASER LEVEL

LASER PLUMB LINE

(UPPER BEAM LOCATION)

REFER TO DWG-4927843 FOR RECOMMENDED UPPER BEAM LOCATION.

SLD 138" Installation Manual

DD5065834

Rev 01

01 November 2022

201 Daktronics Drive

Brookings, SD 57006-5128

www.daktronics.com/support

800.325.8766

Page 5 of 34

Part A: Upper Beam Installation

Step 2: Drilling

CORDLESS DRILL

DRILL BIT

LASER LEVEL

2 LADDERS

DRILLING

COUNTERSUNK HOLES

FACING OUTWARD

SLD 138" Installation Manual

DD5065834

Rev 01

01 November 2022

201 Daktronics Drive

Brookings, SD 57006-5128

www.daktronics.com/support

800.325.8766

Page 6 of 34

DIM

Part A: Upper Beam Installation

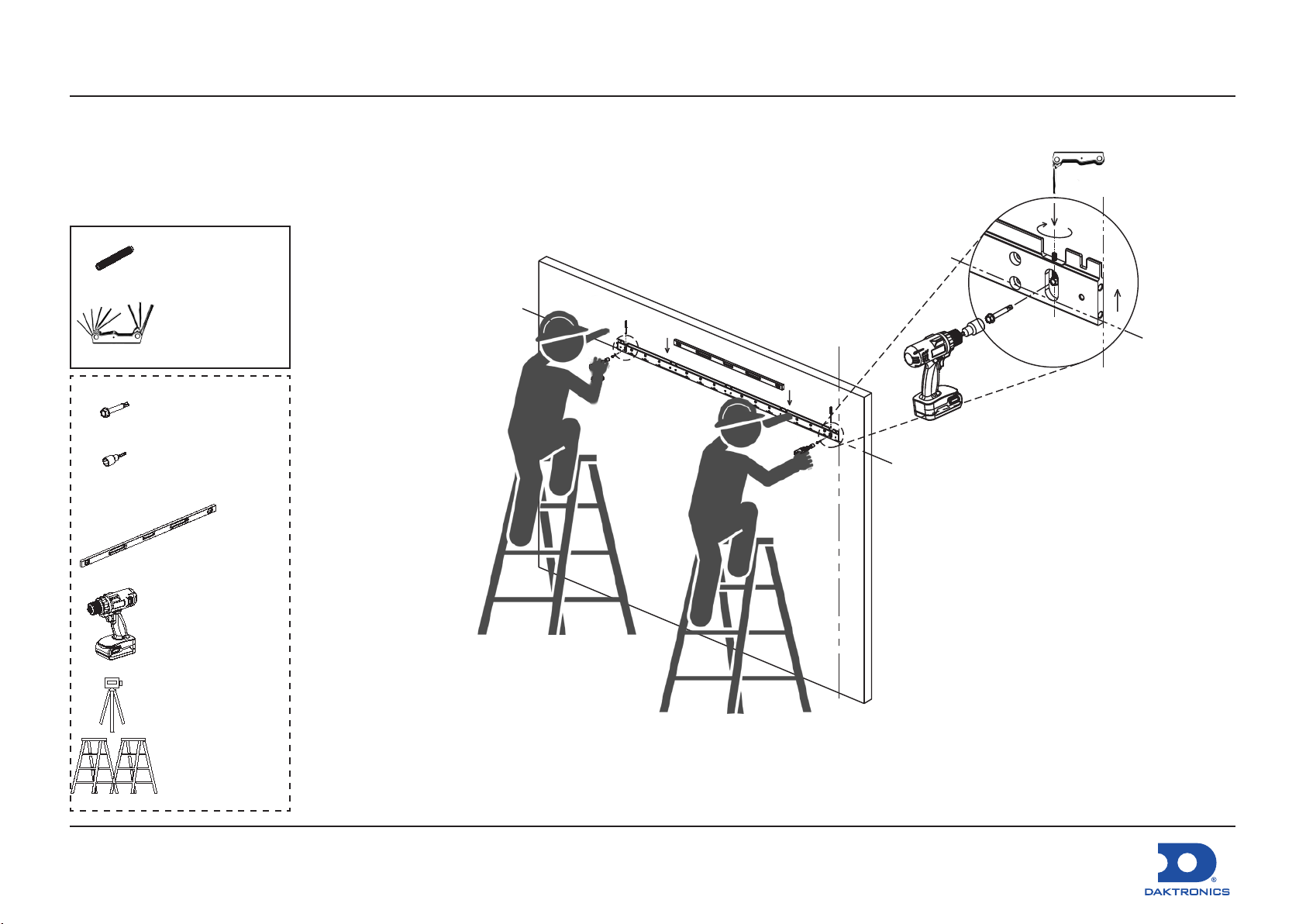

Step 3: Mounting And Adjustment

MOUNTING

CORDLESS DRILL

LASER LEVEL

2 LADDERS

MOUNTING

ANCHOR BOLT

SOCKET FOR

ANCHOR BOLT

4FT LEVEL

HC-4827329

M6X40 SET-SCREW

TH-4896295

ALLEN KEY SET

M6 (5#)

DAK PROVIDE CUSTOMER PROVIDE

HC-4084277 M8X50 SOCKET HEAD SCREW

0M-4671476 CABINET FLATNESS JIG

HC-1855 M6X16 SOCKET HEAD SCREW

HC-4827328 M8X15 COUNTERSUNK SOCKET HEAD SCREW

TH-4896295 M6 (5#) ALLEN KEY

MOUNTING ANCHOR BOLT

CORDLESS DRILL

DRILL BIT (WORK WITH ANCHOR BOLT / CORDLESS DRILL )

TAPE MEASURER

4FT LEVEL

(OPTIONAL WHEN WITHOUT LASER LEVEL)

INSTALL PARTS AND TOOLS

0A-2238-9999 MODULE TOOL (INSTALL AND REMOVAL)

TH-4176465 MODULE ADJUSTMENT TOOL

TH-4896293 PHILLIPS SCREW DRIVER

TH-4964504 GLOVE

2 LADDERS

LASER LEVEL

W-4137608 POWER INPUT CABLE

SOCKET FOR ANCHOR BOLT (WORK WITH CORDLESS DRILL)

SLD 220"

INSTALLATION MANUAL

HC-4827329 M6X40 JACK PIN

HC-4305316 M4X10 COUNTERSUNK PHILLIPS SCREW

0M-4685011 POWER BOX LINK PLATE

ADJUSTMENT

SLD 138" Installation Manual

DD5065834

Rev 01

01 November 2022

201 Daktronics Drive

Brookings, SD 57006-5128

www.daktronics.com/support

800.325.8766

Page 7 of 34

DIM

Part A: Upper Beam Installation

Step 4: Drilling And Mounting

CORDLESS DRILL

LASER LEVEL

MOUNTING

ANCHOR BOLT

SOCKET FOR

ANCHOR BOLT

4FT LEVEL

DRILL BIT

DRILLING

MOUNTING

1 LADDER

305mm

12" 305mm

12"

305mm

12"

SLD 138" Installation Manual

DD5065834

Rev 01

01 November 2022

201 Daktronics Drive

Brookings, SD 57006-5128

www.daktronics.com/support

800.325.8766

Page 8 of 34

Part A: Upper Beam Installation

Step 5: Location of Upper Beam Extension

COUNTERSUNK HOLES

FACING OUTWARD

SLD 138" Installation Manual

DD5065834

Rev 01

01 November 2022

201 Daktronics Drive

Brookings, SD 57006-5128

www.daktronics.com/support

800.325.8766

Page 9 of 34

Part A: Upper Beam Installation

Step 6: Drilling, Mounting, And Adjustment

Repeat Steps 2–4 to nish upper beam extension installation.

SLD 138" Installation Manual

DD5065834

Rev 01

01 November 2022

201 Daktronics Drive

Brookings, SD 57006-5128

www.daktronics.com/support

800.325.8766

Page 10 of 34

Part B: Cabinets Installation

Step 7: Hang Cabinets

LOCATION LABEL
