Daktronics SLD 110 Manuel utilisateur

SLD 110" Installation Manual

DD5065833

Rev 01

01 November 2022

201 Daktronics Drive

Brookings, SD 57006-5128

www.daktronics.com/support

800.325.8766

Page 1 of 27

Table Of Contents

Unpacking - Page 2

Installation Parts and Tools - Page 3

Part A: Upper Beam Installation - Page 4

Part B: Cabinets Installation - Page 8

Part C: Bottom Beam Installation - Page 17

Part D: Power Box Installation - Page 20

Part E: LED Module Installation - Page 25

Warnings and Disclaimers

• Ensure that all electrical work meets or

exceeds all local or national electrical codes.

• Provide the required power to the display as

listed on the product labels, specications,

or site-specic riser drawings. The conductor

size may vary based on the length of the

power run.

• Consider implementing a separate circuit for

the display using an isolation transformer or

dedicated transformer.

• Daktronics assumes no liability for any issues

caused by line voltage uctuations or other

improper power conditions.

SLD 110" Installation Manual

DD5065833

Rev 01

01 November 2022

201 Daktronics Drive

Brookings, SD 57006-5128

www.daktronics.com/support

800.325.8766

Page 2 of 27

Unpacking

SLD 110" UNPACKING INSTRUCTION

STEP 2: TAKE OUT THE PACKAGESSTEP 1: OPEN CRATE

Crate 1

CONTROL BOX & REAR BEAMS

CONTROL BOX @1 REAR BEAM @2

HARDWARE & TOOL BOX @7

Crate 2

4 CABINETS & MODULES & SPARE PARTS

152x103x96 cm 59.8x40.6x37.8 inch

145x96x80 cm

STEP 2: TAKE OUT THE FILLER BOXSTEP 1: OPEN CRATE

THE CONCEPTS EXPRESSED AND DETAILS SHOWN ON THIS DRAWING

ARE CONFIDENTIAL AND PROPRIETARY. DO NOT REPRODUCE BY

ANY MEANS WITHOUT THE EXPRESS WRITTEN CONSENT OF

DAKTRONICS, INC. OR ITS WHOLLY OWNED SUBSIDIARIES.

THIRD ANGLE PROJECTION

REV

TITLE:

PROJECT:

DESIGN:

SCALE:

DIM UNITS:DATE: SHEET

DO NOT SCALE DRAWING

FUNC - TYPE - SIZE

DRAWN: -

JOB NO.

MILLIMETERS

SLD SERIES DISPLAY PROJECT

SLD 110" UNPACKING INSTRUCTION

27-OCT-2022

F 10 A3

NO SCALE

JW 5159994

001 OF 1

A3H

STEP 3: TAKE OUT MODULES & SPARES PACKAGES STEP 4: TAKE OUT CABINETS PACKAGES

MIDDLE CABINETS @1 LEFT & RIGHT CABINET @1 MODULE BOX @3 SPARE PARTS BOX @1

FILLER (FILLED EMPTY SPACE)

SLD 110" Installation Manual

DD5065833

Rev 01

01 November 2022

201 Daktronics Drive

Brookings, SD 57006-5128

www.daktronics.com/support

800.325.8766

Page 3 of 27

Installation Parts and Tools

DAKTRONICS PROVIDED CUSTOMER PROVIDED

HC-4084277

M8X50 SOCKET HEAD BOLT

0M-4671476

CABINET FLATNESS JIG

HC-1855

M6X16 SOCKET HEAD BOLT

HC-4827328

M8X15 COUNTERSUNK SOCKET HEAD BOLT

TH-4896293

PHILLIPS SCREWDRIVER

0A-2238-9999

MODULE TOOL (INSTALL AND REMOVAL)

TH-4964504

GLOVES

W-4137608

POWER INPUT CABLE

MOUNTING ANCHOR BOLT

CORDLESS DRILL

SOCKET FOR ANCHOR BOLT (WORK WITH

CORDLESS DRILL)

DRILL BIT (WORK WITH ANCHOR BOLT / CORDLESS

DRILL)

TAPE MEASURE

LASER LEVEL

4FT LEVEL (OPTIONAL WHEN WITHOUT LASER LEVEL)

2 LADDERS

SCISSORS

HC-4827329

M6X40 SET-SCREW

TH-4896295

ALLEN KEY SET

DAK PROVIDE CUSTOMER PROVIDE

HC-4084277 M8X50 SOCKET HEAD SCREW

0M-4671476 CABINET FLATNESS JIG

HC-1855 M6X16 SOCKET HEAD SCREW

HC-4827328 M8X15 COUNTERSUNK SOCKET HEAD SCREW

TH-4896295 M6 (5#) ALLEN KEY

MOUNTING ANCHOR BOLT

CORDLESS DRILL

DRILL BIT (WORK WITH ANCHOR BOLT / CORDLESS DRILL )

TAPE MEASURER

4FT LEVEL

(OPTIONAL WHEN WITHOUT LASER LEVEL)

INSTALL PARTS AND TOOLS

0A-2238-9999 MODULE TOOL (INSTALL AND REMOVAL)

TH-4176465 MODULE ADJUSTMENT TOOL

TH-4896293 PHILLIPS SCREW DRIVER

TH-4964504 GLOVE

2 LADDERS

LASER LEVEL

W-4137608 POWER INPUT CABLE

SOCKET FOR ANCHOR BOLT (WORK WITH CORDLESS DRILL)

SLD 220"

INSTALLATION MANUAL

HC-4827329 M6X40 JACK PIN

HC-4305316 M4X10 COUNTERSUNK PHILLIPS SCREW

0M-4685011 POWER BOX LINK PLATE

0M-5018247

MODULE ADJUSTMENT KEY

SLD 110" Installation Manual

DD5065833

Rev 01

01 November 2022

201 Daktronics Drive

Brookings, SD 57006-5128

www.daktronics.com/support

800.325.8766

Page 4 of 27

LASER LEVEL

2 LADDERS

CORDLESS DRILL

DRILLING

DRILL BIT

(WORK WITH ANCHOR BOLT

/ CORDLESS DRILL )

DRILLNG

Part A: Upper Beam Installation

Step 1: Location

TAPE MEASURE

1 LADDER

LASER LEVEL

LASER PLUMB LINE

(UPPER BEAM LOCATION)

REFER TO DWG-4945693 FOR RECOMMENDED UPPER BEAM LOCATION.

SLD 110" Installation Manual

DD5065833

Rev 01

01 November 2022

201 Daktronics Drive

Brookings, SD 57006-5128

www.daktronics.com/support

800.325.8766

Page 5 of 27

Part A: Upper Beam Installation

Step 2: Drilling

800

117

2202

1519

2452

1220

CORDLESS DRILL

DRILL BIT

LASER LEVEL

2 LADDERS

DRILLING

COUNTERSUNK HOLES

FACING OUTWARD

SLD 110" Installation Manual

DD5065833

Rev 01

01 November 2022

201 Daktronics Drive

Brookings, SD 57006-5128

www.daktronics.com/support

800.325.8766

Page 6 of 27

Part A: Upper Beam Installation

Step 3: Mounting And Adjustment

DIM

MOUNTING

ADJUSTMENT

CORDLESS DRILL

LASER LEVEL

2 LADDERS

MOUNTING

ANCHOR BOLT

SOCKET FOR

ANCHOR BOLT

4FT LEVEL

HC-4827329

M6X40 SET-SCREW

TH-4896295

ALLEN KEY SET

M6 (5#)

DAK PROVIDE CUSTOMER PROVIDE

HC-4084277 M8X50 SOCKET HEAD SCREW

0M-4671476 CABINET FLATNESS JIG

HC-1855 M6X16 SOCKET HEAD SCREW

HC-4827328 M8X15 COUNTERSUNK SOCKET HEAD SCREW

TH-4896295 M6 (5#) ALLEN KEY

MOUNTING ANCHOR BOLT

CORDLESS DRILL

DRILL BIT (WORK WITH ANCHOR BOLT / CORDLESS DRILL )

TAPE MEASURER

4FT LEVEL

(OPTIONAL WHEN WITHOUT LASER LEVEL)

INSTALL PARTS AND TOOLS

0A-2238-9999 MODULE TOOL (INSTALL AND REMOVAL)

TH-4176465 MODULE ADJUSTMENT TOOL

TH-4896293 PHILLIPS SCREW DRIVER

TH-4964504 GLOVE

2 LADDERS

LASER LEVEL

W-4137608 POWER INPUT CABLE

SOCKET FOR ANCHOR BOLT (WORK WITH CORDLESS DRILL)

SLD 220"

INSTALLATION MANUAL

HC-4827329 M6X40 JACK PIN

HC-4305316 M4X10 COUNTERSUNK PHILLIPS SCREW

0M-4685011 POWER BOX LINK PLATE

SLD 110" Installation Manual

DD5065833

Rev 01

01 November 2022

201 Daktronics Drive

Brookings, SD 57006-5128

www.daktronics.com/support

800.325.8766

Page 7 of 27

Part A: Upper Beam Installation

Step 4: Drilling And Mounting

DIM

CORDLESS DRILL

LASER LEVEL

MOUNTING

ANCHOR BOLT

SOCKET FOR

ANCHOR BOLT

4FT LEVEL

DRILL BIT

DRILLING

MOUNTING

1 LADDER

305mm

12" 305mm

12"

305mm

12"

SLD 110" Installation Manual

DD5065833

Rev 01

01 November 2022

201 Daktronics Drive

Brookings, SD 57006-5128

www.daktronics.com/support

800.325.8766

Page 8 of 27

Part B: Cabinets Installation

Step 5: Hang Cabinets

LOCATION LABEL

SLD 110" Installation Manual

DD5065833

Rev 01

01 November 2022

201 Daktronics Drive

Brookings, SD 57006-5128

www.daktronics.com/support

800.325.8766

Page 9 of 27

Part B: Cabinets Installation

Step 6: Slide In 1st Middle Column

REAR VIEW

SLD 110" Installation Manual

DD5065833

Rev 01

01 November 2022

201 Daktronics Drive

Brookings, SD 57006-5128

www.daktronics.com/support

800.325.8766

Page 10 of 27

Part B: Cabinets Installation

Step 7: Slide In Remaining Columns

a) Slide In Additional

Middle Column

b) Slide In Right Column

LOCATION LABEL

c) Slide In Left Column

Autres manuels pour SLD 110

Table des matières

Autres manuels Daktronics Moniteur

Daktronics

Daktronics NPN-4100 Series Manuel utilisateur

Daktronics

Daktronics SLD 138 Manuel utilisateur

Daktronics

Daktronics DVX-2101 Series Manuel utilisateur

Daktronics

Daktronics PC-2002 Manuel utilisateur

Daktronics

Daktronics DF-2300 Series Manuel utilisateur

Daktronics

Daktronics SMALL MATRIX GALAXY GS6 Series Manuel utilisateur

Daktronics

Daktronics Galaxy Series Manuel utilisateur

Daktronics

Daktronics Galaxy AF-3165 Manuel utilisateur

Daktronics

Daktronics FUELIGHT FL-3000 Series Guide de l'utilisateur

Daktronics

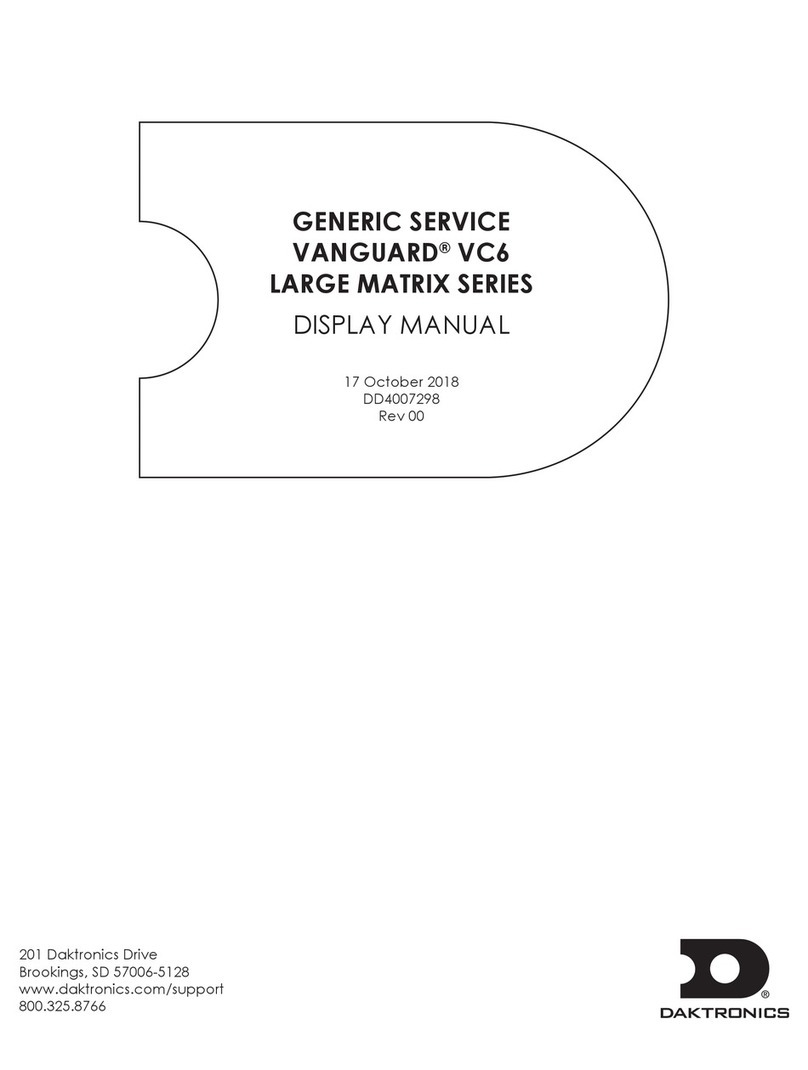

Daktronics VANGUARD VC6 Manuel utilisateur

Daktronics

Daktronics Large Matrix Galaxy GT6X Series Guide de l'utilisateur

Daktronics

Daktronics WP-2103 Manuel utilisateur

Daktronics

Daktronics DVX-2821 Series Manuel utilisateur

Daktronics

Daktronics Galaxy AF-3400 Series Manuel utilisateur

Daktronics

Daktronics DVX-1830 Series Guide de l'utilisateur

Daktronics

Daktronics Galaxy AF-3400 Series Manuel utilisateur

Daktronics

Daktronics Galaxy Series Manuel utilisateur

Daktronics

Daktronics PPX-1001 Series Manuel utilisateur

Daktronics

Daktronics Galaxy GS6 Manuel utilisateur

Daktronics

Daktronics COLORSMART BB-3102 Manuel utilisateur

Daktronics

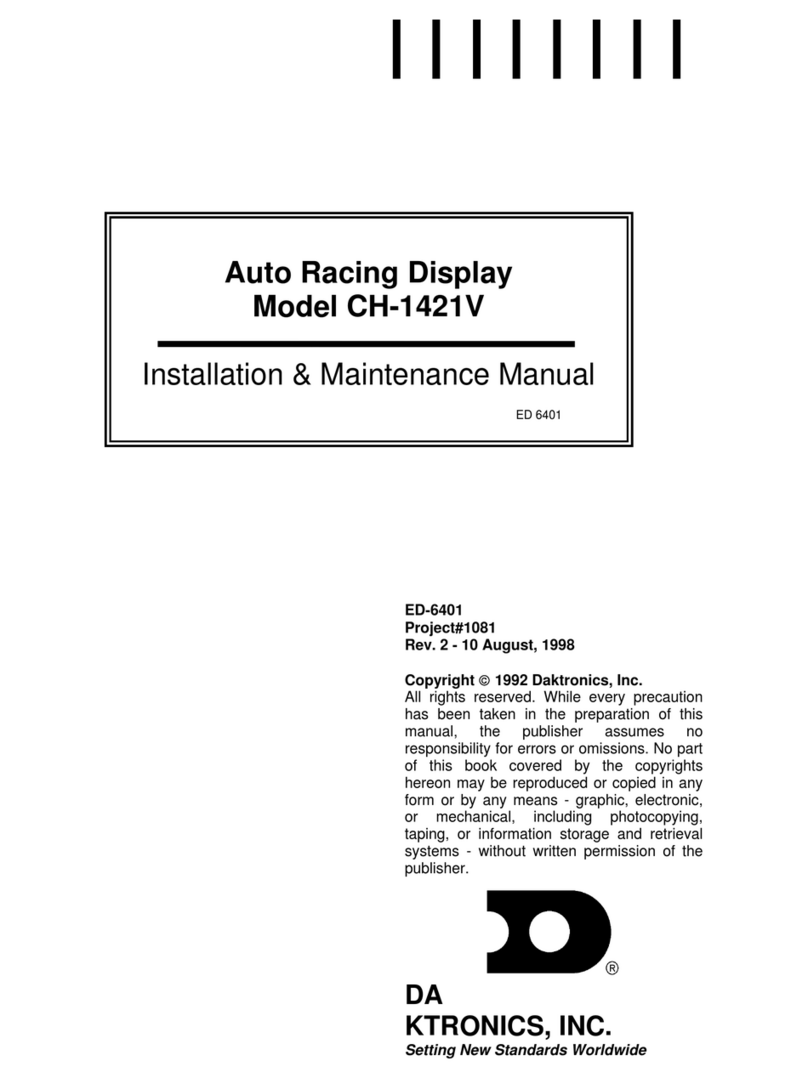

Daktronics CH-1421V Mode d’emploi
