6000 SERIES DIGITAL

BILLBOARD

INSTALLATION MANUAL

P1835

DD3289669

Rev 09

23 May 2019

responsibility for errors or omissions. No part of this book covered by the copyrights hereon may be reproduced or copied

in any form or by any means—graphic, electronic, or mechanical, including photocopying, taping, or information

storage and retrieval systems—without written permission of the publisher.

Daktronics trademarks are property of Daktronics, Inc. All other trademarks are property of their respective companies.

FCC Statement

Supplier Declaration of Conformity (SDoC)

This product complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1)

This device may not cause harmful interference, and

(2) this device must accept any interference received,

including interference that may cause undesired

operation.

Note: This equipment has been tested and found to

comply with the limits for a Class A digital device,

pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against

harmful interference when the equipment is operated

in a commercial environment. This equipment

generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance

with the instruction manual, may cause harmful

interference to radio communications. Operation of

this equipment in a residential area is likely to cause

harmful interference in which case the user will be

required to correct the interference at their own

expense.

Warning: The user is cautioned that changes and

modications made to the equipment without the

approval of manufacturer could void the user’s

authority to operate this equipment.

Industry Canada Regulatory Information

This Class A digital apparatus complies with Canadian

ICES-003.

Cet appareil numérique de la classe A est conforme à

la norme NMB-003 du Canada.

Inquiries

Contact Daktronics with any questions regarding our

product compliance.

Mail:

Daktronics

201 Daktronics Dr.

Brookings, SD 57006 USA

Phone:

800-325-8766

Website:

www.daktronics.com

– i –

Table of Contents

1 Introduction��1

Limitation of Liability ..................................1

Important Contact Information ...............1

Display Identication.................................1

6000 Series Improvements ........................1

Terms Used in this Manual.........................4

Required Tools............................................5

Daktronics Digital Billboard Overview .....5

2 Installation Preparation ��6

Installation Planning ..................................6

Support Ledger ..........................................6

Display Inspection......................................6

3 Display Installation��7

Display Installation .....................................7

4 Section Splicing ��10

Display Section Numbering ....................10

Display Splicing ........................................10

5 Multi-Direction Light Sensor

Relocation ��13

Multi-Direction Light Sensor Relocation.13

6 Webcam Mounting��14

Mounting the Webcam to the Arm.......14

Standard 10-Foot Fixed Webcam Arm

Installation ................................................14

Standard 10-20 Foot Adjustable-Length

Webcam Arm Installation.......................15

Installation��15

Optional Retracting the Webcam Arm

��16

7 Electrical Installation ��17

Main Disconnect .....................................17

Electrical Installation................................17

Display Grounding...................................18

8 Spare Parts Rack Location��19

9 Control System Overview ��20

Fully Embedded Control System............20

Opening the ISP Box................................21

10 First-Time Power Up��22

First-Time Power Up..................................22

11 Display Testing and Adjustment��23

Diagnostics Checks .................................23

Display Image Quality.............................23

Test the Light Sensor (MDLS) ...................23

A Reference Drawings ��25

B Daktronics Warranty and Limitation

of Liability��27

This page intentionally left blank.

Introduction

1 Introduction

This manual provides information to install and re up a Daktronics digital billboard.

Please read and understand all steps in this manual before beginning the installation

process. Contact the Project Manager with questions.

Limitation of Liability

Failure to perform the following may void factory warranties:

• Install the digital billboard according to the steps in this manual

• Provide proper electrical service

• Ground the display properly

For the full Daktronics Warranty and Limitation of Liability, refer to Section B: Daktronics

Warranty and Limitation of Liability (p�27).

Note: This applies to initial installation only. Manufacturer does not warranty relocation

of displays.

Important Contact Information

Daktronics Help Desk: 1-877-DAK-HELP (325-4357)

Display Identication

This section provides information

that is helpful in understanding a

Daktronics digital billboard display

label. Refer to Figure 1 while

reading the table below.

Display Assembly Number

Display Serial Number

Manufacture Month/Date Year

DB-6000 Modules High X Modules Wide

RMN: Daktronics - 0200 - 11 Manufactured in Sioux Falls, SD

120/240 VAC, Single Phase, 60 HZ

AMPS (L1/L2) = 25.5/24.4 Total

Total Watts = 5,979

6000 Series Improvements

Component Improvement Image of Change

Mounting • Standard offset extrusion

mount

SmartLink • Located externally on third

door from right

Figure 1: 6000 Series Display Label

Introduction

Component Improvement Image of Change

Ventilation

• Intake and exhaust hoods

replace intake and exhaust

vents

Internet and

Webcam

Connections

• Located three bays in from

the left

Display Doors

• Hinged doors allow

easy access to internal

components

Control

System • Meraki Router

DMP-8065

• DMP-8065 Gen 2

• No fans on DMP-8065

(internal or external)

• Single Power Supply

• Located on the door to the

right of the ISP equipment

door

Cooling • Fans located on horizontal

members within the display

Introduction

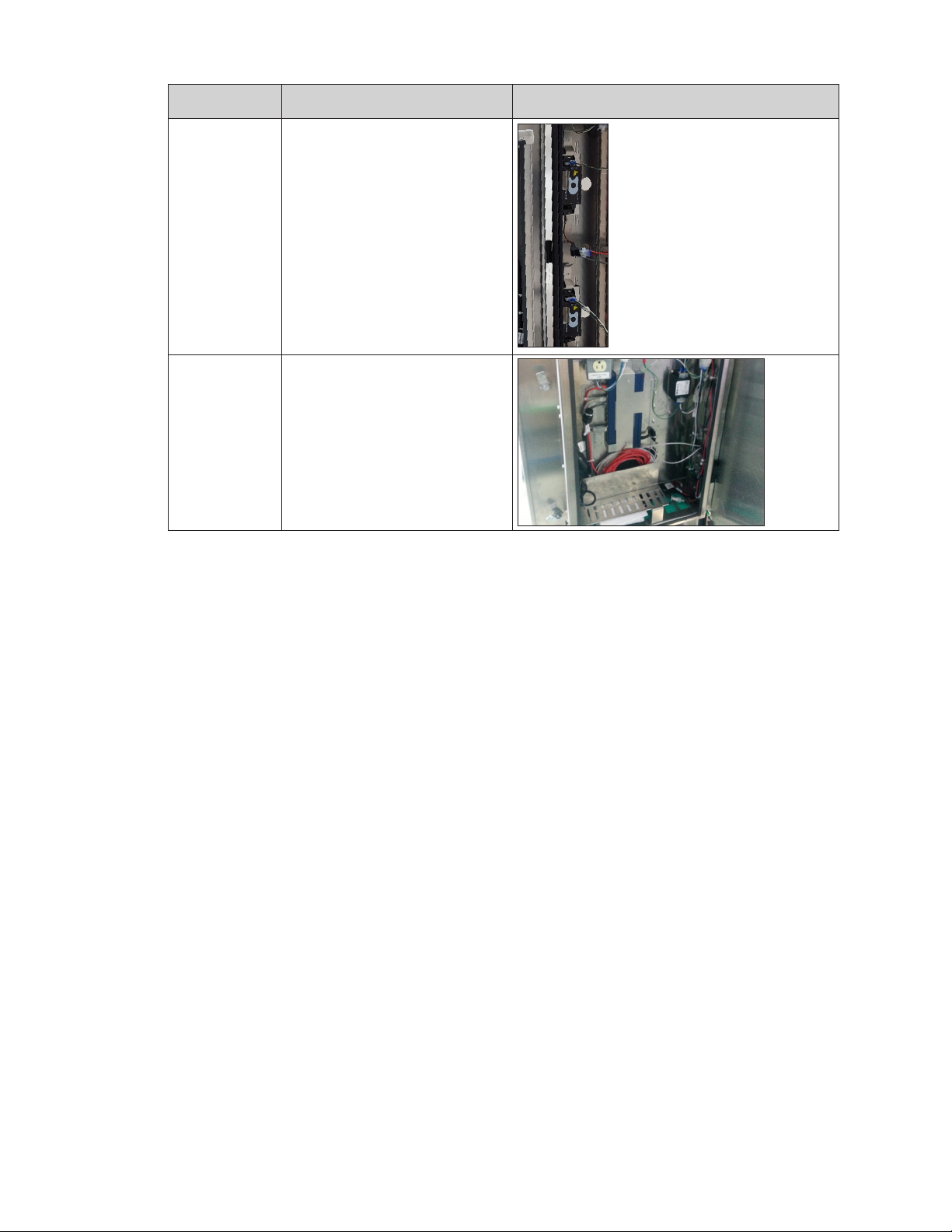

Component Improvement Image of Change

ISP Box • Located inside the third

door from left

Term Panel • Located inside the third

door from the right

Spare Parts

• Spare parts are located

inside the far-left bottom

door

• Module, module tool,

power supply, and splice

tool are included. Other

standard service tools are

not

Power

Entrance Box

• Located between third and

fourth doors from the right

• See layout examples on

Page 6

Module Size

• 400 mm

• Uses the latest technology

with a downward-focused

LED

Introduction

Component Improvement Image of Change

Power Supply

• Low-prole power supplies

• One 65 W power supply

now powers two modules.

• Power supplies are

mounted to the uprights

inside the display

Optional

Control

System -

Third Party

• Internal location for

customer-provided player

• See DD2879292 for

requirements

Terms Used in this Manual

Lanyard Attachment Ring: A ring found on the back of each module and on the display

doors that attaches to a lanyard and prevents the module from falling.

Latch Release: Releases the latch that holds the module rmly in the display. The latches

are centered near the top and bottom of the module.

Light Emitting Diode (LED): Low-energy, high-intensity lighting unit.

Line Filter: Removes electromagnetic noise that might interfere with local communication

channels from the power system.

Module: Consists of a display board with LEDs, a driver board or logic card, housing, a

module latch assembly, and a louver. Each module is individually removable from either

the front or back of the display. Module part numbers vary by pixel pitch.

ProLink Router (PLR): The PLR takes data in and then routes that data to other areas in the

sign. There is typically one PLR per display section.

Power Supply: A device that converts AC line voltage from the panel board to low DC

voltage for driver boards. In the 5000 series, one power supply powers two modules, one

controller, or a ProLink Router (PLR).

Serial Advanced Technology Attachment (SATA) Cable: Allows high speed signal from

ow from device to device. In digital billboards, they run signal from module to module

and from the PLR to the modules.

Termination Block: An electrical connection point, usually used to connect internal

power and signal wires of the same type coming into the display from an external

source.

DMP-8065: Digital billboard control card that sends content to the display. The DMP limits

the display to static content and regulates content hold times.

Introduction

Required Tools

The following table lists the minimum tool requirements Daktronics recommends having

on site for each installation. Daktronics provides some specialized tools but it is the

installer’s responsibility to provide the majority of tools:

Daktronics-Provided Tools

(located behind labeled

doors)

• Black cable ties

• L-Handle hex head wrench: 1/8"

• Splice wrench

• T-Handle Hex head wrench: 1/8"

Customer-Provided Tools

• Hex head wrenches:

Various sizes

• Flat-head screwdriver

• Phillips screw driver

• Bucket truck: Customer

must provide until nal

proof of performance

• Crane

• Cordless drill

• Drill bits

• Hammers

• Ladder: 6', 8', 10'

• Laptop

• Pry bar

• Ratchet tie-downs/come

along

• Socket and open end

wrench: 11/16"

• Socket extension: 3"

• Socket set

• Tape measure

• Torque Allen wrench: 1/8"

• Utility knife

• Taglines

• Fish tape

Daktronics Digital Billboard Overview

Figure 2 provides a general

overview of display components in

a poster (11’ x 22’) display. Refer to

display-specic drawings to identify

component locations as they vary

by display size.

Spare

Parts

Location

Doors

Ventilation

Exhaust Hood

Ventilation

Intake Hood

ISP Box

DMP-8065

Power

Entrance

Term

Panel

SmartLink

Webcam/Light/Temp

Sensor Connections

Lift Eye

Display Back

Border

Module

Support

Ledger

Display Front

Figure 2: 6000 Series Display Front and Back

Installation Preparation

2 Installation Preparation

Installation Planning

Prior to the display arriving on site, review installation plans with the electrician, Internet

Service Provider, and members of the installation crew.

Support Ledger

Ensure that the ledger brackets are mounted to the upright I-beam. All ledger brackets

must be installed prior to lifting the display to the head. For ledger bracket details, refer to

DWG A-988359 (use with offset mounts) and DWG 3041598 (use without offset mounts) in

Section A: Reference Drawings (p�25).

Display Inspection

When the display arrives on site, verify the packaging is in good condition. When

unpacking the display, inspect it for damage and potential issues.

Photograph any damage and contact your Project Manager immediately to report

issues. Failure to report and document shipping damage may void any manufacturer’s

warranties.

Table des matières

Autres manuels Daktronics Moniteur

Daktronics

Daktronics COLORSMART BB-3102 Manuel utilisateur

Daktronics

Daktronics DVX-2101 Series Manuel utilisateur

Daktronics

Daktronics Small Matrix Galaxy GS6 Series Guide de l'utilisateur

Daktronics

Daktronics Galaxy AF-3400 Series Manuel utilisateur

Daktronics

Daktronics DVX-2821 Series Manuel utilisateur

Daktronics

Daktronics Street Furniture Mode d’emploi

Daktronics

Daktronics TI-2041 Manuel utilisateur

Daktronics

Daktronics Galaxy AF-3080 Series Manuel utilisateur

Daktronics

Daktronics FUELIGHT FL-3000 Series Guide de l'utilisateur

Daktronics

Daktronics VANGUARD VL-3500 Series Manuel utilisateur

Daktronics

Daktronics DATATIME 50 Series Manuel d'instructions

Daktronics

Daktronics PPX-1050 Series Manuel utilisateur

Daktronics

Daktronics Galaxy AF-3165 Manuel utilisateur

Daktronics

Daktronics ST-2373 Series Manuel utilisateur

Daktronics

Daktronics Galaxy AF-3400 Series Manuel utilisateur

Daktronics

Daktronics Galaxy AF-3200 Series Manuel utilisateur

Daktronics

Daktronics SMALL MATRIX GALAXY GS6 Series Manuel utilisateur

Daktronics

Daktronics ProPixel PSX-5102-62MN-10 Manuel utilisateur

Daktronics

Daktronics Galaxy AF-3050 Series Manuel utilisateur

Daktronics

Daktronics DSF-600 Series Manuel utilisateur

Daktronics

Daktronics GALAXY ECCB Series Manuel utilisateur

Daktronics

Daktronics Galaxy Series Manuel utilisateur

Daktronics

Daktronics Galaxy AF-3112 Primary Series Manuel utilisateur

Daktronics

Daktronics ProPixel PSX-5901-125MN-3 Manuel utilisateur

Manuels Moniteur populaires d'autres marques

Linear Acoustic

Linear Acoustic LQ-1000 Manuel utilisateur

AOC

AOC I2579V Manuel utilisateur

Gateway

Gateway FPD1520 Manuel utilisateur

Furuno

Furuno Mu 120c Manuel utilisateur

Asus

Asus VB171D - 17" LCD Monitor Manuel utilisateur

Dell

Dell S2230MX Instructions d'utilisation

Philips

Philips 107C64 Manuel utilisateur

Dell

Dell S2409WFP Manuel utilisateur

EverFocus

EverFocus EN-7517E Manuel utilisateur

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manuel utilisateur

Dell

Dell Precision 7680 Mode d’emploi

LG 50PM1M - - 50" Plasma Panel Manuel utilisateur

Bosch

Bosch DDU 9 Manuel utilisateur

Acer

Acer A231HL Manuel utilisateur

Philips

Philips 86BDL4152T Manuel utilisateur

NEC

NEC AccuSync LCD5V Manuel utilisateur

Emay

Emay SleepO2 Manuel utilisateur

IBM

IBM 6360 Instructions d'installation
