Dahua Technology IR Eyeball Manuel utilisateur

IR Eyeball Network Camera

Quick Start Guide

V1.0.1ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD.

Quick Start Guide

Foreword

General

This manual introduces the functions, installation and operations of the camera.

Safety Instructions

The following categorized signal words with defined meaning might appear in the manual.

Signal Words Meaning

Indicates a high potential hazard which, if not avoided, will result in

death or serious injury.

Indicates a medium or low potential hazard which, if not avoided,

could result in slight or moderate injury.

Indicates a potential risk which, if not avoided, may result in

property damage, data loss, lower performance, or unpredictable

result.

Provides methods to help you solve a problem or save you time.

Provides additional information as the emphasis and supplement to

the text.

Revision History

Version Revision Content Release Date

V1.0.1 Updated "Important Safeguards and Warnings." April 2021

V1.0.0 First release. March 2018

About the Manual

The manual is for reference only. If there is inconsistency between the manual and the actual

product, the actual product shall prevail.

We are not liable for any loss caused by the operations that do not comply with the manual.

The manual would be updated according to the latest laws and regulations of related

jurisdictions. For detailed information, refer to the paper manual, CD-ROM, QR code or our

official website. If there is inconsistency between paper manual and the electronic version, the

electronic version shall prevail.

All the designs and software are subject to change without prior written notice. The product

updates might cause some differences between the actual product and the manual. Please

contact the customer service for the latest program and supplementary documentation.

There still might be deviation in technical data, functions and operations description, or errors

in print. If there is any doubt or dispute, we reserve the right of final explanation.

Upgrade the reader software or try other mainstream reader software if the manual (in PDF

Quick Start Guide

format) cannot be opened.

All trademarks, registered trademarks and the company names in the manual are the properties

of their respective owners.

Please visit our website, contact the supplier or customer service if there is any problem

occurring when using the device.

If there is any uncertainty or controversy, we reserve the right of final explanation.

Quick Start Guide

III

Important Safeguards and Warnings

Electrical safety

All installation and operation should conform to your local electrical safety codes.

The power source shall conform to the Safety Extra Low Voltage (SELV) standard, and supply

power with rated voltage which conforms to Limited Power Source requirement according to

IEC60950-1. Please note that the power supply requirement is subject to the device label.

Make sure the power supply is correct before operating the device.

A readily accessible disconnect device shall be incorporated in the building installation wiring.

Prevent the power cable from being trampled or pressed, especially the plug, power socket and

the junction extruded from the device.

Environment

Do not aim the device at strong light to focus, such as lamp light and sun light; otherwise it

might cause over brightness or light marks, which are not the device malfunction, and affect the

longevity of Complementary Metal-Oxide Semiconductor (CMOS).

Do not place the device in a damp or dusty environment, extremely hot or cold temperatures, or

the locations with strong electromagnetic radiation or unstable lighting.

Keep the device away from any liquid to avoid damage to the internal components.

Keep the indoor device away from rain or damp to avoid fire or lightning.

Keep sound ventilation to avoid heat accumulation.

Transport, use and store the device within the range of allowed humidity and temperature.

Heavy stress, violent vibration or water splash are not allowed during transportation, storage

and installation.

Pack the device with standard factory packaging or the equivalent material when transporting

the device.

Install the device in the location where only the professional staff with relevant knowledge of

safety guards and warnings can access. The accidental injury might happen to the

non-professionals who enter the installation area when the device is operating normally.

Operation and Daily Maintenance

Do not touch the heat dissipation component of the device to avoid scald.

Carefully follow the instructions in the manual when performing any disassembly operation

about the device; otherwise, it might cause water leakage or poor image quality due to

unprofessional disassembly. Please make sure that the gasket ring is flat and properly installed

in the groove before installing the cover. Please contact after-sale service for desiccant

replacement if there is condensed fog on the lens after unpacking or when the desiccant turns

green (Not all models are included with the desiccant).

It is recommended to use the device together with lightning arrester to improve lightning

protection effect.

Quick Start Guide

It is recommended connect the grounding hole to the ground to enhance the reliability of the

device.

Do not touch the image sensor directly (CMOS). Dust and dirt could be removed with air blower,

or you can wipe the lens gently with soft cloth that moistened with alcohol.

Device body can be cleaned with soft dry cloth, which can also be used to remove stubborn

stains when moistened with mild detergent. To avoid possible damage on device body coating

which could cause performance decrease, do not use volatile solvent such as alcohol, benzene,

diluent and so on to clean the device body, nor can strong, abrasive detergent be used.

Dome cover is an optical component, do not touch or wipe the cover with your hands directly

during installation or operation. For removing dust, grease or fingerprints, wipe gently with

moisten oil-free cotton with diethyl or moisten soft cloth. You can also air blower to remove

dust.

WARNING

Please strengthen the protection of network, device data and personal information by adopting

measures which include but not limited to using strong password, modifying password

regularly, upgrading firmware to the latest version, and isolating computer network. For some

device with old firmware versions, the ONVIF password will not be modified automatically along

with the modification of the system password, and you need to upgrade the firmware or

manually update the ONVIF password.

Use standard components or accessories provided by manufacturer and make sure the device is

installed and maintained by professional engineers.

The surface of the image sensor should not be exposed to laser beam radiation in an

environment where a laser beam device is used.

Do not provide two or more power supply sources for the device unless otherwise specified. A

failure to follow this instruction might cause damage to the device.

Quick Start Guide

Table of Contents

Foreword........................................................................................................................................................... I

Important Safeguards and Warnings............................................................................................................. III

1 Introduction................................................................................................................................................... 1

2 Network Configuration ................................................................................................................................. 2

Initializing Device.......................................................................................................................................................................2

Modifying Device IP Address.................................................................................................................................................3

Logging in to Web Interface ..................................................................................................................................................4

3 Installation..................................................................................................................................................... 6

Packing List...................................................................................................................................................................................6

Dimension.....................................................................................................................................................................................6

Installing Device .........................................................................................................................................................................7

3.3.1 Installation Method......................................................................................................................................................7

3.3.2 Installing SD Card (Optional) ....................................................................................................................................8

3.3.3 Attaching Device...........................................................................................................................................................8

3.3.4 Installing Waterproof Connector ..........................................................................................................................10

3.3.5 Adjusting Angle...........................................................................................................................................................11

Quick Start Guide

1Introduction

Cable type might vary with different devices, and the actual product shall prevail.

Please waterproof all the cable joints with insulating tape and waterproof tape to avoid short

circuit and water damage. For detailed operation, see the FAQ manual.

Cable list

For more information about cable ports, see Table 1-1.

Table 1-1 Cable Information

No. Port Name Function

1 Ethernet Port Connects to network with network cable.

Provides power to the device with PoE.

PoE is available on select model.

2 DC 12V Power

Input

Inputs DC 12V power. Please be sure to supply power as instructed in the

Guide.

Device abnormity or damage could occur if power is not supplied correctly.

Quick Start Guide

2Network Configuration

Device initialization and IP setting can be finished with the "ConfigTool" or in web interface. For more

information, see the WEB operation manual.

Device initialization is available on select models, and it is required at first use and after device is

being reset.

Device initialization is available only when the IP addresses of the device (192.168.1.108 by

default) and the PC stays in the same network segment.

Planning useable network segment properly to connect the device to the network.

The following figures and interfaces are for reference only, and the actual product shall prevail.

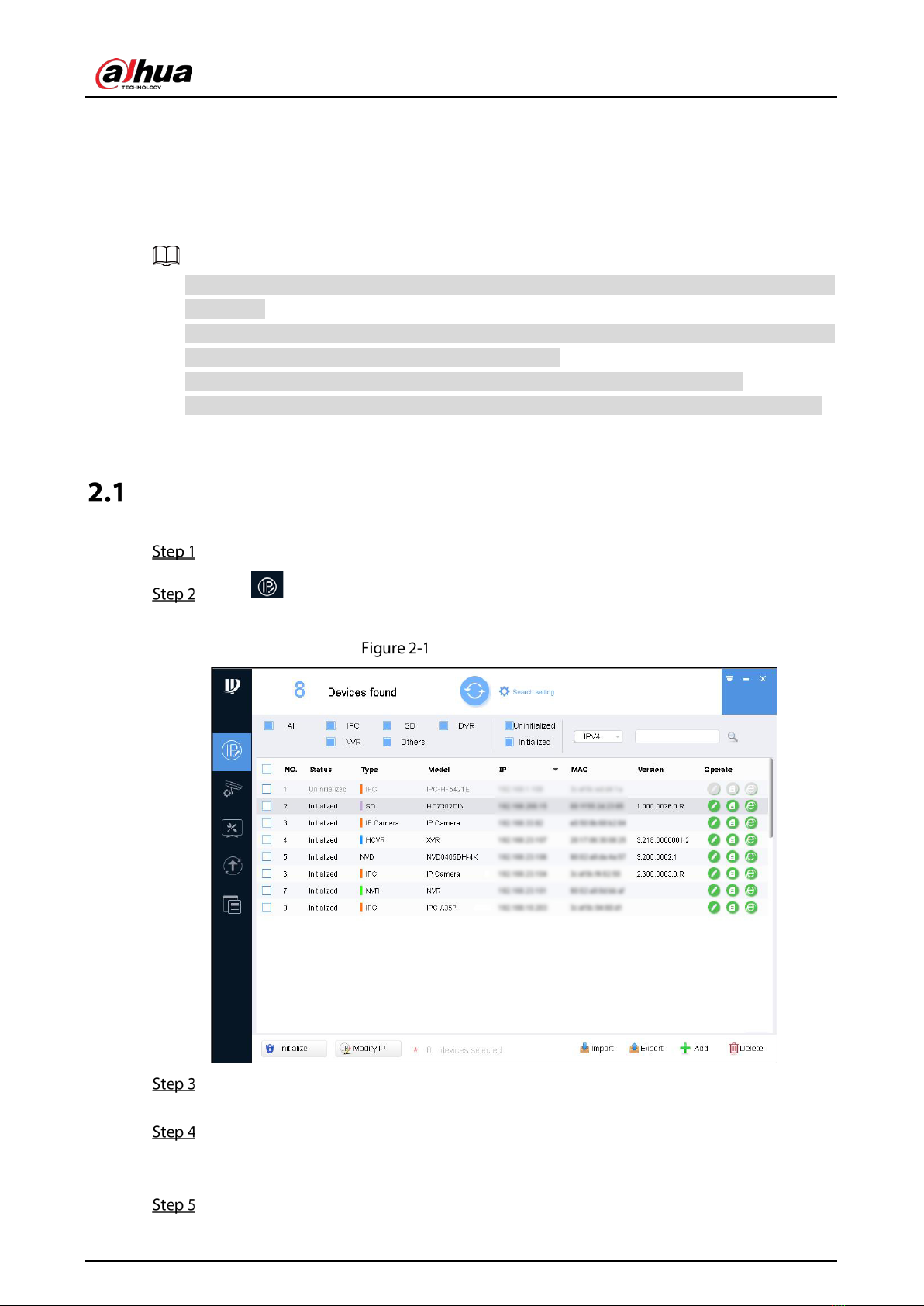

Initializing Device

Double-click "ConfigTool.exe" to open the tool.

Click .

The Modify IP interface is displayed. See Figure 2-1.

Modify IP interface

Click Search setting.

The Setting interface is displayed.

Enter the start IP and end IP of the network segment in which you want to search devices,

and then click OK.

All the devices found in the network segment are listed.

Select one or several devices which Status are Uninitialized, and then click Initialize.

Quick Start Guide

The Device initialization interface is displayed.

Select the devices that need initialization, and then click initialize.

The password setting interface is displayed. See Figure 2-2.

Password setting interface

Set and confirm the password of the devices, and then enter a valid email address. Click

Next.

The final setting interface is displayed.

Password can be modified or reset in System Settings.

Select the options according to your needs and then click OK.

The Initialization interface is displayed after initializing is completed. Click the success icon

() or the failure icon ( ) for the details.

Click Finish.

The device status in the Modify IP interface (Figure 2-1) turns to Initialized.

Modifying Device IP Address

You can modify IP address of one or multiple devices in one time. This section is based on

modifying IP addresses in batch.

Modifying IP addresses in batch is available only when the corresponding devices have the

same login password.

Follow Step 1 to Step 4 in 2.1 Initializing Device to search devices in your network segment.

After clicking Search setting,please make sure the username and password are the same

as what you set during initialization, otherwise there will be "wrong password" notice.

Quick Start Guide

Select the devices which IP addresses need to be modified, and then click Modify IP.

The Modify IP Address interface is displayed. See Figure 2-3.

Modify IP Address interface

Select Static mode and enter start IP, subnet mask and gateway.

IP addresses of multiple devices will be set to the same if you select Same IP.

If DHCP server is available in the network, devices will automatically obtain IP

addresses from DHCP server when you select DHCP.

Click OK.

Logging in to Web Interface

Open IE browser, enter the IP address of the device in the address bar and press Enter.

If the setup wizard is displayed, follow the instructions to finish the settings.

Enter user name and password in the log in box, and then click Login.

For first time login, click Click Here to Download Plugin and install the plugin as instructed.

The main interface is displayed when the installation is finished. See Figure 2-4.

Table des matières

Autres manuels Dahua Technology Caméra de sécurité

Dahua Technology

Dahua Technology DH-IPC-HUM8441-E1-L4 Manuel utilisateur

Dahua Technology

Dahua Technology D-IPC-HFW1430DSP-SAW-0280B Manuel utilisateur

Dahua Technology

Dahua Technology DH-IPC-HFW3 Manuel utilisateur

Dahua Technology

Dahua Technology N65CB5Z Manuel utilisateur

Dahua Technology

Dahua Technology Pro IPC-HDW5241TM-AS Manuel utilisateur

Dahua Technology

Dahua Technology PC-EBW81242 Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HUM8531M-V-LED-0360B Manuel utilisateur

Dahua Technology

Dahua Technology 50430UN Manuel utilisateur

Dahua Technology

Dahua Technology EOL Series Manuel utilisateur

Dahua Technology

Dahua Technology D-IPC-HDBW1430DEP-SW-0280B Manuel utilisateur

Dahua Technology

Dahua Technology A83AR6 Manuel utilisateur

Dahua Technology

Dahua Technology 49925TNI Manuel utilisateur

Dahua Technology

Dahua Technology DH-HAC-HUM1220GN-B Manuel utilisateur

Dahua Technology

Dahua Technology DH-IPC-HDBW3466FP-AS-AUS Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HDW1531SP Manuel utilisateur

Dahua Technology

Dahua Technology D-TPC-BF1241-B3F4-DW-S2 Manuel utilisateur

Dahua Technology

Dahua Technology DH-IPC-HDW1230T1P-S4 Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HDW2241T-S-0280B Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HDB3202-DI Series Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HFW3841E-AS-0280B-S2 Manuel utilisateur

Dahua Technology

Dahua Technology DH-IPC-HFW4X-W Manuel utilisateur

Dahua Technology

Dahua Technology IPC-HFW2431DG-4G Manuel utilisateur

Dahua Technology

Dahua Technology D-IPC-HDBW3841EP-S-0280-S2 Manuel utilisateur

Dahua Technology

Dahua Technology WizMind IPC-PDBW82041-B360 Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
