Daewoo FRS-U20DD Series Manuel utilisateur

Refrigerator

S/M No: FRU54AD001

✔

Caution

In this manual, some parts can be changed for improving their performance without notice.

S o, If you need the lates t parts information, pleas e vis it and refer to P P L (P arts P rice List) ]

in S ervice Infromation C enter. ( http://svc.dwe.co.kr )

SEP. 2008.

Refrigerant Type

(R-134a)

FRS-U20DD.

FRS-U20ED.

FRN-U20DD.

FRN-U20ED.

FRN-U20DD.I

FRN-U20ED.I

FRS-U20FD.

FRS-U20GD.

FRN-U20FD.

FRN-U20GD.

FRN-U20FD.I

FRN-U20GD.I

Refrigerant Type

(R-600a)

Compressor Type

(Inverter)

Refrigerant Type

(R-134a)

Refrigerant Type

(R-600a)

Compressor Type

(Inverter)

FRS-U20DF.

FRS-U20EF.

FRN-U20DF.

FRN-U20EF.

FRN-U20DF.I

FRN-U20EF.I

FRS-U20FF.

FRS-U20GF.

FRN-U20FF.

FRN-U20GF.

FRN-U20FF.I

FRN-U20GF.I

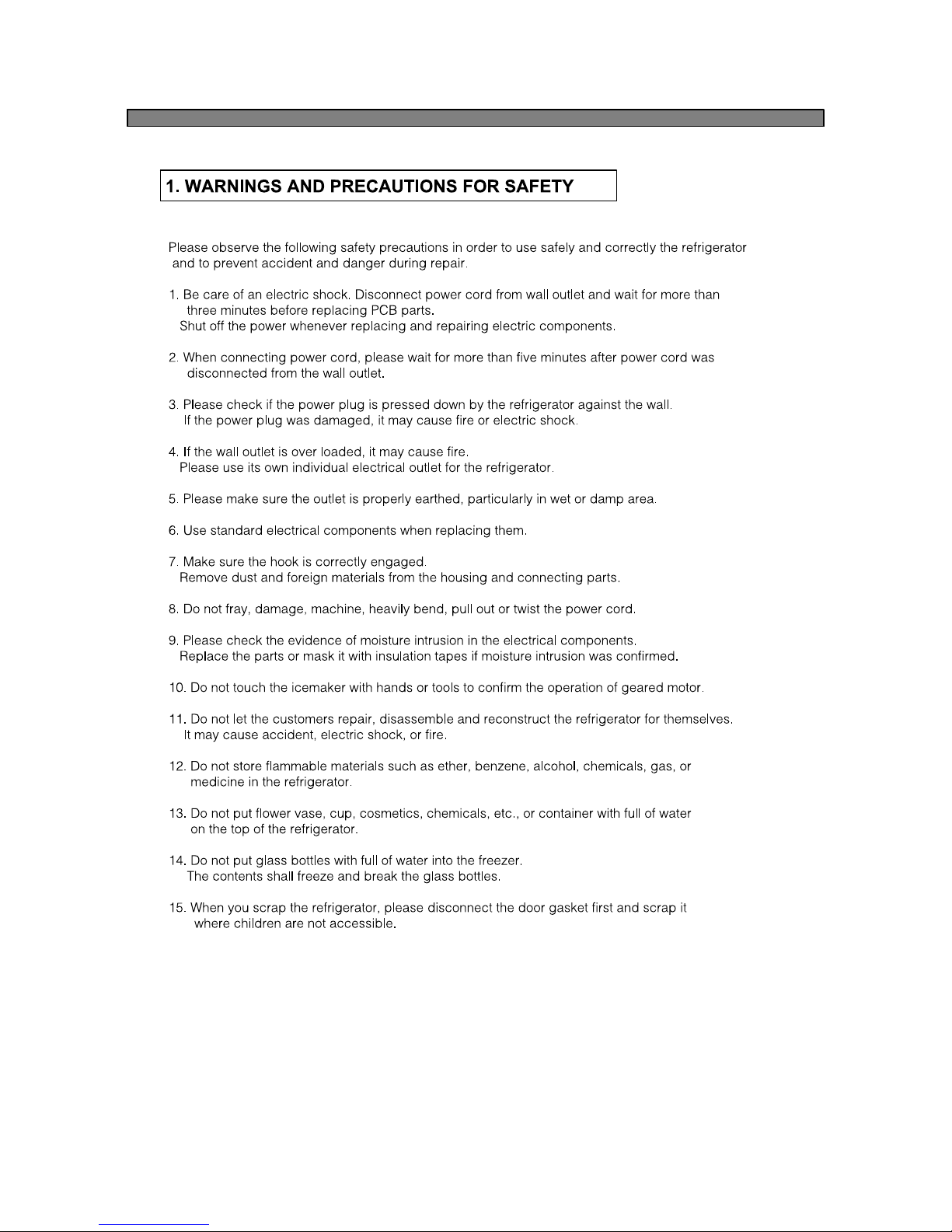

2. EXTERNAL VIEWS

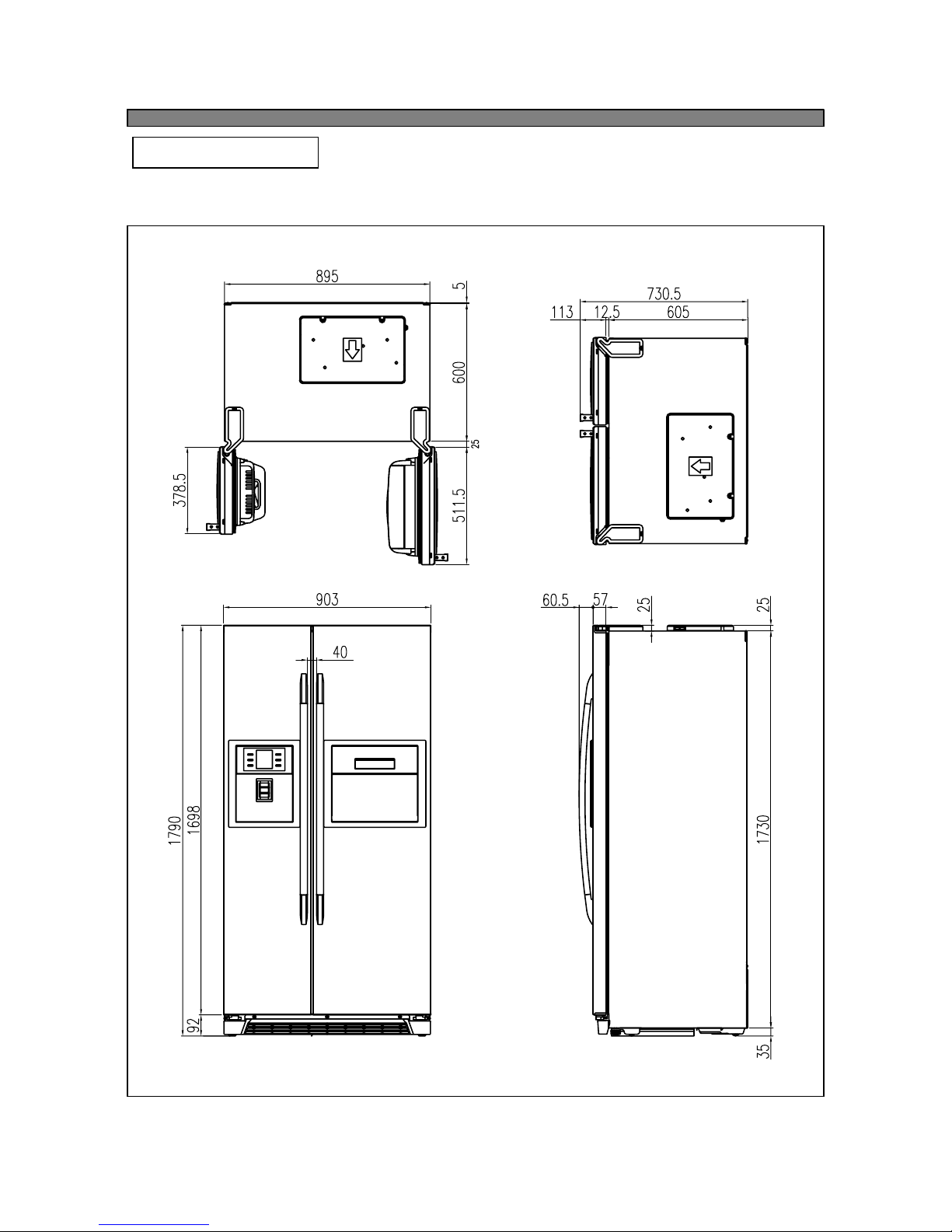

2-1. External Size ( U20DF./U20DG.. Series )

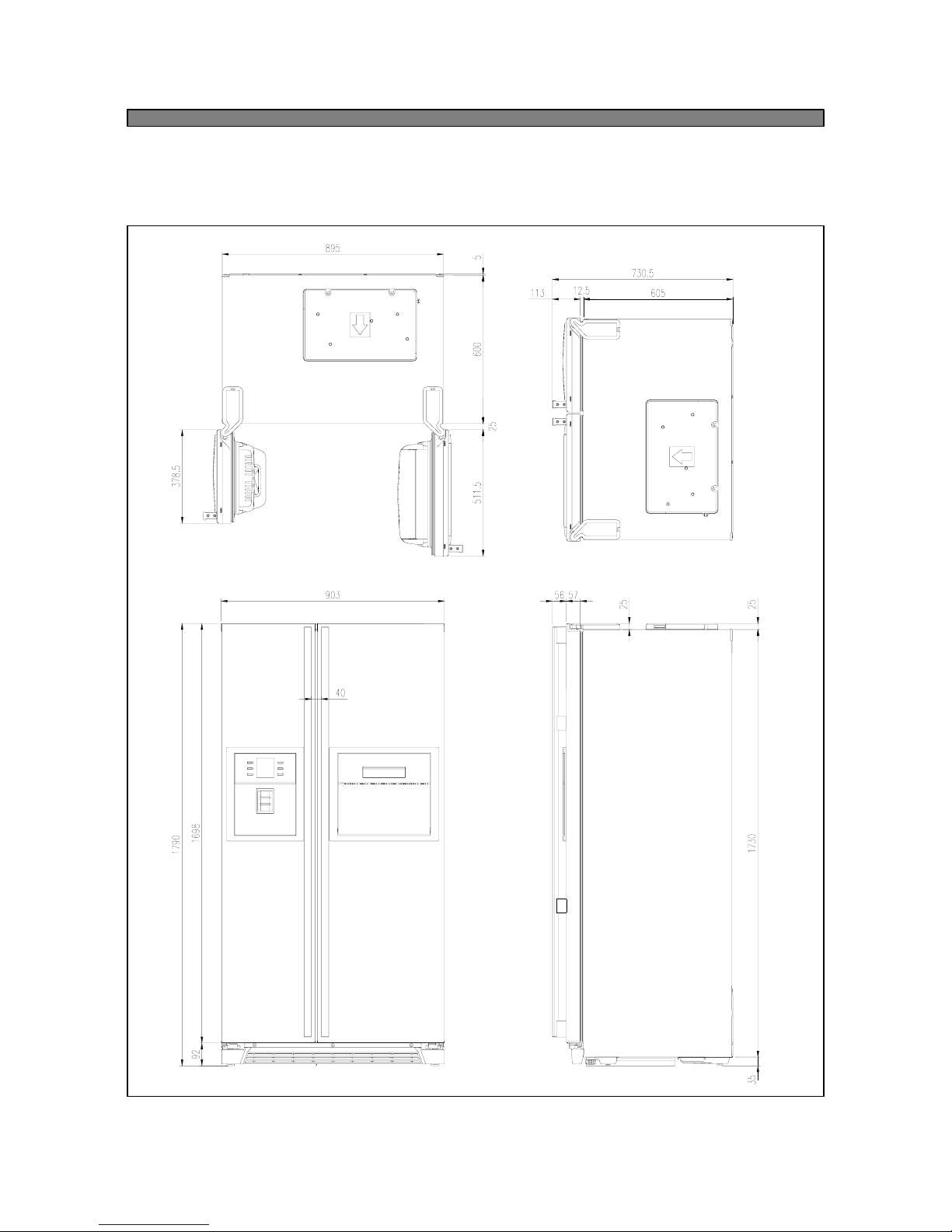

2-2. External Size ( U20FF./U20FG. Series )

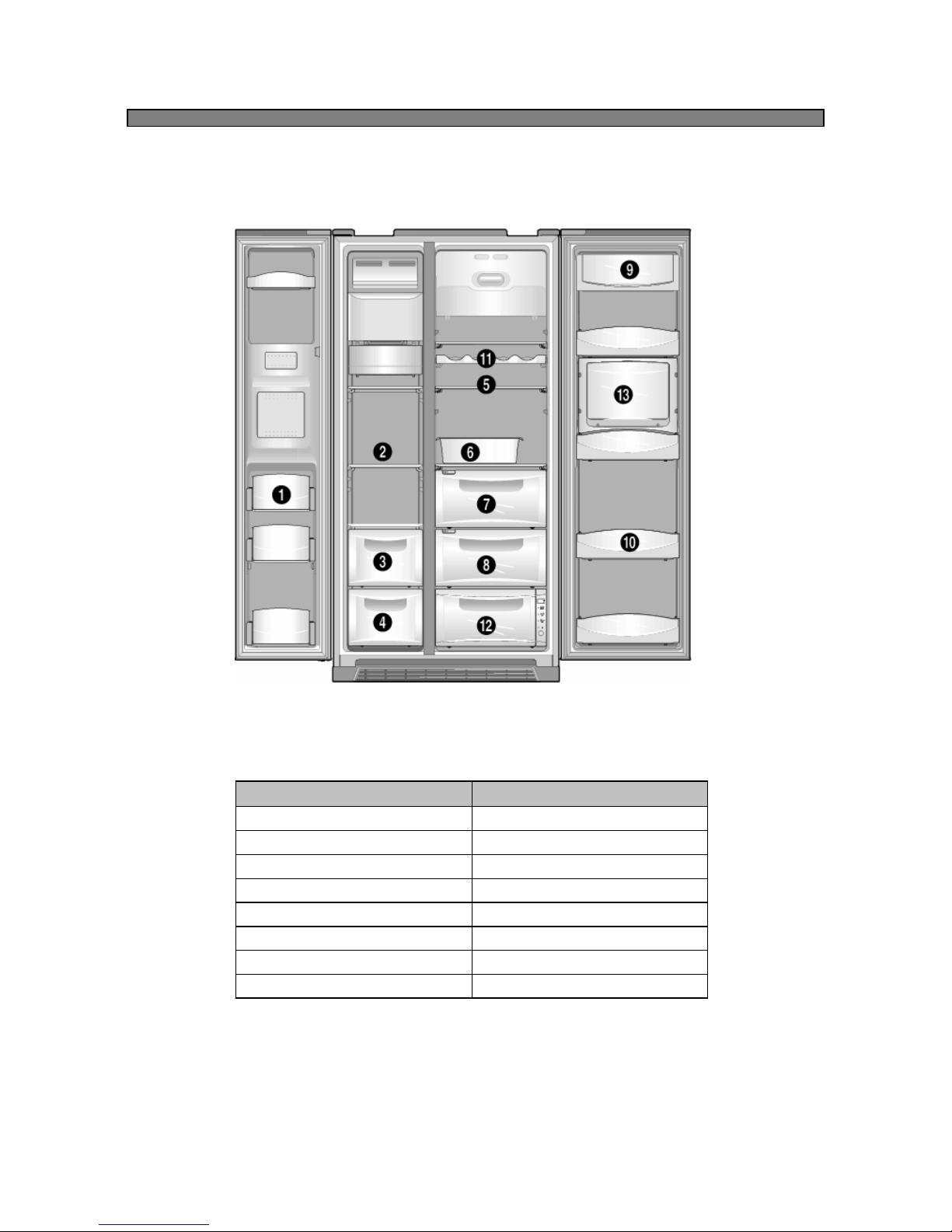

2-3. Name of Each Parts

11. Wine rack (option)

12. Magic Cool Zone (option)

13. Refreshment Pocket (option)

6. Egg Case1. Freezer Pocket

10. Refrigerator pocket

9. Dairy Pocket4. Freezer Case 2

8. Vegetable Case 23. Freezer Case 1

7. Vegetable Case 12. Freezer Shelf

Refrigerator CompartmentFreezer Compartment

Full option models illustrated, features are model dependent.

3. SPECIFICATION

DC 13V / 1850 rpmRefrigerator Fan Motor

DC 13V / 2050 rpmFreezer Fan Motor

AC 250V, 10A, 77CFuse Temp. (Defrost)

PBN-43Defrost Sensor

PT-38Freezer Sensor

PBN-43Refrigerator Sensor

25W x 2EARefrigerator Lamp

25W x 1EAFreezer Lamp

DC 13V / 1100 rpmCondenser Fan Motor

AC 220V / 5WDispenser Heater

AC 220V / 10WHome Bar Heater

AC 220V / 5WWater Pipe Heater

AC 220V / 192WDefrost Heater

R-134a (190g)

R-600a or R-134a (Look for your rating label)Refrigerant

R-600a (76g)Quantity

Fin TypeEvaporator

Fan Cooling SystemCondenser

Molecular Sieve XH-9Dryer

IDΦ0.7 ×T0.55 ×L2200Capillary Tube

115 / 117 / 115 / 117

324 Li

175 Li

518 Li

377 Li

227 Li

604 Li

U20DE./U20DG. / U20FE./U20FG.

113 / 115 / 113 / 115Weight (Kg)

356 LiRefrigerator

175 LiFreezer

531 LiTotal

ISO 15502

Storage

Volume

(Li)

377 Li

Refrigerator

227 LiFreezer

604 LiTotal

ISO 15502

Gross

Volume

(Li)

U20DD./U20DF. / U20FD./U20FF.Model Name

SpecificationItem

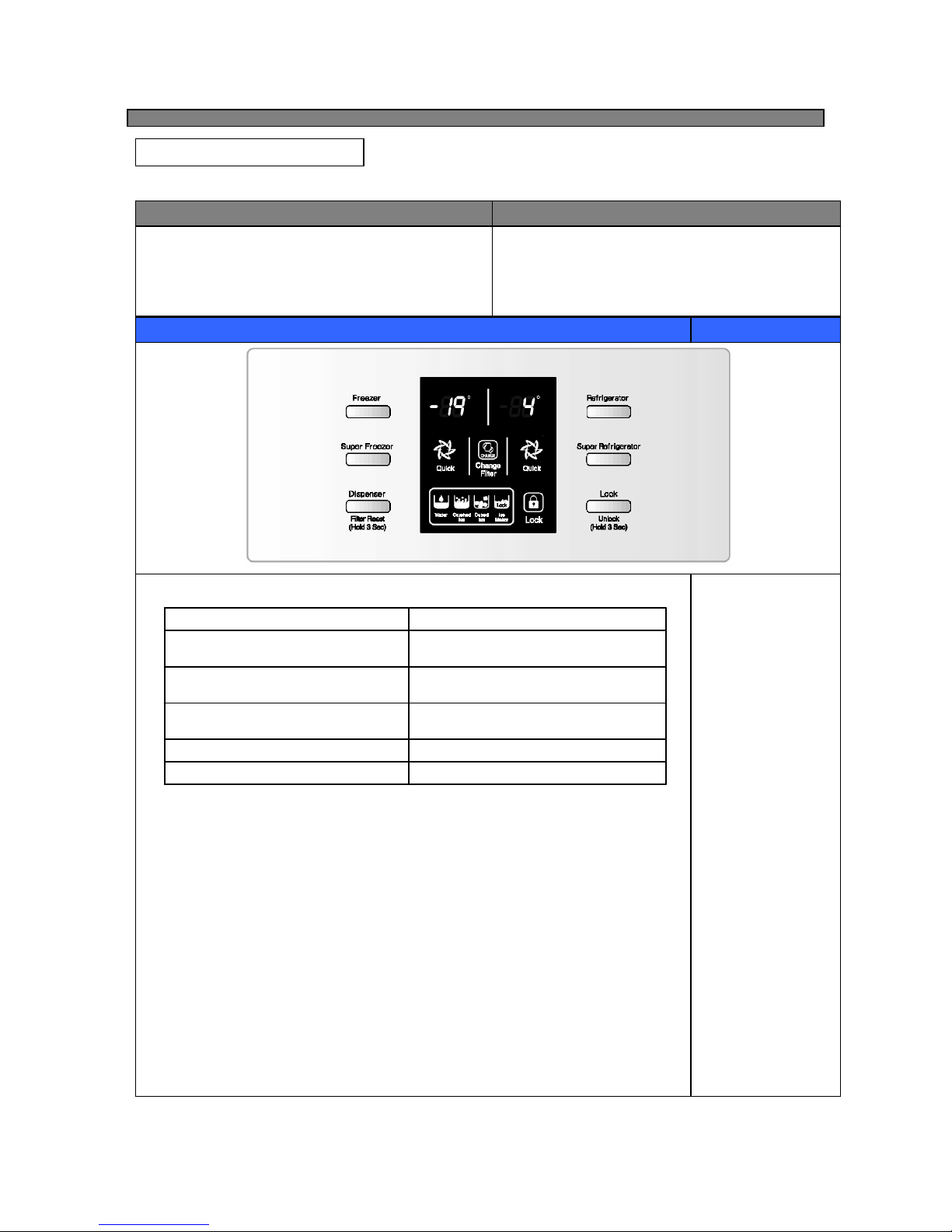

4-1. Display

4. OPERATION AND FUNCTION

1. Display control

2. “Freezer” button

1) Temperature control of freezer compartment

2) Initial power input : “Medium(-19C)”

- Every time you press the “Freezer” button, the setting temperature changes in

a circulating order of -19C(Medium) / -20C / -21C / -22C (Max) / -16C(Min)

/ -17C / -18C / -19C (Medium)

INPUT CONTROL OBJECT

CONTENTS REMARKS

Front PCB button

FREEZER SET, REFRIGERATOR SET

SUPER FREEZER, SUPER REFRIGERATOR

DISPENSER SELECT & FILTER RESET

KEY LOCK

FCP C-LED

After six month, LED ONFILTER CHANGE ICON

DialKEY LOCK ICON

Dial

WATER / CRUSHED ICE

/ CUBED ICE / ICE MAKER LOCK

Dial

SUPER FREEZER,SUPER REFRIGERATOR

ICON

Initial mode : Freezer & Refrigerator set

Medium (-19C / 4C)

88 DISPLAY (SET TEMP.)

ControlFCP-LED

3. “Refrigerator” button

1) Temperature control of refrigerator compartment

2) Initial power input : “Medium (4C)”

- Every time you press the “Refrigerator” button, the setting temperature changes in

a circulating order of 4C(Medium) / 3C / 2C(coldest) / 8C(warmest) / 7C

6C / 5C / 4C(Medium)

CONTENTS REMARKS

- The actual inner temperature varies depending on the food status, as the indicated setting

temperature is a target temperature, not actual temperature within refrigerator.

-Refrigeration function is weak in the initial time.

Please adjust temperature as above after using refrigerator for minimum2~3 days.

REFERENCE : Please wait

for 2-3 seconds in order

to take final ice or drops

of water when taking out

cup from the pressing

switches after taking ice

or water.

4. “Super Freezer” button

When this button is pressed, the “QUICK” icon of freezer compartment is ON.

(Yon can stop this function manually by pressing the button one more time.)

5. “Super Refrigerator” button

When this button is pressed, the “QUICK” icon of refrigerator compartment is ON.

(Yon can stop this function manually by pressing the button one more time.)

6. “Dispenser” button

1) Dispenser select function

You can select water, crushed ice or cubed ice by pressing the “Dispenser” button

2) Ice maker lock function

If you don’t want to produce ice cubes, press the “Dispenser” button till the “ICE MAKER

LOCK” icon is turn on.

- Every time you press the “Dispenser” button, the icon changes in a circulating order of

WATER - CRUSHED ICE - CUBED ICE - ICE MAKER LOCK - WATER

- The dispenser doesn’t operate while door is open.

3) Filter reset function

- After 6-months from the power is connected to the refrigerator, the “FILTER CHANGE”

icon is light up.

- If you have changed the filter after 6-months of use or want to reset the filter display,

press and hold the “Dispenser (Filter Reset)” button 3 seconds or more and the “FILTER

CHANGE” icon will be turn off.

6. “Lock” button

1) If you want to lock other buttons, press the “Lock” button and “LOCK” icon will be turn on.

No buttons other than “Lock” button will be work.

2) To disable the lock function, press and hold the “Lock” button for 3 seconds or more.

1. Defrost Mode

INPUT CONTROL OBJECT

CONTENTS REMARKS

1. Defrosting Cycle

1. Comp

2. F-Fan

3. R-Fan

4. D-Heater

Pre-Cool

Pause

Fan-Delay

Heater

Defrosting

Pre-Cool

; Compressor runs (to sub-cool the freezer compartment prior to

the defrost heater switch on) for 50 minutes or until F-sensor tem-

perature reaches -27C whichever comes first.

(Refrigerator compartment is controlled normal condition)

Heater

Defrosting

1) Defrost heater is switch on until D-sensor temperature

reaches 13C.

(Compressor, F-Fan, R-Fan is off)

2) Defrost heater on time.

- 30 seconds : Heater is ON regardless of D-sensor

temperature the moment when heater is on.

- 30 minutes : In case of “D1” error (D-sensor malfunction)

- 80 minutes : in normal control state, the maximum on time.

Pause

After the defrost heater is switched off, Compressor does not run

within 7 minutes.

( F-fan, R-fan, Heater etc. : OFF)

Fan-Delay

After defrost, when the first compressor turn on, F-Fan start to run

after 5 minutes from compressor turn on.

4-2. Defrost Mode ( None Inverter Compressor Models )

2.The defrost mode start with the following conditions

1) Total operation time of compressor becomes : 6, 8, 10, ……… , 24 hours.

a. Compressor operating rate (If RT-sensor temperature is below 35 C) : more 85% by 2 hours.

b. Total door open time : 2 minutes

(Any door, F or R open time is over 2 minutes.)

c. Any error mode (R1, F1, D1, F3, RT/S, Door-switch etc.)

2) Defrosting mode starts unconditionally as long as total comp. work time is

24 hours, even if the above conditions 1) are not satisfied.

3) Defrosting mode starts immediately as long as total time of [comp. ON +

comp. OFF] is over 60 hours, even if the above 1) and 2) conditions are not

satisfied.

3. In case of initially power connected (or power reset)

If D-sensor temperature below 3.5 degree, defrosting mode starts .

CONTENTS REMARKS

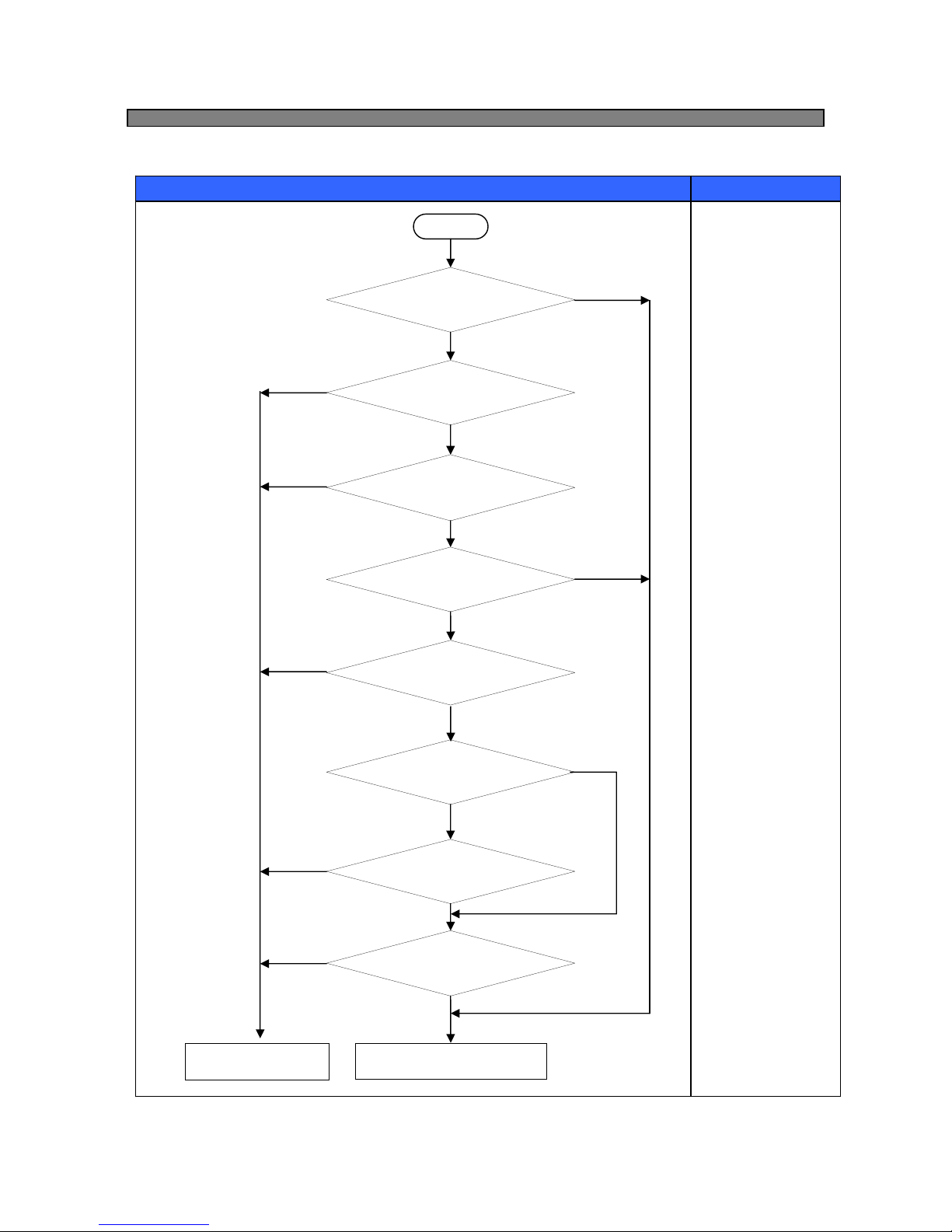

4. Flow Chart of Defrosting Start Start

Comp. operating time

is over 24 hours?

Total time is

over 60 hours?

Comp. operating time

is over 6 hours?

EndDefrosting start

Comp. operating time

is over 2 hours?

Is there

any error code?

YES

Total door open

time is over 2 min?

YES

Comp. operating rate

is more 85%?

YES

Room Temp is over 35C ? YES
