Daewoo FF100SS Manuel utilisateur
Service Manual
Refrigerator
Model: FF100SS
(For AVANTI)
DAEWOO ELECTRONICS CO., LTD.
http://svc.dwe.co.kr Sep. 2002
S/M No. : FR272NCU00
✔
Caution
: In this Manual, some parts can be changed for improving, their
performance without notice in the parts list. So, if you need the
latest parts information,please refer to PPL(Parts Price List) in
Service Information Center (http://svc.dwe.co.kr).
SAFETY AND PRECAUTIONS
1) For starters, be sure to check any chances of the leakage of electricity
2) You could handle a part in the vicinity of electricity after unplugging
3) You should put on rubber glovers to prevent an electric shock on operation test
4) Make sure the rated current, voltage, capacity before using an instrument
5) Keep your wet hands away from the metal goods in the freezer compartment not to be frostbitten
6) Be careful not to let water to permeate the electric part in the machine room
7) with the door open during your working, you might be damaged by that door
8)
You should give a tilt to the refrigerator for your safe after removing the breakable goods inside the refrigerator
9) You'd better use cotton gloves if you fix it up around the evaporator
1.Specification
Refrigerant R134a
COOLING System
Refrigeration System
Defrost System
Defrost Operation
Cold Control
Freezer
Refrigerator
Total
Height
Width
Depth
Net Weight
-1-
7.4cu-ft
9.6cu-ft
100g
Fan Cooling Convection Type
Air Forced Convection
Forced Fin-Evaporator Type
57Kg
External
Dimension
1636mm
600mm
729mm
Automatic Start & Stop
Adjustable Dial
Capacity
2.2cu-ft
2. NAME OF PARTS
-2-
3. REFRIGERANT CYCLE DIAGRAM
-3-
NO PART NAME NO PART NAME NO PART NAME
1 BASE CAB AS 7 WI-CON PIPE 13 BASE COMP AS
2 COMPRESSOR 8 DRYER AS 14 BRACKET EARTH
3 P-RELAY AS 9 PIPE SUC AS 15 POWER CORD AS
4 PIPE VAPORI AS 10 PIPE SUC CONN 16 ABSORBER PIPE A
5 ABSORBER PIPE B 11 BOX POWER AS
6 PIPE HOT 12 HARNESS EARTH
4. MACHINE ROOM VIEW AND PART LIST
-4-
(1) Freezing room louver
1) Unscrew, remove the F-louver by
pulling forward with inserting
screwdriver into the hole of F louver.
2) Assemble it by pressing triangle
shape ( ) by hand.
(2) R control box
1) After pressing both bottom surfaces
of shade and pull forward.
2) To exchange the interior lamp,
unscrew the lamp counterclockwise.
3) Remove two screws
5. METHODS OF EXCHANGING MAIN PARTS
-5-
Methode of exchanging main parts

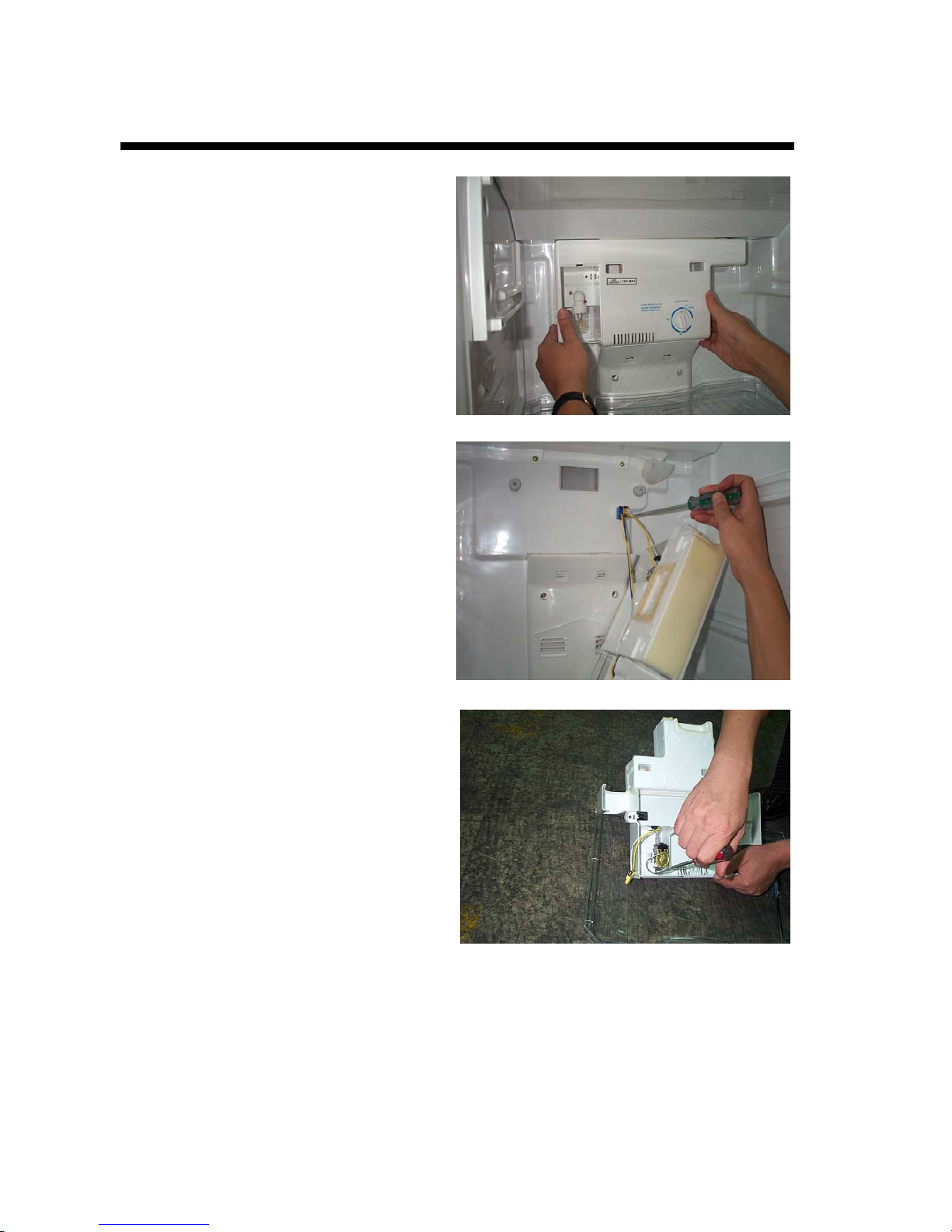

4) Pull slightly forward with instant force.
5) Remove the housing
6) After romoving the control switch knob
and two screws for fixing control switch,
change the control switch to new one.
-6-
Methode of exchanging main parts

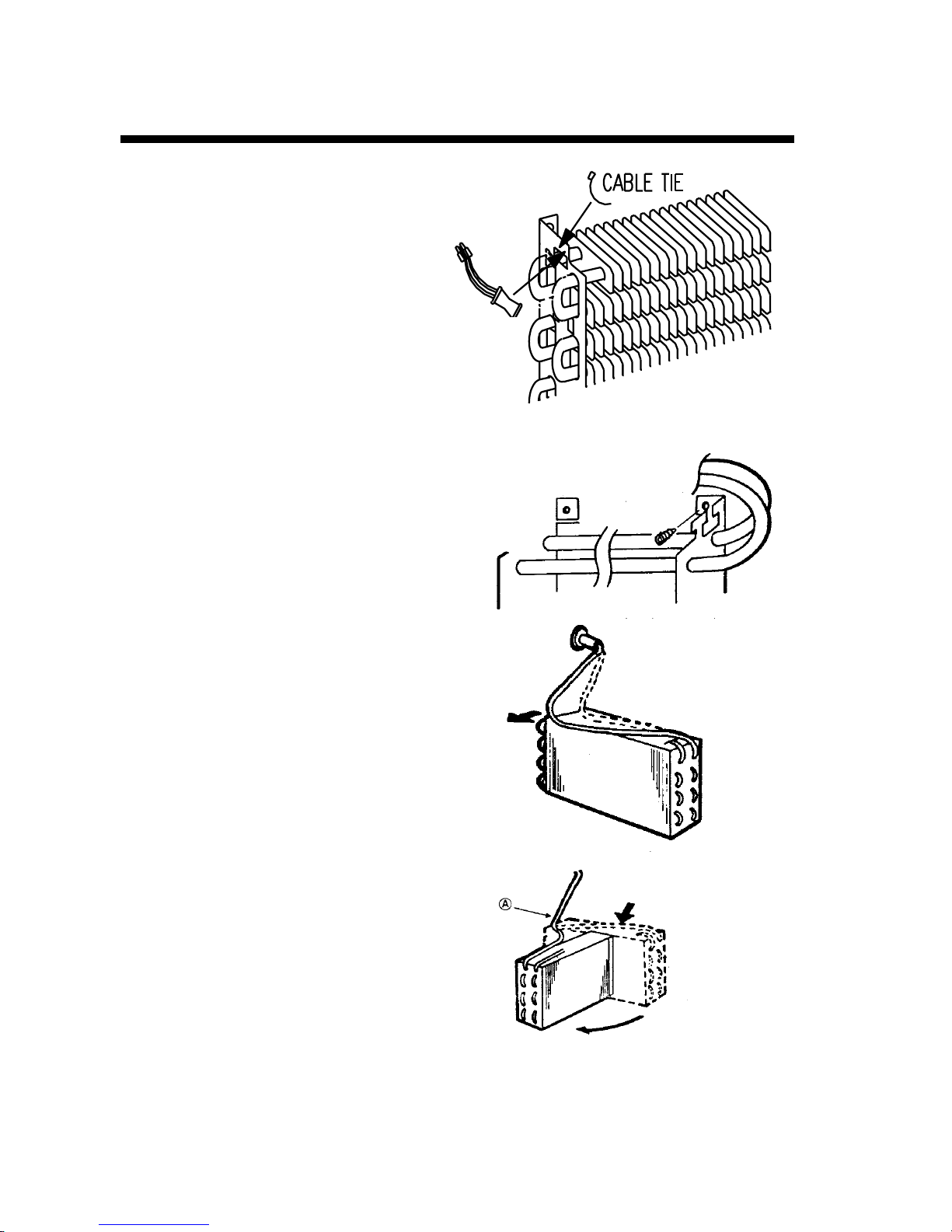

(3) Bimetal
1) Cut off the wire bind.
2) Take out the bimetal.
(4) Glass tube heater
1) Remove 2 screws that fasten the evaporator.
2) Slightly pull the evaporator to the arrow's
direction.
3) Move the entire eveporator upward the pipe
center to the arrow's direction.
(Do not crumble the part A of the
accumulator during the process.)
-7-
Evaporator fastening screw
Bimetal
Methode of exchanging main parts
4) Cut the both ends of glass tube heater tube
heater lead wires and insulate and seal lead
tip remaining in refrigerator with tape etc.
5) Pull out the glass tube heater from the heater
supporter with heater covers remaining.
(upper and lower) (Do not apply much
power on the heater supporter.)
6) Install the heater covers (upper and lower)
on a new glass tube heater. (Make the cover
with holes the lower one)
7) Place the glass tube heater lead wire shown
as below and fasten the shaded area with
type.
8) Fin insert the lead wire connection terminals.
(Same colored lead wires)
9) Set the evaporator on normal position and
secure the fastening screws.
-8-
Raise upward
Heater Cover
(Top) Glass tube
heater
Lead wire
Heater fixture
Heater Cover
(Bottom)
Heater Cover
(Top)
Heater Cover
(Bottom)
Frontside
AL tape Lead wire
Glass tube heater
