Daewoo FR-320 Manuel utilisateur

Service Manual

Refrigerator

Model: FR-320

DAEWOO ELECTRONICS CO., LTD.

S/M No. : FR32000010

1.Specification-----------------------------------------------------------------------------------------------1

2.External view ----------------------------------------------------------------------------------------------2

3.Wire diagram---------------------------------------------------------------------------------------------3

4.Name of parts---------------------------------------------------------------------------------------------4

5.Air flow diagram-----------------------------------------------------------------------------------------5

6.Refrigerant cycle diagram----------------------------------------------------------------------------6

7.Machine room view and part list-------------------------------------------------------------------7

8.Main components---------------------------------------------------------------------------------------8

9.Door color specification -------------------------------------------------------------------------------11

10.Exploded view and parts lilst ------------------------------------------------------------------------14

1. SPECIFICATION

MODEL NAME FR-320

Refirgerant R12 150g

R134a 120g

Cooling System Fan Cooling Convection Type

Refrigeration System Air Forced Convection

DefrostSystem Forced Fin-enaporatorType

DefrostOperation AutomaticStart & Stop

ColdControl Adjustable Dial

Capacity

Freezer 60



Refrigerator 207



Total267



External

Dimension

Height 1661mm

Width 600mm

Depth 625mm

NetWeight 62Kg

2. EXTERNAL VIEW

600 590

1661

1043.5124.5 10 477 6

590

625

530600

3017

449.5

985150.5

3. WIRE DIAGRAM

POWER

CORD

P-RELAY GN/YW

COMPRESSOR

L/BL

WH/BL

TEMP

FUSE

DEFROST

HTR WH

BI-METAL

LAMP

FAT

MOTOR

GRAY

WH/BL DEFROST

TIMER

FREEZER

TEMP

CONTROL

GN : GREEN

BR : BROWN

WH : WHITE

PK : PINK

BK : BLACK

YW : YELLOW

BL : BLUE

GY : GRAY

WH/BL : WHITE WITH

BLUE STRIPE

L/BL : LIGITH-BLUE

A M

PTC

4. NAME FLOW DIAGRMA

1Freezer Temperasture

Controller

2 Caseicing

3 Freezer Shelf

4 Case Icing

5 Case Child

Refrigerator Temperature

Controller

Refrigerator

Shelf

8 Crisper Cover

9 Crisper

10 Front Grille

11 Adjustable Foot

12 Freezer Pocket

13 Egg Pocket

(Bar Pocket Type)

Refrigerator

Pocket (SM)

Refrigerator

Pocket (BG)

-16~-18

-17~-19

1~32~4

2~3

5~7

2~4

3~5

3~5 2~4

Freezer door pocket

Do not put ice cream or frozen

food in freezer door pocket to

store for a long term. Opening

and shutting the door can rise up

the temperature.

Cold air absorbing duct

Do not place food in front

of the duct because it is the

entrance of the cold air.

Refrigerator door pocket

Temperature is high even if the

pocket is in the middle.

When storing margarine or cheese

for one or two weeks, make use

of the refrigerator shelf.

Crisper

Suitable in storing fruits or

vegetable.

Wrapping can prevent from

dryness.

Freezer room

Do not put in any bottle such as

beer or beverage because it can

be frozen and broken.

Refrigerator room

This model is multi-flow type

which flows out cold air from

each shelf space. The hot air

after making the refrigerator

cold, flows into cooling system

through the front upper part.

Do not put food having much

moisture at the middle part of

each shelf space (ÒAÓ, ÒBÓ and

ÒCÓ part). It can be frozen owing

to the low temperature.

5. AIR FLOW DIAGRAM

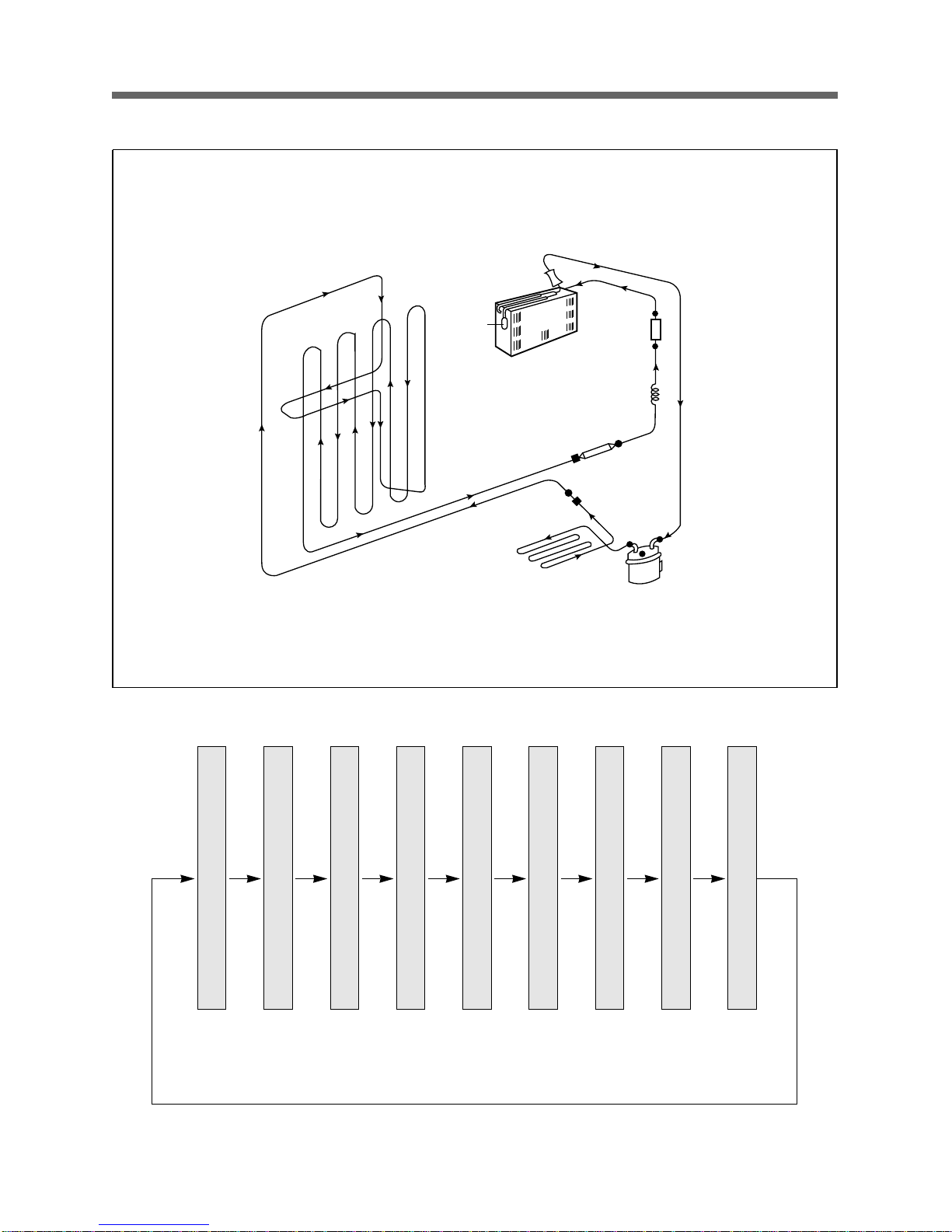

6. REFRIGERANT CYCLE DIAGRAM

FIN. CROSS

EVA

ACCUM

COMP

HOT POPE

DRYER

SUC. PIPE

I-PIPE

CAPI. TUBE

SIDE PLATE PIPE

AUX-CON PIPE

18 20

NO PART NAME NO PART NAME NO PART NAME

1BASE COMP 10 POWER BOX AS 19 ENTRANCE OF AUX-CON PIPE

2FIXTURE BOLT COMP 11 SWITCH P-RELAY AS 20 ENTRANCE OF SIDE PLATE PIPE

3WASHER 12 POWER CORD 21 ENTRANCE OF HOT PIPE

4DRYER 13 CABINET URT AS 22 EXIT OF AUX-CON PIPE

5ABSORBER 14 PIPE CON (PA) 23 EXIT OF SIDE PLATE PIPE

6COMPRESSOR 15 SUC-PIPE AS 24 CAPILLARY TUBE

7P-RELAY LEAD WIRE 16 SUC-PIPE CON 25 VIBRATIONPROOF MASS

8REINFORCE *R 17 PIPE CON

9 REINFORCE *L 18 EXIT OF HOT PIPE

8. MAIN COMPONENTS

1. COMPRESSOR

2. RELAY ASSEMBLY

3. RUNNING CAPACITOR

Refrigerant R12

Voltage 100V/50,60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz

240V/50Hz

Comp. model X FL21Y-3 X FL21YE-2 SL21YE-5 PL21YE-4 SL21YE-5

Part code X 3951121A30 X 3956121A20 3954121A50 3956121A40 3954121A50

Strating type X RSIR X RSIR RSIR RSCR RSIR

Refrigerant R134a

Voltage 100V/50,60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz

240V/50Hz

Comp. model HBL23YE-C HBL23YE-3 HBL23YE-1 X HSL23YE-5 HPL23YE-4-C HSL23YE-5

Part code 3952123L00 3952123G30 3952123G10 X 3954123G50 3956123L40 3954123G50

Strating type CSR XRSIR RSCR RSIR

Refrigerant R12

Voltage 100V/50,60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz

240V/50Hz

Relay model X S068 X S068 S220 S330 S220

Part code X 3018102820 X 3018102810 3018102750 3018103010 3018102750

Refrigerant R134a

Voltage 100V/50,60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz

240V/50Hz

Relay model S068 S220 S220 X S220 S330 S220

Part code 3018110590 3018108120 3018108120 X 3018108010 3018110610 3018108010

Refrigerant R12

Voltage 100V/50,60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz

240V/50Hz

Spec.

X X X X X 350V/5µF X X

Part code

X X X X X 400EL15110 X X

Refrigerant R134a

Voltage 100V/50,60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz

240V/50Hz

Spec.

230V/10µF 300V/7µF

X X

Part code 400EL15130 3016800400 X

X X
