D-MAX DWC-548DV Manuel utilisateur

DISTRIBUTED BY

WDR DOME CAMERA

USER MANUAL

DWC-548DV

The lightning flash with an arrowhead symbol, within an equilateral

triangle is intended to alert the user to the presence of uninsulated

dangerous voltage within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert

the user to the presence of important operating and aintenance

(servicing) instructions in the literature accompanying the appliance.

INFORMATION - This equipment has been tested and found to comply with limits

for a Class A digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

his own expense.

WARNING - Changes or modifications not expressly approved by the

manufacturer could void the user’s authority to operate the equipment.

CAUTION : To prevent electric shock and risk of fire hazards:

Do NOT use power sources other than that specified.

Do NOT expose this appliance to rain or moisture.

Only use the camera under

conditions

where temperatures are between

-10°C and +50°C. Be especially

careful to provide ventilation when

operating under high temperatures.

It can cause the image quality to

be poor.

Severe lighting change or flicker can

cause the camera to work

improperly.

It is one of the most important

parts of the camera.

Be careful not to be stained by

fingerprint.

■Precautions

• 1/3" CMY Color DPS SENSOR (Pixim Seawolf D8800C series)

• Resolution of 690 Horizontal Lines

• 10x sensitivity enhancement by removing the optical filter

• Switches to B/W and able to accept the infrared spectrum at night mode

• Enhanced sharpness compensation

• Very low noise and superior picture quality

• 0.0008Lux Class sensitivity (0.002Lux@ 2x Sense-up)

• Automatically removable IR Cut Filter

• Automatic White Balance (ATW)

• Built-in 3.8mm lens

Color Dome Camera

1 set

Screws

3 pcs

Wrench

1 pcs

Manual

1 pcs

⊙Features

⊙Components

POWER

VIDEO

⊙Dimension

⊙Cable Connection

* How to install

①Fix the camera body on a ceiling or wall via 3 holes.

②You must make 2 screws loosen to adjust angle of the camera.

③Set camera lens up toward object and Rejoin 2 screws.

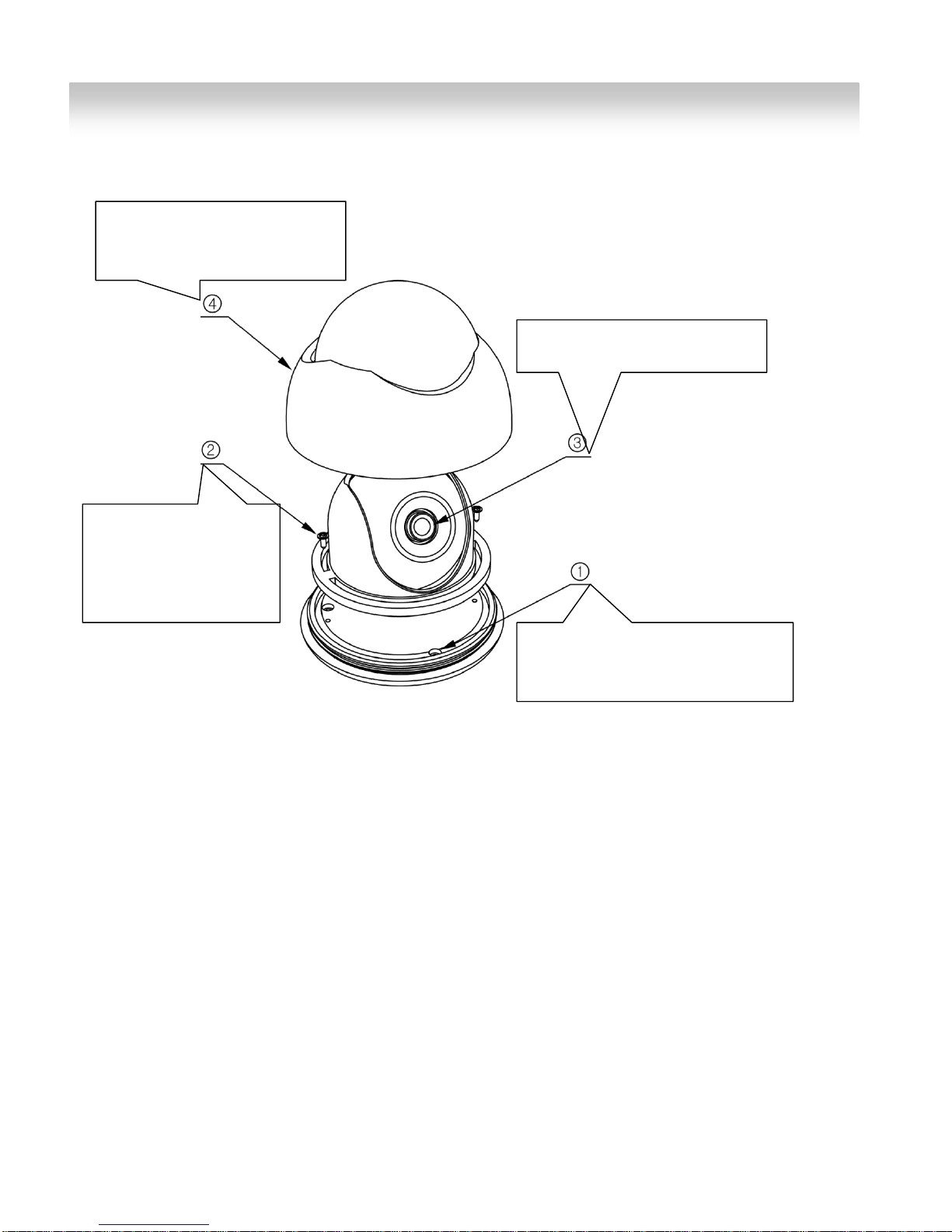

⊙Assemble

This part is camera lens

There are 2 screws

to adjust angle of

camera.

This part is dome cover

to protect camera

There are 3 holes to fix

camera on a ceiling or wall

(Design and product specifications subject to change without notice.)

EFFECTIVE PIXEL

768 (H) x 540 (V)

IMAGE SENSOR

1/3-inch PIXEM DPS SEAWOLF CHIPSET

HORIZONTAL

RESOLUTION

690 TV lines

Scanning System

NTSC : 59.94Hz(V), 15.734Khz(H),

PAL : 50Hz(V), 15.625Khz(H)

MINIMUM ILLUMINATION

0.4 lux, F1.2, 40 IRE, AGC on

LENS

3.6 mm Fixed Lens

Min. Illumination

0.0008Lux Class sensitivity (0.002Lux@ 2x Sense-up)

Day & Night

Day & Night with ICR

DNR

Auto

Dynamic Range

95 dB typical/120 dB maximum

WHITE BALANCE

Auto

GAIN CONTROL

Auto

LUMINANCE S/N RATIO

52dB with AGC OFF at 50IRE

SYNC. SYSTEM

Internal

SHARPNESS

Auto

VIDEO OUTPUT

Composite output 75ohm terminated 1.0 Vpp,

SHUTTER SPEED

Auto/Manual(1/60~1/120,000) / NTSC

Auto/Manual(1/50~1/100,000) / PAL

OPERATING

TEMPERATURE

- 10℃to 50℃/ 30~90% RH

SUPPLIED VOLTAGE

DC 12V, 50/60 Hz

POWER CONSUMPTION

MAX. 300mA

DIMENSIONS

112 x 83(H)

WEIGHT

About 600g

⊙Specifications
