D-MAX DWC-540DV Manuel utilisateur

Super Wide Dynamic Range

Vandal Dome Color Camera

사용 설명서

용서

DWC-540DV

MANUAL

The lightning flash with an arrowhead symbol, within an equilateral

triangle is intended to alert the user to the presence of uninsulated

dangerous voltage within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert

the user to the presence of important operating and maintenance

(servicing) instructions in the literature accompanying the appliance.

INFORMATION - This equipment has been tested and found to comply with limits for a

Class A digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference

when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in

which case the user will be required to correct the interference at his own expense.

WARNING - Changes or modifications not expressly approved by the manufacturer could

void the user’s authority to operate the equipment.

CAUTION : To prevent electric shock and risk of fire hazards:

Do NOT use power sources other than that specified.

Do NOT expose this appliance to rain or moisture.

This installation should be made by a qualified service person and should conform

to all local codes

The camera needs periodic inspection.

Contact an authorized technician for inspection.

Stop using your camera when you find a malfunction.

If you use your camera around smoke or unusual heat for a long time,

fire may be caused.

Do not install the camera on a surface that can not support it.

Unless the surface is suitable, it could cause falling or other hazards.

Do not hold plug with wet hands.

It could cause an electric shock.

Do not disassemble the camera.

It may result in fire, electric shock or other hazards.

Do not use the camera close to a gas or oil leak.

It may result in fire or other hazards.

■ Warning

1.Features

--------------------------------

2. Components & Cable Connection

---------------------------------

3. Names and functions of parts

---------------------------------

4. Installation

---------------------------------

5. Setup Menu flow

--------------------------------

6. Setup page menu

---------------------------------

7. Special page 1 menu

---------------------------------

8. Special page 2 menu

---------------------------------

8. Specifications

---------------------------------

■Contents

☺ High resolution color for crisp, clear video

▪Progressive image capture

▪ 540 HTVL equivalent

☺ High sensitivity for low-light images

▪ Advanced noise reduction technology

☺ Wide Dynamic Range provides excellent quality in high-contrast

environments

▪ 120dB maximum dynamic range

☺ Optimum Exposure Mode presets

▪Best pictures in a variety of applications

☺ EDNR (Electronic Digital Noise Reduction)

▪ The amount of low illuminance noise has been significantly reduced,

and the signal-to-noise ratio (S/N ratio) as well as horizontal resolution have

been improved, resulting in a clear and sharp image display even in the dark.

☺Controlled by OSD Menu

▪ The camera can be controlled by selecting text displayed on the monitor screen.

☺Additional Functions

▪ Automatic White Balance

▪ Backlight Compensation

▪ Automatic Gain Control

▪ Activity / Motion detection

▪ Digital Pan / Tilt / Zoom

▪ Day / Night

1. Features

1) Components

2) Cable Connection

2. Components and Cable Connection

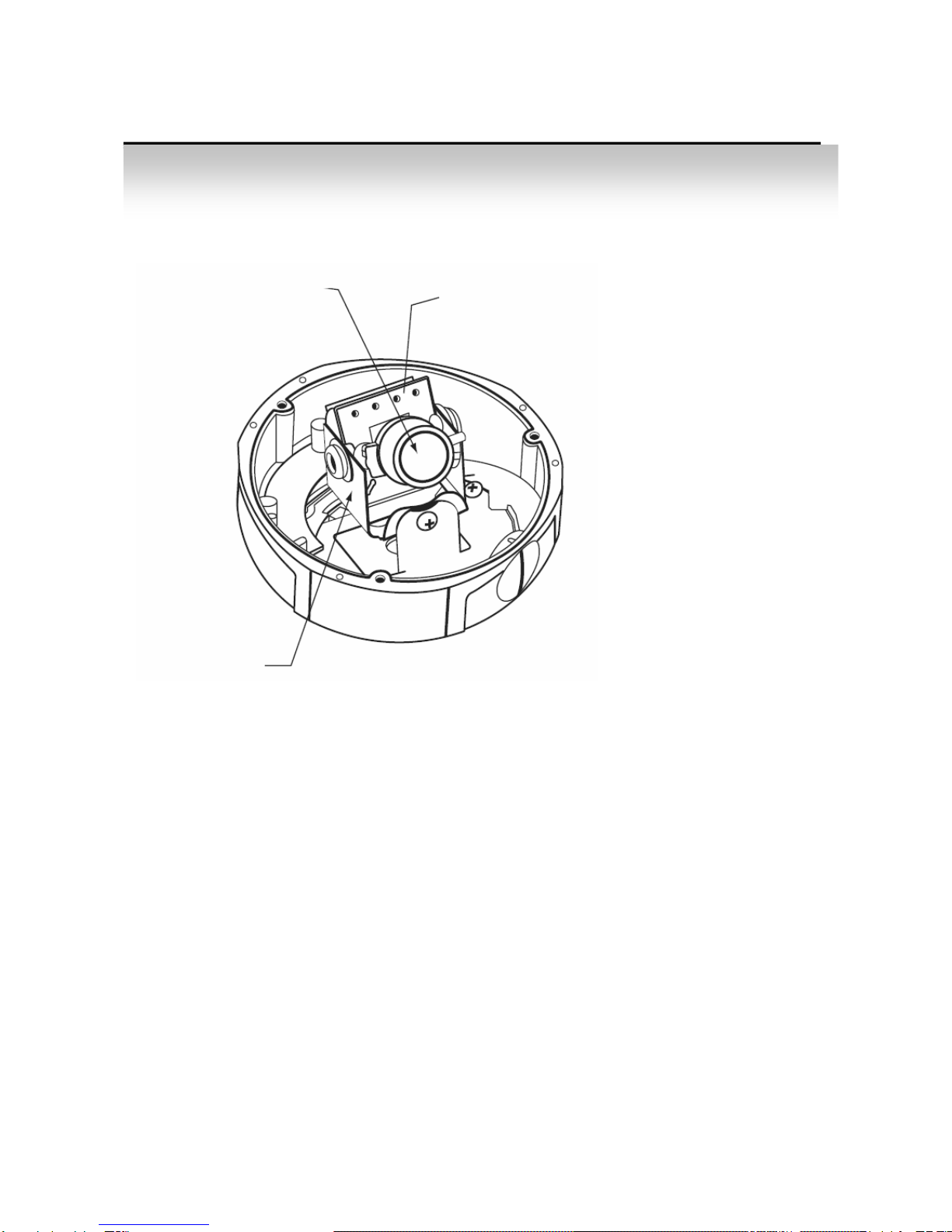

1) Names and functions of parts

① ②

③

① Lens : Vari-Focal Auto Iris Lens ( 2.9mm ~10.0mm / F1.2 )

② OSD PCB

- Setup button : Used for the menu display. This button can be used to confirm

settings after changing the value of the selected function or current conditions.

- Up & Down buttons : Used for selecting items by moving the cursor up or

down on the menu screen.

- Left & Right buttons : Used when changing item values, by moving the

cursor to the left or right on the menu screen.

③ 3 Axis bracket

- Please loosen screws and fix tilted and panned position.

3. Names and Functions of Parts

1) Installation

2) Dimensions

4. Installation & Dimensions

1) Setup Page Menu

SETUP PAGE

LENS & VIDEO I/O SETUP LENS DC

VIDEO

MANUAL

VIDEO NTSC

PAL

RESOLUTION HIGH

NORMAL

WDR AUTO

HIGH

CUSTOM

LOW

WB CONTROL AUTO

ATWDes

AWC SAVEAWC&ALLCHNGS

MANUAL ADJMODEKELVIN

AGC AUTO

OFF

LOW

HIGH

HIGHER

HI’EST

DNR AUTO

OFF

SENS & MOTION-UP PRESETS CONTROL

DSS CONTROL 2FIELDS~32FIELDS

WHITE BALANCE SPEED

EXPOSURE SPEED

DYNAMIC RANGE SPEED

SPECIAL PAGE

EXIT

5. Menu Flow

2) Special Page 1 Menu

3) Special Page 2 Menu

SPECIAL PAGE 1

CAMERA ID OFF

ON CAMERAID

POSITION UP-DOWN

UP-CENTER

UP-RIGHT

DOWN-LEFT

DOWN-CENTER

DOWN-RIGHT

DAY&NIGHT OFF

AUTO

SYNC INT

EXT

MOTION DETECTION OFF

ZOOM PT OFF

BACKLIGHT OFF

AE PREFERENCE LIGHTS

SHADOW

SAVE & RETURN

PAGE 2

SPECIAL PAGE 2

MIRROR OFF

FREEZE OFF

15 Frms

SET

FREEZE

SHARPNESS - 8 -------▪-------- 8

FLICKERNESS OFF

FLUORESCENTLIGHT ON

OFF

FACTORY RESET

SYSTEM INFORMATION FW Rev

SAVE & RETURN

PAGE 1
