D-MAX 650 TVL Manuel utilisateur
High Resolution / Day&Night
COLOR BOX CAMERA
사용 설명서
용서
650TVL
MANUAL

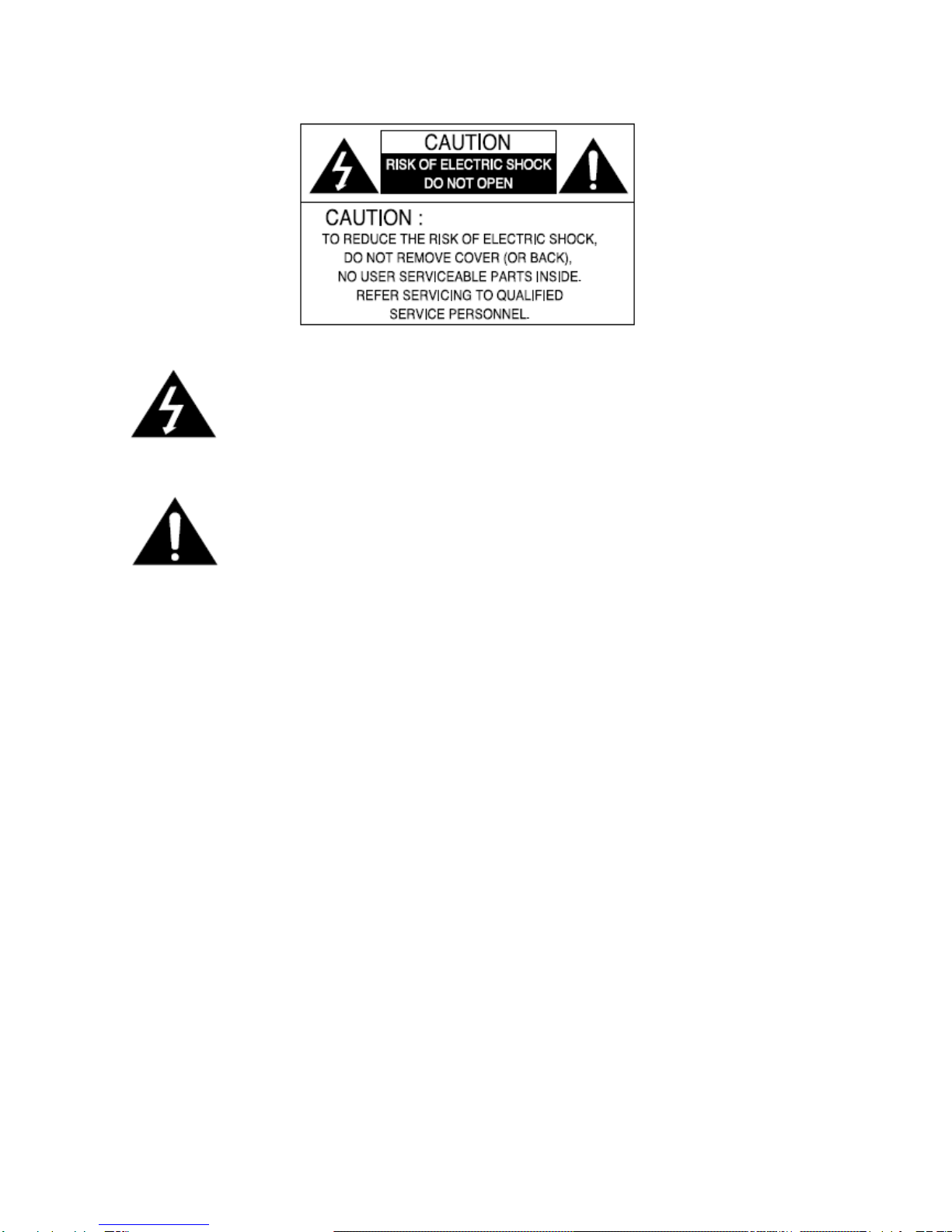

The lightning flash with an arrowhead symbol, within an equilateral
triangle is intended to alert the user to the presence of uninsulated
dangerous voltage within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
INFORMATION - This equipment has been tested and found to comply with limits for a
Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference
when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own expense.
WARNING - Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the equipment.
CAUTION : To prevent electric shock and risk of fire hazards:
Do NOT use power sources other than that specified.
Do NOT expose this appliance to rain or moisture.
This installation should be made by a qualified service person and should conform to all
local codes
3
The camera needs periodic inspection.
Contact an authorized technician for inspection.
Stop using your camera when you find a malfunction.
If you use your camera around smoke or unusual heat for a long time,
fire may be caused.
Do not Install the camera on a surface that can not support it.
Unless the surface is suitable, it could cause falling or other hazards.
Do not hold plug with wet hands.
It could cause an electric shock.
Do not disassemble the camera.
It may result in fire, electric shock or other hazards.
Do not use the camera close to a gas or oil leak.
It may result in fire or other hazards.
■ Warning
4
1.Features
---------------------------------
2. Components
---------------------------------
3. Names and functions of parts
---------------------------------
4. Installation
---------------------------------
5. Setup Menu Operation
---------------------------------
6. Troubleshooting
---------------------------------
7. Specifications
---------------------------------
■Contents
5
☺Horizontal Resolution 650 TVLines
Clear image quality has been achieved by employing a SONY CCD with 410,000
pixels, which provides a horizontal resolution of 620 TV lines.
☺DAY & NIGHT
This camera has a function that automatically selects the mode that is appropriate for
daytime or night-time conditions The COLOR mode operates in daytime conditions to
provide optimum colors, and BW mode operates in nighttime conditions to enhance the
definition of the image.
☺Electronic IRIS
The electronic IRIS function enables continuous automatic control of the shutter between
1/60~1/120,000 seconds.
☺White Defect restoration
When the camera has white defect in the CCD with ages, User can restore it using OSD
menu.
☺PRIVACY Function
The PRIVACY function conceals the areas you do not wish to appear on the screen.
☺High Sensitivity
The built-in high sensitivity SONY COLOR CCD enables a clear image even in
0.1Lux
☺Controlled by OSD Menu
The camera can be controlled by selecting text displayed on the monitor screen.
☺Additional Functions
MOTION DETECTION, MIRROR, SHARPNESS functions are also available.
1. Features
6
1)
COLOR CAMERA
-------------
2)
AUTO IRIS LENS CONNECTION
PLUG
-------------
3)
C-MOUNT ADAPTOR
-------------
4)
L-WRENCH
-------------
4)
MANUAL
-------------
2. Components
7
1) Front
① Lens protection cap
Please cover the lens when not using it.
② CS-Mount lens adaptor
Please attach the CS-Mount lens here.
③ Back Focus clamp screw
Please loosen the clamp screw with a screwdriver before adjusting the Back Focal
length.
☞Mounting bracket screw hole
Please use the screw hole when fixing the
camera onto the mounting bracket. Please use
the clamp screw as specified picture.
☞The mounting bracket can be separated and attached to the top of the camera.
In this instance please do not tighten the screw to a depth of more than 5mm,
otherwise serious damage can occur to the inside of the camera.
3. Names and Functions of Parts
8
2) Back
⑥
① Auto iris lens connector
This is the connection terminal for the auto iris lens.
② Video output terminal
Sends video signals and connects to the video input terminal of the monitor.
③ Power lamp
Lights up when the correct power is supplied to the camera.
④ Setting button
SETUP button : Used for the menu display. This button can be used to confirm
settings after changing the value of the selected function or current conditions.
UP & DOWN buttons : Used for selecting items by moving the cursor up or down on
the menu screen.
LEFT & RIGHT buttons : Used when changing item values, by moving the cursor to
the left or right on the menu screen.
⑤ Power input terminal
Connects to the power appropriate to each power requirement.
⑥Auto Iris Switch
Video or DC
☞Make sure that user can’t use video type lens using high voltage camera.
9
1) Lens
Lenses are sold separately. Lenses such as auto iris lens, CS-Mount lens and C-Mount
lens can be used.
Note)
• Use of the DC auto iris lens is recommended to achieve the best results for operating this
product effectively.
• Please keep the lens clean.
• Any foreign objects and finger marks on the lens can cause inferior image quality in low
light level conditions.
①When using an auto iris lens
- Please peel off about 8mm of the outer skin of the auto iris lens cable.
- Please peel off about 2mm of the outer skin of the insulated conductor inside the
lens cable
- Please remove the cover of the auto iris lens connection plug and solder the lens
cable to the connector pin in the plug.
4. Installation
10
Pin No. LENS
DC VIDEO
No.1 Pin Damping- Red(power)
No.2 Pin Damping+ NC
No.3 Pin Drive+ White(video signal)
No.4 Pin Drive- Black(GND)
- Please replace the auto iris lens connection plug cover and take off the lens
protection cap, and then attach the auto iris lens to the camera by screwing it in
clockwise.
- Please insert the connection plug that is connected to the auto iris lens cable into
the auto lens connector, which is located on the back of the camera
- Please set the lens selection switch, located on the back of the camera, to DC or
VIDEO depending on the type of auto iris lens which is being used.
