DAP-3320 Install Guide

• CD-ROM Drive

• Computers with Windows®, Macintosh®, or Linux-based

operating systems with CD-ROM drive

• Installed Ethernet adapter

• Internet Explorer 8, Chrome, Firefox, or Safari 5.1 or higher

Note: To power the unit, use a D-Link PoE switch or the D-Link DPE-301GI PoE injector (not included).

Minimum Requirements

Package Contents

Note: If any of the above items are missing, please contact your reseller.

• DAP-3320 Wireless PoE Outdoor Access Point

• Grounding Wire

• Wall Mounting Bracket/Kit

• CD (with software and user manual)

* Maximum Wireless signal rate derived from IEEE 802.11n and 802.11g specications. Actual data throughput will vary.

Network conditions and environmental factors, including volume of network trac, building materials and construction,

and network overhead lower actual data throughput rate.

DAP-3320 Install Guide

1Reset Button

Press and hold for six seconds to reset the access point

to the factory default settings. The LED will turn on for

two seconds and then begin the reboot process.

2Power LED A solid green light indicates the device is powered

and operational.

3LAN (PoE) Port Power is supplied to this port via an Ethernet cable

that is connected to a PoE injector or a PoE switch.

4Ground Connect a grounding wire to help prevent device

damage due to shorts and lightning strikes.

• CD-ROM Drive

• Computers with Windows®, Macintosh®, or Linux-based

operating systems with CD-ROM drive

• Installed Ethernet adapter

• Internet Explorer 8, Chrome, Firefox, or Safari 5.1 or higher

Note: To power the unit, use a D-Link PoE switch or the D-Link DPE-301GI PoE injector (not included).

Hardware Overview

3 4

DAP-3320 Install Guide

Before You Begin

This product should ONLY be installed by an experienced installer who is familiar

with local building and safety codes and, where applicable, is licensed by the

appropriate authorities. Failure to employ an experienced installer may render

the D-Link product warranty void and may also expose the end user or the service

provider to legal and nancial liabilities. D-Link and its resellers or distributors

expressly disclaim any and all liabilities for injury, damage, or violation of

regulations due to the improper installation of outdoor units or antennas.

A safety grounding system is necessary to protect your outdoor installation from

lightning strikes and the build-up of static electricity. Direct grounding of an

outdoor AP is very important and can protect your networks from brutal outdoor

environments and devastating ESD attacks. The grounding system must comply

with the National Electrical Code and safety standards that apply in your country

and/or region. Always check with a qualied electrician if you are in doubt as to

whether your outdoor installation is properly grounded.

To keep you safe and to install the hardware properly, please read and follow these

safety precautions:

1. Keep safety as well as performance in mind when selecting your installation site,

especially when there are electric power and phone lines.

2. When installing your access point, note the following:

• Do not use a metal ladder.

• Do not work on a wet or windy day.

• Wear shoes with rubber soles and heels, rubber gloves, and a long sleeved

shirt or jacket.

3. When the system is operational, avoid standing directly in front of the antenna.

Strong RF elds are present when the transmitter is on.

4. A safety grounding system is necessary to protect your outdoor installation

from lightning strikes and the build-up of static electricity. When mounting

the product on an antenna mast, you must connect the product to the same

grounding system as the AC wall outlet. The grounding system must comply

with the National Electrical Code and safety standards that apply in your country.

5. Always check with a qualied electrician if you are in doubt as to whether your

outdoor installation is properly grounded.

DAP-3320 Install Guide

Installation

1. Lift the release tab in the middle of the cover, then pull the cover

o.

2. Connect an Ethernet cable (not included) to the Ethernet port.

DAP-3320 Install Guide

3. Use the grounding screw to attach the grounding wire.

4. Reattach the cover. You may need to break o one of the plastic

port covers to allow your cables to exit the AP.

DAP-3320 Install Guide

Mounting

The DAP-3320 supports the IP55 water/dustproof standard. It

is recommended that you place the AP under a roof, shelter, or

weatherproof container in severe weather environments. It is highly

recommended that you congure and test your access point before

mounting it.

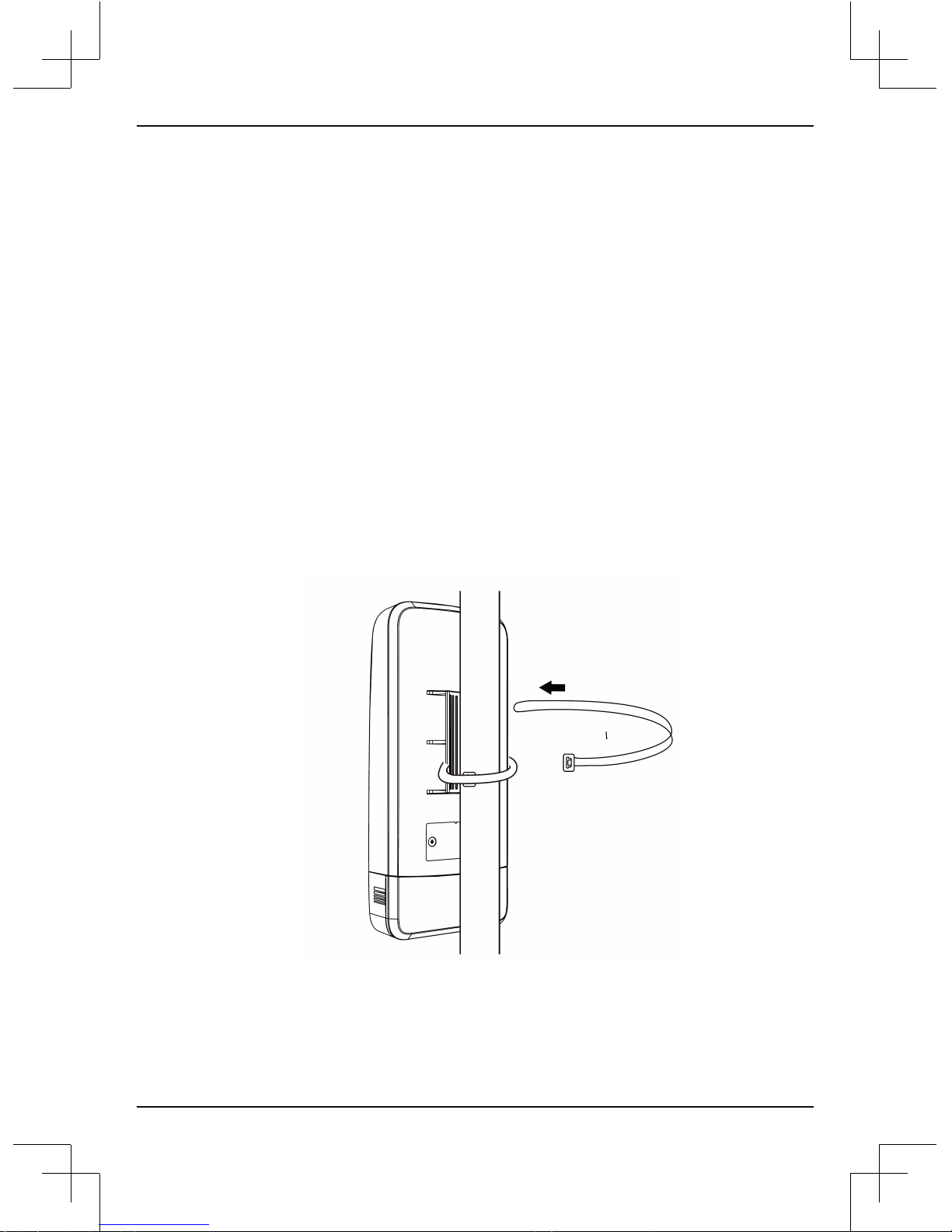

Pole Mount

Thread the plastic mounting ties through the back of the DAP-3320

and around the pole.

DAP-3320 Install Guide

Wall Mount

Screw the wall mounting bracket into the wall, then attach the Access

Point to it. For extra security, you can thread the plastic mounting ties

through the back of the Access Point and the wall mounting bracket

as shown.

DAP-3320 Install Guide

Connect to Your Network

You can connect the DAP-3320 to a PoE switch, or you can use a PoE

injector to power the AP.

Connecting to a PoE Switch

Connect the Ethernet cable that is connected to the DAP-3320 to

your PoE switch.

DAP-3320

PoE Switch

DAP-3320 Install Guide

Connecting to the PoE Injector

1. Connect the Ethernet cable that is connected to the DAP-3320 to

the P+DATA OUT port on the PoE injector.

2. Connect an Ethernet cable to the DATA IN port on the PoE Injector.

Connect the other end of the Ethernet cable to your network

switch or router.

3. Attach the power adapter to the connector labeled POWER IN on

the PoE Injector, and plug it into an electrical outlet.

DAP-3320

PoE Injector*

Switch or

Router

Power Adapter*

* Power adapter and PoE injector are not included.
