D-Link AirXpert DWL-7000AP Manuel utilisateur

This product can be set up using

any current web browser, i.e.,

Internet Explorer 6 or Netscape

Navigator 6.2.3 or later.

5V 2.5A DC PowerAdapter

specificationssubjecttochangewithoutnotice.DWL-7000AP.06192003

Before You Begin

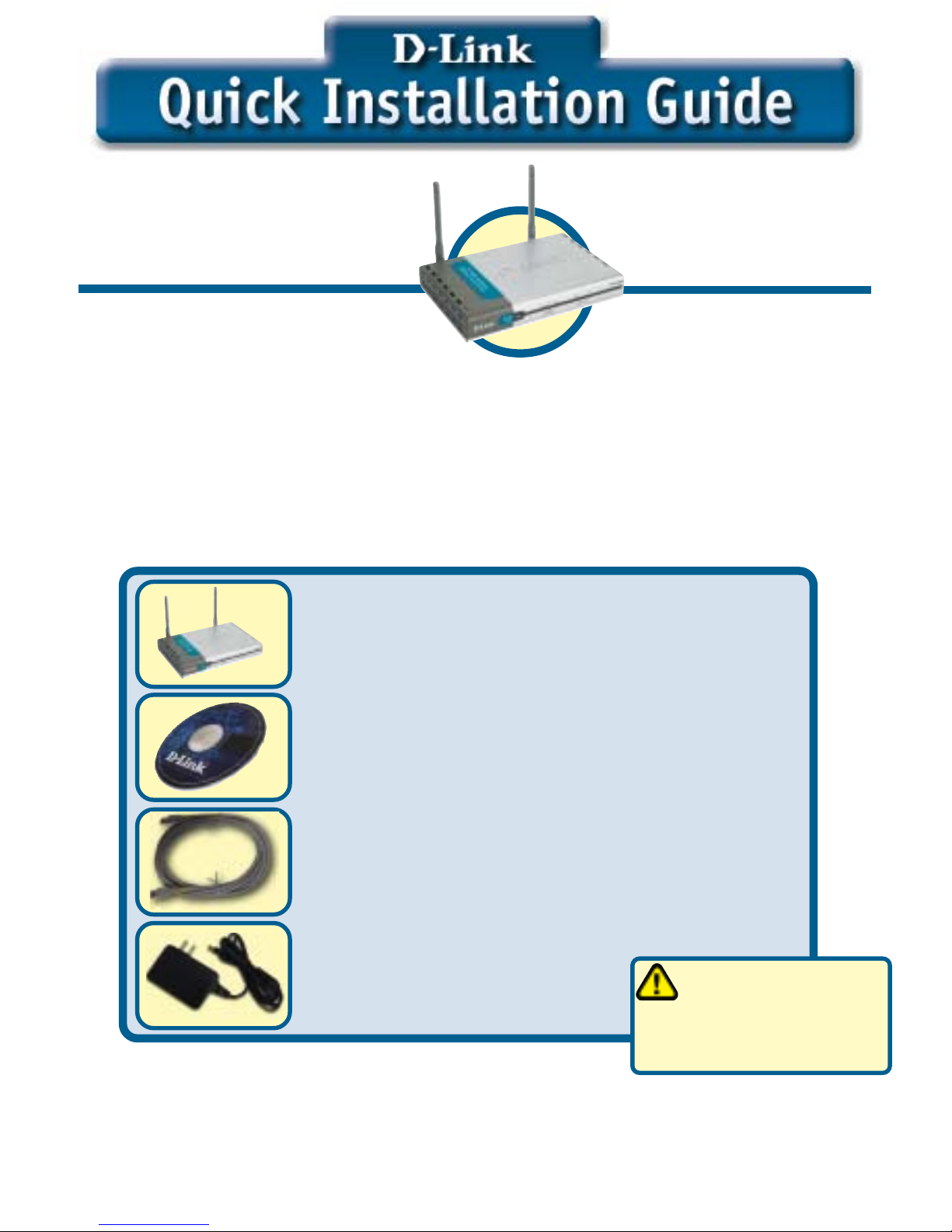

Check Your Package Contents

DWL-7000AP WirelessAccess Point

CD-ROM (containing Manual and Warranty)

Ethernet (CAT5 UTP/Straight-Through) Cable

If any of the above items are missing, please contact your reseller.

The default IP address for the DWL-7000AP is 192.168.0.50 with a Subnet Mask of

255.255.255.0. You will need to assign your computer a Static IPaddress within the

samerangeasthe DWL-7000AP’s IPaddressfor the purposeofconfiguringthe DWL-

7000AP. See the Manual on the CD-ROM if you need assistance in assigning a

Static IP address for your network adapter.

Using a power supply

with a different voltage

rating will damage and void

the warranty of this product.

DWL-7000AP

D-Link AirXpertTM

Tri-mode Dualband Wireless

Access Point

Connecting The DWL-7000AP To Your

Network

A. First, connect the power adapter to the receptor at the back panel of

theDWL-7000APand then plugtheother end of thepoweradapter

to a wall outlet or power strip. The Power LED will turn ON to indicate

proper operation.

B. Insert an Ethernet crossover-cable into the LAN port on the back panel

of the DWL-7000APandan available Ethernet portonthe network

adapter in the computer you will use to configure the DWL-7000AP.The

Link LED for the LAN Port will illuminate to indicate a proper connection.

C. Computers with 802.11a/b/g wireless adapters can connect to the

DWL-7000AP.TheDWL-AG650AirXpertWirelessCardbusAdapterand

the DWL-AG520AirXpert Wireless PCIAdapter will connect, out of the

box, with the DWL-7000AP, using their default settings.

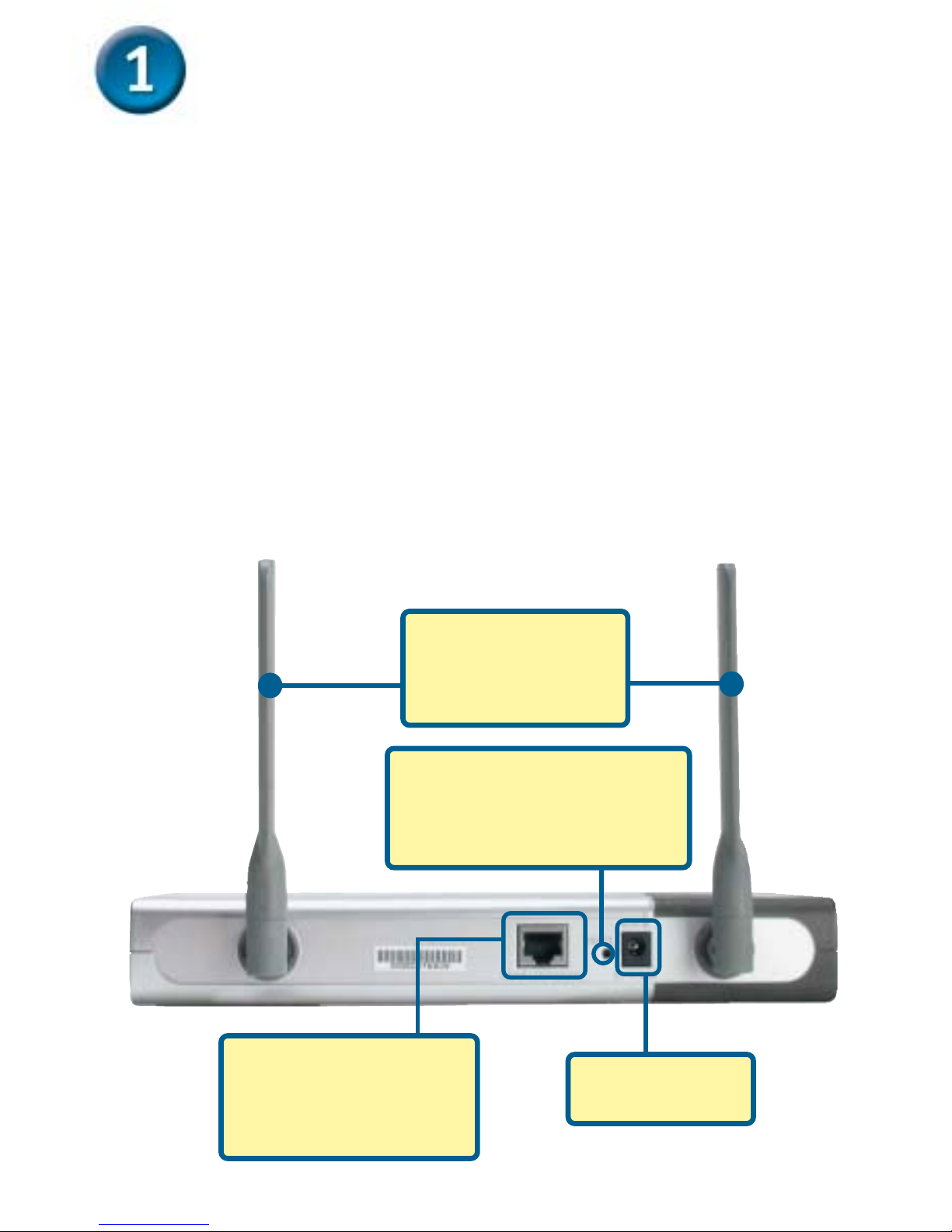

A. Receptorfor

Power Adapter.

Reset Button

Pressing this button restores

the Router to its original factory

defaultsettings.

B. LAN PORT is for

connecting to a switch

on the local network

withanethernet cable

C.Antennas

Used to wirelessly

connectto802.11a/b/g

adapters.

Using The Setup Wizard

Whenyouhavecompleted

the steps in this Quick

InstallationGuide,your

connectednetworkshould

look similar to this:

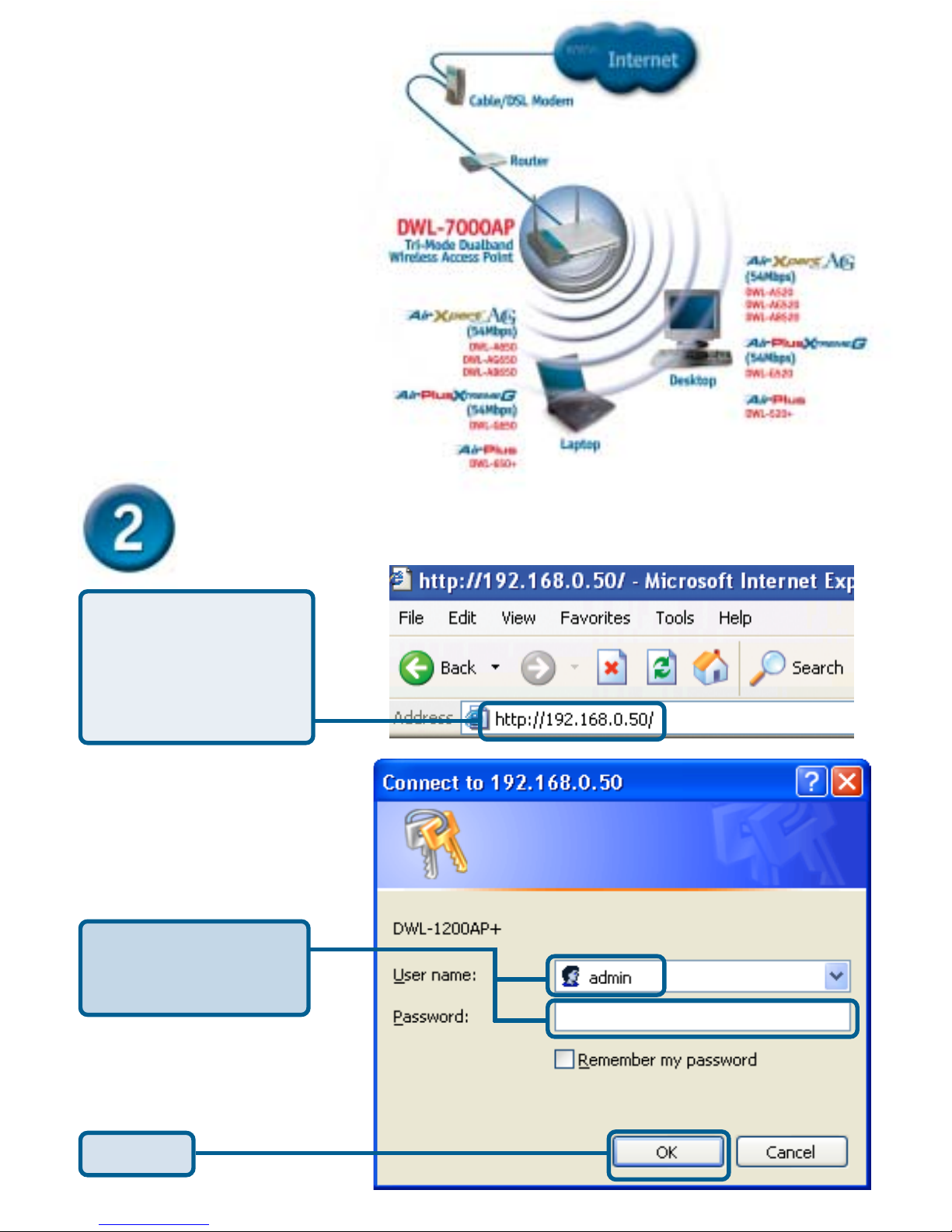

Open your Web

browser and type

“http://192.168.0.50”

intotheURL address

box.Thenpressthe

Enter orReturn key.

Thelogonpop-up

screenwillappear.

Type “admin” for the

usernameand leavethe

passwordfieldblank.

ClickOK

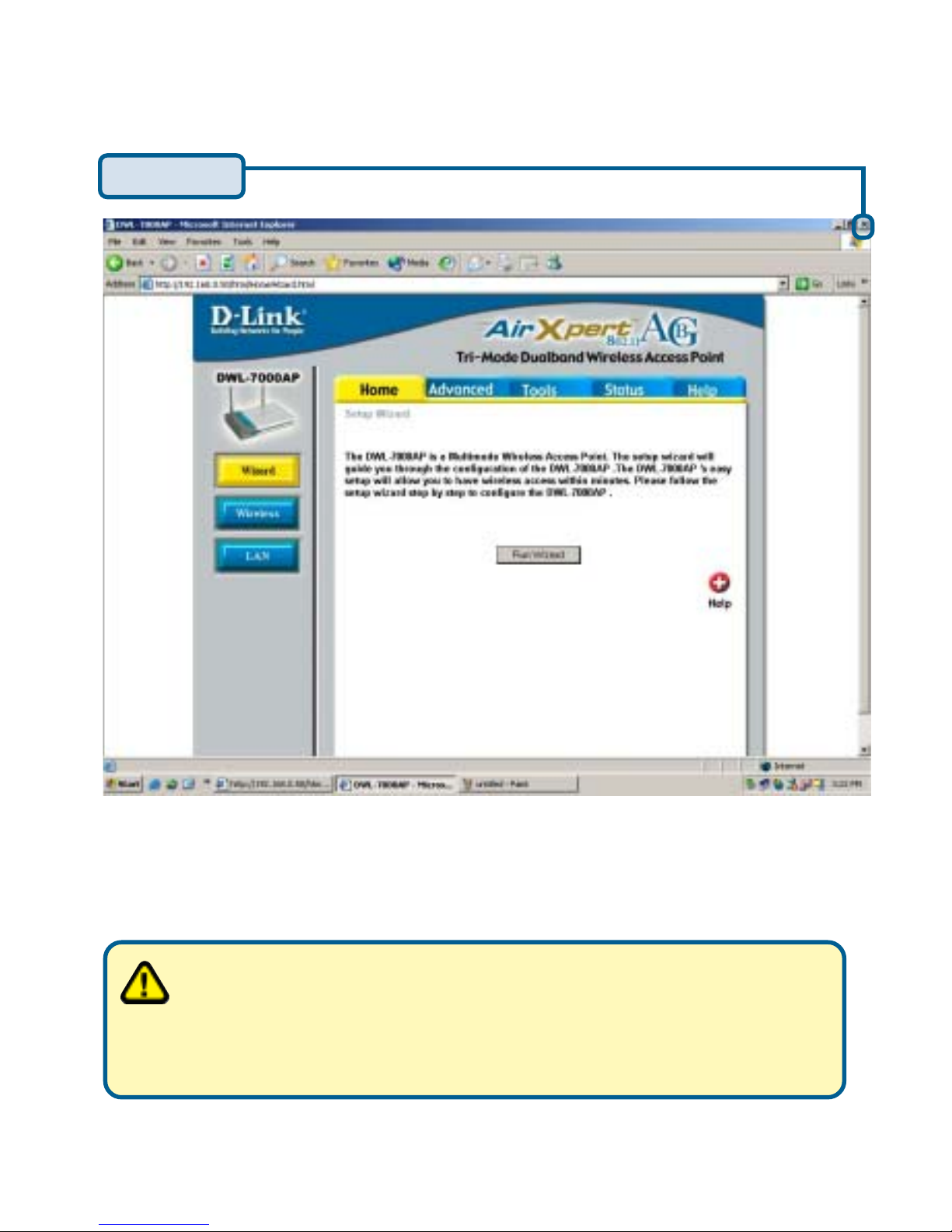

Using The Setup Wizard (continued)

Onceyouhave

logged in, the Home

screenwillappear.

Youwillseethe

followingscreens.

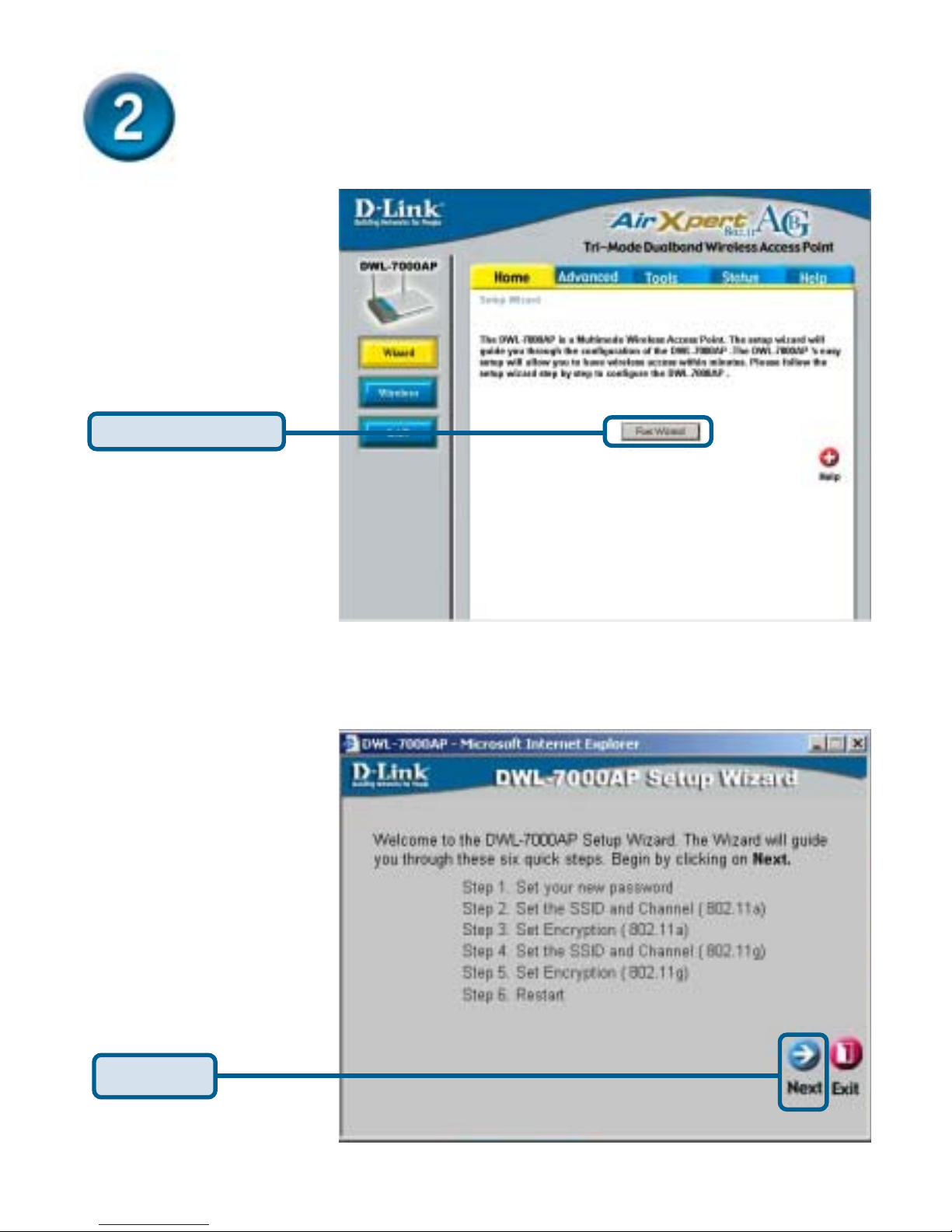

Click Run Wizard

Click Next

Step 1 - Set up your

new password. You

havetheoption to

establishapassword.

Click Next

Step 2 - Wireless Lan

802.11a Setup

Thedefault wireless

settings are:

SSID = default

Channel=36

You can change these

settings to match an

existing wireless network.

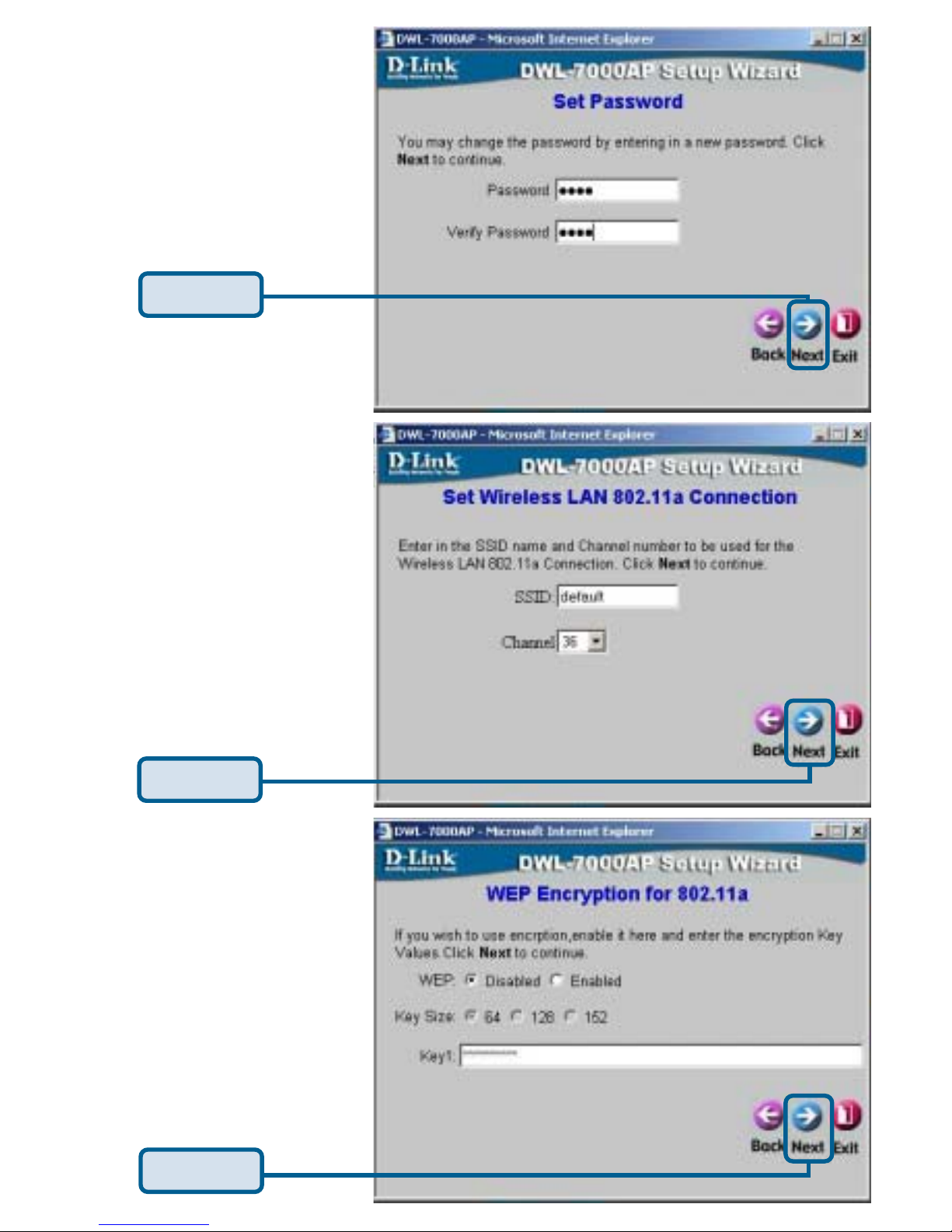

Step 3 - WEP Encryption

for 802.11a

TheDWL-7000APis capable

of64,128, and 152bit

encryption. Select the key

size you wish to use and

enter the key in the field

provided. By default, WEP is

Disabled.

Your Setup is Complete!

Click Next

Click Restart

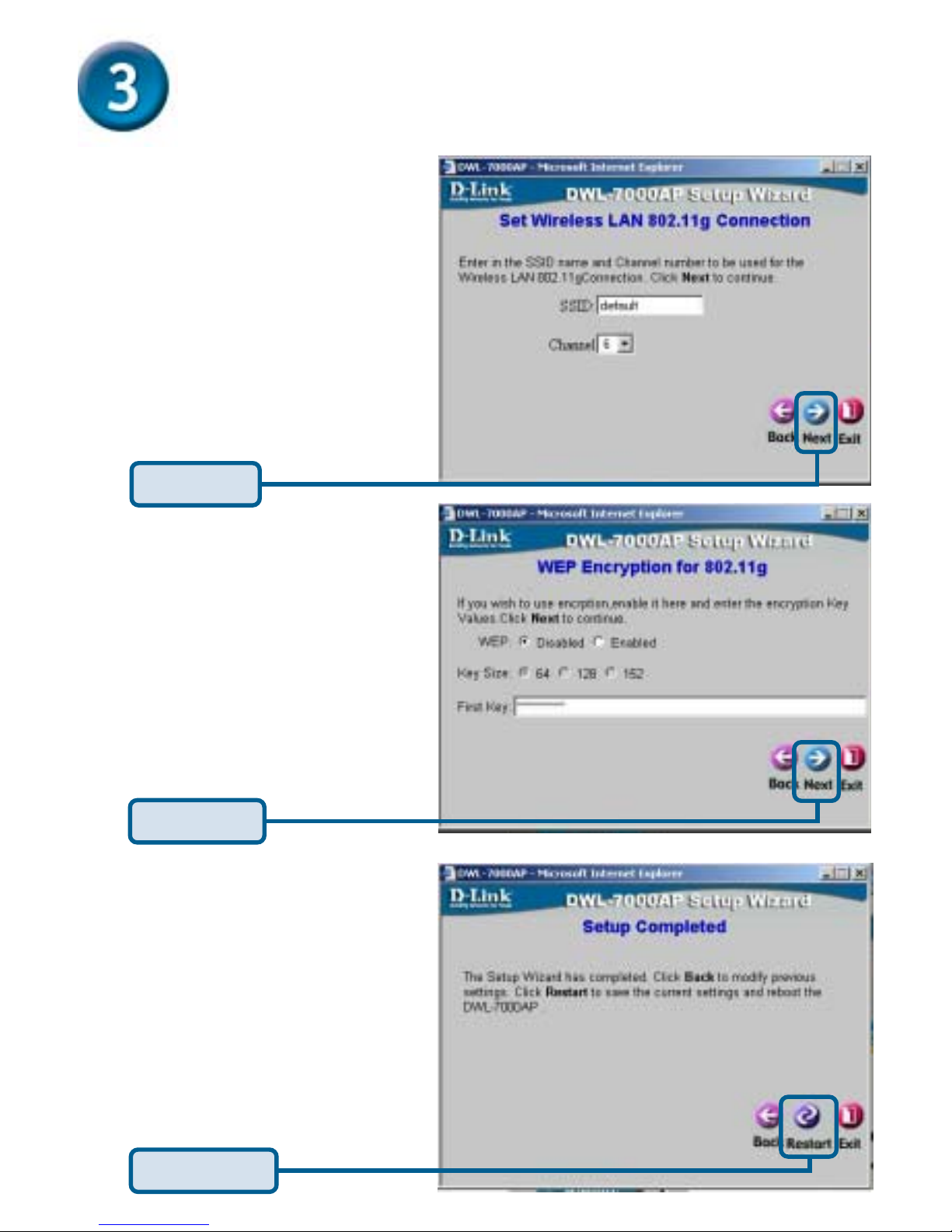

Step 2 - Wireless Lan

802.11g Setup

Thedefault wireless

settings are:

SSID = default

Channel = 6

You can change these

settings to match an

existing wireless network.

Step 3 - WEP Encryption

for 802.11g

TheDWL-7000APis

capableof64, 128, and

152bit encryption. Select

the key size you wish to

use and enter the key in

thefieldprovided. By

default, WEP is Disabled.

You will bereturnedto the Home tab.

Click toExit

Foradditional settings orinformation, refer tothe Advanced, Tools,

orStatus tabs on the web-management interface;ortothemanual

locatedontheCD-ROM.

•For managing several DWL-7000AP’s, please utilize the

D-LinkAirXpert Access Point Manager. For the latest

version of the firmware or AP manager please go to

http://support.dlink.com

Technical Support

You can find software updates and user documentation on the D-Link website.

D-Linkprovidesfree technical support forcustomerswithin the UnitedStatesand

withinCanadafor the durationofthe warranty periodonthis product.

U.S. and Canadian customers can contact D-Link technical support through our

website,orbyphone.

Tech Support for customers within the United States:

D-Link Technical Support over the Telephone:

(877)453-5465

24 hours a day, seven days a week.

D-Link Technical Support over the Internet:

http://support.dlink.com

email:[email protected]

Tech Support for customers within Canada:

D-Link Technical Support over the Telephone:

(800)361-5265

Monday to Friday 8:30am to 9:00pm EST

D-Link Technical Support over the Internet:

http://support.dlink.ca

email:[email protected]
