D-Link DAP-1155 Manuel utilisateur

Quick Installation Guide

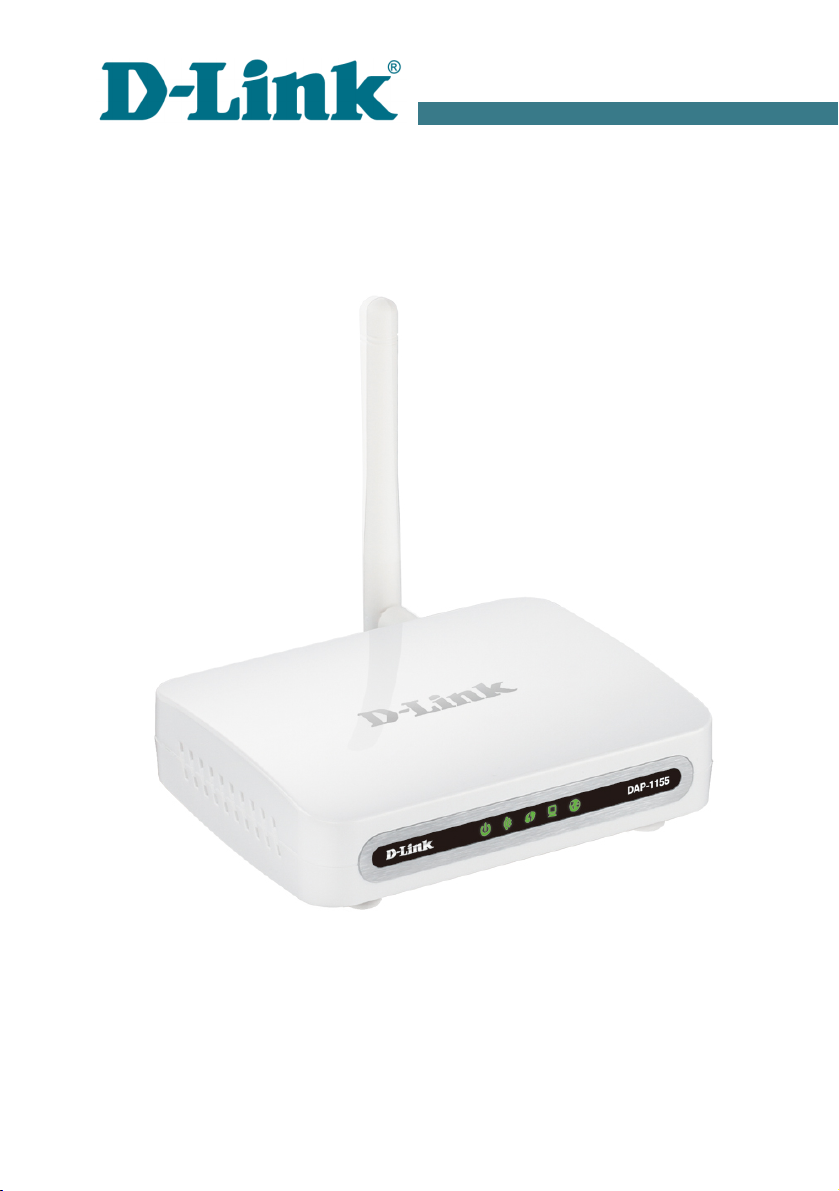

DAP-1155

Wireless N 150 Access Point & Router

DAP-1155 Quick Installation Guide

BEFORE YOU BEGIN

Delivery Package

•Access point DAP-1155

•Power adapter DC 12V

•Ethernet cable (CAT 5E)

•“Quick Installation Guide” (broch re).

If any of the items are missing, please contact yo r reseller.

The “User Manual” and “Quick Installation Guide” doc ments in R ssian

and English are available on D-Link website (see

ftp.dlink.r /p b/Wireless/DAP-1155/Description/Rev.B/).

!Using a power supply with a different voltage rating than the one

included will cause damage and void the warranty for this product.

Default Settings

IP address o access point 192.168.0.50

Username (login) admin

Password admin

Name o wireless network (SSID) DAP-1155

DAP-1155 Quick Installation Guide

System Requirements and Equipment

•A comp ter with any operating system that s pports a web browser.

•A web browser to access the web-based interface of the access point:

Windows Internet Explorer, Mozilla Firefox, or Opera.

•A NIC (Ethernet or Wi-Fi adapter) to connect to the access point.

•An 802.11b, g or n Wi-Fi adapter to create a wireless network.

DAP-1155 Quick Installation Guide

CONNECTING TO PC

PC with Ethernet Adapter

1. Make s re that yo r PC is powered off.

2. Connect an Ethernet cable between the LAN port located on the back

panel of the access point and the Ethernet port of yo r PC.

3. Connect the power cord to the power connector port on the back panel of

the access point, then pl g the power adapter into an electrical o tlet or

power strip.

4. T rn on yo r PC and wait ntil yo r operating system is completely

loaded.

Now yo need to config re an IP address for the Ethernet adapter of yo r PC.

DAP-1155 Quick Installation Guide

Configuring IP Address in S Windows XP

1. Click the Start b tton and proceed to the Control Panel > Network

and Internet Connections > Network Connections window.

2. In the Network Connections window, right-click the relevant Local

Area Connection icon and select the Properties line in the men

displayed.

3. In the Local Area Connection Properties window, on the General

tab, select the Internet Protocol (TCP/IP) line. Click the Properties

b tton.

DAP-1155 Quick Installation Guide

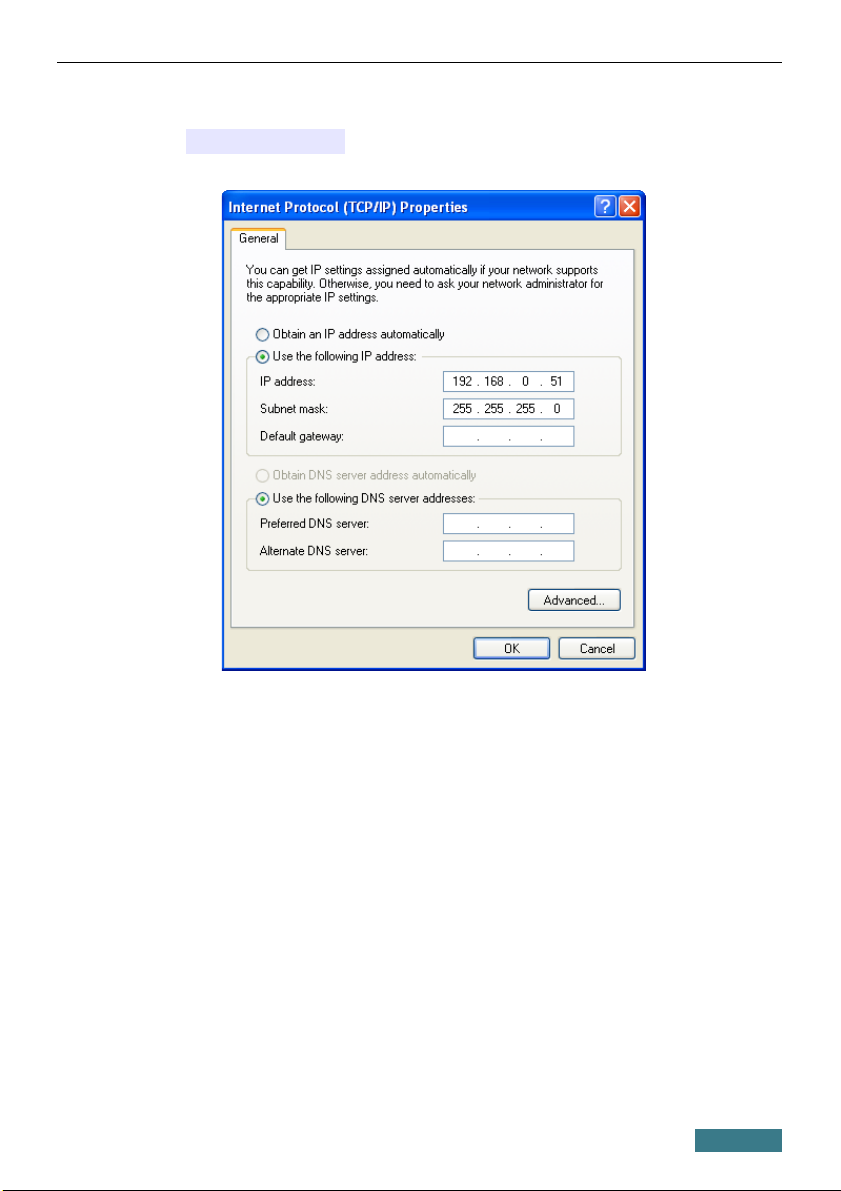

4. Select the Use the ollowing IP address radio b tton and enter the

val e 198.168.0.51 in the IP address field. The Subnet mask

field will be filled in a tomatically. Click the OK b tton.

5. Click the ОК b tton in the connection properties window.

Now yo can connect to the web-based interface of DAP-1155 for config ring

all needed parameters. To gain access to an external network (to the Internet),

yo also need to specify the defa lt gateway and the addresses of DNS servers.

DAP-1155 Quick Installation Guide

Configuring IP Address in S Windows 7

1. Click the Start b tton and proceed to the Control Panel window.

2. Select the Network and Sharing Center section. (If the Control Panel

has the category view (the Category val e is selected from the View by

drop-down list in the top right corner of the window), choose the View

network status and tasks line nder the Network and Internet

section.)

3. In the men located on the left part of the window, select the Change

adapter settings line.

4. In the opened window, right-click the relevant Local Area Connection

icon and select the Properties line in the men displayed.

5. In the Local Area Connection Properties window, on the

Networking tab, select the Internet Protocol Version 4 (TCP/IPv4)

line. Click the Properties b tton.

DAP-1155 Quick Installation Guide

6. Select the Use the ollowing IP address radio b tton and enter the

val e 198.168.0.51 in the IP address field. The Subnet mask

field will be filled in a tomatically. Click the OK b tton.

7. Click the OK b tton in the connection properties window.

Now yo can connect to the web-based interface of DAP-1155 for config ring

all needed parameters. To gain access to an external network (to the Internet),

yo also need to specify the defa lt gateway and the addresses of DNS servers.

DAP-1155 Quick Installation Guide

PC with Wi-Fi Adapter

1. Connect the power cord to the power connector port on the back panel of

the access point, then pl g the power adapter into an electrical o tlet or

power strip.

2. T rn on yo r PC and wait ntil yo r operating system is completely

loaded.

3. T rn on yo r Wi-Fi adapter. As a r le, modern notebooks with b ilt-in

wireless NICs are eq ipped with a b tton or switch that t rns on/off the

wireless adapter (refer to yo r PC doc ments). If yo r PC is eq ipped

with a pl ggable wireless NIC, install the software provided with yo r

Wi-Fi adapter.

Now yo sho ld config re yo r Wi-Fi adapter.

DAP-1155 Quick Installation Guide

Configuring Wi-Fi Adapter in S Windows XP

1. Click the Start b tton and proceed to the Control Panel > Network

and Internet Connections > Network Connections window.

2. In the Network Connections window, right-click the relevant

Wireless Network Connection icon. Make s re that yo r Wi-Fi

adapter is on, then select the Properties line in the men displayed.

3. In the Wireless Network Connection Properties window, on the

General tab, select the Internet Protocol (TCP/IP) line. Click the

Properties b tton.

4. Select the Use the ollowing IP address radio b tton and enter the

val e 198.168.0.51 in the IP address field. The Subnet mask

field will be filled in a tomatically. Click the OK b tton.

5. Click the ОК b tton in the connection properties window.
