Before Your Begin

This Quick Installation Guide gives step-by-step instructions for setting up the D-Link

Web Smart DGS-1248T Gigabit Switch. The model you have purchased may appear

slightly different from those shown in the illustrations. For more detailed information

about the switch, its components, making network connections and technical

specifications, please refer to the User’s Manual on master CD included with your

switch.

Check Your Package Contents

These are the items included with your DGS-1248T purchase:

If any of the above items are missing, please contact your reseller.

holders. Software and specifications subject to change without notice.

• DGS-1248T

D-Link 48-Port 10/100/1000Mbps + 4 Combo

Mini GBIC Gigabit Smart Switch

Using a powe

supply with a

different voltage rating

will damage and void

the warranty for this

product.

DGS-1248

D-Link Web Smart 48-Por

10/100/1000Mbps + 4 Combo

Mini GBIC Gigabit Switch

•CD-ROM (containing Manual and Utility

Installatio

•Rubber Foot Pads

•100–240VAC 50/60Hz

Power Adapter

•Rackmount Kit

Setup The DGS-1248T Gigabit Smart

Switch

The setup of the Switch can be performed using the following steps:

A. Install the DGS-1248T in a fairly cool and dry place. See the Technical

Specifications for the acceptable operation temperature and humidity

ranges.

B. Install the DGS-1248T in a site free from strong electromagnetic field

generators (such as motors), vibration, dust, and direct exposure to

sunlight.

C. Leave at least 10cm (about 4 inches) of space at the front and rear of

the hub for ventilation.

D. Visually inspect the DC power jack and make sure that it is fully

secured to the power adapter.

E. Install the DGS-1248T on a sturdy, level surface that can support its

weight, or in an EIA standard-size equipment rack.

F. When installing the Switch on a level surface, attach the rubber feet to

the bottom of each device. The rubber feet cushion the hub and

protect the hub case from scratching.

Attach the adhesive rubber pads to the bottom

Rack Mounting

The DGS-1248T can be mounted in an EIA standard-size, 19-inch rack,

which can be placed in a wiring closet with other equipments. Attach the

mounting brackets to both sides of the Switch (one at each side), and

secure them with the provided screws.

Use the screws provided. Then, use screws provided with the equipment rack to

mount the Switch in the rack.

Mount the Switch in the rack

Connecting Network Cable

The DGS-1248T supports 10/100/1000Mbps Gigabit Ethernet. It runs

full-/half- duplex transfer mode for 10/100Mbps and full-duplex transfer

mode for 1000Mbps. Each port on the DGS-1248T supports Auto-

MDI/MDI-X. Auto-MDI/MDI-X is a feature that eliminates the need for

worrying about using either a standard or crossover cable—you can

use either one—and allows any port to be an uplink port.

AC Power

The DGS-1248T can be used with AC power supply 100~240V AC,

50~60Hz. The power switch is located at the rear of the unit adjacent to

the AC power connector and the system fan. The switch’s power supply

will adjust to the local power source automatically and may be turned on

without having any or all LAN segment cables connected.

Connect The DGS-1248T Web Smart

Switch To Your Network

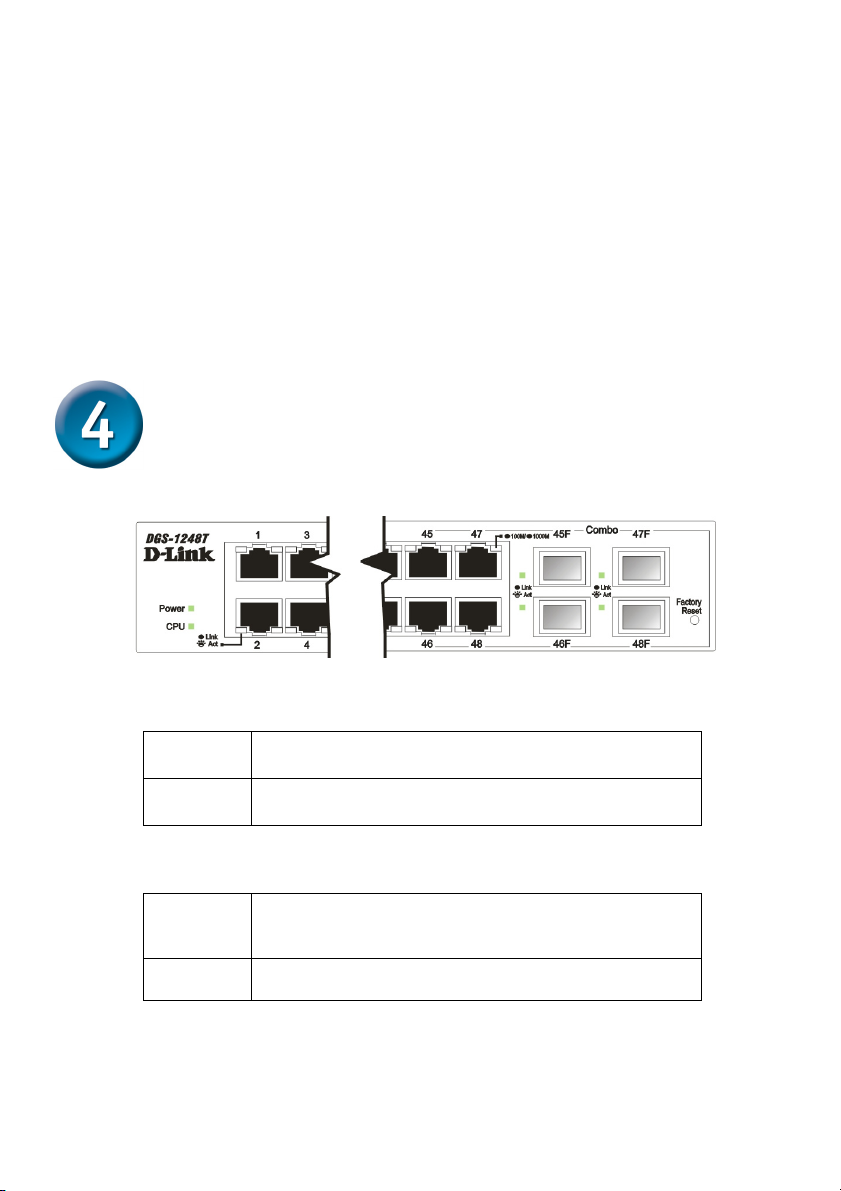

Front Panel

10/100/1000 Base-T Twisted-Pair Ports w/ LED Indicators

┌――――――――――――――――――――――――――┐

└―┘

Mini GBIC Ports

 1000BASE-T Twisted Pair Ports (Port 1~48)

The DGS-1248T is equipped with two Gigabit twisted pair ports that

are auto negotiable 10/100/1000Mbps and also support auto

MDI/MDIX crossover detection. These two ports can operate in half-

and full- duplex modes.

 Mini GBIC Ports (Option Port 45~48)

The Switch is equipped with two Mini GBIC ports, which support

optional 1000BASE-SX/LX SFP.

Note: When the port is set to “Forced Mode”, Auto MDI/MDIX

will be disabled.

LED Indicators

LED stands for Light-Emitting Diode.

The front panel LEDs provide instant status feedback and simplify

monitoring and troubleshooting tasks.

LED indicators of the Switch

 Power LEDs

On When the Power LED light is on, the Switch is

receiving power.

Off When the Power LED light is off, the power cord

is improperly connected.

 CPU LEDs ( Management Indicator)

Blinking When the CPU is working, the System LED is

blinking.

On/Off The CPU is not working.

 Ports 1 & 48 Status LEDs

Link/Act

On When the Link/Act LED lights on, the respective

port is successfully connected to an Ethernet

network.

Blinking When the Link/Act LED is blinking, the port is

transmitting or receiving data on the Ethernet

network.

Off There is no link.

SPEED:

(Green)

: When the green light is on, the respective port is

connected to a 1000Mbps Gigabit Ethernet

network.

(Amber)

When the Amber light is on, the respective port is

connected to a 100Mbps Fast Ethernet network.

Off : When the respective port is connected to a

10Mbps Ethernet or there is no link

 Option Ports 45~48 Mini-GBIC Status LEDs

Link/Act

On When the Mini GBIC module is installed and

connected to a network, the Link/Act LED lights on.

Blinking When the LED is blinking, the Mini GBIC module is

receiving data on a network.

Off There is no link.

Installing the Web Management

Utility

Through the Web browser you can configure switch functions such as

VLAN, Trunking, QoS… etc.

The following instruction guides you to install the Web Management

utility.

1. Insert the Utility CD in the CD-ROM Drive.

2. From the Start menu on the Windows desktop, choose Run.

3. In the Run dialog box, type D:\Web Management Utility\setup.exe

(D:\ depends where your CD-ROM drive is located) and click OK.

4. Follow the on-screen instructions to install the utility.

5. Upon completion, go to Program Files ->

web_management_utility and execute the Web Management

utility. (Figure 1.)

Figure 1. Web Management Utility

Configuring the Switch

The DGS-1248T has a Web GUI interface for smart switch configuration.

The Switch can be configured through the Web browser. A network

administrator can manage, control, and monitor the switch from the local

LAN. This section indicates how to configure the Switch to enable its

smart functions.

Use Internet Explorer 5.0 or above Web browser.

Before you configure this device, note that when the Web Smart Switch

is configured through an Ethernet connection, make sure the manager

PC must be set on the same IP network. For example, when the default

network address of the default IP address of the Web Smart Switch is

192.168.0.1, then the manager PC should be set at 192.168.0.x (where

x is a number between 2 and 254), and the default subnet mask is

255.255.255.0.

Enter IP address http://192.168.0.1 (the factory-default IP address

setting) to the address location. (Figure 2.)

Figure 2.

Or through the Web Management Utility, you do not need to remember

the IP Address, Select the device shown in the Monitor List of the Web

Management Utility to settle the device on the Web browser.

When the following dialog page appears, enter the default password

"admin" and press Login to enter the main configuration window.

(Figure 3.)

Figure 3.

After entering the password, the main page appears and the screen will

display the device status. (Figure 4.)

Figure 4.

Setup Menu

When the main page appears, find the Setup menu on the left side of

the screen (Figure 5). Click on the setup item that you want to configure.

There are eleven options: Port Settings, VLAN Settings, Trunk Setting,

Mirror Setting, Device Status, System Settings, Trap Setting, Password

Setting, Backup Setting, and Reset Setting as shown on the Main Menu

screen.

Figure 5.

Ver.1.00

Technical Support

You can find software updates and user documentation on the D-Link website.

D-Link provides free technical support for customers within the United States

and within Canada for the duration of the warranty period on this product.

U.S. and Canadian customers can contact D-Link technical support through our

website, or by phone.

Tech Support for customers within the United States:

D-Link Technical Support over the Telephone:

(877) 453-5465

Monday to Friday 6:00AM to 6:00PM PST

D-Link Technical Support over the Internet:

http://support.dlink.com

email:[email protected]

Tech Support for customers within Canada:

D-Link Technical Support over the Telephone:

(800) 361-5265

Monday to Friday 7:30am to 12:00am EST

D-Link Technical Support over the Internet:

http://support.dlink.ca

email:[email protected]
