D-Link SECURICAM Network DCS-2100+ Manuel utilisateur

Check Your Package Contents

These are the items included with your purchase:

If any of the below items are missing, please contact your reseller.

BeforeYou Begin

You must have at least the following:

•Windows XP/2000/Me/98SE

• WiredorWirelessEthernetAdapter

•CD-ROMDrive

DCS-2100+

This product can be set up

using Internet Explorer 5.x

or above

DCS-2100+ WirelessInternetCamera

with2detachableantennas

OneCameraStandand Bracket

OneAC Power

Adapter

OneCategory5EthernetCable

OneInstallationCD(containingDrivers,

Software,QuickInstallationGuideand

Manual)

Wireless Home Security

Internet Camera

respective holders. Software and specifications subject to change without notice. DCS-2100+.04262004

Using a power supply

with a different voltage

rating will damage this

productandvoidthewarranty.

Hardware Installation

System Requirements

• Internet Explorer 5.x or above

• CPU:PentiumIII, 800MHzor above(Requiredfor usewithIP surveillance software)

• MemorySize:128MB (256MBrecommended)

• VGA card resolution: 800x600 or above

Connect the Ethernet Cable

If you will be using the DCS-2100+ in a wired network,

connectanEthernet cabletothenetworkcable connector

locatedon theInternet Camera’sback panelandattachit

to the network.

Attach the antennas to the camera

If you will be using the DCS-2100+ in a wireless network,

attach the antennas to the back of the camera by turning

the antennas in the clockwise direction until snug, do not

overtighten.

If you connect this camera directly to

a PC, you will need a cross-over

Ethernet cable. If you plug the camera into a

hub or router, you will be able to use the cable

includedwith yourcamera.

Hardware Installation (continued)

When you have a proper connection, the LED (Light Emitting Diode) on the front of the

camera will turn from red to green. The light may blink on and off and your computer may

show an intermittant loss of connectivity if you have it directly connected to the camera.

Thisis normaluntilyou haveconfigured yourcamera.

Configuring your camera with IP

Installer

Attach the External Power Supply

Attachthe externalpowersupply tothe DCpower input

connectorlocated ontheInternet Camera’sback panel

(labeled DC 12V) and connect it to anAC power outlet.

Powersource isconfirmedwhentheLED PowerIndicator ontheInternet

Camerais illuminated.

InserttheDCS-2100+ CDintothe

CD-ROMdrive.

Click on IP Installer

Click on Install Software

Configuring your camera with IP

Installer (continued)

This is the first screen that will appear.

The IP Installer will now show a MAC

address of the DCS-2100+ and an

IPAddress (which may or may not be

correct depending on what you have

yourDCS-2100+ connected to.)

If you have a DHCP* server on your

network, a valid IP Address will be

displayedhere.

* ADHCPserverisadevicethat

supplies IP Addresses to its

clients that are on the same network.

If the IP installer does not display any

devices, lightly insert a paper clip into the

reset opening on the unit’s rear panel until

the light starts to cycle (a series of blinks)

twice, then let go.

Configuring your camera with IP

Installer (continued)

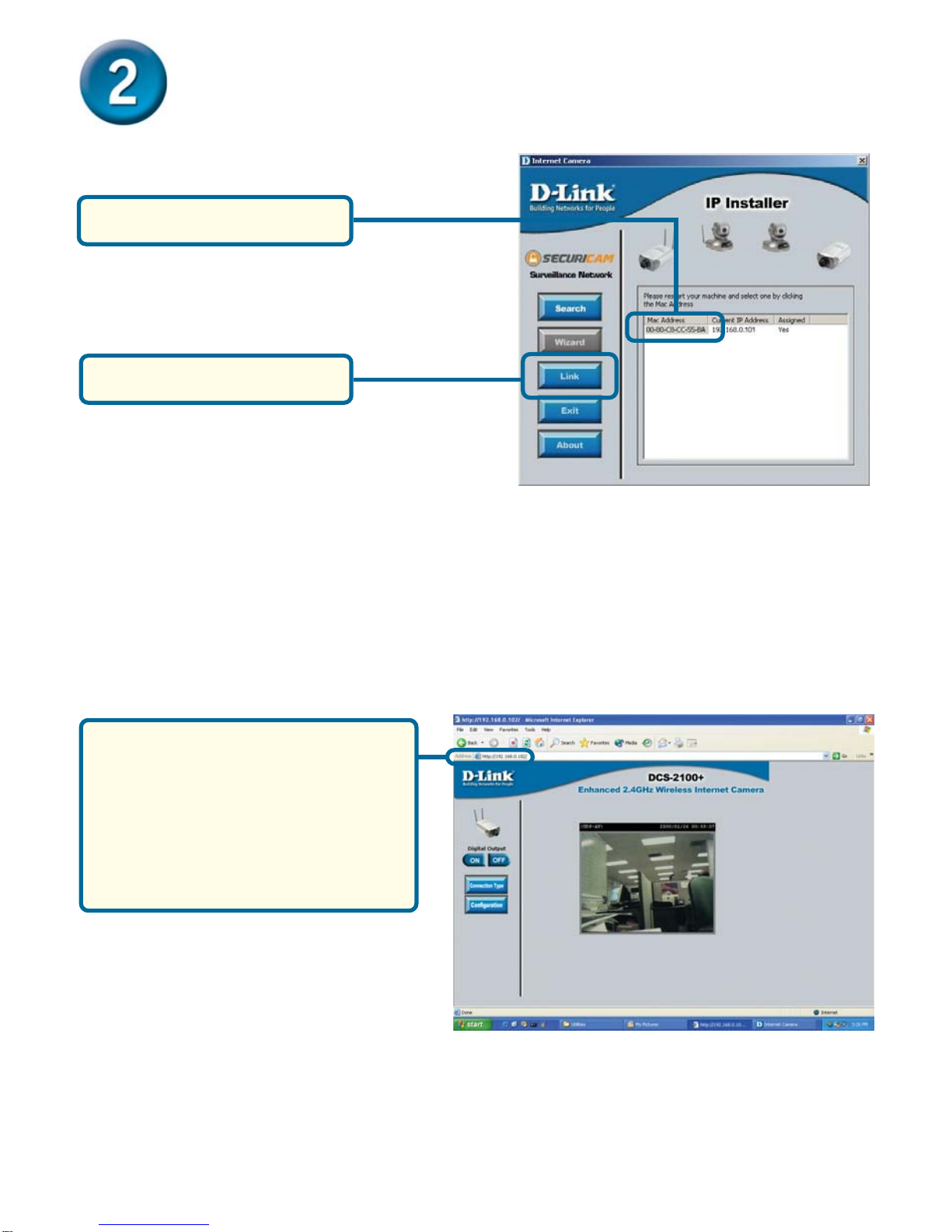

After you click on the Link button,

IP Installer willautomaticallyopen

your Internet browser to the IP

Address of the DCS-2100+, in this

example it is: http://192.168.0.102

Your DCS-2100+ may have a

differentIPAddress.

Highlightthe MACaddress

Click on the Link button

UPnPisshortforUniversalPlugandPlay,whichisanetworkingarchitecturethatprovides

compatibilityamong networkingequipment,software,andperipherals. TheDCS-2000 is

aUPnPenabled internetcamera. If youroperating system isUPnP enabled,thedevice

will be easier to configure. If you do not want to use the UPnP functionality, it can be

disabledby unselecting“Enabled”on theDDNS/UPnP settingspage under“Advanced”

in the configuration menu. Use the following steps to enable UPnP (Universal Plug and

Play) settings only if you are running Windows XP/Me. If you are running Windows 98/

2000,UPnP isnotavailable.

Enabling UPnP for Windows XP/Me

Click Add or Remove

Programs

Go to Start > Settings

Click Control Panel

Enabling UPnP for Windows XP/Me

(continued)

Select Universal

Plug and Play

Click Ok

Thefollowingscreenwillappear:

Click Details

Click Add/Remove

Windows Components

Select Networking Services

(CommunicationsinWindowsMe)

Enabling UPnP for Windows XP/Me

(continued)

Click Finish

Please wait while Setup

configures the components.

Click Next

(Note: Screen shots are taken in Windows XP, similar screens will appear in Windows Me.)

Enabling UPnP for Windows XP/Me

(continued)

ClickDCS-2100+-102

The last three digits (102),

representthefourthoctetofyour

Internet Camera’s IP address

(inthisexample,192.168.0.102).

After you click on the DCS-

2100+-102 icon, your

Internet browser will

automatically open to the IP

Address of the DCS-2100+,

in this example the address

is:http://192.168.0.102.Your

DCS-2100+ may have a

different IPAddress.

Click My Network Places

To view your DCS-2100+

Internet Camera in an

Internet browser, go to

your Desktop and click

My Network Places.

Setting a Password

Clickonthe Configuration

buttononthe Home page:

There are five tabs across the top of the Configuration screen. Each tab displays

different configuration elements of the DCS-2100+. The Advanced tab is the default

screen in Configuration and Network is the default selection under Advanced.

ClickConfiguration

Anychangesmadetothesesettingswill

requirethesystemtorestart tovalidate.

Makesure everyfield iscorrectly typed

beforeclickingon Apply.

Uncheck the option

Reset IP address at

nextboot.
