Quick Install Guide

DCS-3420

Wireless Day & Night

Internet Camera

System Requirements

• Windows®2000 or XP

• At least 256MB of memory (512MB recommended)

• An available Ethernet connection

• Internet Explorer 6.x or higher Internet Web Browser

• VGA card resolution: 800x600 or above

• CPU: 1.7GHz or above processor (2.8GHz plus processor with

512MB memory and a 32MB video card is required for multiple

camera viewing and recording in IP surveillance program)

CAT5 Ethernet Cable

Package Contents

DCS-3420

Wireless Day & Night Internet

Camera

System Requirements

If any of the above items are missing, please contact your reseller.

CD-ROM with Manual and

Installation Wizard

Camera Stand 12V 1.5A AC Power Adapter

Antenna

Hardware Overview

Connections

Ethernet Cable Connector

The Internet Camera’s back panel features an RJ-45

connector for connections to 10Base-T Ethernet cabling

or 100Base-TX Fast Ethernet cabling. This network port

supports the NWay protocol, allowing the Internet Camera

to automatically detect or negotiate the transmission speed

of the network.

Power LED

The power LED is on the back of the camera. As soon as the

power adapter is connected to the camera, the power LED will

ash red and green several times, indicating that the DCS-3420

is conducting a self-test. Upon passing the self-test, the LED will

turn green, indicating a good connection to an Ethernet port. A

red LED indicates that no connection has been made.

DC Power Connector

The DC power input connector

is located on the DCS-3420

Internet Camera’s back panel

and is labeled 12V DC with a

single socket to supply power

to the Internet Camera.

Hardware Overview

Audio Out Connector

The DCS-3420 provides an Audio Out connector to be

used for 2-way audio. Speakers (not included) may be

connected to the camera to provide audio for 2-way

communication.

Microphone Connector

The DCS-3420 Wireless Day & Night Internet Camera

has an internal microphone built-in. However, you have

the option of using an external microphone by plugging

it into the microphone connector.

Reset Button

Reset will be initiated when

the reset button is pressed

once and held until the Power

LED ashes through its cycle

twice.

Hardware Installation

BNC

The BNC connector is used for

professional video connections.

It benets users who integrate

digital IP camera into traditional

system (CCTV) for both analog

and digital video streaming

purpose.

I/O Connector

The DCS-3420 provides a terminal block with two pairs of

connectors situated on the back panel. One pair is for input

and the other is for output. The I/O connectors provide the

physical interface to send and receive digital signals to and

from a variety of external devices.

Antenna Connector

The antenna is included with the DCS-3420. It

fastens onto the antenna connector on the back

panel to provide a connection with a wireless

network.

Hardware Installation

Connect the Ethernet Cable

Connect an Ethernet cable to the network

cable connector located on the Internet

Camera’s back panel and attach it to the

network.

Attach the Antennas

Locate the antennas included with your

DCS-3420 and attach them to the antenna

connectors located on the back of the

DCS-3420.

Attach the External Power Supply

Attach the external power supply to the

DC power input connector located on the

Internet Camera’s back panel (labeled

DC 12V) and connect it to an AC power

outlet.

Note: When you have a proper connection, the LED will turn from red to

green. The light may cycle on and off and your computer may show an

intermittent loss of connectivity, this is normal until you have congured your

Internet Camera.

Note: It is required that an Ethernet cable is used during initial

setup. Once your wireless conguration is set, you may disconnect

the Ethernet cable and begin communicating wirelessly with your

DCS-3420.

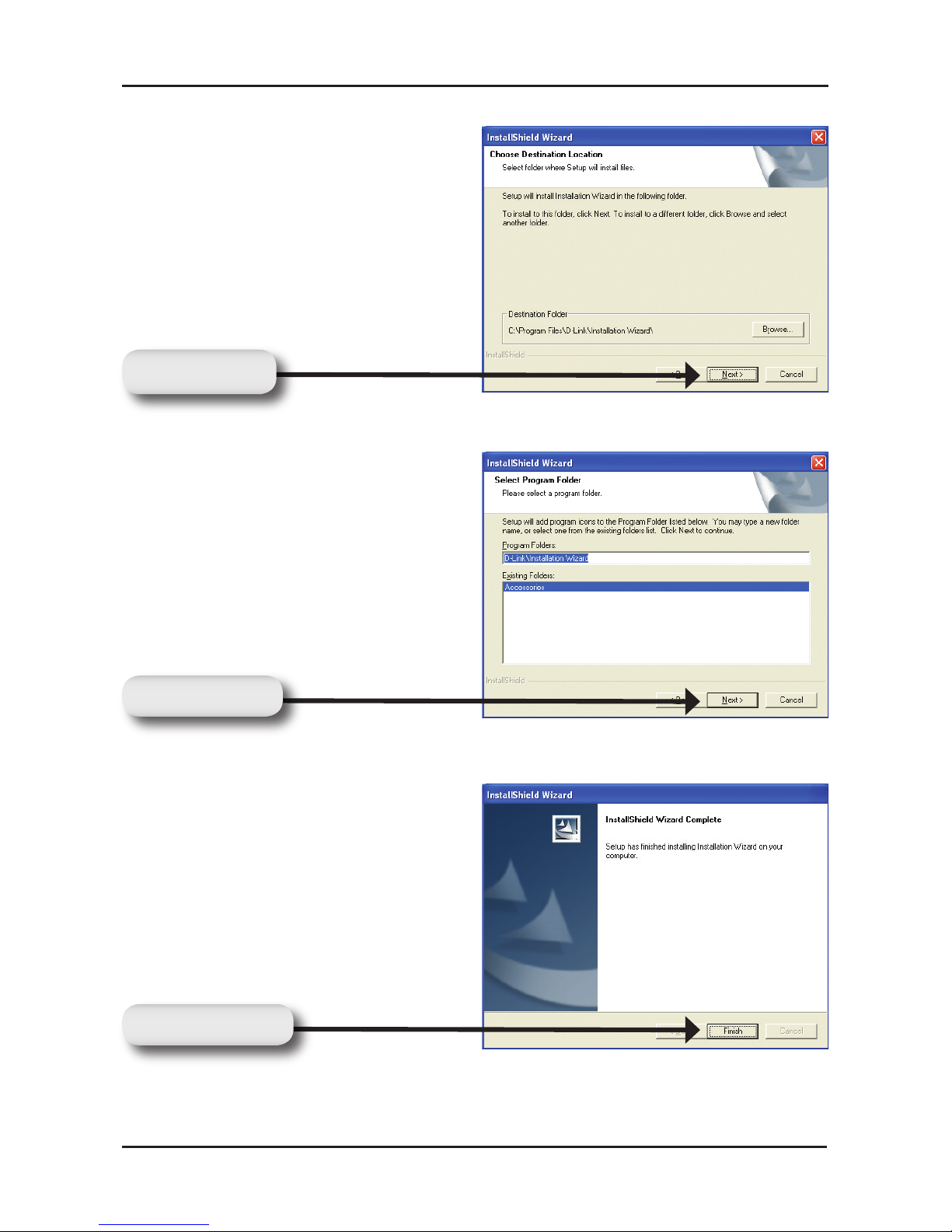

Software Installation

Click Next

Insert the DCS-3420 CD into the CD-ROM drive. If the CD Autorun

function does not automatically start on your computer, click Windows®

Start > Run. In the Run command box type “D:\DCS3420.exe”, where

D: represents the drive letter of your CD-ROM. If it does start, proceed

to the next screen.

Software Installation

Click on Installation

Wizard

Software Installation

Click Next

Click Finish

Conguration

Conguring Your Camera

with the Setup Wizard

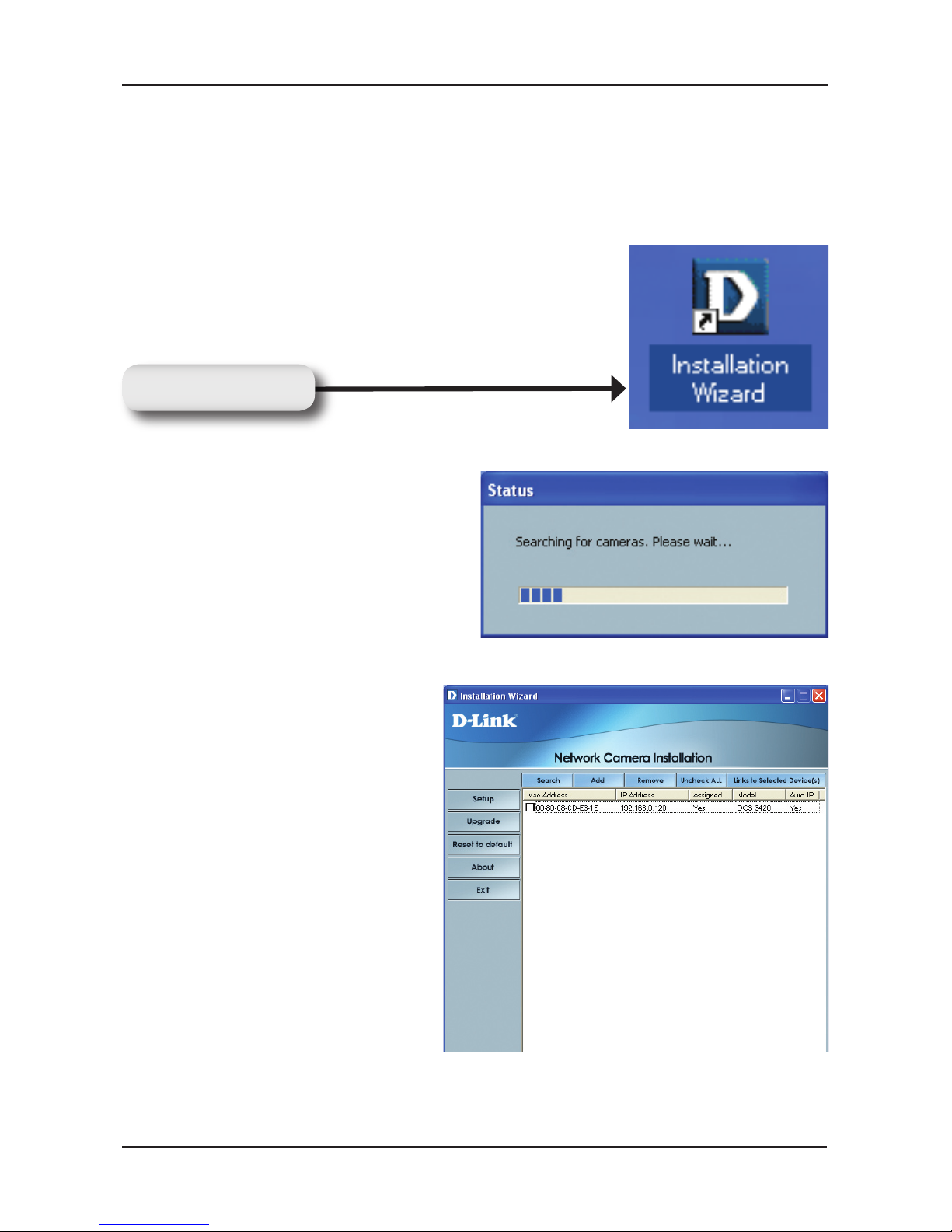

Double click on the Installation Wizard icon

that was created on you desktop.

Double-Click

The software will search for

cameras.

The Installation Wizard will

appear and show the MAC

address of the DCS-3420

and an IP Address (which

may or may not be correct

depending on what you have

your DCS-3420 connected

to). If you have a DHCP*

server on your network, there

will be a valid IP Address

displayed here, indicated by

a “Yes” under the assigned

column.

*A DHCP server is a device that supplies IP Addresses to its clients

that are on the same network.

Conguration

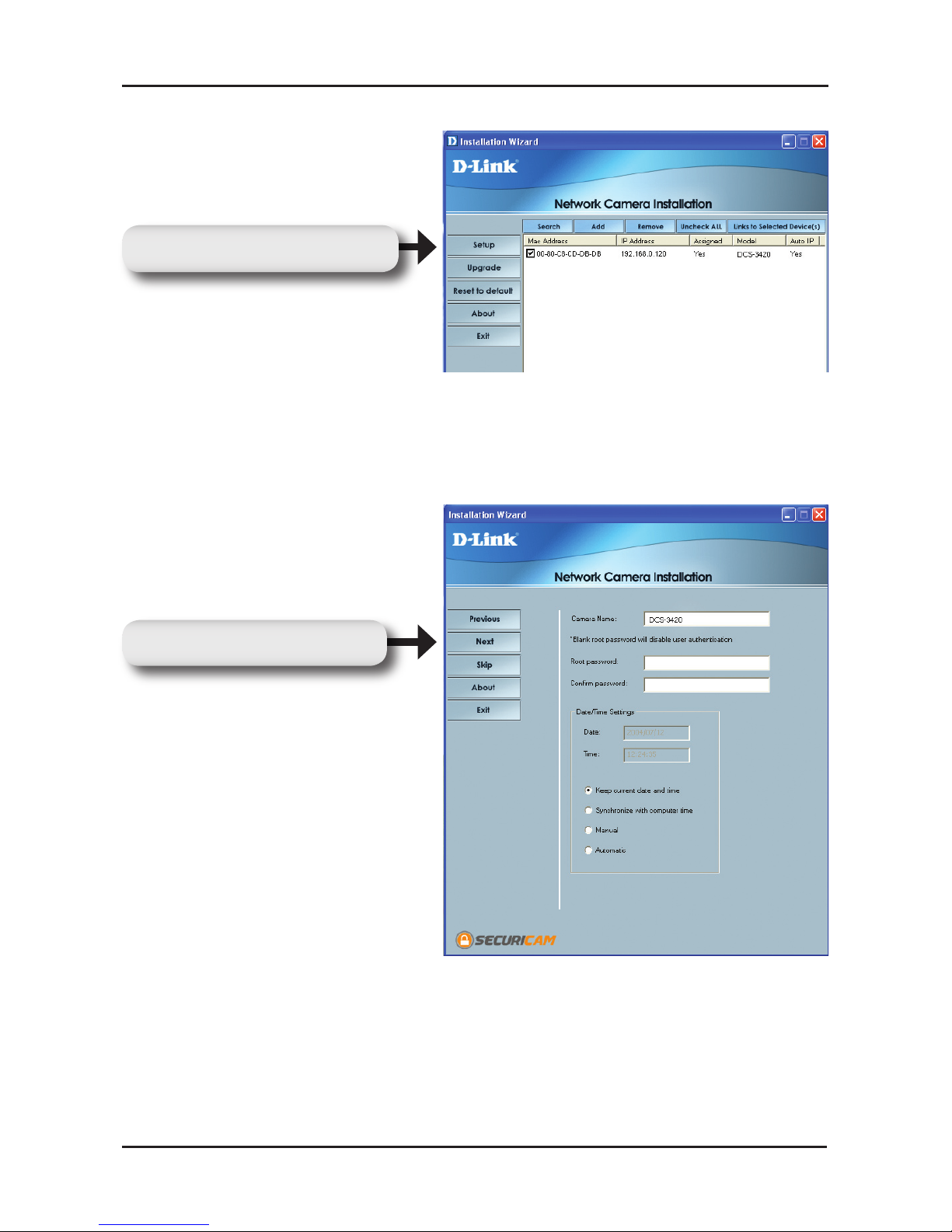

Click the Setup button

Click the Next button

Enter an administrative password in the Root password and Conrm

password elds.

For details on the Date/Time

Settings, please refer to the

User Manual on the CD-

ROM.
