This document will guide you through the
basic installation process for your new D-Link
Network Camera.
DCS-6511
Documentation also available on
CD and via the D-Link Website
Quick Installation Guide
HD Day & Night Vandal-Proof Fixed Dome Network Camera
D-Link DCS-6511 Quick Install Guide 1
ENGLISH
DCS-6511 Quick Install Guide
This installation guide provides basic instructions for installing the DCS-6511 Network
Camera on your network. For additional information about how to use the camera,
please see the User’s Manual which is available on the CD included in this package or
from the D-Link support website.
Installation Steps
1. Verify the package contents against the list below.
2. Hardware Overview
3. SD Card Installation
4. Hardware Installation
5. Conguration with Wizard
6. Adjusting the lens 3-axis angel
1. Package Contents
DCS-6511 Network Camera
Manual and Software on CD-ROM
Quick Install Guide
Power Adapter
AV & Power Cables
Security Wrench
CAT-5 Ethernet Cable
Extension Adapter
Cable Cover
Mounting Bracket and Screws
Rubber Plug
If any of the above items are missing, please contact your reseller.
Safety Notice:
Installation and servicing should be done by certied technicians so as to conform to all
local codes and prevent voiding your warranty.
D-Link DCS-6511 Quick Install Guide
2
ENGLISH
2. Hardware Overview
Power Connector
Connects to 12 V DC power
24 V Power Connector
Connects to 24 V AC power
Ethernet Jack
RJ-45 connector for Ethernet which
can also be used to power the camera
using Power over Ethernet (PoE)
Audio In
Connects to a microphone DI/DO Wiring, 12V DC output
I/O connectors for external devices
Install the SD Card
Push the SD card into the camera with the
gold contacts oriented towards the base of
the camera. To eject the SD card, push the
SD card into the slot.
3. SD Card Installation
Disassemble the Camera
Open the camera enclosure by loosen the
4 screws. Lift the dome off the base of the
camera.
Audio Out
Connects to speakers
D-Link DCS-6511 Quick Install Guide 3
ENGLISH
4. Standard Mounting Instructions
Mounting Installation
Please see the User Manual for detailed instructions regarding installation and mounting
of the camera using a mounting bracket.
Style 1 - Concealed Cable Installation
Height: 23 mm (0.9 inches)
Diameter: 183 mm (7.2 inches)
Weight: 400 g (0.9 lbs)
Figure 2.1
Figure 2.2
D-Link DCS-6511 Quick Install Guide
4
ENGLISH
Style 2 - Exposed Cable Installation
Height: 23 mm (0.9 inches)
Diameter: 183 mm (7.2 inches)
Weight: 400 g (0.9 lbs)
Figure 2.3 Figure 2.4
Figure 2.5 Figure 2.6
D-Link DCS-6511 Quick Install Guide 5
ENGLISH
Pendant Mount (DCS-34-2)
Height: 201 mm (7.9 inches)
Diameter: 150 mm (5.9 inches)
Weight: 665 g (1.45 lbs)
Figure 3.4
Pendant
Bracket
Bracket
Cap
Rubber
Seal
Figure 3.2
Figure 3.3
Figure 3.1
Bracket
Cap
Mounting
Plate
D-Link DCS-6511 Quick Install Guide
6
ENGLISH
Bent Mount (DCS-34-3)
Height: 253 mm (9.96 inches)
Diameter: 150 mm (5.9 inches)
Weight: 770 g (1.7 lbs)
Bracket Cap
Bent
Bracket
Figure 4.2
Figure 4.4
Dome
Camera
Bent
Bracket
Figure 4.3
Figure 4.1
Bracket
Cap
Mounting
Plate
D-Link DCS-6511 Quick Install Guide 7
ENGLISH
Connection with a PoE Hub
If you are using a PoE hub, connect the IP camera to the hub via an Ethernet cable,
which will provide transmission of both power and data over a single cable.
General Connection Using 24 V AC Power Wiring
1. Connect the network camera to a hub via an Ethernet cable.
2. Connect the supplied power cable from the camera to a power source such as your
building's emergency power.
General Connection Using 12 V DC Power Adapter
1. Connect the network camera to a hub via an Ethernet cable.
2. Connect the supplied power cable from the camera to a power outlet.
D-Link DCS-6511 Quick Install Guide
8
ENGLISH
5. Conguration with Wizard

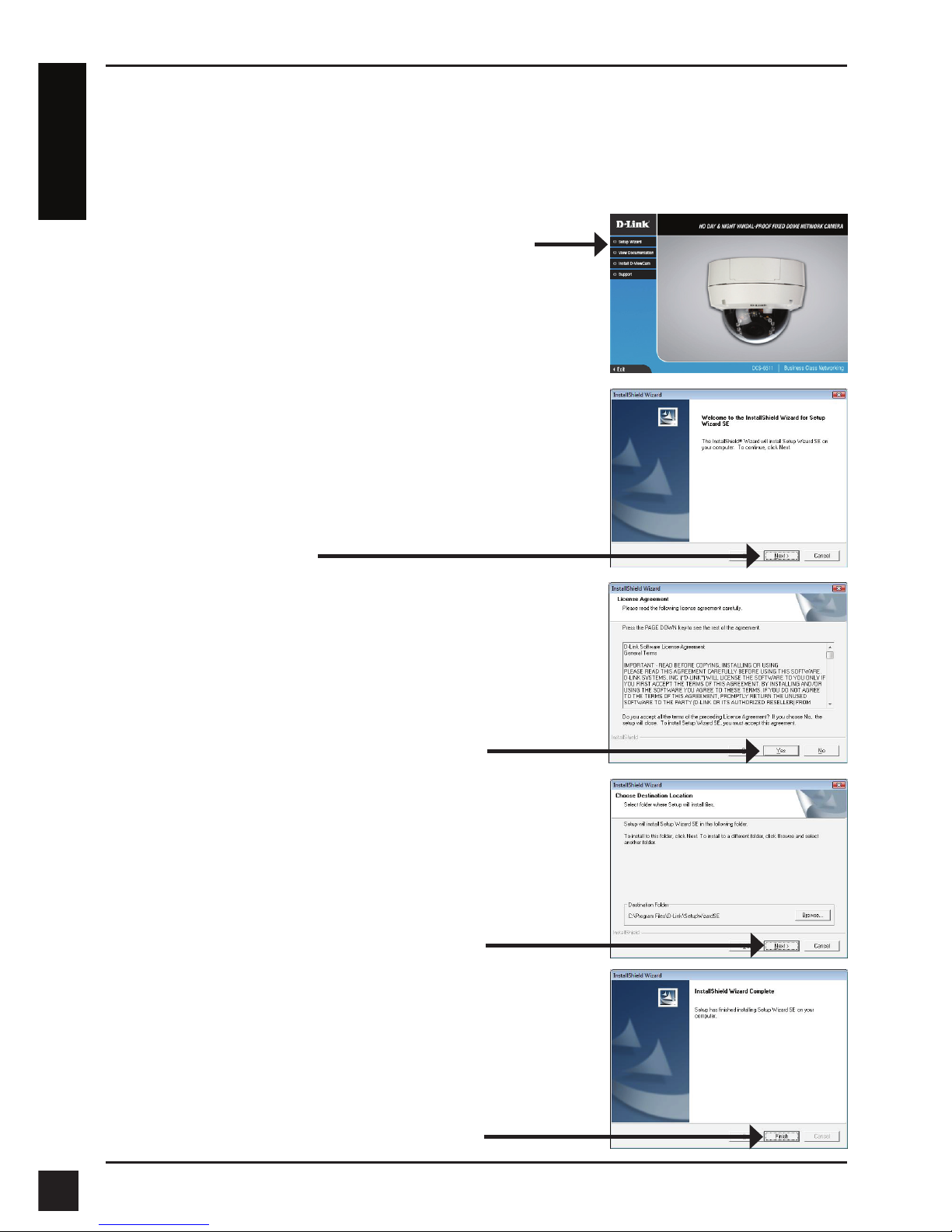

Click Setup Wizard to begin the installation.
Insert the DCS-6511 CD into your computer's CD-ROM drive to begin the installation. If
the Autorun function on your computer is disabled, or if the D-Link Launcher fails to start
automatically, click Start > Run. Type D:\autorun.exe, where D: represents the drive
letter of your CD-ROM drive.
After clicking Setuop Wizard, the following window will
open.
Click Next to continue.
Click Yes to accept the License Agreement.
Click Finish to complete the installation.
To start the installation process, click Next.
Note: The installation may take several minutes to
nish.
D-Link DCS-6511 Quick Install Guide 9
ENGLISH
Click on the D-Link Setup Wizard SE icon that was
created in your Windows Start menu.
Start > D-Link > Setup Wizard SE
Take a moment to conrm your settings and click Restart.
Select DHCP if your camera obtains an IP address
automatically when it boots up. Select static IP if the
camera will use the same IP address each time it is
started.
Click Next, to proceed to the next page.
Enter the Admin ID and password. When logging in for
the rst time, the default Admin ID is admin with the
password left blank.
Click Next, to proceed to the next page.
The Setup Wizard will appear and display the MAC
address and IP address of your camera(s). If you have
a DHCP server on your network, a valid IP Address
will be displayed. If your network does not use a
DHCP server, the network camera's default static IP
192.168.0.20 will be displayed.
Click the Wizard button to continue.
