D-Link DCS-3715 Manuel utilisateur

This document will guide you through the basic installation

process for your new D-Link Network Camera.

DCS-3715

Documentation also available on

CD and via the D-Link Website

Quick Installation Guide

Full HD Day & Night Network Camera

Quick Installation Guide

Руководство по быстрой установке

Guía de Instalación Rápida

Guia de Instalação Rápida

快速安裝指南

Petunjuk Pemasangan Cepat

D-Link DCS-3715 Quick Install Guide

ENGLISH

DCS-3715 Quick Install Guide

This installation guide provides basic instructions for installing the DCS-3715 Network

Camera on your network. For additional information about how to use the camera,

please see the User’s Manual which is available on the CD include in this package or

from the D-Link support website.

Installation Steps

1. Verify the package contents against the list below.

2. Hardware Overview

3. Hardware Installation

4. Conguration with Wizard

5. Adjust the Zoom/Focus

1. Package Contents

° DCS-3715 Network Camera

° Camera Stand (with screws and Allen wrench)

° Manual and Software on CD-ROM

° CAT5 Ethernet Cable

° Power Adapter

° Quick Install Guide

° AV cable

° Allen wrench(for SD card cover and lens ring)

If any of the above items are missing, please contact your reseller.

D-Link DCS-3715 Quick Install Guide 3

ENGLISH

2. Hardware Overview

LED

Power and

network indicator

I/O Connector

I/O connectors for external devices

AV Output

Audio and Video output connector for

external speaker and TV/Monitor

Reset

Press and hold this button

for 10 seconds to reset the

camera

DC Power

12V DC

Ethernet (PoE)

RJ-45 connector for Ethernet

which can also be used to power

the camera using PoE

Rear Panel

12V 1.25V

AV OUT

MIC IN

ETHERNET (PoE)

RESET

DO +

DO -

DI +

DI -

AC24V

485 +

485 -

1 MIC ON

2 MIC OFF

3 NTSC

4 PAL

DIP Switch

Toggles between

several regional

formats.

1. MIC ON: Internal/External microphone on

2. MIC OFF: Internal/External microphone mute

3. NTSC: TV output signal selector

4. PAL: TV output signal selector

SD Card Slot (with cover)

Local SD card for storing

recorded images and video

Microphone Port

Use to Connect an

External microphone

D-Link DCS-3715 Quick Install Guide

ENGLISH

Right Panel

DC-Iris Connector

Connector for DC auto

iris lens

Lens ring

loose the ring screw to

adjust the back focus

of lens

Lens Connector

Connect to a CS mount

ICR Sensor

The IR-Cut Removable sensor

judges lighting conditions and

switches from color to infrared

accordingly

Front Panel

Built-in MIC

Internal microphone

D-Link DCS-3715 Quick Install Guide 5

ENGLISH

3. Hardware Installation

Basic Connection (without PoE)

Connect the camera to your switch or router via Ethernet cable.

Connect the supplied power cable from the camera to a power outlet.

Connection Using a PoE Switch

If using a PoE switch or router, connect the network camera via Ethernet cable.

PoE will transmit both power and data over a single cable.

Note: Once power has been established, the LED will turn red. When the device has

obtained an IP address and is accessible, the LED will turn green.

D-Link DCS-3715 Quick Install Guide

ENGLISH

4. Conguration with Wizard

Click Setup Wizard to begin the installation.

Insert the DCS-3715 CD into your computer's CD-ROM drive to begin the installation. If

the Autorun function on your computer is disabled, or if the D-Link Launcher fails to start

automatically, click Start > Run. Type D:\autorun.exe, where D: represents the drive

letter of your CD-ROM drive.

After clicking Setup Wizard, the following window will

open.

Click Next to continue.

Click Yes to accept the License Agreement.

Click Finish to complete the installation.

To start the installation process, click Next.

Note: The installation may take several minutes to

nish.

D-Link DCS-3715 Quick Install Guide 7

ENGLISH

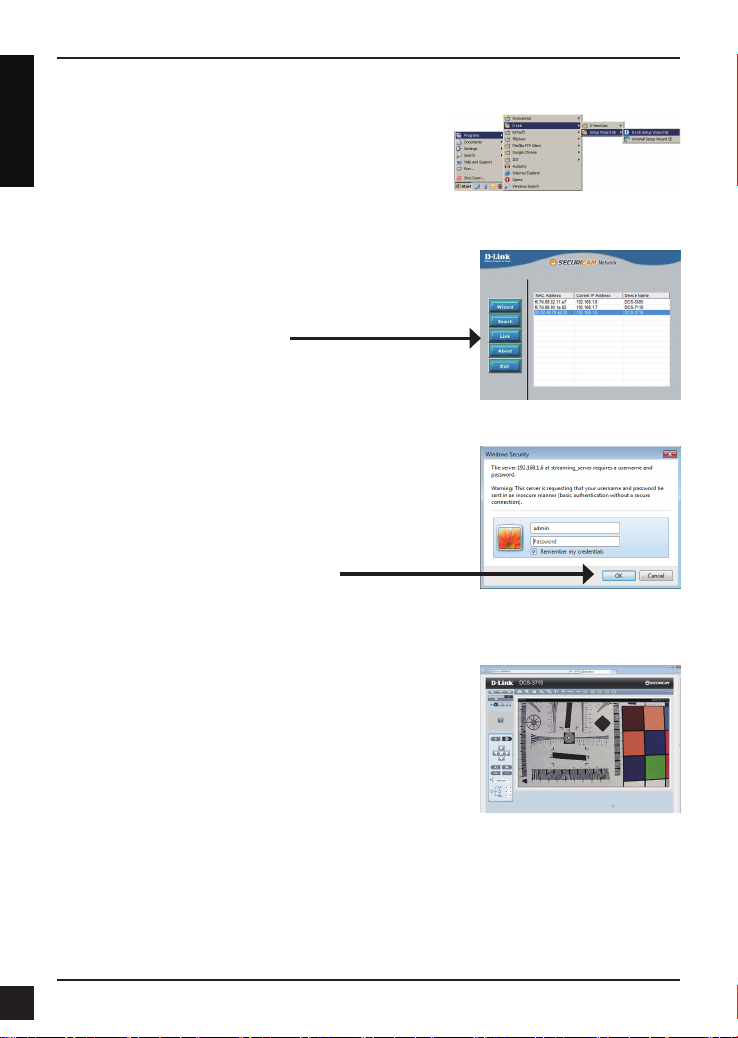

Click on the D-Link Setup Wizard SE icon that was

created in your Windows Start menu.

Start > D-Link > Setup Wizard SE

Take a moment to conrm your settings and click Restart.

Select DHCP if your camera obtains an IP address

automatically when it boots up. Select static IP if the

camera will use the same IP address each time it is

started.

Click Next, to proceed to the next page.

Enter the Admin ID and password. When logging in for

the rst time, the default Admin ID is admin with the

password left blank.

Click Next, to proceed to the next page.

The Setup Wizard will appear and display the MAC

address and IP address of your camera(s). If you have

a DHCP server on your network, a valid IP Address

will be displayed. If your network does not use a

DHCP server, the network camera's default static IP

192.168.0.20 will be displayed.

Click the Wizard button to continue.

D-Link DCS-3715 Quick Install Guide

ENGLISH

Click on the D-Link Setup Wizard SE icon that was

created in your Windows Start menu.

Start > D-Link > Setup Wizard SE

Viewing Camera via Web Browser

This section shows your camera’s live video. You

can select your video prole and view or operate

the camera. For additional information about web

conguration, please refer to the user manual included

on the CD-ROM or the D-Link website.

Enter admin as the default username and leave the

password blank. Click OK to continue.

Select the camera and click the button labeled "Link"

to access the web conguration.

The Setup Wizard will automatically open your web

browser to the IP address of the camera.

D-Link DCS-3715 Quick Install Guide 9

ENGLISH

5. Adjust the Zoom/Focus

Adjust Zoom Ratio

Unscrew the focus controller to loosen

the zoom controller. Adjust the zoom

factor by moving the controller the left or

right until the desired range is achieved.

Tighten the zoom controller once

completed.

Adjust Focus

Unscrew the focus controller to loosen

it. Adjust the focal range by rotating the

ring to the left or right until the image is

clear. Tighten the focus controller once

completed.

D-Link DCS-3715 Quick Install Guide

ENGLISH

Technical Support

You can nd software updates and user documentation on the D-Link website.

Tech Support for customers in

Australia:

Tel: 1300-766-868

24/7 Technical Support

Web: http://www.dlink.com.au

E-mail: [email protected]

India:

Tel: +91-22-27626600

Toll Free 1800-22-8998

Web: www.dlink.co.in

E-Mail: [email protected]

Singapore, Thailand, Indonesia,

Malaysia, Philippines, Vietnam:

Singapore - www.dlink.com.sg

Thailand - www.dlink.co.th

Indonesia - www.dlink.co.id

Malaysia - www.dlink.com.my

Philippines - www.dlink.com.ph

Vietnam - www.dlink.com.vn

Korea:

Tel : +82-2-2028-1810

Monday to Friday 9:00am to 6:00pm

Web : http://d-link.co.kr

E-mail : [email protected]

New Zealand:

Tel: 0800-900-900

24/7 Technical Support

Web: http://www.dlink.co.nz

E-mail: [email protected]

South Africa and Sub Sahara

Region:

Tel: +27 12 661 2025

08600 DLINK (for South Africa only)

Monday to Friday 8:30am to 9:00pm South

Africa Time

Web: http://www.d-link.co.za

E-mail: [email protected]

Saudi Arabia (KSA):

Tel: +966 01 217 0008

Fax: +966 01 217 0009

Saturday to Wednesday 9.30AM to 6.30PM

Thursdays 9.30AM to 2.00 PM

E-mail: [email protected]

D-Link Middle East - Dubai, U.A.E.

Plot No. S31102,

Jebel Ali Free Zone South,

P.O.Box 18224, Dubai, U.A.E.

Tel: +971-4-8809022

Fax: +971-4-8809066 / 8809069

Technical Support: +971-4-8809033

General Inquiries: [email protected]

Tech Support: [email protected]

Egypt

1, Makram Ebeid Street - City Lights Building

Nasrcity - Cairo, Egypt

Floor 6, ofce C2

Tel.: +2 02 26718375 - +2 02 26717280

Technical Support: +2 02 26738470

General Inquiries: [email protected]

Tech Support: [email protected]

Kingdom of Saudi Arabia

Ofce # 84 ,

Al Khaleej Building ( Mujamathu Al-Khaleej)

Opp. King Fahd Road, Olaya

Riyadh - Saudi Arabia

Tel: +966 1 217 0008

Technical Support:

+966 1 2170009 / +966 2 6522951

General Inquiries: [email protected]

Tech Support: [email protected]

Pakistan

Islamabad Ofce:

61-A, Jinnah Avenue, Blue Area,

Suite # 11, EBC, Saudi Pak Tower,

Islamabad - Pakistan

Tel.: +92-51-2800397, 2800398

Fax: +92-51-2800399

Karachi Ofce:

D-147/1, KDA Scheme # 1,

Opposite Mudassir Park, Karsaz Road,

Karachi – Pakistan

Phone: +92-21-34548158, 34326649

Fax: +92-21-4375727

Technical Support: +92-21-34548310, 34305069

General Inquiries: [email protected]

Tech Support: [email protected]
