D-Link DCS-6500HLV2 Manuel utilisateur

DCS-6500LHV2

User Manual

Compact Full HD Pan &TiltWi-Fi Camera

Hardware: A1

Manual Version: 1.00

01/12/2022

iD-Link DCS-6500LHV2 User Manual

D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify

any person or organization of such revisions or changes. Information in this document may become obsolete as our services

and websites develop and change. Please refer to the www.mydlink.com website for the most current information.

Manual Overview

Trademarks

D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United

States or other countries. All other company or product names mentioned herein are trademarks or registered trademarks

of their respective companies.

D-Link Corporation, Inc.

Manual Revisions

Revision Date Description

1.00 January 12, 2022 Initial release

iiD-Link DCS-6500LHV2 User Manual

Table of Contents

Product Overview..............................................................1

Package Contents.........................................................................1

Introduction ................................................................................... 2

System Requirements.................................................................2

Hardware Overview..................................................................... 3

Front ..........................................................................................3

Back............................................................................................4

LED Behavior ..........................................................................5

Installation.........................................................................6

Safety ................................................................................................6

Before You Begin...........................................................................6

Wireless Installation Considerations...................................... 7

mydlink App Camera Setup......................................................8

Using the mydlink App....................................................10

Controlling Your Device ...........................................................10

Device Settings............................................................................12

Troubleshooting..............................................................14

Technical Specications..................................................15

Regulatory Information ..................................................17

1D-Link DCS-6500LHV2 User Manual

Section 1 - Product Overview

Product Overview

Package Contents

If any of the above items are missing, please contact your reseller.

Note: Using a power supply with a dierent voltage rating than the one included with your product will cause damage and void

the warranty for this product.

Quick Installation Guide

Compact Full HD Pan & Tilt Wi-Fi Camera

Micro USB Power Adapter

2D-Link DCS-6500LHV2 User Manual

Section 1 - Product Overview

Introduction

The Compact Full HD Pan & Tilt Wi-Fi Camera oers complete smart home surveillance features with stylish, subtle design. IR

night vision together with sound and motion detection alerts you instantly when something unexpected happens. The pan/

tilt control moves the lens of the camera, allowing you to survey wider areas. The camera is also capable of capturing images

in 1080p resolution along with the support for H.264 codec. With the mydlink app, you can play back your recordings

anytime, anywhere.

System Requirements

Network Requirements

• 802.11n/g wireless network

• An Internet connection

• A router connected to your broadband modem

mydlink™ App Requirements

• iOS or Android device (please refer to the mobile app's store page to

check whether your device is compatible)

• Email account (for mydlink service registration)

3D-Link DCS-6500LHV2 User Manual

Section 1 - Product Overview

Hardware Overview

Front

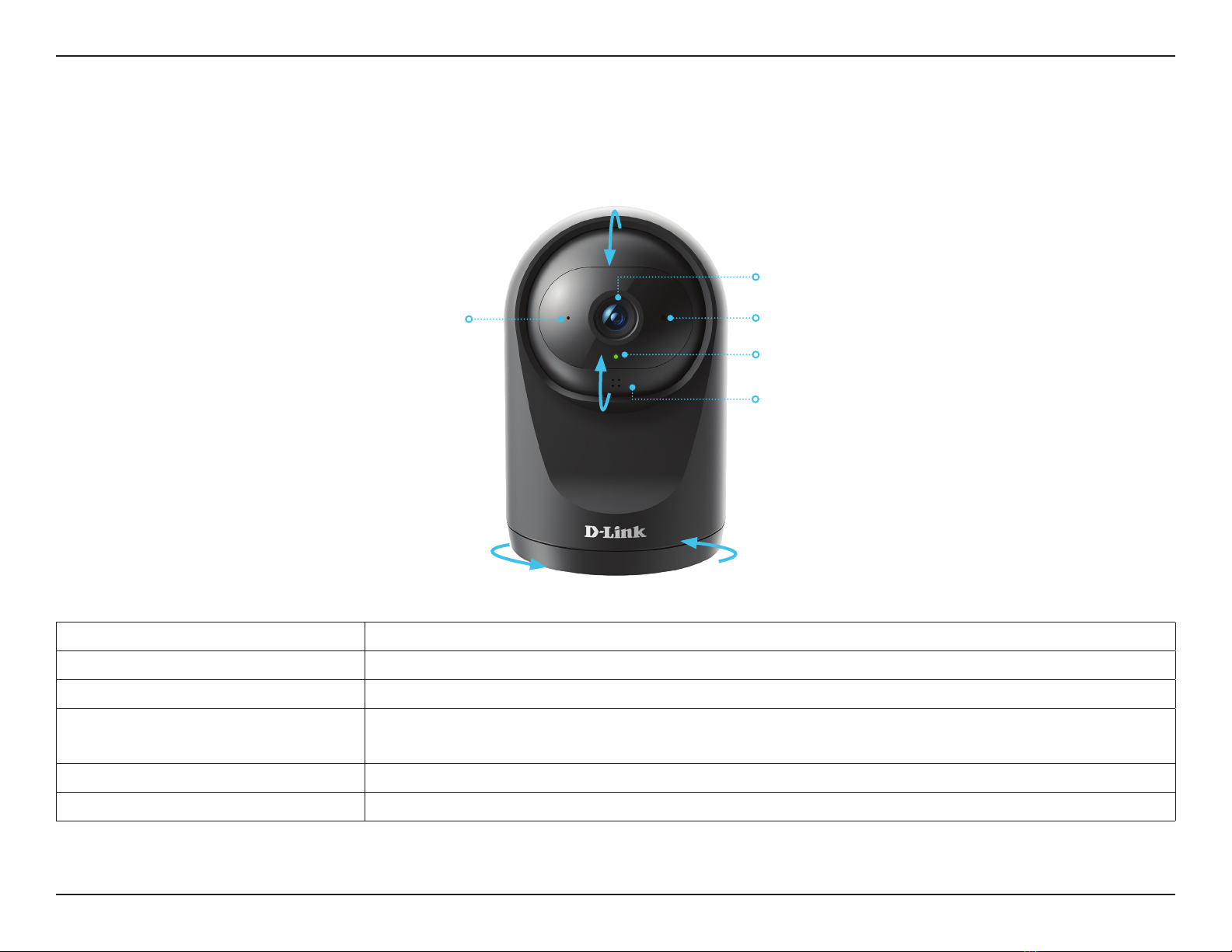

Status LED See LED Behavior on page 5 for more information.

IR LEDs IR LEDs encircle the camera lens.

Camera Lens Records video of the surrounding area.

Light Sensor The IR-Cut removable sensor monitors lighting conditions and switches between color

and infrared accordingly.

microSD Card Slot microSD card slot, supports up to 256 GB.

Microphone Picks up sound near your camera.

Status LED

Light Sensor

Microphone

Camera Lens

SD Card Slot

-170

to 170

Pan Control

-40

to 50

Tilt Control

4D-Link DCS-6500LHV2 User Manual

Section 1 - Product Overview

Back

Speaker Provides audio playback for the two-way audio feature.

Reset Button Press and hold this button until the Status LED turns solid red to reset the device to

factory default settings.

Micro USB Connector Attach your power adapter to this port to supply power to the device.

Reset Button

Micro USB Connector

Speaker

5D-Link DCS-6500LHV2 User Manual

Section 1 - Product Overview

LED Behavior

Status LED

Connected to the network and mydlink.

Booting up.

Wi-Fi connection lost.

Ready for set up.

Firmware being updated - do not power o.

Status LED

6D-Link DCS-6500LHV2 User Manual

Section 2 - Installation

Please read all of the safety and operating instructions before using device:

• Do not open the device or attempt to repair it.

• Do not submerge the device in liquid or attempt to clean it with liquids or solvents. To clean the device, disconnect it

from the power outlet and use a damp towel to gently wipe it down.

Before You Begin

Plan the location of your camera:

• Verify that your camera is electrically rated to operate with the power available in your location.

• Connect the camera's power adapter into an electrical outlet that is not controlled by a wall switch. This will help avoid

accidentally turning o power to the device.

• Be sure to plug the device into a properly grounded electrical outlet in order to help prevent against electrical shock.

• Make sure that the device is rmly mounted.

Installation

Safety

7D-Link DCS-6500LHV2 User Manual

Section 2 - Installation

Wireless Installation Considerations

The DCS-6500LHV2 Compact Full HD Pan & Tilt Wi-Fi Camera lets you view video footage from virtually anywhere within the

operating range of your wireless network. Keep in mind that the number, thickness and location of walls, ceilings, or other

objects that the wireless signals must pass through may limit the range. Typical ranges vary depending on the types of

materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to

follow these basic guidelines:

1. Keep the number of walls and ceilings between the camera and wireless access point to a minimum - each wall or ceiling

can reduce your camera’s range from 1 to 30 meters (3 to 90 feet). Position your devices so that the number of walls or

ceilings is minimized.

2. Be aware of the direct line between network devices. A wall that is 0.5 meters (1.5 feet) thick, at a 45-degree angle

appears to be almost 1 meter (3 feet) thick. At a 2-degree angle it looks over 14 meters (42 feet) thick! Position devices so

that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.

3. Building materials make a dierence. A solid metal door or aluminum studs may have a negative eect on range. Try

to position access points, wireless routers, and cameras so that the signal passes through drywall or open doorways.

Materials and objects such as glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le cabinets, brick, and

concrete will degrade your wireless signal.

4. Keep your product away at least 1 to 2 meters (3 to 6 feet) from electrical devices or appliances that generate RF noise.
