2D-Link DCS-3411/3430 Quick Install Guide
System Requirements
• InWindows® XP or Windows Vista®
• At least 256MB of memory (512MB recommended)
• An available Ethernet connection
• Wireless 802.11n network (for DCS-3430 only)
• Internet Explorer 6.x or higher Internet Web Browser
• VGA card resolution: 800x600 or above
• CPU: 1.7GHz or above processor (2.8GHz plus processor with 512MB
memory and a 32MB video card is required for multiple camera viewing and
recording using the D-ViewCam software)
Package Contents
System Requirements
If any of the above items are missing, please contact your reseller.
CAT5 Ethernet Cable
DCS-3411/3430
Fixed Day & Night Network Camera
CD-ROM with Manual and
Setup Wizard
Camera Mounting Bracket
12V Power Adapter
2 Antennas
(DCS-3430 only)
3 D-Link DCS-3411/3430 Quick Install Guide
Hardware Overview
Hardware Overview
Connections
Ethernet Cable Connector (PoE)
The Network Camera’s back panel features an RJ-45 connector
for connections to 10Base-T Ethernet cabling or 100Base-TX Fast
Ethernet cabling. This network port supports the NWay protocol,
allowing the Network Camera to automatically detect or negotiate
the transmission speed of the network. The Ethernet port can also be
used to power the camera using a PoE switch (DCS-3411 only).
Power LED
The power LED is on the back
of the camera. As soon as the
power adapter is connected to the
camera, the LED will turn red.
DC Power Connector
The DC power input connector is
located on the DCS-3411/3430
Network Camera’s back panel and
is labeled 12V DC with a single
socket to supply power to the
Network Camera.
Antenna Connectors
(DCS-3430)
Connects to the wireless
antennas.
4D-Link DCS-3411/3430 Quick Install Guide
Hardware Overview
Audio Out Connector
The DCS-3411/3430 provides an Audio
Out connector to be used for 2-way
audio. Speakers (not included) may be
connected to the camera to provide audio
for 2-way communication.
Microphone Connector
The DCS-3411/3430 Day & Night Network Camera has an
internal microphone built-in. However, you have the option of
using an external microphone by plugging it into the microphone
connector.
BNC
The BNC connector is used for professional
video connections. It benefits users who
integrate digital IP camera into traditional
system (CCTV) for both analog and digital video
streaming purpose.
Iris Level
Used only when the DC-Iris lens
is connected to the camera. When
adjusting the Iris level, you can
determine the brightness of the video
images.
5D-Link DCS-3411/3430 Quick Install Guide
Hardware Overview
I/O Connector
The DCS-3411/3430 provides a terminal block with three pairs of
connectors situated on the back panel. Two pairs are for input and
the other is for output. The I/O connectors provide the physical
interface to send and receive digital signals to and from a variety
of external devices.
Link LED
Once a connection has been
established via Ethernet port, the
LINK LED will turn solid green. If
trafc is passing to the camera, the
LINK LED will blink. If no ethernet
connection is detected, the LINK
LED will not light up.
Reset Button
Reset will be initiated when the reset button
is pressed once and held until the Power
LED ashes through its cycle twice.
6D-Link DCS-3411/3430 Quick Install Guide
Hardware Overview
DC-Iris Connector
The Camera supports additional DC-Iris lens,
and provides the power and control signal
required for adjusting the lens through this
DC-Iris connector (4-pin). You can attach any
standard DC-Iris lens (optional) for a specic
purpose, such as outdoor applications.
7D-Link DCS-3411/3430 Quick Install Guide
Hardware Installation
Hardware Installation
Connect the Ethernet Cable

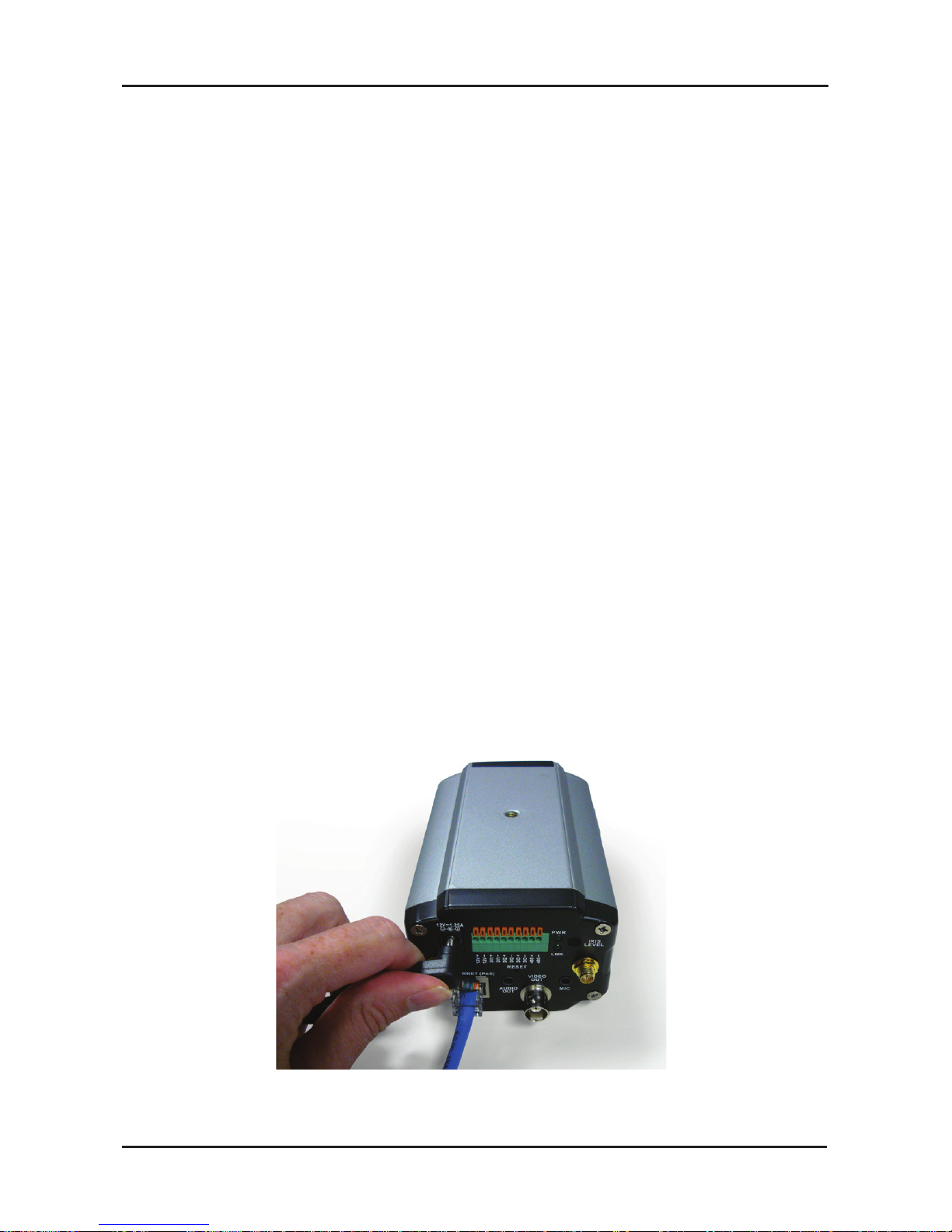

Connect an Ethernet cable to the network cable connector located on the
Network Camera’s back panel and attach it to the network.
Attach the Antennas (DCS-3430 only)
Locate the antennas included with your DCS-3430, and attach them to the
antenna connectors located on the back of the DCS-3430.
*Maximum wireless signal rate derived from IEEE Standard 802.11g and draft 802.11n specications. Actual data throughput
will vary. Network conditions and environmental factors, including volume of network trafc, building materials and construction,
and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.
8D-Link DCS-3411/3430 Quick Install Guide
Hardware Installation
Attach the External Power Supply
If you are not using Power-over-Ethernet, attach the external power supply to
the DC power input connector located on the Network Camera’s back panel
(labeled DC 12V) and connect it to an AC power outlet.
Note: When you have a proper connection, the LED will turn red.The
light may cycle on and off and your computer may show an intermittent
loss of connectivity, this is normal until you have configured your
Network Camera.
Connect Using Power-Over-Ethernet (DCS-3411 only)
Once you connect an Ethernet cable to your PoE switch or adapter, the Power
LED on the DCS-3411 will turn green to indicate a proper connection and
power to the unit.
9 D-Link DCS-3411/3430 Quick Install Guide
Software Installation
Click Next

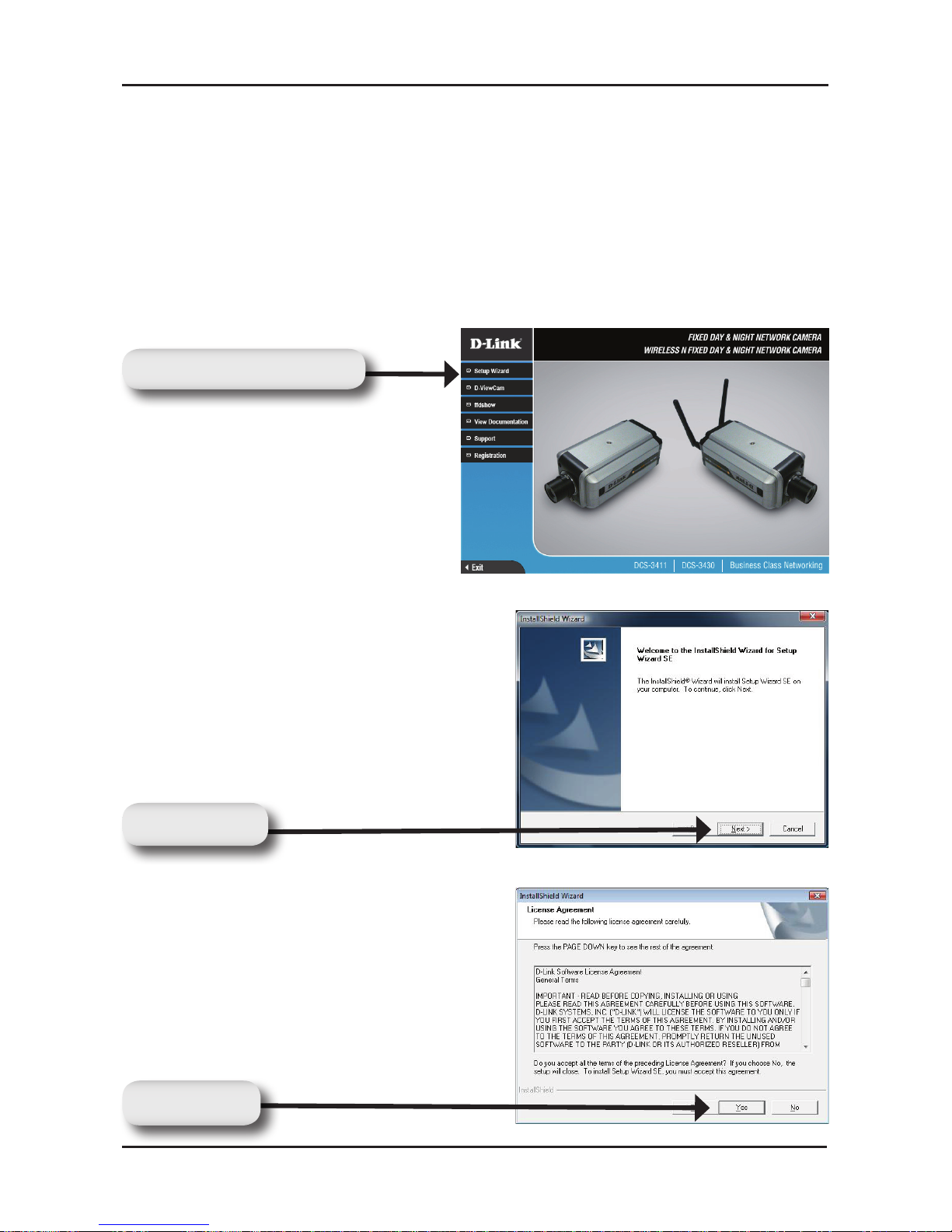

Insert the DCS-3411/3430 CD into the CD-ROM drive. If the CD Autorun
function does not automatically start on your computer, click Start > Run. In
the Run command box type “D:\DCS-3411_3430.exe”, where D: represents
the drive letter of your CD-ROM. If it does start, proceed to the next screen.
Software Installation
Click Setup Wizard
Click Next to continue.
Click Yes
Click Yes to accept the License
Agreement.
10D-Link DCS-3411/3430 Quick Install Guide
Software Installation
Click Next
Click Finish
Click Finish to complete the
installation.
To start the installation, click
Next.
Note: The installation may take
several minutes to complete.
