D-Link DCS-934L Manuel utilisateur

DCS-934L

Quick Install Guide

Day & Night Wi-Fi Camera

Cloud Camera

If any of the above items are missing, please contact your reseller.

Minimum Requirements

DCS-934L Day & Night Wi-Fi Camera

Wall Mount Kit

Ethernet Cable

Quick Install Guide

Package Contents

Computer with:

Web Browser

• 1.3GHz processor or above and at least 128MB RAM

• Windows® 8, 7, Vista®, or Mac OS® X 10.6 or higher

• Internet Explorer® 8, Firefox®12, Safari® 6, or Chrome™ 20 or higher

• Installed and enabled Java and ActiveX® controls

• A wireless router (802.11 g/n) with Internet service

• An e-mail account (required to create a mydlink® account)

Network Device and Service

Power Adapter

• Wired 10/100 Fast Ethernet or Wireless 802.11g/n network

(Wireless N network recommended for optimum performance)

For mydlink and mydlink app requirements refer to:

• http://www.mydlink.com

Product Overview

Camera Lens

Microphone

Camera Stand

WPS LED

Power Connector Ethernet Port

Reset Button

WPS Button

Front

Back

Power &

Link LED

Light Sensor IR LEDs

ENGLISH

The Zero Conguration Setup will only work with a registered

Cloud Router and an active mydlink account. Your Cloud Router will

automatically assign your network settings (both wired and wireless) to

your camera, and add it to your mydlink account.

If you do not have a D-Link Cloud Router, skip to the Easy Setup section on

the next page.

Zero Conguration Setup

From a computer connected to the

Internet, open a Web browser, and go

to http://www.mydlink.com. Sign

in to your mydlink account. Once

mydlink detects your camera, a Zero

Conguration notice will appear. Click

on the notication and you will see

a conrmation request. Click Yes to

add the camera to your account.

Your setup is complete!

Attach the power supply to the

power connector located on the back

of the DCS-934L and connect it to a

wall outlet or power strip. Power is

conrmed when the Power LED is lit.

If using an Ethernet connection:

Connect the included Ethernet cable

to the Ethernet port located on the

back of the DCS-934L and connect it

to your router.

If using a wireless connection: Press

and hold the WPS button on the back

of the camera for ve seconds. The

blue WPS status LED will start to blink.

Then, press the WPS button on your

Cloud Router within two minutes.

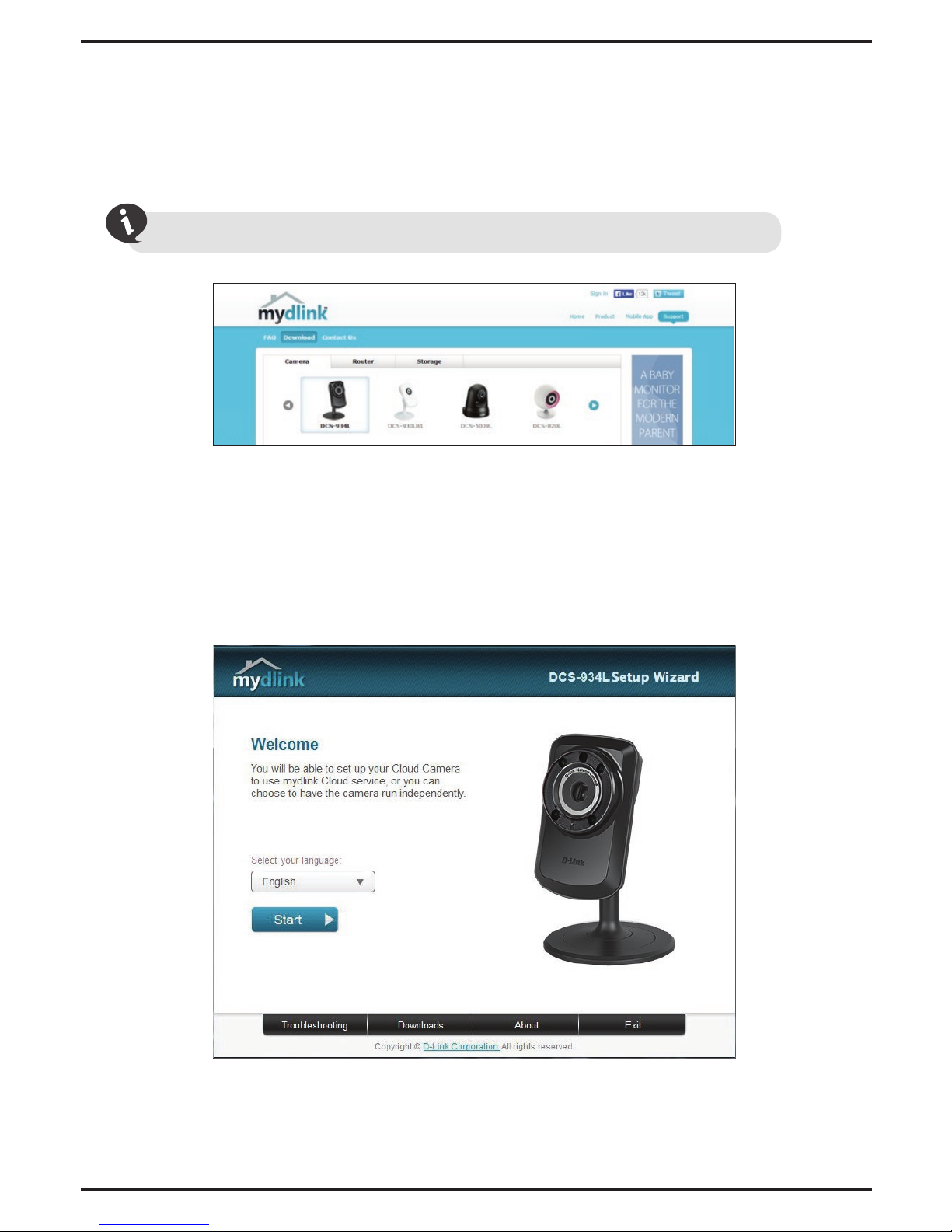

Easy Setup (All Other Routers)

Download the Setup Wizard from http://www.mydlink.com/support.

If you do not have a D-Link Cloud Router, you can use any Windows or Mac

computer to go through the Setup Wizard, which will guide you through the

installation process.

Windows Users - When you select the DCS-934L, you will see a list of setup wizards

below. Download the Windows Setup Wizard le.

Within 20-30 seconds, the Setup Wizard will open, which will guide you step-by-step

through the installation process, from connecting your hardware to conguring your

camera and registering it with your mydlink account.

Mac Users - Download the Mac OS Setup Wizard. Open the SetupWizard le and

launch the application.

ENGLISH

Start mydlink

Open a web browser and go to http://www.mydlink.com.

mydlink is a Web-based service that allows you to view and control

your mydlink-enabled devices through any computer connected to the

Internet. After you register your DCS-934L with mydlink, you can remotely

access your camera from the www.mydlink.com website.

With a mydlink-enabled camera, you can stay connected to everything

you love from anywhere, anytime. mydlink provides users with a

quick and easy way to view and to manage multiple cameras over

the Internet.

You can add the DCS-934L to your mydlink account during the Setup

Wizard. After you download one of the mydlink apps (refer to page 8),

you will be able access the camera with your smartphone or tablet.

What is mydlink?

Cloud Router

mydlink cloud

services

Cloud Camera

iPod

Smartphone

Tablet

Laptop

Desktop

mydlink app

modem

2Sign in to your mydlink account. (If you don’t have an account, click on Not

Registered? and follow the instructions.)

3Select your DCS-934L from the device list, and your camera’s Live Video

will appear.

• Windows does not have Java installed by default. Download it

from http://www.java.com.

• In Mac OS X 10.7.x, Java applets are disabled by default. Click the

Finder > Applications > Utilities > Java Preferences and check

the Enable applet plug-in and Web Start applications option.

• The ActiveX® controls in IE will install automatically if needed. We

suggest that you make sure that you have enabled the related

options in Tools > Internet Options > Security > Custom Level.

Note: If you experience issues registering this camera with your mydlink account,

or if you purchased an open box or resold unit, perform a hard reset by pressing and

holding the reset button on the device for 10 seconds while the device is powered

on. If you are returning the device to the place of purchase, please perform a

hard reset to clear the device of any personal data.

ENGLISH

mydlink Lite App (Free)

Search for “mydlink lite” on the App Store, Google Play, or Windows Phone

Store. Download and install the app on your smartphone or tablet when

connected to the Internet. You can also nd the app by scanning the QR code

below with a QR code scan app.

mydlink+ App (Paid - Tablet Only)

Search for the word “mydlink+” on the App Store or Google Play. Download

and install the app on your tablet when connected to the Internet.You can also

nd the app by scanning the QR code below with a QR code scan app.

mydlink Requirements: for mydlink and mydlink app requirements refer to: www.mydlink.com

mydlink Apps

Note: Tablet users can buy the mydlink+ app in order to view multiple cameras at

the same time without a PC.

Mount the Camera

Please refer to the steps below to assist you with mounting the camera.

Do not overtighten the screws as this may crack the base.

We suggest that you congure the camera before mounting.

2. Use a athead screwdriver to remove the

base cover from the mounting base. Place the

mounting base where you want to position

the camera and use a pencil to mark the

holes.

1. The camera must be separated from the base

to expose the holes in the mounting base.

Unscrew the camera head from the mounting

base by turning it counterclockwise.

3. Depending on the material of the wall or

ceiling, use a 6mm drill bit to drill two holes

where you marked. If the wall is made out

of concrete, after drilling the holes, insert the

plastic anchors to support the screws.

4. Position the mounting base over the holes that

you drilled, and align the mounting base holes

with the holes in the wall. Use the supplied

screws to attach the mounting base to the

surface of the wall.

5. Place the base cover on the base. Make sure to

align the base cover notch with the mounting

base for future removal.

6. Reattach the camera head onto the mount-

ing base. Adjust the angle of the camera as

desired, then tighten the collar on the camera

stem to lock it in place.

ENGLISH

1. What is a mydlink No.? What is it used for?

Each camera has a unique eight-digit mydlink number which will be shown

on the label on the back of your camera. This eight-digit number identies

your device, and is required to add your device to your mydlink account.

2. What can I do if my DCS-934L is not working correctly?

• Try using the Setup Wizard.

• To make sure your hardware is installed correctly, make sure that:

- the power LED is lit solid green

- your Internet connection is working

- your router’s LAN & WAN connections are okay

- your router supports UPnP®

- your camera is on the same network as your PC

- both your PC and camera have a working Internet connection

• If your camera is still not working, check your router and make sure it has

the latest rmware.

3. What can I do if I forget my password?

FAQs

If you forget your password, you must reset the

camera. Unfortunately, this process will change

your settings back to factory default. To reset the

camera, locate the reset button on the back of

the camera. With the camera powered on, use an

unfolded paper clip to hold the button down for

10 seconds.

Reset

Button

4. Why is there a white haze when viewing in night vision mode?

When viewing in night vision mode, the IR lights on the camera may be

reecting o a nearby surface. Try repositioning the camera in order to avoid

glare from IR LEDs.
