D-Link DCS-7517 Manuel utilisateur

This document will guide you through the

basic installation process for your new

D-Link Network Camera.

DCS-7517

Documentation also available on

CD and via the D-Link Website

Quick Installation Guide

5 megapixel H.265 Outdoor Network Camera

Quick Installation Guide

Installationsanleitung

Guide d’installation

Guía de instalación

Guida di Installazione

Краткое руководство по установке

Guia de Instalação Rápida

快速安裝指南

Petunjuk Pemasangan Cepat

D-Link DCS-7517 Quick Installation Guide 1

ENGLISH

Quick Installation Guide

This installation guide provides basic instructions for installing the DCS-7517.

For additional information about how to use the camera, please see the User

Manual which is available on the CD included in this package or from the

D-Link support website.

Package Contents

DCS-7517 5 megapixel H.265 Outdoor Network Camera

Ethernet Cable

Extension Adapter

Mounting Bracket and Screws

Manual and Software on CD-ROM

Quick Installation Guide

If any of the above items are missing, please contact your reseller.

Safety Notice:

Installation and servicing should be done by certified technicians so as to

conform to all local codes and prevent voiding your warranty.

D-Link DCS-7517 Quick Installation Guide

ENGLISH

Hardware Overview

1 3

1 IR LEDs Provide illumination for low-light environments.

2Adjustable

Top Shield Shields the camera lens from direct sunlight.

3Adjustment

Screw Allows for positioning of the top shield.

4 Camera Lens Varifocal lens to record video of the surrounding

area.

5Power/Status

LED Indicates the camera's current status.

6 Light Sensor Measures lighting conditions and switches between

day and night mode accordingly.

7Quick Release

Allows the camera to be swiveled into position for

easy maintenance.

8 Camera Shoe Adjustable mounting seat for the camera.

9 Ethernet Jack Connects to an RJ45 Ethernet port. Can be used

with PoE to provide power to the camera.

D-Link DCS-7517 Quick Installation Guide 3

ENGLISH

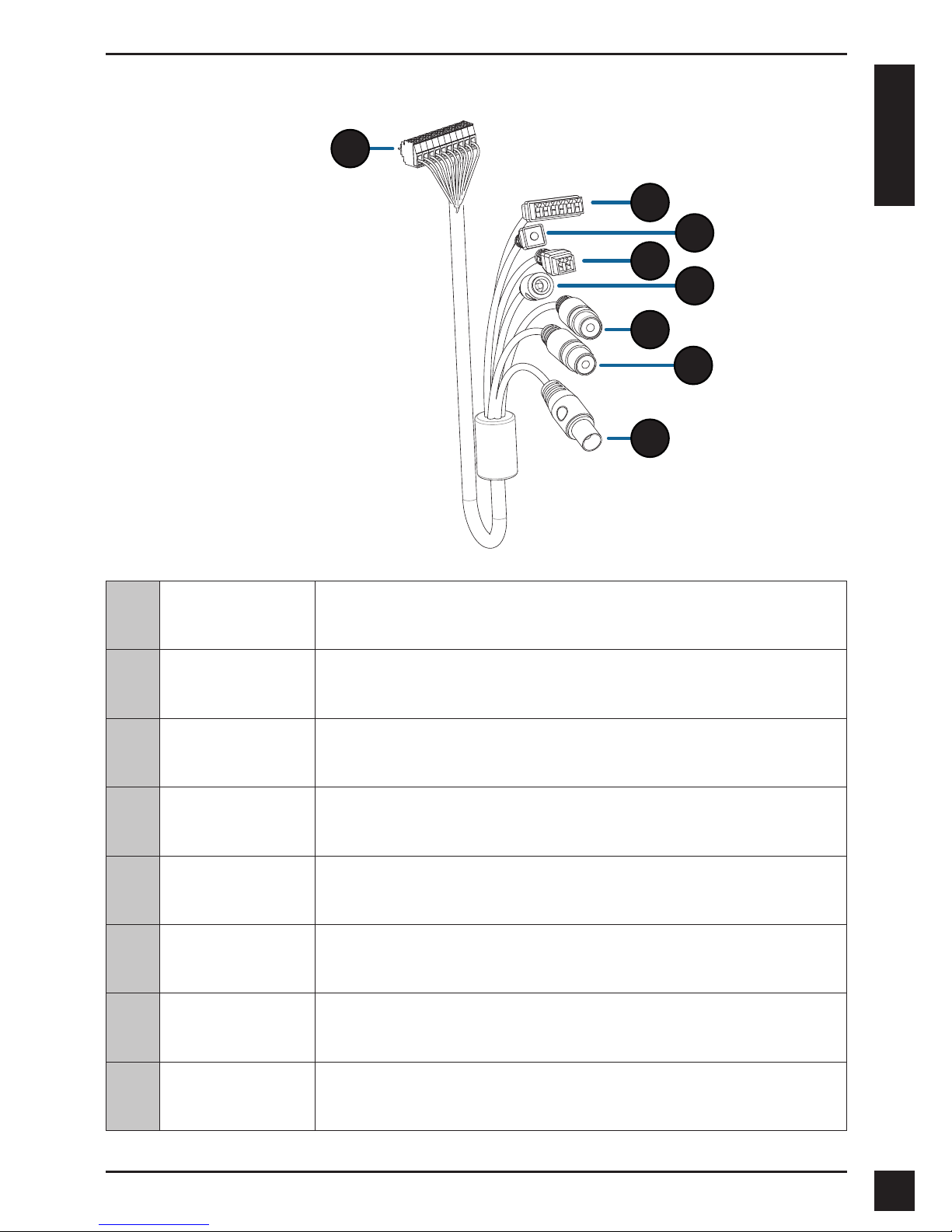

13 14

10 Camera

Connector

Connects to the DCS-7517. For more details on

connecting the A/V cable, refer to the User Manual.

11 DI/DO

Connector I/O connectors for external devices.

12 Reset Button Press and hold the button for 10 seconds to reset the

camera back to the factory default settings.

13 24 V Power

Connector Not supported for the DCS-7517.

14 Power

Connector

Power connector for a 12 V DC power adapter (not

included).

15 Audio Out

(Green) Connects to a speaker.

16 Audio In

(Red) Connects to a microphone.

17 BNC

Connector Not supported for the DCS-7517.

Optional Cable Harness (not included)

D-Link DCS-7517 Quick Installation Guide

ENGLISH

Internal

18 SD Card Slot Insert a microSD card for local storage for storing

recorded images and video.

19 Ethernet Port Connects to Ethernet cable.

20 Harness

Connector

Connects to the optional cable harness (not included).

1. 12V IN

2. GND

3. AUD IN

4. AUD GND

5. AUD OUT

6. 12V OUT

7. GND

8. RESET

9. DI

10. DO

21 Reset Button Press and hold the button for 10 seconds to reset the

camera back to the factory default settings.

D-Link DCS-7517 Quick Installation Guide 5

ENGLISH

Connecting the Optional Cable Harness

Remove the back camera cover by turning it

counter-clockwise.

Remove the back waterproofing plug from the

camera.

Push the camera connector and cable through the

hole, and insert the cable's waterproofing plug.

Make sure the plug is inserted properly to ensure a

good seal.

Connect the camera connector to the camera.

Reattach the back camera cover by turning it

clockwise.

D-Link DCS-7517 Quick Installation Guide

ENGLISH

SD Card Installation

Remove the back camera cover by turning it

counter-clockwise.

Insert the microSD card with the contacts facing

down, then reattach the back cover. Make sure that

the weatherproof seals are secured firmly in place.

Mounting Instructions

Please refer to the User Manual for detailed instructions on how to install and

mount the camera.

D-Link DCS-7517 Quick Installation Guide 7

ENGLISH

Connecting the Camera

General Connection Using 12 V DC Power

Adapter (not included)

Connect the Ethernet cable to your network.

Connect your power adapter to the camera's

power connector, then plug in the power

adapter.

Connection with a PoE Switch

Connect the Ethernet cable to your PoE

switch or injector. The Ethernet cable will

provide the camera with both power and a

network connection.

If you have the optional cable harness, you can

also use the following connection method:

D-Link DCS-7517 Quick Installation Guide

ENGLISH

Conguring the Camera

Insert the DCS-7517 CD into your computer's CD-ROM drive to begin the

installation. If Autorun is disabled, or if the D-Link Launcher fails to start

automatically, click the Start button and type D:\autorun.exe (where D:

represents the drive letter of your CD-ROM drive) and press Enter.

Click on the D-Link Setup Wizard SE icon that

was created in your Windows Start menu (Start >

D-Link > Setup Wizard SE).

The Setup Wizard will appear and display the

MAC address and IP address of your camera(s).

If you have a DHCP server on your network, a

valid IP Address will be displayed. Otherwise, the

network camera's default static IP 192.168.0.20 will

be displayed. Select your camera, then click the

Wizard button to continue.

Click Setup Wizard and follow the instructions to

install the Setup Wizard.

Enter the Admin ID and password. When logging in

for the first time, the default Admin ID is admin with

the password left blank.

Click the checkboxes if you wish to change the

admin ID and password for the camera, and enter

the new ID and password you wish to use.

Click Next to continue.

Select DHCP if your camera obtains an IP address

automatically from a DHCP server such as a router.

Select Static IP if you want to manually enter the IP

settings for the camera.

Click Next to continue.
