D-Link DCS-7513 Manuel utilisateur

This document will guide you through

the basic installation process for your new

D-Link Network Camera.

DCS-7513

Documentation also available

on CD and via the D-Link

Website

Quick Installation Guide

Full HD WDR Day & Night Outdoor Network Camera

D-Link DCS-7513 Quick Install Guide

Quick Installation Guide

This installation guide provides basic instructions for installing the DCS-7513 on your network.

For additional information about how to use the camera, please see the User Manual which is

available on the CD included in this package or from the D-Link support website.

Installation Steps

1. Verify the package contents against the list below.

2. Hardware Overview

3. SD Card Installation

4. Hardware Installation

5. Conguration (Setup Wizard)

1. Package Contents

DCS-7513 Full HD WDR Day & Night Outdoor Network Camera

Mounting Bracket and Hardware

CAT5 Ethernet Cable

CD-ROM with User Manual and Software

Mounting Plate

Alignment Sticker

Quick Installation Guide

If any of the above items are missing, please contact your reseller.

Safety Notice:

Installation and servicing should be done by certied technicians to conform to all local codes

and prevent voiding your warranty.

D-Link DCS-7513 Quick Install Guide

2. Hardware Overview

Power Connector

Connects to a 12 V DC power adapter

(not included).

24 V Power Connector

Connects to 24 V AC power.

Reset Button

Press for 10 seconds to reset the camera

back to the factory default settings.

BNC

Analog video output.

Ethernet Jack

RJ-45 connector for Ethernet which

can also be used to power the camera

using Power over Ethernet (PoE).

Audio In

Connects to a microphone.

DI/DO Wiring, 12 V DC output

I/O connectors for external devices.

Install the SD Card

Push the SD card into the card

slot with the gold contacts

directed towards the base of

the camera. To eject the SD

card, push the SD card into the

slot and release. The SD card

will spring out.

3. SD Card Installation

Disassemble the Camera

Open the camera by

loosening the two screws.

Audio Out

Connects to speakers.

D-Link DCS-7513 Quick Install Guide

4. Mounting Instructions

Mounting Installation

Refer to the User Manual for detailed instructions regarding the installation and mounting of

the camera using a mounting bracket.

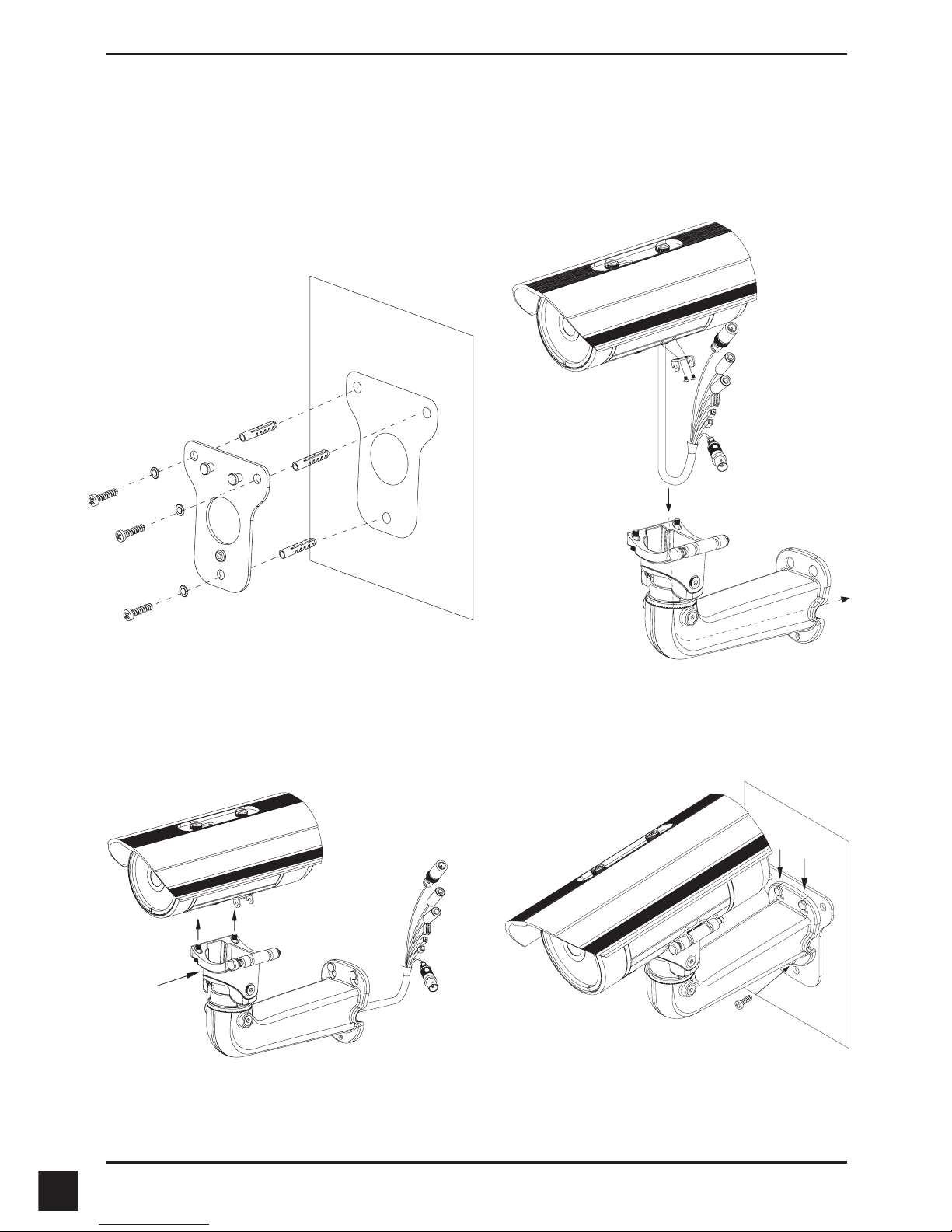

Figure 2.1

Figure 2.3

Figure 2.2

Figure 2.4

D-Link DCS-7513 Quick Install Guide 5

Connection with a PoE Switch

If you are using a PoE switch, connect the camera to the switch using an Ethernet cable, which

will provide transmission of both power and data over a single cable.

General Connection Using 24 V AC Power Wiring

1. Connect the network camera to your network using an Ethernet cable.

2. Connect the supplied power cable from the camera to a power source such as your

building's emergency power.

General Connection Using a 12 V DC Power Adapter

1. Connect the network camera to your network using an Ethernet cable.

2. Connect a compatible 12 V power adapter (not included) from the camera to a power outlet.

D-Link DCS-7513 Quick Install Guide

5. Conguration (Setup Wizard)

Click Setup Wizard to begin the installation.

Insert the DCS-7513 CD into your computer's CD-ROM drive to begin the installation. If the Autorun

function on your computer is disabled, or if the D-Link Launcher fails to start automatically, click

the Start button and in the box type D:\autorun.exe, where D: represents the drive letter of your

CD-ROM drive.

After clicking Setup Wizard, the following window will open.

Click Next to continue.

Click Yes to accept the License Agreement.

Click Finish to complete the installation.

To start the installation process, click Next.

Note: The installation may take several minutes to nish.

D-Link DCS-7513 Quick Install Guide 7

Click on the D-Link Setup Wizard SE icon that was created

in your Windows Start menu.

Start > D-Link > Setup Wizard SE

Take a moment to conrm your settings and click Restart.

Select DHCP if your camera automatically obtains an IP

address from a DHCP server such as a router. Select Static

IP if you want to manually enter the IP settings for the

camera.

Click Next to continue.

Enter the Admin ID and password. When logging in for the

rst time, the default Admin ID is admin with the password

left blank.

Click Next to continue.

The Setup Wizard will appear and display the MAC address

and IP address of your camera(s). If you have a DHCP server

on your network, a valid IP Address will be displayed. If your

network does not use a DHCP server, the network camera's

default static IP 192.168.0.20 will be displayed.

Click the Wizard button to continue.

D-Link DCS-7513 Quick Install Guide

Click on the D-Link Setup Wizard SE icon that was

created in your Windows Start menu.

Start > D-Link > Setup Wizard SE

Viewing Camera via Web Browser

This section shows your camera’s live video. You can select

your video prole and view or operate the camera. For

additional information about web conguration, please

refer to the user manual included on the CD-ROM or the

D-Link website.

Select admin as the username and leave the password

blank. Click OK to continue.

Select the camera and click the Link button to access the

web conguration.

The Setup Wizard will automatically open your web browser

to the IP address of the camera.

D-Link DCS-7513 Quick Install Guide 9

Notes

D-Link DCS-7513 Quick Install Guide

Notes
