DCS-820L

Quick Install Guide

Wi-Fi Baby Camera

Day / Night Cloud Camera

Before you Begin

• Please save this guide for future reference.

• Read these instructions before using your product.

• Do not cover the ventilation holes.

• Do not cover this product with a blanket.

• Do not allow children to play with this product.

• Do not allow this product to get wet. Only use a dry cloth to clean it.

• Do not place this product near water or other liquids, such as near a sink,

shower, or bathtub.

• Do not attempt to open or disassemble this product.

• This product is not a replacement for responsible adult supervision.

D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or

its subsidiaries in the United States or other countries. All other company or product names

mentioned herein are trademarks or registered trademarks of their respective companies.

expressed written permission from D-Link Systems, Inc.

WARNING - STRANGULATION HAZARD

Children have STRANGLED in cords. Keep adapter

cord out of reach of children (minimum of 3 ft or 1m

away). NEVER place the camera or adapter cord inside the

crib or child sleeping area. Do not use extension cords. This

product is NOT intended to replace proper supervision of

children.

If any of the above items are missing, please contact your reseller.

DCS-820L Wi-Fi Baby Camera

Power Adapter

Quick Install Guide

Package Contents

Wall Mount Kit

Blue Accent Ring

Minimum Requirements

• Smartphone or tablet:

Refer to the mydlink Baby App page on the App Store and Google Play

• Computer with:

• 1.3GHz processor or above and at least 128 MB RAM

• Microsoft Windows® 8, 7, Vista® or XP, Mac OS® X (10.6 or higher)

• Internet Explorer® 7, Firefox® 12, Safari® 6, or Chrome™ 20 or higher

with Java installed and enabled

• Internet access required for remote viewing

• 802.11g/n Wi-Fi® network (Wireless N network recommended for

optimal performance)

Hardware Overview

Front View

Microphone

Focus Ring

Front Accent Ring

Camera Base

Light Sensor

Camera Lens

Speaker

microSD Slot Micro USB

Power Port

Back View Bottom View

Cloud LED

Reset Button

Power LED

Direct Connect Button

Night Vision (IR) LEDs

Installation

Download the free mydlink Baby Camera Monitor app on your

smartphone or tablet.

WARNING - STRANGULATION HAZARD

Children have STRANGLED in cords. Keep adapter cord out of

reach of children (minimum of 3 ft or 1m away). NEVER place the

camera or adapter cord inside the crib or child sleeping area. Do

not use extension cords. This product is NOT intended to replace

proper supervision of children.

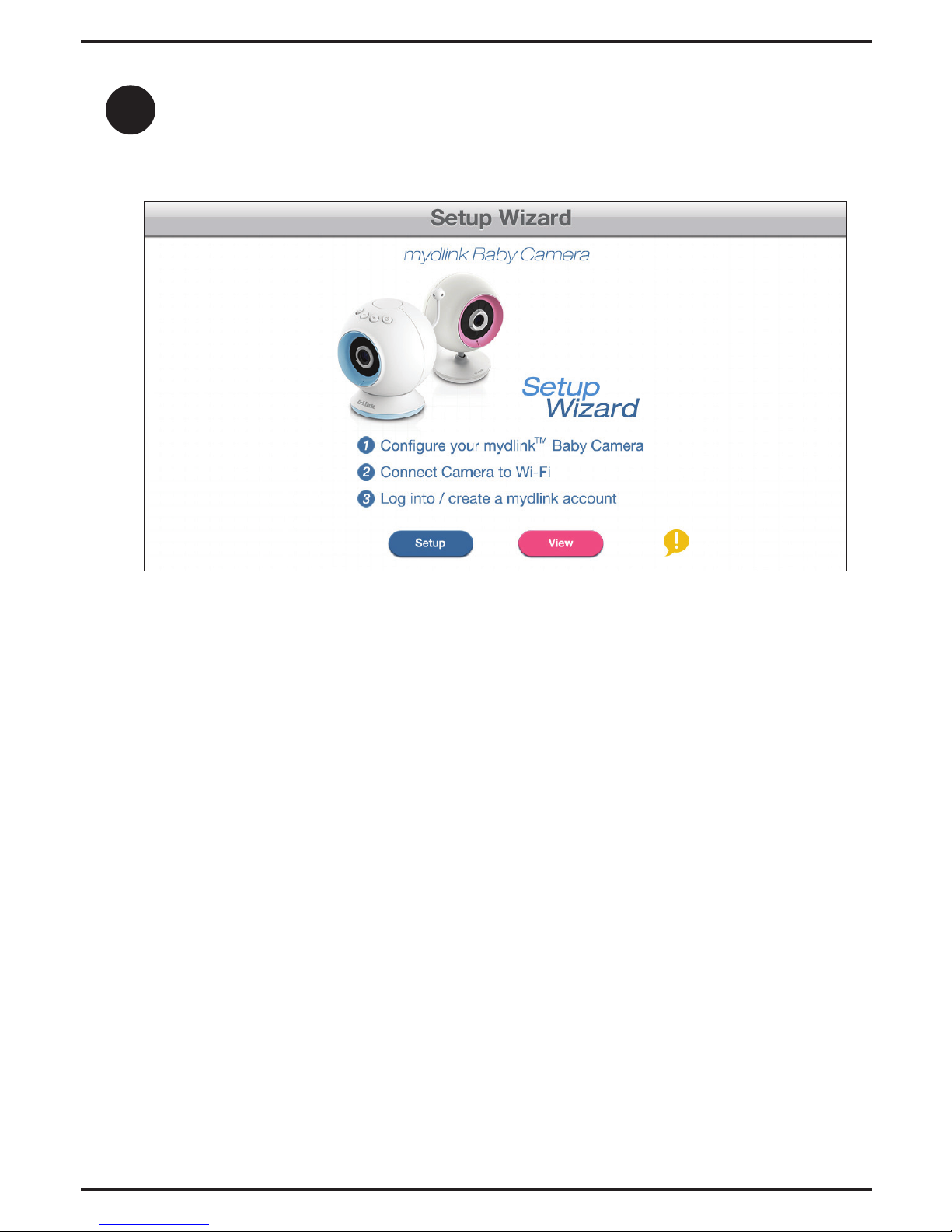

2Launch the mydlink Baby Camera Monitor app.

Tap Setup on the start screen to launch the Setup Wizard. It will guide

you through the conguration process.

Mount the Camera

Please refer to the steps below to assist you with mounting the camera.

We suggest that you congure the camera before mounting.

Warning: Indoor use only. Do not mount in a location where it may

be in contact with water as it may damage the product and/or cause

injury.

Use a 6mm drill bit to drill two holes 43mm

apart, and at least 30mm deep. Then use a mallet

o insert the wall anchors into the holes.

crew the included screws into the wall anchors.

43mm

30mm

Place the mounting holes on the base of the

camera over the screws as shown, then slide the

amera down to mount the camera.

FCC ID: KA2CS825LA1

IC: 4216A-CS825LA1

CAN ICES-3 (B)/NMB-3(B)

Model: DCS-820LA1

DCS-820L

FAQs

1. The Image is out of focus.

You can turn the white focus ring on the front of the camera to adjust the focus.

2. How do I change the accent rings?

Rotate the accent ring counterclockwise, then lift it o. Put the new ring on and rotate

it clockwise until it clicks into place.

3. I started the mydlink Baby Camera Monitor app, but I can’t nd my camera.

• Make sure your camera is turned on and receiving power.

• If you are setting up a new camera, make sure your smartphone or tablet is

connected to the camera’s Wi-Fi signal (not your wireless router).

• The Wi-Fi network name should be [myBabyCam-XXXX], where XXXX is a 4-digit

code (the last four digits of your camera’s MAC address).

• The Wi-Fi network name and password is printed on a label on the bottom of your

camera and on the back of this install guide.

• If you still can’t nd your camera, reset your camera by pressing its reset button for

10 seconds (while it is powered on).

4. Why is there a white haze when viewing in night vision mode?

The night vision lights on the camera may be reecting o a nearby surface. Try

repositioning and aiming the camera.

5. How can you power the camera?

The camera can be powered with the provided power adapter or you can use an

external USB battery for total portability. (USB battery is not included. Requires 5V/2A

output.)

6. How do I access the camera remotely?

You can set up a new mydlink account and register the camera with mydlink services

during the initial setup. Once the process is complete, log in to your mydlink account

by tapping the mydlink Login button on the Home screen. With mydlink, you can

monitor your baby from anywhere as long as your smartphone or tablet is connected

to the Internet (over Wi-Fi or over the cellular network).

Note: If you don’t enable mydlink services, you will only be able to view the camera within your

home’s wireless coverage area.

7. Should the app be running constantly on my device?

The app can run in the background, allowing you to hear your baby continuously,

even when the phone is locked. The smartphone or tablet can still be used normally

while the app is running. If you do not want to hear audio from the camera when the

app is open, you can turn o the Background audio on the Conguration menu. If

you close the app, the camera audio will be turned o.

8. How do I adjust the noise and motion responsiveness?

From the Live View page, tap on the screen to reveal the icons, and tap the

Conguration icon ( ) to go to Conguration menu. Tap the Events arrow to

access the motion and audio detection settings.
