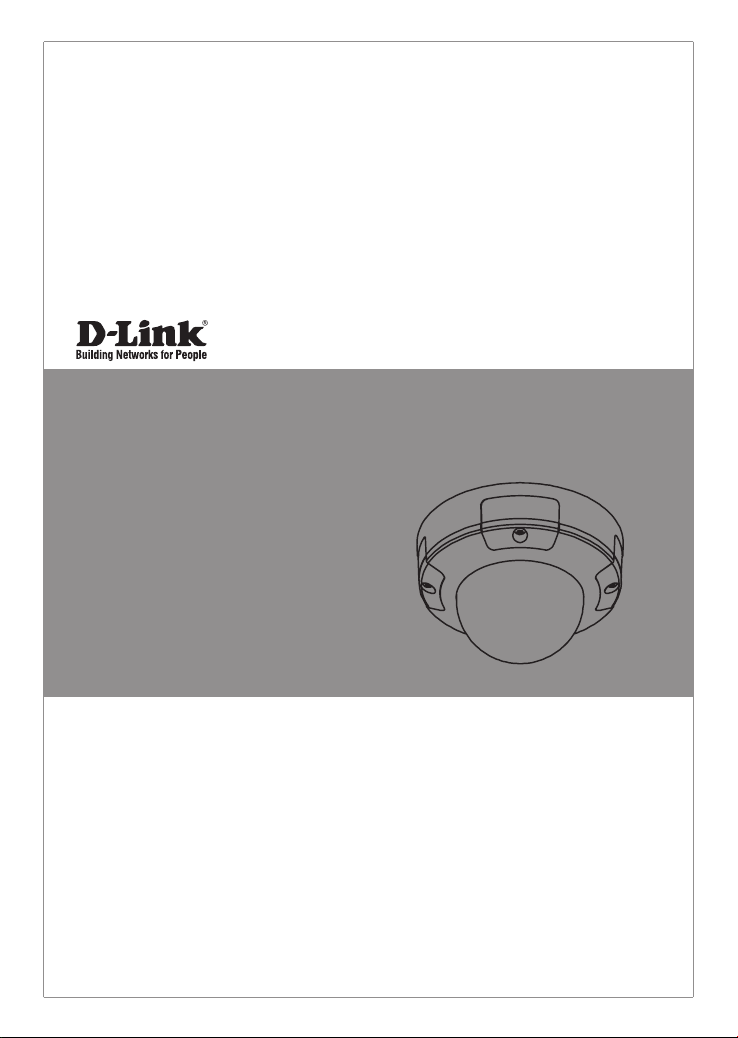

D-Link DCS-4602EV Manuel utilisateur

This document will guide you through the

basic installation process for your new

D-Link Network Camera.

DCS-4602EV

Documentation also available on

CD and via the D-Link Website

Quick Installation Guide

Vigilance 2 Megapixel H.265 Outdoor Dome Camera

D-Link DCS-4602EV Quick Installation Guide 1

ENGLISH

Quick Installation Guide

This installation guide provides basic instructions for installing the

DCS-4602EV. For additional information about how to use the camera, please

see the User Manual on the CD included in this package or from the D-Link

support website.

Package Contents

DCS-4602EV Vigilance 2 Megapixel H.265 Outdoor Dome Camera

Cable Waterproong Connector

Mounting Kit

Manual and Software on CD-ROM

Quick Installation Guide

If any of the above items are missing, please contact your reseller.

Safety Notice:

Installation and servicing should be done by certied technicians in order to

conform to all local codes and prevent voiding your warranty.

D-Link DCS-4602EV Quick Installation Guide

ENGLISH

Hardware Overview

1 Cover Screws These four screws can be removed with the included

wrench.

2Protective

Cover Protects the camera lens assembly from the environment.

3 Ethernet Port RJ-45 connector for Ethernet which can also be used to

power the camera using Power over Ethernet (PoE).

4 Power Port Connects to an optional 12 V / 1.5 A power adapter (not

included).

D-Link DCS-4602EV Quick Installation Guide 3

ENGLISH

1Tilt Lock

Screw Can be loosened to adjust the camera's tilt angle.

2 Light Sensor Detects lighting levels and switches between day and night

mode accordingly.

3microSD Card

Slot

Insert a microSD card for onboard storage of snapshots

and video.

4 IR LEDs Provide illumination for low-light environments.

5 Reset Button Press and hold this button down for 10 seconds to reset the

camera to factory default settings.

6 Camera Lens Camera lens to record video of the surrounding area.

Hardware Overview

D-Link DCS-4602EV Quick Installation Guide

ENGLISH

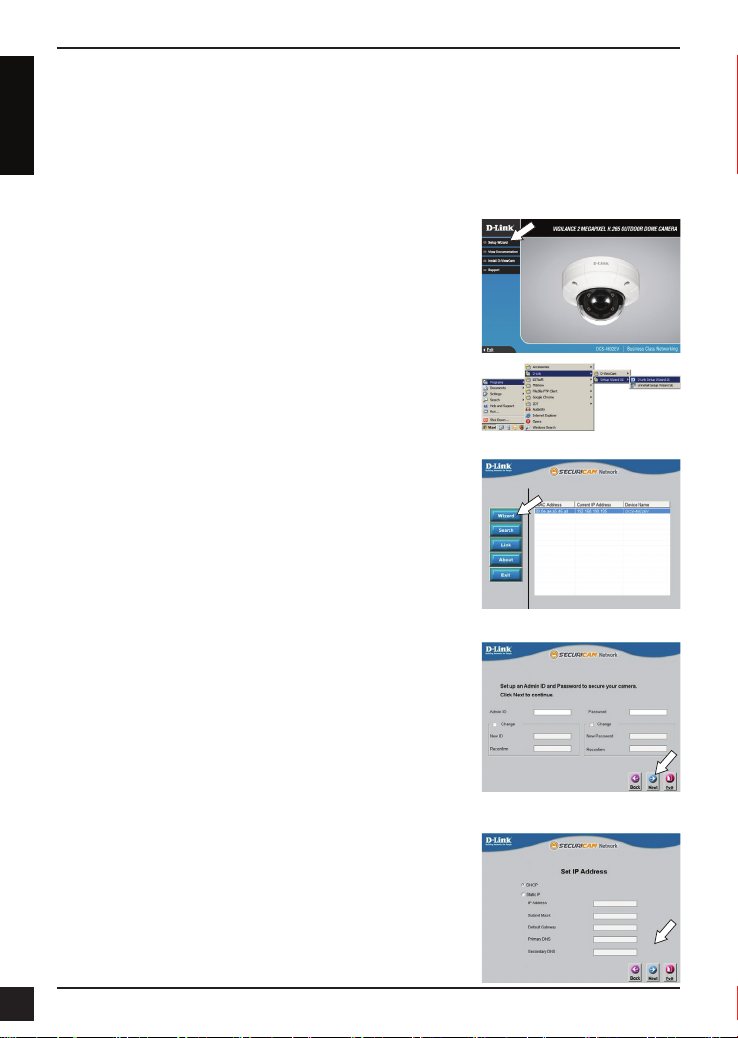

Conguring the Camera

Insert the included CD into your computer's CD-ROM drive to begin the installation. If

the Autorun function on your computer is disabled, or if the D-Link Launcher fails to start

automatically, click the Windows button, type D:\autorun.exe (where D: represents the

drive letter of your CD-ROM drive), and press Enter.

Note: You can also go to the D-Link website to download the Setup Wizard in the

Downloads section for your product model.

Click on the D-Link Setup Wizard SE icon that was

created in your Windows Start menu (Start > D-Link >

Setup Wizard SE).

The Setup Wizard will appear and display the MAC

address and IP address of your camera(s). If you have a

DHCP server on your network, a valid IP Address will be

displayed. If your network does not use a DHCP server,

the network camera's default static IP 192.168.0.20 will be

displayed.

Select your camera, then click the Wizard button to

continue.

Click Setup Wizard and follow the instructions to install

the Setup Wizard.

Enter the Admin ID and password. When logging in for the

rst time, the default Admin ID is admin with the password

left blank.

Click the checkboxes if you wish to change the admin ID

and password for the camera, and enter the new ID and

password you wish to use.

Click Next to continue.

Select DHCP if your camera obtains an IP address

automatically from a DHCP server such as a router.

Select Static IP if you want to manually enter the IP

settings for the camera.

Click Next to continue.

D-Link DCS-4602EV Quick Installation Guide 5

ENGLISH

Viewing Your Camera via Web Browser

Click on the D-Link Setup Wizard SE icon that was

created in your Windows Start menu (Start > D-Link >

Setup Wizard SE).

Select the camera and click Link to access the web

conguration.

The Setup Wizard will automatically open your web

browser to the IP address of the camera.

This section displays your camera’s live video. You can

quickly select your screen mode and video prole and

view or operate the camera. For additional information

about web conguration, please refer to the user manual

included on the CD-ROM or the D-Link website.

Take a moment to conrm your settings and click Restart

when you are done.

The rst time you connect to the camera, you will be

asked to set a password for the administrator account.

After entering a password, click Save.

Under Password, enter the same password that you

congured during setup and click Login to continue.

D-Link DCS-4602EV Quick Installation Guide

ENGLISH

Mounting Instructions

It is highly recommended that you congure and test your camera before mounting it.

Place the mounting sticker where you want to position the

camera.

Use a 6 mm drill bit to make the required holes

approximately 25 mm deep, then insert the wall anchors

into the holes.

If you are running the camera cables through the wall,

drill a hole in the center and pull the cables through the

hole.

Use the included wrench to loosen the 4 screws on the

top of the camera, then lift the camera cover off.

Use the screws provided to mount the camera to the wall.

If you are running the camera cables out the side of

the camera, guide the camera cables through the cable

channel on the base.

D-Link DCS-4602EV Quick Installation Guide 7

ENGLISH

Connect the power and Ethernet cables, or just the

Ethernet cable if you are using a PoE connection.

Loosen the adjustment screw on the side of the lens

assembly, then re-tighten it after adjusting the lens

assembly to the desired vertical angle. The camera

supports from 30°to 90°of tilt.

You can also adjust the pan within a -120°to 120° range by

rotating it clockwise or counter-clockwise.

When you are done adjusting the camera's angle, put the

inner cover back into place.

Note: The camera has a limited range of motion; if it stops

when you are adjusting it, do not attempt to rotate or tilt

the camera any further in that direction.

Re-attach the camera cover.

If you are mounting the camera to the ceiling, use a

athead screwdriver to remove the plastic hole cover from

the bottom of the base, then guide the cables through the

bottom.

Use the screws provided to mount the camera to the

ceiling.

120o

Pan(Total 240o)

120o

90o

Tilt(Total 60o)

30o

120o

Pan(Total 240o)

120o

90o

Tilt(Total 60o)

30o

D-Link DCS-4602EV Quick Installation Guide

ENGLISH

Using the DCS-37-1 Mount (optional)

Use the provided screws to mount the DCS-37-1 to the

wall.

Place the DCS-37-1 mounting sticker in the desired

location, then use a 6 mm drill bit to drill the required holes

25 mm deep and insert the wall anchors into the holes.

If you plan to pass cables through the wall, you will also

need to drill a hole for the cable channel.

Note: The camera in the corresponding graphics may be

different from your product, but the basic process is the

same.

Guide the camera connectors through the back or bottom

cable channel on the DCS-37-1. Then screw the mounting

plate to the bracket using the set of mounting holes

marked B.

Remove the cover from the camera.

Use the provided screws to mount the camera to the

DCS-37-1, then adjust the angle and rotation of the

camera as desired using the tilt lock screw.

Attach the camera cover.

If you are passing the camera cables through the wall,

place the rubber stopper into the bottom cable channel on

the mount to seal it.
