D-Link DCS-3010 Manuel utilisateur

This document will guide you through the basic installation

process for your new D-Link Network Camera.

DCS-3010

Documentation also available on

CD and via the D-Link Website

Quick Installation Guide

HD PoE Network Camera

Quick Installation Guide

Installations-Anleitung

Guide d’installation

Guía de instalación

Guida di Installazione

D-Link DCS-3010 Quick Install Guide

ENGLISH

DCS-3010 Quick Install Guide

This installation guide provides basic instructions for installing the DCS-3010 Network

Camera on your network. For additional information about how to use the camera,

please see the User’s Manual which is available on the CD include in this package or

from the D-Link support website.

Installation Steps

1. Verify the package contents against the list below.

2. Hardware Overview

3. Hardware Installation

4. Conguration with Wizard

1. Package Contents

 DCS-3010 HD PoE Network Camera

 Camera Stand

 Manual and Software on CD-ROM

 CAT5 Ethernet Cable

 Power Adapter

 Quick Install Guide

 lens ring xture

 Allen wrench

If any of the above items are missing, please contact your reseller.

D-Link DCS-3010 Quick Install Guide 3

ENGLISH

2. Hardware Overview

Rear Panel

Ethernet (PoE)

RJ-45 connector for Ethernet

which can also be used to power

the camera using PoE

Microphone Port

Use to Connect an

External microphone

Reset

Press and hold this button

for 10 seconds to reset the

camera

Speaker Port

Use to Connect an

External speaker

DC Power

12V DC

LED

Power and

network indicator

D-Link DCS-3010 Quick Install Guide

ENGLISH

Micro SD Card Slot

Local Micro SD card for storing

recorded images and video

Side panel

Front Panel

Built-in MIC

Internal microphone

D-Link DCS-3010 Quick Install Guide 5

ENGLISH

DC-Iris Connector

Connector for DC auto iris lens

Right Panel

Button panel

D-Link DCS-3010 Quick Install Guide

ENGLISH

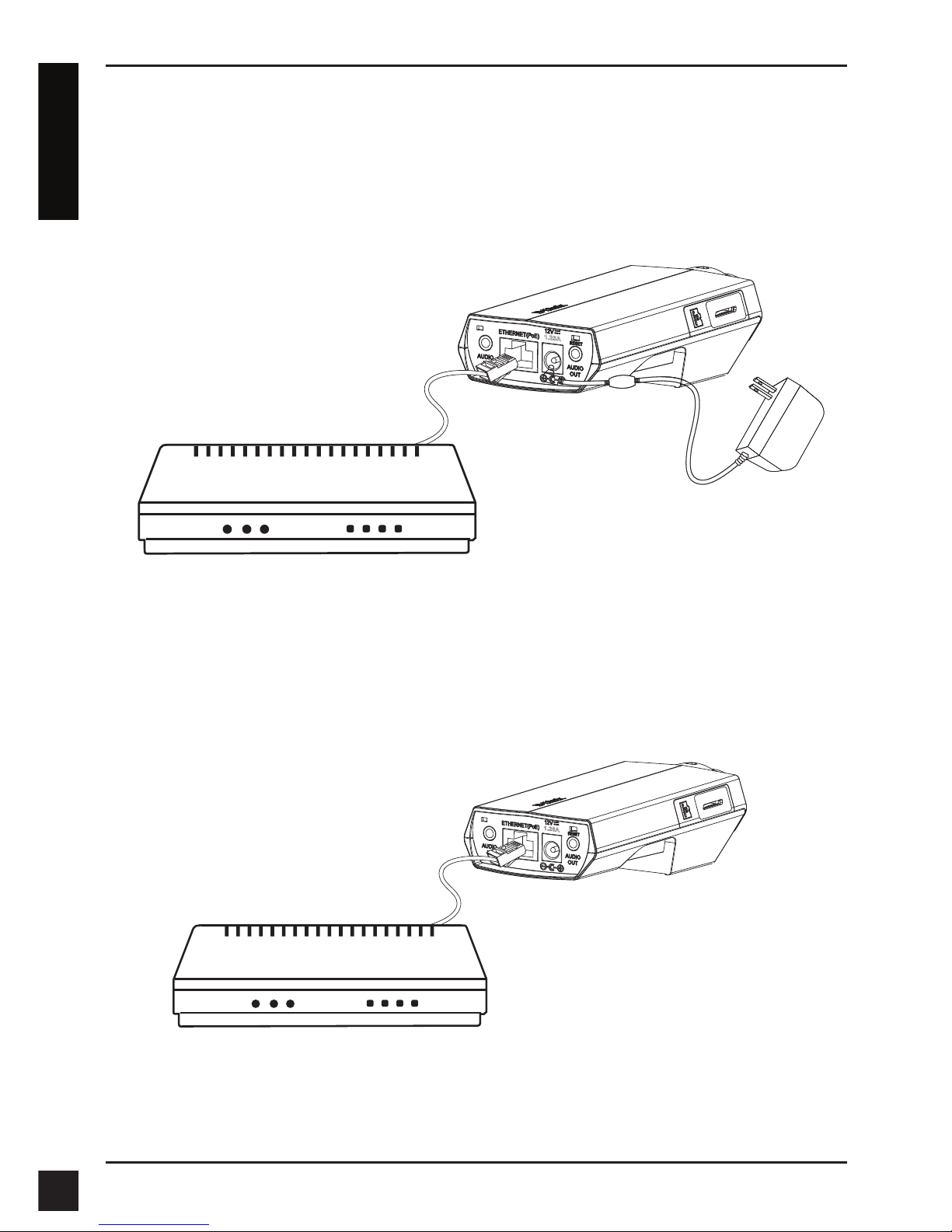

3. Hardware Installation

Basic Connection (without PoE)

Connect the camera to your switch or router via Ethernet cable.

Connect the supplied power cable from the camera to a power outlet.

Connection Using a PoE Switch

If using a PoE switch or router, connect the network camera via Ethernet cable.

PoE will transmit both power and data over a single cable.

Note: Once power has been established, the LED will turn red. When the device has

obtained an IP address and is accessible, the LED will turn green.

1.25A

D-Link DCS-3010 Quick Install Guide 7

ENGLISH

4. Conguration with Wizard

Click Setup Wizard to begin the installation.

Insert the DCS-3010 CD into your computer's CD-ROM drive to begin the installation. If

the Autorun function on your computer is disabled, or if the D-Link Launcher fails to start

automatically, click Start > Run. Type D:\autorun.exe, where D: represents the drive

letter of your CD-ROM drive.

After clicking Setup Wizard, the following window will

open.

Click Next to continue.

Click Yes to accept the License Agreement.

Click Finish to complete the installation.

To start the installation process, click Next.

Note: The installation may take several minutes to

nish.

D-Link DCS-3010 Quick Install Guide

ENGLISH

Click on the D-Link Setup Wizard SE icon that was

created in your Windows Start menu.

Start > D-Link > Setup Wizard SE

Take a moment to conrm your settings and click Restart.

Select DHCP if your camera obtains an IP address

automatically when it boots up. Select static IP if the

camera will use the same IP address each time it is

started.

Click Next, to proceed to the next page.

Enter the Admin ID and password. When logging in for

the rst time, the default Admin ID is admin with the

password left blank.

Click Next, to proceed to the next page.

The Setup Wizard will appear and display the MAC

address and IP address of your camera(s). If you have

a DHCP server on your network, a valid IP Address

will be displayed. If your network does not use a

DHCP server, the network camera's default static IP

192.168.0.20 will be displayed.

Click the Wizard button to continue.

D-Link DCS-3010 Quick Install Guide 9

ENGLISH

Click on the D-Link Setup Wizard SE icon that was

created in your Windows Start menu.

Start > D-Link > Setup Wizard SE

Viewing Camera via Web Browser

This section shows your camera’s live video. You

can select your video prole and view or operate

the camera. For additional information about web

conguration, please refer to the user manual included

on the CD-ROM or the D-Link website.

Enter admin as the default username and leave the

password blank. Click OK to continue.

Select the camera and click the button labeled "Link"

to access the web conguration.

The Setup Wizard will automatically open your web

browser to the IP address of the camera.

TECHNICAL SUPPORT

United Kingdom (Mon-Fri) website: http://dlink.com

Home Wireless/Broadband 0871 873 3000 (9.00am–06.00pm, Sat 10.00am-02.00pm)

Managed, Smart, & Wireless Switches, or Firewalls 0871 873 0909 (09.00am- 05.30pm)

(BT 10ppm, other carriers may vary.)

Ireland (Mon-Fri)

All Products 1890 886 899 (09.00am-06.00pm, Sat 10.00am-02.00pm)

Phone rates: €0.05ppm peak, €0.045ppm off peak times

10 D-Link DCS-3010 Quick Install Guide

DCS-3010 Installationsanleitung

Diese Installationsanleitung bietet Ihnen grundlegende Anleitungen zur Installation

der DCS-3010 Netzwerkkamera in Ihrem Netzwerk. Zusätzliche Informationen zur

Verwendung der Kamera nden Sie im Benutzerhandbuch, das Ihnen auf der CD, die

diesem Paket beiliegt, oder über die D-Link Support-Website zur Verfügung steht.

Installationsschritte

1. Prüfen Sie den Packungsinhalt, ob er mit den auf der Liste unten aufgeführten

Artikeln übereinstimmt.

2. Hardware-Überblick

3. Hardware-Installation

4. Konguration mithilfe des Assistenten

1. Packungsinhalt

 DCS-3010 HD PoE Network Camera

 Kamerafuß

 CD-ROM mit Software und Handbuch

 Kat.5 Ethernetkabel

 Netzteil (Stromadapter)

 Installationsanleitung

 Objektivringaufsatz

 Inbussschlüssel

Sollte einer der oben aufgeführten Artikel fehlen, wenden Sie sich bitte an Ihren

Fachhändler.
