D-Link Express EtherNetwork DI-604 Manuel utilisateur

Express EtherNetworkTM DI-604

4-Port Ethernet Broadband Router

Manual

Rev. 040903

Building Networks for People

-2-

Contents

Introduction........................................................................................ 3

Package Contents......................................................................... 6

Hardware Description................................................................. 7

Reset...................................................................................................... 8

Getting Started ................................................................................ 9

Configuring the DI-604............................................................. 10

Using the Configuration Wizard......................................... 11

Using the Configuration Menu............................................ 17

Troubleshooting............................................................................ 49

Networking Basics ...................................................................... 55

Technical Specifications.......................................................... 82

Contacting Technical Support ............................................. 84

Warranty and Registration..................................................... 85

-3-

Introduction

The D-Link Express EtherNetwork DI-604 is a 4-port Ethernet Broadband

Router. The D-Link DI-604 enables users to quickly and easily share a

high speed Internet connection. The D-Link DI-604 also incorporates

many advanced features, traditionally found in more expensive routers.

After completing the steps outlined in the Quick Installation Guide

(included in your package) you will have the ability to share a single

Internet connection as well as sharing information and resources such as

files and printers.

The DI-604 is compatible with most popular operating systems, including

Macintosh, Linux and Windows, and can be integrated into an existing

network. This Manual is designed to help you connect the D-Link

Express EtherNetwork DI-604 to a high speed Internet connection and 4

Ethernet PC connections.

This manual provides a quick introduction to Broadband Router

Technology, Firewalls, and Local Area Networking. Please take a moment

to read through this manual and get acquainted these various

technologies.

Features and Benefits

Broadband Modem and IP Sharing

Connects multiple computers to a Broadband (Cable or DSL) modem to

share the Internet connection.

Ethernet Switch

Allows you to quickly and easily share an Internet connection with multiple

computers and devices.

VPN supported

Supports multiple and concurrent IPSec and PPTP pass-through sessions,

so multiple users behind the DI-604 can access corporate networks

through various VPN clients more securely.

Advanced Firewall & Parental Control Features

The Web-Based user interface displays a number of advanced network

management features including:

-4-

Content Filtering

Easily applied content filtering based on Mac Address, IP Address, URL

and/or Domain Name.

Filter Scheduling

These filters can also be scheduled to be active on certain days or for a

duration of hours or minutes.

Network Address Translation

NAT allows you to share a single IP Address and protects you from outside

intruders gaining access to your private network.

DHCP Server Supported

All of the networked computers can retrieve TCP/IP settings automatically

from the DI-604.

Web-Based Management

DI-604 is configurable through any network computer’s web browser using

Netscape or Internet Explorer.

Access Control Supported

Allows you to assign different access rights for different users.

Virtual Server Supported

Enables you to expose WWW, FTP and other services on your LAN to be

accessible to Internet users.

Special Application Supported

Special applications requiring multiple connections, like Internet gaming,

video conferencing, Internet telephony and so on. The DI-604 can sense

the application type and open a multi-port tunnel for it.

DMZ Host Supported

Allows a networked computer to be fully exposed to the Internet. This

function is used when the Special Application feature is insufficient to allow

an application to function correctly.

Technology Introduction

Introduction to Broadband Router Technology

A router is a device that forwards data packets from a source to a

destination. Routers forward data packets using IP addresses and not a

MAC address. A router will forward data from the Internet to a particular

computer on your LAN.

The information that makes up the Internet gets moved around using

routers. When you click on a link on a web page, you send a request to a

-5-

server to show you the next page. The information that is sent and

received from your computer is moved from your computer to the server

using routers. A router also determines the best route that your information

should follow to ensure that the information is delivered properly.

A router controls the amount of data that is sent through your network by

eliminating information that should not be there. This provides security for

the computers connected to your router, because computers from the

outside cannot access or send information directly to any computer on

your network. The router determines which computer the information

should be forwarded to and sends it. If the information is not intended for

any computer on your network, the data is discarded. This keeps any

unwanted or harmful information from accessing or damaging your

network.

Introduction to Firewalls

A firewall is a device that sits between your computer and the Internet that

prevents unauthorized access to or from your network. A firewall can be a

computer using firewall software or a special piece of hardware built

specifically to act as a firewall. In most circumstances, a firewall is used to

prevent unauthorized Internet users from accessing private networks or

corporate LAN’s and Intranets.

A firewall watches all of the information moving to and from your network

and analyzes each piece of data. Each piece of data is checked against a

set of criteria that the administrator configures. If any data does not meet

the criteria, that data is blocked and discarded. If the data meets the

criteria, the data is passed through. This method is called packet filtering.

A firewall can also run specific security functions based on the type of

application or type of port that is being used. For example, a firewall can

be configured to work with an FTP or Telnet server. Or a firewall can be

configured to work with specific UDP or TCP ports to allow certain

applications or games to work properly over the Internet.

Introduction to Local Area Networking

Local Area Networking (LAN) is the term used when connecting several

computers together over a small area such as a building or group of

buildings. LAN’s can be connected over large areas. A collection of LAN’s

connected over a large area is called a Wide Area Network (WAN).

A LAN consists of multiple computers connected to each other. There are

many types of media that can connect computers together. The most

common media is CAT5 cable (UTP or STP twisted pair wire.) On the

other hand, wireless networks do not use wires; instead they communicate

over radio waves. Each computer must have a Network Interface Card

(NIC), which communicates the data between computers. A NIC is usually

-6-

a 10Mbps network card, or 10/100Mbps network card, or a wireless

network card.

Most networks use hardware devices such as hubs or switches that each

cable can be connected to in order to continue the connection between

computers. A hub simply takes any data arriving through each port and

forwards the data to all other ports. A switch is more sophisticated, in that

a switch can determine the destination port for a specific piece of data. A

switch minimizes network traffic overhead and speeds up the

communication over a network.

Networks take some time in order to plan and implement correctly. There

are many ways to configure your network. You may want to take some

time to determine the best network set-up for your needs.

Package Contents

DI-604 Ethernet Broadband Router

Power Adapter

Ethernet Cable

Quick Installation Guide

Manual on CD

Note: Using a power supply with a different voltage rating will damage and void the warranty for this

product. If any of the above items are missing, please contact your reseller.

-7-

Hardware Description

Front Panel

Power Power indicator will light Green.

WAN WAN status indicator will light Green when there is good

physical WAN connection

LAN

Link/Act.

Link status indicators light Green. The LED flickers when the

corresponding port is sending or receiving data.

Power WAN LAN

-8-

Hardware Description

Rear Panel

Reset Used to restore the DI-604 back to factory default settings.

LAN

PORTS

1-4

LAN port sockets (CAT5 Ethernet RJ-45 cable). The LED

glows steadily when a port is connected to a hub, switch or

network-adapter-equipped computer in your local area network

(LAN.)

WAN WAN port socket (CAT5 Ethernet RJ-45 cable). This is where

you will connect to your Cable or DSL modem.

Power Connect one end of your included power adapter to the power

port and the other end into your power outlet.

Reset

To reset the system settings to factory defaults, please follow these steps:

1. Leave the device powered on, do not disconnect the power

2. Press the reset button and hold (use a paper-clip)

3. Keep the button pressed about 10 seconds

4. Release the button

The DI-604 will then automatically reboot itself.

WAN

LAN

Reset

Power

-9-

Getting Started

Installation Location

The DI-604 can be positioned at any convenient place in your office or

house. No special wiring or cooling requirements are needed. However,

you should comply with the following guidelines:

Place the DI-604 on a flat horizontal plane.

Keep away from any heating devices.

Do not place in a dusty or wet environment.

The recommended operational specifications of the DI-604 are:

Temperature 32o F ~ 131o F

Humidity 5 % ~ 90 %

In addition, remember to turn off the power, remove the power cord from

the outlet, and keep your hands dry when you install the hardware.

Network Settings

To use the DI-604 correctly, you have to properly configure the network

settings of your computers. The default IP address of the DI-604 is

192.168.0.1, and the default subnet mask is 255.255.255.0. These

addresses can be changed as needed, but the default values are used in

this manual. If the TCP/IP environment of your computer has not yet been

configured, you can refer to Configuring Your PCs to Connect to the

DI-604 to configure it.

For example:

1. Configure your computer IP as 192.168.0.3, subnet mask as

255.255.255.0 and gateway as 192.168.0.1

Or more conveniently

2. Configure your computers to obtain TCP/IP settings automatically

from the DHCP server feature of the DI-604

Since the IP address of the DI-604 is 192.168.0.1, the IP address of your

computer must be 192.168.0.X (where “X” is a number between 2 and

254.) Each computer on your network must have a different IP address

within that range. The default gateway must be 192.168.0.1 (the IP

address of the DI-604).

-10-

Configuring the DI-604

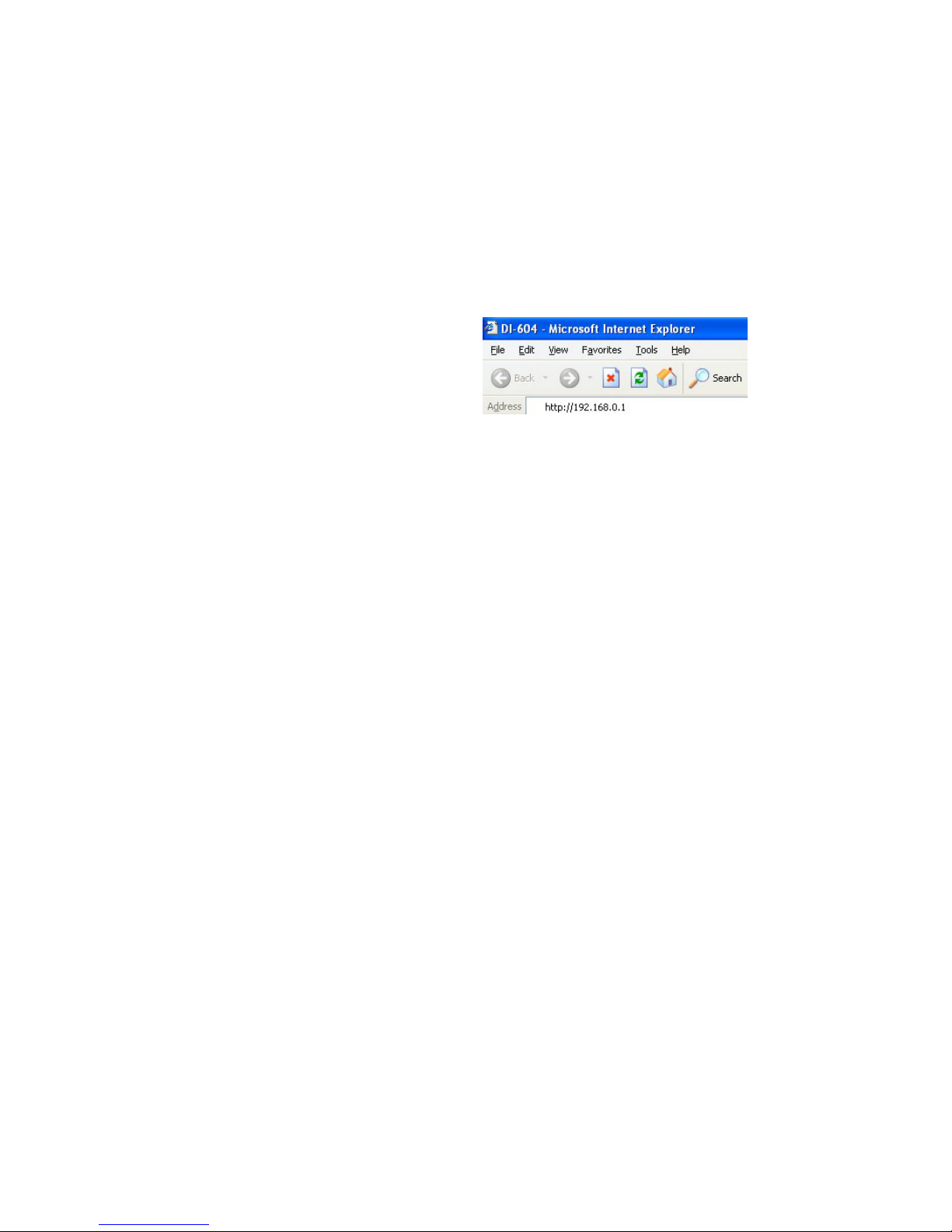

The DI-604 provides an embedded Web-based management utility

making it operating system independent. You can configure your DI-604

through the Netscape Communicator or Internet Explorer browser in MS

Windows, Macintosh, Linux or UNIX based platforms. All that is needed is

a web browser such as Internet Explorer or Netscape Navigator version 4

and higher with Java Script enabled.

Start-up and Log in

Activate your web browser and type in the IP address of the DI-604 into

the Location (for Netscape) or Address (for IE) field and press “Enter.” The

default IP address of the DI-604 is

192.168.0.1

For example: http://192.168.0.1

After the connection is established, the logon screen will pop up.

To log in as an administrator, enter the username of “admin” and the

password (there are no default password, leave it blank). Click the OK

button. If the password is correct, the web-management interface will

appear.

Autres manuels pour Express EtherNetwork DI-604

Table des matières

Autres manuels D-Link Routeur réseau

D-Link

D-Link myPocket DIR-457 Manuel utilisateur

D-Link

D-Link DSL-1500G Manuel utilisateur

D-Link

D-Link DSL-2740U Manuel utilisateur

D-Link

D-Link DI-804V Manuel utilisateur

D-Link

D-Link TM DES-6500 Manuel utilisateur

D-Link

D-Link DI-804V Manuel utilisateur

D-Link

D-Link DES-1008FX Manuel utilisateur

D-Link

D-Link DSL-G604T Manuel utilisateur

D-Link

D-Link AC1200 Manuel utilisateur

D-Link

D-Link DIR-882 Manuel utilisateur

D-Link

D-Link DGL-4100 - GamerLounge Broadband Gigabit Gaming... Manuel utilisateur

D-Link

D-Link DSL-2540B - ADSL2/2+ Modem With EN Router Manuel utilisateur

D-Link

D-Link DIR-510L Manuel utilisateur

D-Link

D-Link DSL-6540U Manuel utilisateur

D-Link

D-Link DSL-2770L Manuel utilisateur

D-Link

D-Link Xstack DGS-3300 Series Manuel utilisateur

D-Link

D-Link Express Ethernetwork DI-704P Manuel utilisateur

D-Link

D-Link DSL-2877AL Manuel

D-Link

D-Link Amplifi DIR-657 Manuel utilisateur

D-Link

D-Link DSL-200 Manuel utilisateur

D-Link

D-Link DSL-526B Manuel utilisateur

D-Link

D-Link Express EtherNetwork DI-604 Manuel utilisateur

D-Link

D-Link DSL-2500U Manuel utilisateur

D-Link

D-Link DSL-2745 Manuel utilisateur

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

Cisco

Cisco NCS 540 Manuel

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

Cisco

Cisco ASR 1000 Series Manuel de l'opérateur

EnGenius

EnGenius ESR-9710 Manuel utilisateur

Cisco

Cisco 805 Series Instructions d'utilisation et de sécurité
