D-Link DES-1316 - Switch Manuel utilisateur

This Quick Installation Guide gives step-by-step instructions for setting up the D-Link

DES-1316 PoE Web-Smart Switch. The model you have purchased may appear slightly

different from those shown in the illustrations. For more detailed information about the

switch, its components, making network connections and technical specifications,

please refer to the User’s Manual on master CD included with your switch.

Check Your Package Contents

If any item is found missing or damaged, please contact your local reseller for

replacement.

holders. Software and specifications subject to change without notice.

16-Port 10/100Mbps Ethernet Web Smart Switch

with 8-Port PoE

DES-1316

16-Port 10/100Mbps Ethernet Web

Smart Switch with 8-Port PoE

CD-Rom(Containing manual and Utility

Installation)

Before Your Be

C powe

cord (Suitable for your area’s

electrical power connections)

Setup The DES-1316 PoE Web Smart Switch

The setup of the Switch can be performed using the following steps:

A. Install DES-1316 in a fairly cool and dry place. See Technical Specifications for the

acceptable temperature and humidity operating ranges.

B. Install the Switch in a site free from strong electromagnetic field generators (such as

motors), vibration, dust, and direct exposure to sunlight.

C. Leave at least 10cm of space at the front and rear of the hub for ventilation.

D. Install the Switch on a sturdy, level surface that can support its weight, or in an EIA

standard-size equipment rack. For information on rack installation, see the next

section, Rack Mounting.

E. When installing the Switch on a level surface, attach the rubber feet to the bottom of

each device. The rubber feet cushion the hub and protect the hub case from

scratching.

Rack Mounting

ES-1316 can be mounted in an EIA standard-size, 19-inch rack, which can be placed in

a wiring closet with other equipment. Attach the mounting brackets at the switch’s front

panel (one on each side), and secure them with the provided screws.

Combine the Switch with the provided screws

Then, use screws provided with the equipment rack to mount each switch in the rack.

Mount the Switch in the rack

Connecting Network Cable

DES-1316 support 16 10/100M Ethernet ports and Port 1 ~ port 8 are PoE Enable ports,

these PoE port will automatically activated when a compatible terminal is identified, the

Switch will supply power through the Ethernet port to the connected PoE device.

For the Legacy devices that are not yet compatible, the PoE port will not offer the power

to this device. This feature allows users to freely and safely mix legacy and Power over

LAN compatible devices on their network.

The Switch supports 10Mbps Ethernet or 100Mbps Fast Ethernet and it runs both in half

and full duplex mode using two pair of Category 5 cable.

These RJ45 ports are Auto-MDI type port. The Switch can auto transform to MDI-II or

MDI-X type, so you can just make an easy connection that without worrying if you are

using a standard or crossover RJ45 cable.

AC Power

The Switch used the AC power supply 100-240V AC, 50-60 Hz. The power switch is located at the

rear of the unit adjacent to the AC power connector and the system fan. The switch’s power

supply will adjust to the local power source automatically and may be turned on without having

any or all LAN segment cables connected.

Identifying External Components

This chapter describes the front panel, rear panel, and LED indicators of the Switch.

Front Panel

The figure below shows the front panels of the Switch.

PoE Ports

┌――┐

└――――┘ └―――┘

LEDIndicators EthernetPorts

Front panel of the Switch

LED Indicator:

Comprehensive LED indicators display the status of the switch and the network (see the

LED Indicators chapter below).

PoE Ports (Port 1~8):

These ports are PoE Enable ports, the PoE port will automatically activated when a

compatible terminal is identified, the Switch will supply power through the Ethernet port

to the connected PoE device.

For the Legacy devices that are not yet compatible, the PoE port will not offer the power

to this device. This feature allows users to freely and safely mix legacy and Power over

LAN compatible devices on their network

These ports support network speeds of either 10Mbps or 100Mbps, and can operate in

half- and full- duplex transfer modes. These ports also supports automatic MDI/MDIX

crossover detection function gives true “plug and play” capability, just need to plug-in the

network cable to the hub directly and don’t care if the end node is NIC (Network

Interface Card) or switch and hub.

Ethernet Ports (Port 9~16):

These ports support network speeds of either 10Mbps or 100Mbps, and can operate in

half- and full- duplex transfer modes. These ports also supports automatic MDI/MDIX

crossover detection function gives true “plug and play” capability, just need to plug-in the

network cable to the hub directly and don’t care if the end node is NIC (Network

Interface Card) or switch and hub

Note: When the port was set to “Forced Mode”, the Auto MDI/MDIX will be disabled.

Rear Panel

Rear panel of the Switch

AC Power Connector:

This is a three-pronged connector that supports the power cord. Plug in the female connector of

the provided power cord into this connector, and the male into a power outlet. Supported input

voltages range from 100-240V AC at 50-60Hz.

Reset:

The Reset button is to reset all the setting back to the factory default.

Note: Be sure that you recorded the setting of your device, else all the setting will

be erased when pressing the “Reset” button.

Understanding LED ndicators

The front panel LEDs provides instant status feedback, and, helps monitor and troubleshoot when

needed.

Figure 5. LED indicators of the Switch

AC Power Connector

Reset Button

Power and CPU LEDs

POWER: Power Indicator

On When the Power LED lights on, the Switch is receiving power.

Off When the Power turns off or the power cord has improper connection.

CPU: Management Indicator

Blinking When the CPU is working, the CPU LED is blinking.

On/Off The CPU is not working.

Ports 1~8 PoE port status LEDs

Link/ACT: Link/Activity

When the Link/ACT LED lights on, the respective port is successfully connected

to an Ethernet network.

Blinking

When the Link/ACT LED is blinking, the port is transmitting or receiving data on

the Ethernet network.

Off No link.

100Mbps

When the 100Mbps LED lights on, the respective port is connected to a 100Mbps

Fast Ethernet network.

Off When the respective port is connected to a 10Mbps Ethernet network

PoE Status

Green When the PoE device was connected and the port supplies power successfully.

Red

When the PoE port have the following failure happens:

 PoE power short circuit

 PoE Power over current

 PoE Power fault

Off No Powered Device is detected

Ports 9~16 Ethernet port status LEDs

Link/ACT: Link/Activity

When the Link/ACT LED lights on, the respective port is successfully connected

to an Ethernet network.

Blinking

When the Link/ACT LED is blinking, the port is transmitting or receiving data on

the Ethernet network.

Off No link.

100Mbps

When the 100Mbps LED lights on, the respective port is connected to a 100Mbps

Fast Ethernet network.

Off When the respective port is connected to a 10Mbps Ethernet network

Installing the Web Management Utility

The following gives instructions guiding you through the installations of the Web

Management utility.

1. Insert the Utility CD in the CD-Rom Drive.

2. From the Start menu on the Windows desktop, choose Run.

3. In the Run dialog box, type D:\Web Management Utility\setup.exe (D:\ depends

where your CD-Rom drive is located) and click OK.

4. Follow the on-screen instructions to install the utility.

5. Upon completion, go to Program Files -> web_management_utility and execute

the Web Management utility. (Figure 1.)

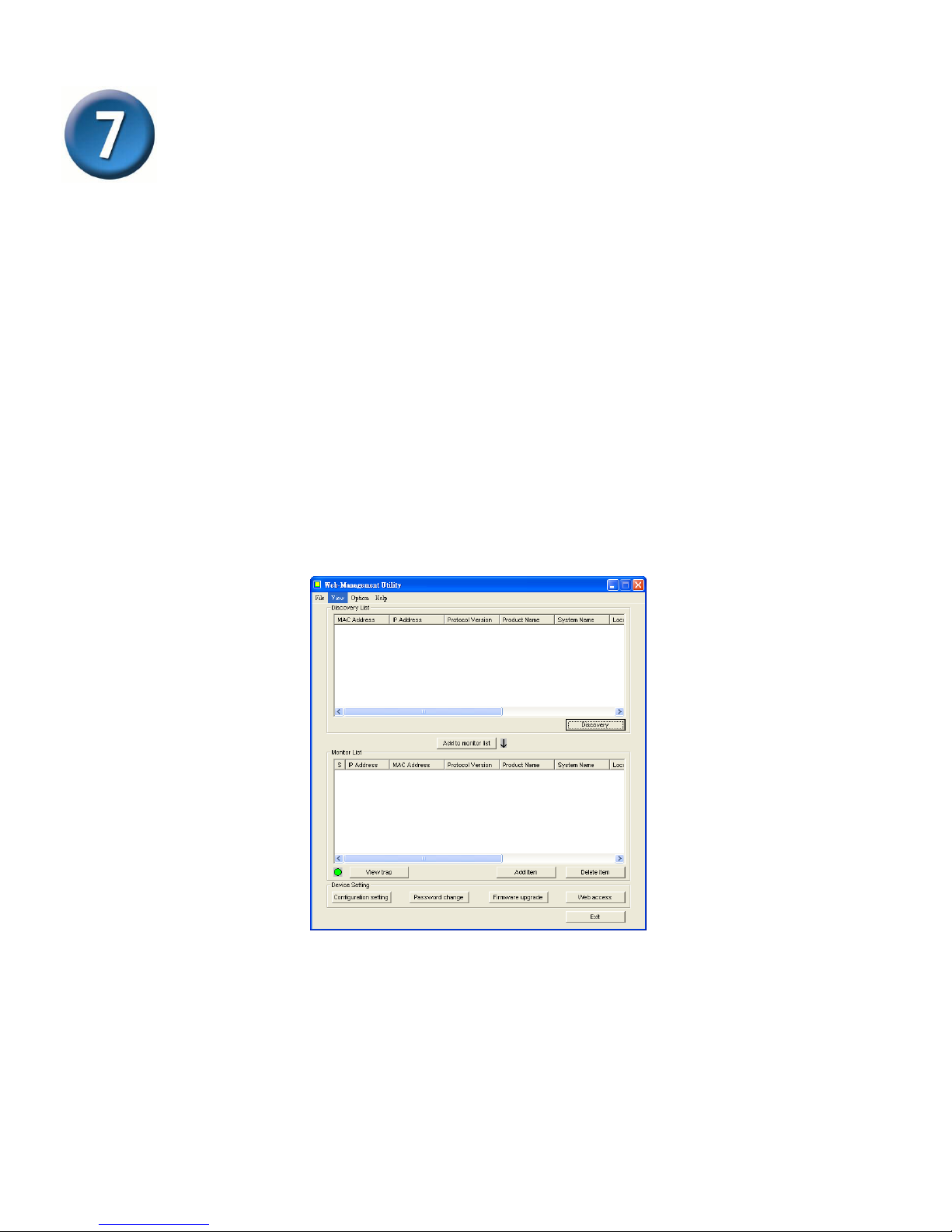

Figure 1. Web Management Utility

Configuring the Switch

The 16-Port 10/100Mbps Ethernet Web Smart Switch with 8-Port PoE has a Web GUI

interface for smart switch configuration. The Switch can be configured through the Web

Browser. A network administrator can manage, control and monitor the switch from the

local LAN. This section indicates how to configure the Switch to enable its smart

functions including:

 Port Setting (Speed/Disable and Flow Control)

 VLAN Setting (802.1Q VLAN)

 Trunking

 Port Mirroring

 QoS Setting

 PoE Setting

 System Setting

 Device status and Statistic

Before you configure this device, note that when the Web Smart Switch is configured

through an Ethernet connection, make sure the manager PC must be set on same the

IP network. For example, when the default network address of the default IP address of

the Web Smart Switch is 192.168.0.1, then the manager PC should be set at

192.168.0.x (where x is a number between 2 and 254), and the default subnet mask is

255.255.255.0.

Open Internet Explorer 5.0 or above Web browser.

Enter IP address http://192.168.0.1 (the factory-default IP address setting) to the

address location. (Figure 2.)

Figure 2.

Or through the Web Management Utility, you do not need to remember the IP Address,

select the device shown in the Monitor List of the Web Management Utility to settle the

device on the Web Browser.

When the following dialog page appears, remain enter the default password "admin"

and press Login to enter the main configuration window. (Figure 3.)

Figure 3.

After entering the password, the main page comes up, the screen will display the device

status. (Figure 4.)

Figure 4. Device Status
