Quick Installation Guide

DAP-300P

Wireless N300 PoE Access Point / Router

DAP-300P Quick Installation Guide

BEFORE YOU BEGIN

Delivery Package

•Access point DAP-300P

•Wall mounting bracket with mounting kit

•“Quick Installation Guide” (brochure).

f any of the items are missing, please contact your reseller.

The “User Manual” and “Quick Installation Guide” documents are available

on D-Link website (see www.dlink.ru).

!Using a power supply with a different voltage rating than the one

included will cause damage and void the warranty for this product.

DAP-300P Quick Installation Guide

Default Settings

IP add ess of device 192.168.0.50

Use name (login) admin

Passwo d admin

Name of wi eless netwo k (SSID) DAP-300P

Netwo k key (PSK passwo d)

see WPS P N on the barcode

label on the bottom panel of

the device

DAP-300P Quick Installation Guide

System Requirements and Equipment

•An Android or iPhone mobile device (smartphone or tablet) or a computer

with any operating system that supports a web browser.

•A PC web browser to access the web-based interface:

◦Apple Safari 8 and later

◦Google Chrome 48 and later

◦Microsoft nternet Explorer 10 and later

◦Microsoft Edge 20.10240 and later

◦Mozilla Firefox 44 and later

◦Opera 35 and later.

•A N C (Ethernet or Wi-Fi adapter) to connect to the access point.

•An 802.11b, g, or n Wi-Fi adapter to create a wireless network.

DAP-300P Quick Installation Guide

CONNECTING TO PC OR MOBILE DEVICE

Connecting to Mobile Device with

D Link Assistant Application

1. Connect the power adapter (not included in the delivery package) to the

power connector port on the back panel of the access point, then plug the

power adapter into an electrical outlet or power strip.

2. Make sure that the Wi-Fi connection on your mobile device is on. To

switch it on, go to the mobile device settings.

3. n the list of available wireless networks on your mobile device, select the

wireless network DAP-300P.

4. n the opened window, enter the network key (see WPS P N on the

barcode label on the bottom panel of the device) as the password and

connect to the wireless network of DAP-300P.

5. n the settings of the wireless network DAP-300P on your mobile

device, in the IP Settings field, select the Static value (for Android) or

the Manual value (for iOS).1

6. Enter the value 192.168.0.51 in the IP add ess field. For iOS

devices, also specify the subnet mask 255.255.255.0. Confirm the

changed settings.

1 Field names may vary in different versions of operating systems on mobile devices.

DAP-300P Quick Installation Guide

7. Launch D-Link Assistant application on your mobile device. The

application is available for Android and iPhone smartphones in AppStore

and Google Play.

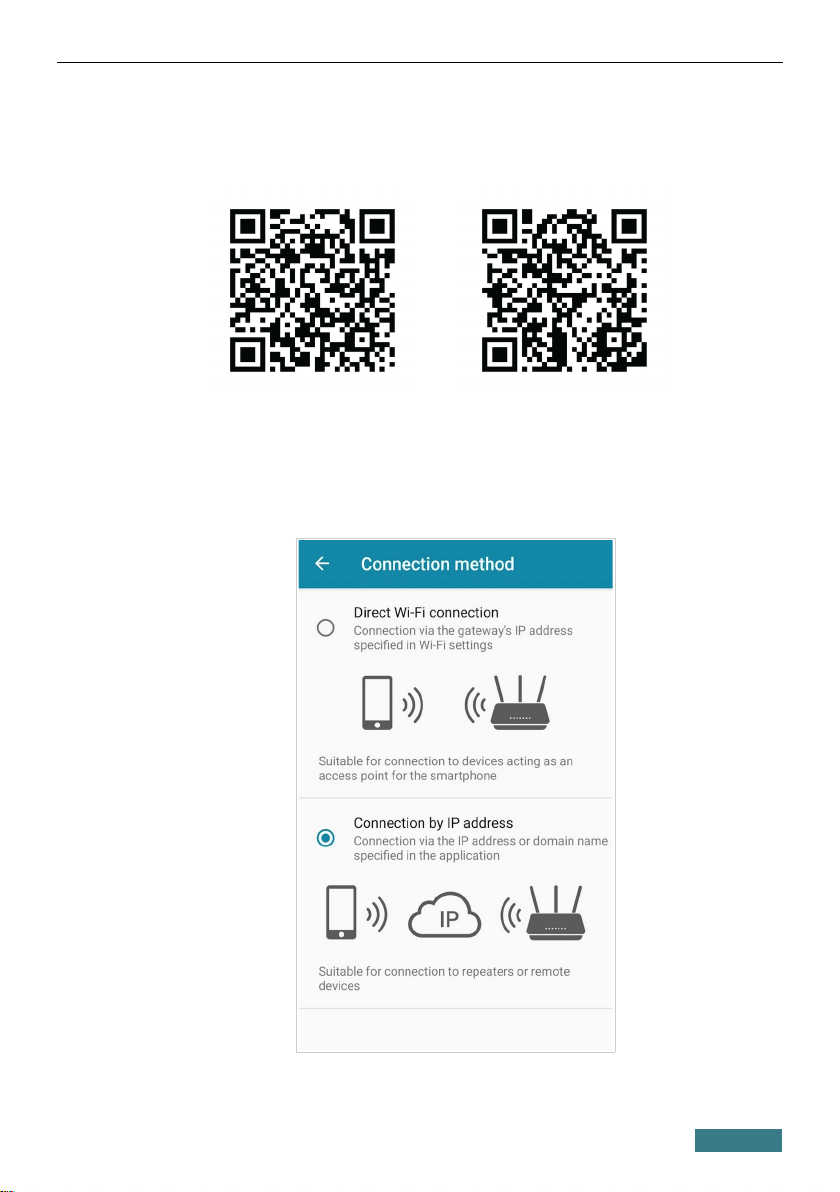

D-Link Assistant for

Android

D-Link Assistant for iOS

8. n the application menu, in the Connection method section select the

Connection by IP add ess value.

DAP-300P Quick Installation Guide

9. On the application main page click the CHANGE ADDRESS button.

10. On the opened page, enter the P address of the access point (by default,

the following P address is specified: 192.168.0.50) in the device

URL address field and click the button to confirm.

11. Make sure that the application correctly identified the access point to

which you connect, and click the Open button to configure all needed

parameters of DAP-300P.

You can go through the nitial Configuration Wizard or finish the Wizard

earlier and go the configuration menu.

DAP-300P Quick Installation Guide

As you perform initial configuration of the access point via Wi-Fi

connection, note that immediately after changing the wireless default

settings of the access point you will need to reconfigure the wireless

connection using the newly specified settings.

When DAP-300P is accessed with the application the next time and after, the

authorization page opens. Enter the username (admin) and the password you

specified.

DAP-300P Quick Installation Guide

PC with Ethernet Adapter

1. Сonnect an Ethernet cable between the LAN port of the access point and

the Ethernet port of your PC.

2. For a switch supporting PoE: connect an Ethernet cable between the

PoE-enabled switch and the WAN port of the access point.

3. For a switch not supporting PoE or router: connect an Ethernet cable

between the switch or router and any Ethernet port of the access point.

4. Connect the power adapter (not included in the delivery package) to the

power connector port on the back panel of the access point, then plug the

power adapter into an electrical outlet or power strip.

Now you need to configure an P address for the Ethernet adapter of your PC.

DAP-300P Quick Installation Guide

Configuring IP Address in OS Windows 7

1. Click the Sta t button and proceed to the Cont ol Panel window.

2. Select the Netwo k and Sha ing Cente section. ( f the Control Panel

has the category view (the Catego y value is selected from the View by

drop-down list in the top right corner of the window), choose the View

netwo k status and tasks line under the Netwo k and Inte net

section.)

3. n the menu located on the left part of the window, select the Change

adapte settings line.

4. n the opened window, right-click the relevant Local A ea Connection

icon and select the P ope ties line in the menu displayed.

5. n the Local A ea Connection P ope ties window, on the

Netwo king tab, select the Inte net P otocol Ve sion 4 (TCP/IPv4)

line. Click the P ope ties button.
