D-Link SECURICAM Network DCS-6620 Manuel utilisateur

2 D-Link Systems, Inc.

DCS-6620 Install GuideSystem Requirements

System Requirements

Minimum System Requirements:

 Internet Explorer Version 6.0 or above

 CPU Pentium 4, 2.0GHz plus processor



Memory Size: 128MB or above



32MB AGP Video Card

Package Contents

D-Link Systems, Inc. 3

DCS-6620 Install Guide Hardware Overview

Hardware Overview

Front

Power LED

Link LED

Built-In

Microphone

Motorized Zoom Lens

4 D-Link Systems, Inc.

DCS-6620 Install GuideHardware Overview

Rear

Connect the power adapter jack to the PTZ Internet Camera before plugging

in to a power socket. This will reduce the risk of accidental electric shock.

A/V out

External I/O Port

External Mic.

Ethernet 10/100 RJ45 socket

Power Cord socket

D-Link Systems, Inc. 5

DCS-6620 Install Guide Hardware Installation

Hardware Installation

Connect the Ethernet Cable

Connect one end of the Ethernet cable to the network cable connector located on

the back panel of the DCS-6620, and attach the other end to a router, switch, or

gateway on the network.

If you connect this camera

directly to a PC, you will

need a cross-over Ethernet cable.

If you plug the camera into a hub

or router, you will be able to use the

cable included with your camera.

Attach the External Power Supply

Attach the external power supply to the DC

power input connector located on the PTZ

Internet

Camera’s backpanel (labeled 12V) and

connect it to an AC power outlet.

Power source is conﬁrmed when

the LED Power Indicator on the

PTZ Internet Camera is illuminated.

Both the red and green LEDs will ﬂash alternately and only the red LED will remain

lit. The green LED will not come on until you have conﬁgured your camera.

6 D-Link Systems, Inc.

DCS-6620 Install GuideHardware Installation (continued)

Attach the A/V cable to the A/V out

connector if you wish to connect the

DCS-6620 to your TV set.

Attach the yellow RCA connector to

the “video” connector on your TV.

Attach the white RCA connector to

the “audio” connector on your TV.

D-Link Systems, Inc. 7

DCS-6620 Install Guide Installation Wizard

Installation Wizard

Insert the DCS-6200 CD into the

CD-ROM drive.

Click on Install Software.

Click on Install Wizard.

Click Next

8 D-Link Systems, Inc.

DCS-6620 Install GuideInstallation Wizard (continued)

Click Next

Click Finish

D-Link Systems, Inc. 9

DCS-6620 Install Guide Camera Conﬁguration

Camera Conﬁguration

The software will search for cameras.

Double-click on the Installation

Wizard icon, which should have

been created on your desktop.

The Installation Wizard will now show

a MAC address of the DCS-6620 and

an IP Address (which may or may not

be correct depending on what you

have your DCS-6620 connected to).

If you have a DHCP* server on your

network, there

will be a valid IP Address

displayed

here. After a few seconds, the

“assigned” column will display yes

indicating that the displayed IP

Address

is now assigned to the camera.

*A DHCP server is a device that supplies IP Addresses to

its clients that are on the same network.

10 D-Link Systems, Inc.

DCS-6620 Install GuideCamera Conﬁguration (continued)

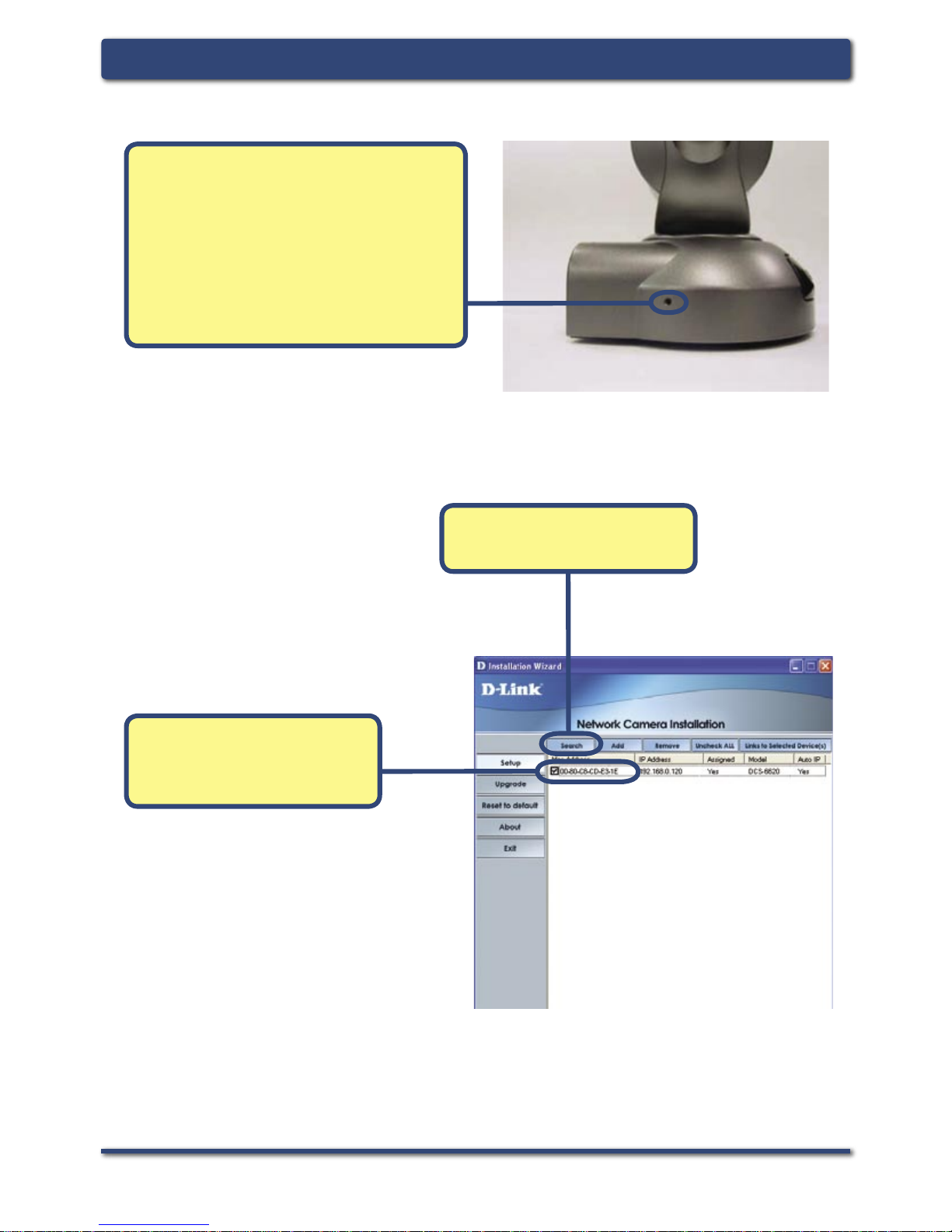

If the Installation Wizard does not display

any devices, you will need to ﬁnd a

tool small enough to ﬁt into the reset

hole and softly press down a switch for

2 cycles (about 5-7 seconds). The red

and green LEDs will blink continuously

and stop twice. Let go when the red

LED starts to ﬂash the second time.

Once the camera appears,

select the camera by placing

a Checkmark in the box.

Click Search to refresh the

list of cameras if needed.
