D-Link SECURICAM Network DCS-900W Manuel utilisateur

DCS-900W

Internet Camera

Building Networks for People

(10/04/04)

Manual

Version 1.40

Contents

Package Contents ...............................................................3

Introduction ..........................................................................4

Hardware Installation............................................................9

Security ..............................................................................10

Using the Setup Wizard .....................................................11

DCS-900W Configuration..................................................17

Installing the DCS-900W Behind a Router........................27

IPView Lite Application Installation ....................................41

IPView Lite.........................................................................46

Uninstall IPView Lite Application........................................78

Appendix (FAQ, Troubleshooting, How to Ping Your IP

Address Time Zone Table, Active X Installation) ..........80

Technical Specifications ....................................................93

Contacting Technical Support............................................95

Warranty ...................................... .................................... ...96

Registration........................................................................99

Package Contents

Package Contents:

If any of the above items are missing, please contact your reseller.

OneDCS-900WInternetCamera

OneInstallationCD-ROM

One802.11bAntenna

OneACpower adapter

OneCameraStand

OneCategory 5 EthernetCable

Local Area Network: 10Base-TEthernet or 100BaseTX Fast Ethernet

Wireless LocalArea Network: 802.11b Wireless Router orAccess Point

Recommended: PC, Mac or Notebook to access the Internet Camera

Web Configuration

• JavaEnabledandCompliant Web Browser (recommended)

•CPU: Pentium III, 450MHz or above

•Memory Size: 128MB recommended

• VGAcard resolution: 800x600or above

IPView Lite Configuration

• Windows XP, Me, 2000, 98SE

•CPU: Pentium III, 850MHz or above

•Memory Size: 128MB (256MB recommended)

•VGA card resolution: 800 x 600 or above

System Requirements:

Introduction

Congratulationson your purchase ofthe DCS-900W Internet Camera! TheDCS-900W

is a versatile and unique solution for your small office or home. Unlike a PC Camera,

the DCS-900W is a stand-alone system with a built-in CPU and Web server that trans-

mits high quality video images for monitoring. The DCS-900W can be accessed re-

motely, and controlled from any PC/Notebook over the Intranet or Internet via a web

browser.Thesimple installationprocedure and intuitiveweb-based interface offereasy

integration with your Ethernet/Fast Ethernet or 802.11b wireless network. The DCS-

900W also comes with remote monitoring capability for a complete and cost-effective

home security solution.

Features & Benefits

Simple to Use

TheDCS-900Wisastand-alonesystemwithabuilt-inCPU,requiringnospecialhardware

or software such as PC frame grabber cards. The DCS-900W supports both ActiveX

modeforInternetExplorerandJavamodeforInternetExplorerandNetscapeNavigator.

All that is required is a computer with current Web browser software.

Supports a Variety of Platforms

Supporting TCP/IP networking, HTTP, and other Internet related protocols, the DCS-

900Wcanbe utilized inamixed operating systemenvironmentsuch as Windows,Unix,

and Macintosh. It can also be integrated easily into other Internet/Intranet applications

becauseof its standards-based features.

802.11b Wireless or Ethernet/Fast Ethernet Support

The DCS-900W offers both 802.11b wireless and Ethernet/Fast Ethernet connectivity,

making the DCS-900W easy to integrate into your existing network environment. The

DCS-900W works with a 10Mbps Ethernet based network or 100Mbps Fast Ethernet

basednetworkfortraditionalwiredenvironmentsandworkswith802.11broutersoraccess

points for added flexibility.

Features & Benefits (continued)

Web Configuration

Using a standard Web browser,Administrators can configure and manage the Internet

Cameradirectly from itsownWeb page viathe Intranet orInternet. This means youcan

access your DCS-900W at anytime from anywhere in the world!

Remote Monitoring Utility

The IPView Lite application adds enhanced features and functionality for the Internet

Cameraand allowsadministrators to configure and access the Internet Camera from a

remotesite via Intranet or Internet. Other features include image monitoring, recording

images to a hard drive, enabling motion detection, updating firmware, viewing up to 4

cameras on one screen, and taking snapshots.

Broad Range of Applications

With today’s high-speed Internet services, the Internet Camera can provide the ideal

solution for live video images over the Intranet and Internet for remote monitoring. The

Internet Camera allows remote access from a Web browser for live image viewing and

allows the administrator to manage and control the Internet Camera at anytime, from

anywhereinthe world. Many applicationsexist,includingindustrialandpublicmonitoring

of homes, offices, banks, hospitals, child-care centers, and amusement parks.

EthernetCable Connector

TheDCS-900WfeaturesanRJ-45connectorforconnectionsto10Base-TEthernetcabling

or100Base-TXFastEthernetcabling (which should be Category 5 UTP cable). The port

supportsthe NWayprotocol,allowingtheDCS-900Wto automaticallydetectornegotiate

the transmission speed of the network.

DC Power Connector

The DC power input connector is labeled DC 5V with a single jack socket to supply

powertothe DCS-900W.

Reset Button

Reset will be initiated when the reset button is pressed once and Power LED begins to

flash.

Factory Reset will be initiated when the reset button is pressed continuously for three

seconds or when the Power LED begins to light up. Release the reset button and the

Power LED will begin to flash indicating that the DCS-900W’s settings are reverting

back to the factory settings. The IP address will also return to the default setting of

192.168.0.20.

Connections

Rear Panel view

Ethernet Cable

Connector

ResetButton

802.11bAntenna

802.11b Antenna

TheDCS-900Wfeatures an 802.11b wirelessantennafor802.11b wirelessconnectivity

to your existing wireless network. The DCS-900W can be used in conjuction with an

802.11b compliant access point or router.

DCPowerConnector

Connections (continued)

Bottom Panel view

Stand Mount

LEDS

LED stands for Light-Emitting Diode.

Power LED

The Power LED is positioned on the right side of the DCS-900W lens. Steady green

confirmsthat theDCS-900W is powered ON.

Note:

There are three settings for the Power LED for monitoring purposes: Normal / Off /

Dummy. Please refer to the DCS-900W Camera Configuration section on P. 24 for

detailedinformation and usage.

LAN LED

TheLAN LED is positionedon the rightside of the DCS-900W’slens. It islocated below

thePower LED.

Steady orange confirms a good connection to the LAN.

Dependingon the datatraffic, the LEDwill begin toflash to indicatethat the DCS-900W

isreceiving/transceiving from/to the LANnetwork.

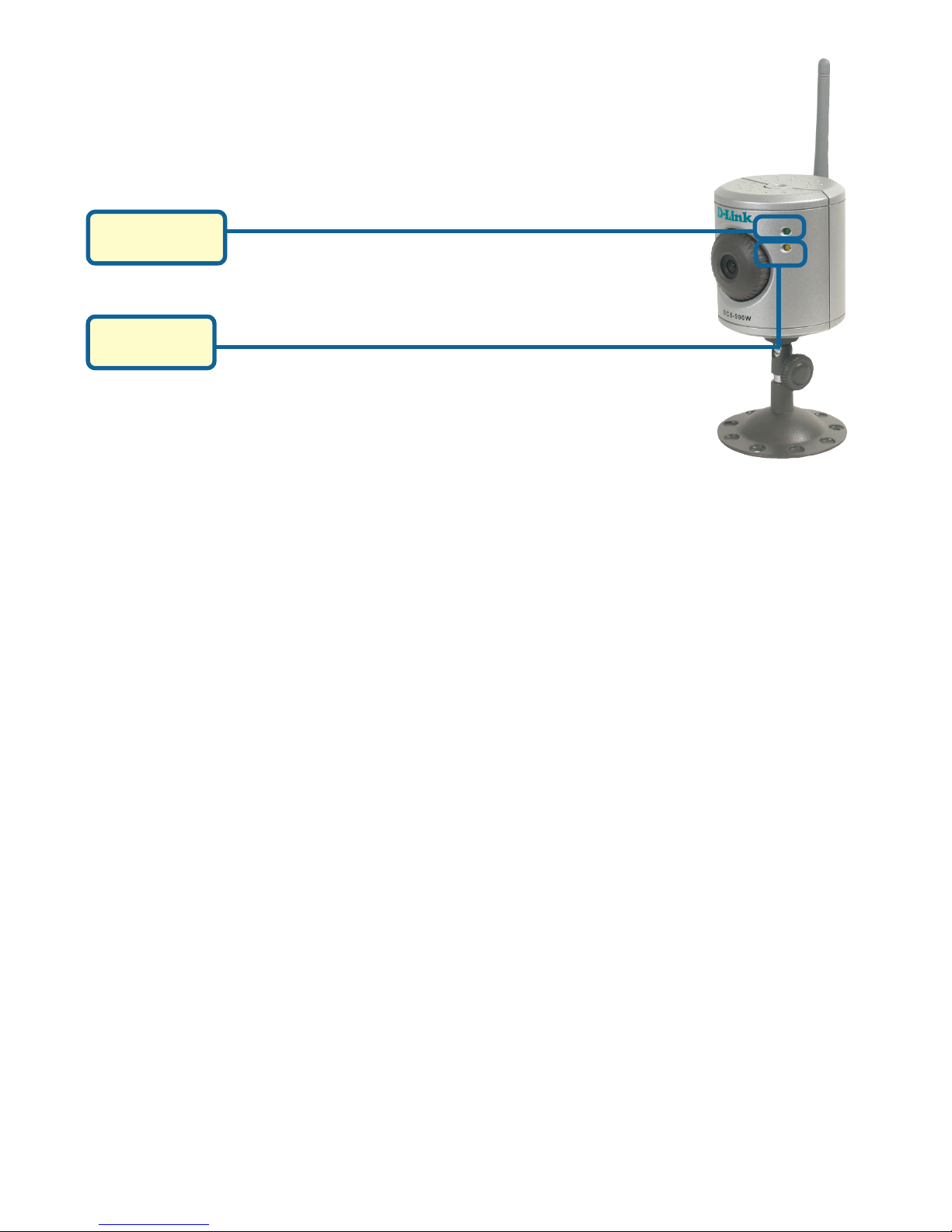

Front view

Power LED

LANLED

Hardware Installation

Connect the Ethernet Cable

Connectthe included Ethernet cable to the network

cable connector located on the back panel of the

DCS-900W and attach it to the network.

Attach the External Power Supply

Attach the external power supply to the DC power input

connectorlocated on therearpanel of the

DCS-900W and connect it to your local power supply.

Note:Power source is confirmedwhenthe green LED

Power Indicator located to the right of the lens on the

DCS-900Wisilluminated.

Attach the Swivel Stand

Locate the stand mount on the bottom of the DCS-

900W and screw on the swivel stand.

Attach the Antenna

Locatetheantenna included with your DCS-900Wand

attach it to the antenna connector located on the back

oftheDCS-900W.

Network Connectivity is confirmed when the orange LED Indicator on the DCS-900W

located below the Power LED is illuminated.

Security

To ensure the highest security and prevent unauthorized usage of the DCS-900W, the

Administrator has the exclusive privilege to create all users. The DCS-900W supports

multi-level password protection/access that can be restricted by the Administrator for

defined userswho have a User Name and User Password.

TheAdministrator can release apublicUser Name and Password so thatwhen remote

usersaccess theDCS-900W theywill beallowed toview theimages transmittedby the

DCS-900W.

Note:

When the DCS-900W is used for the first time, it is highly recommended that the

Administrator set the Admin ID and Admin Password to constrain user access to the

DCS-900W since the Default settings are Null String (no password). Once the ID and

Password are defined, only the Administrator has access to the management of the

DCS-900W. This procedure should be done as soon as possible since the security

featuresofthe DCS-900Wwill not be enableduntilthe Admin ID and Admin Password

isdefined.
