D-Link Technical Support – How to connect the DCS-932L wirelessly. Page 1of 7

How to connect the DCS-930L wirelessly

This document will detail how to change the DCS-930L configuration to be connecting

wirelessly to your Wireless Access oint, without having to run through the Setup Utility

again.

Ensuring the firmware remains up to date can assist with functionality / improved

performances as well as adding additional features.

D-Link Technical Support – How to connect the DCS-932L wirelessly. Page 2of 7

It is assumed that you have followed the setup guide How to install the DCS-932L and during the

installation you selected the Wired configuration. It's therefore assumed that your DCS-930L is connected

using an Ethernet cable. Continue reading to change this configuration to be connecting wirelessly instead.

1. You will need to know the IP Address of your DCS-930L. There are two ways in which this can be done.

Setup Utility:

Run through the Setup Utility selecting the default options until you get to a heading First, select your

camera :

We now have the IP Address which is assigned to the DCS-930L. Please remember the current IP Address

assigned as we will require it shortly. Your assigned IP Address may also be different to my example. You

may close the Setup Utility now.

Checking your Router's Web Configuration:

Documentation and or Manufacturer as DHCP Client List may be called another name:

The below illustration is from a D-Link DIR-825 and its DHCP Client List is referred as the 'Dynamic DHCP

Clients':

We now have the IP Address which is assigned to the DCS-930L. Please remember the current IP Address

assigned as we will require it shortly. Your assigned IP Address may also be different to my example.

D-Link Technical Support – How to connect the DCS-932L wirelessly. Page 3of 7

2. Now we know the assigned IP Address, please type your IP Address into your Internet Browser, then press

Enter or Go:

3. You will need to login with your username and password that you assigned to your DCS-930L during the

Setup Utility process:

D-Link Technical Support – How to connect the DCS-932L wirelessly. Page 4of 7

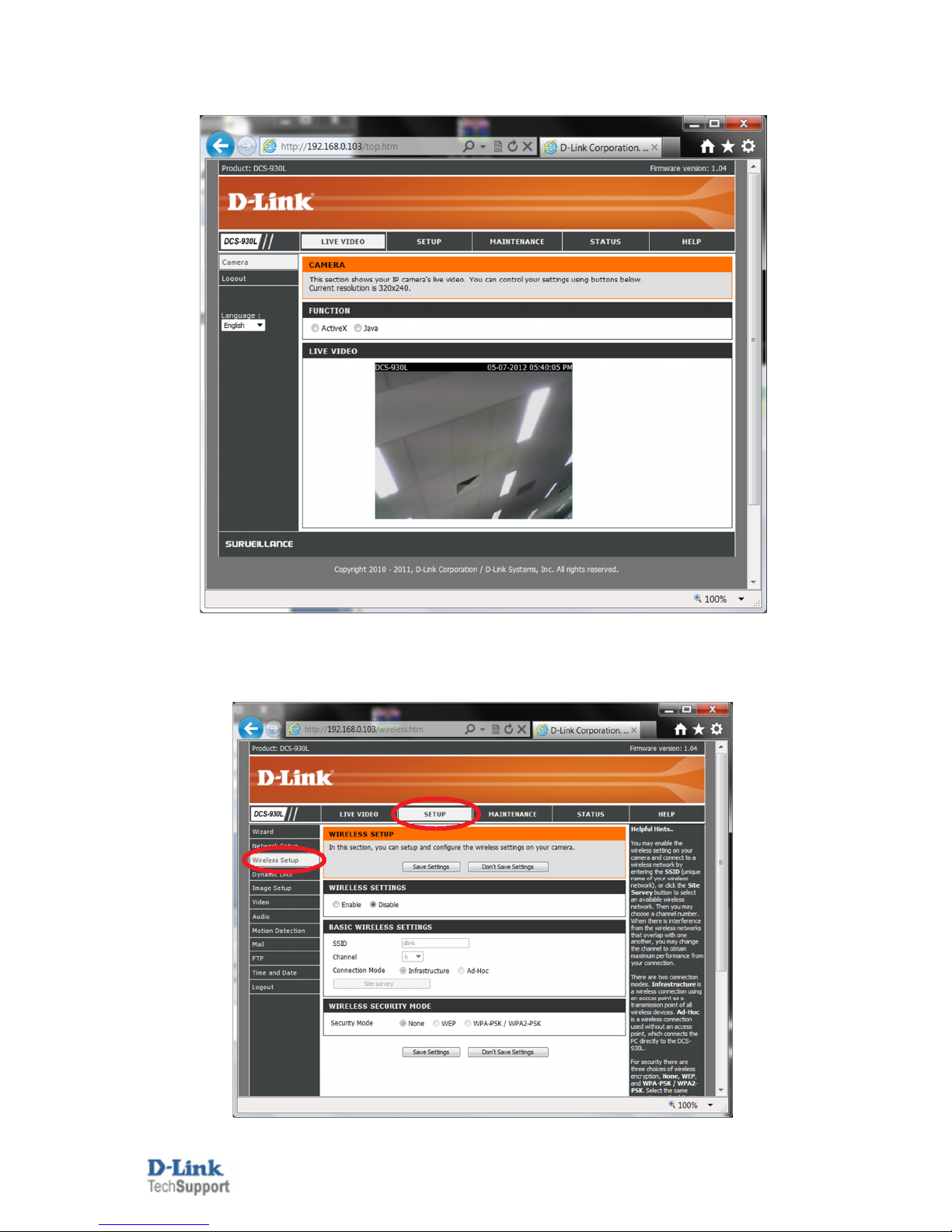

4. When you have successfully accessed the DCS-930L Web Configuration you will see a similar illustration

on your Internet Browser as the below illustration:

NOTE: Your Live Video results may differ.

5. Click on the Setup menu, followed by clicking on the Wireless Setup heading:

D-Link Technical Support – How to connect the DCS-932L wirelessly. Page 5of 7

6. Click on the Enable option, then click on the Save Settings button:

7. Now click on the Site survey button:

D-Link Technical Support – How to connect the DCS-932L wirelessly. Page 6of 7

8. Select your SSID (wireless name):

9. Scroll down (if required) and press the select option:

D-Link Technical Support – How to connect the DCS-932L wirelessly. Page 7of 7

10. Now type in your correct wireless password into the Pre-Shared Key field, then press the Save Settings

button:

11. Now remove the Ethernet cable from the DCS-932L.

NOTE: When you disconnect the Ethernet cable the power LED will turn red, then come green again within

a few seconds.

12. Now after 0 seconds click on Maintenance > System and click the Reboot the Device button:

12. When the DCS-930L has completed the reboot process you will know that your connected wirelessly as

you should also be able to click on the other menu's in the DCS-930L Web Configuration and when viewing

the Live Video menu, moving objects should also be visible in the DCS-930L Web Configuration without

needing an Ethernet cable connected.
