D-Link SECURICAM Network DCS-3220G Manuel utilisateur

Check Your Package Contents

Thesearetheitemsincludedwithyourpurchase:

If any of the below items are missing, please contact your reseller.

BeforeYouBegin

Youmusthaveatleastthefollowing:

• Windows98/Me/2000/XP

• ACD-ROMdrive

• AnavailableEthernetconnection

DCS-3220G

This product can be set up

using Internet Explorer 6.x

or above

2-WayAudio/Digital Zoom

802.11G Wireless

Internet Camera

their respective holders. Software and specifications subject to change without notice. DCS-3220G.08062004

DCS-3220G 2-Way Audio/Digital Zoom

Wireless Internet Camera

12V AC Power Adapter

CAT5 Ethernet Cable

CD-ROM with Manual and Software

Camera Stand

Using a power supply

with a different voltage

rating will damage this

productandvoidthewarranty.

Hardware Installation

System Requirements

• InternetExplorer6.xorabove

• CPU:1.7GHzorabove

• MemorySize:128MB (256MBrecommended)

• VGAcardresolution:800x600orabove

Note: If using multiple cameras for viewing/recording, the minimum requirements

are a 2.4GHz or above CPU with 512MB memory and a 32MB video card.

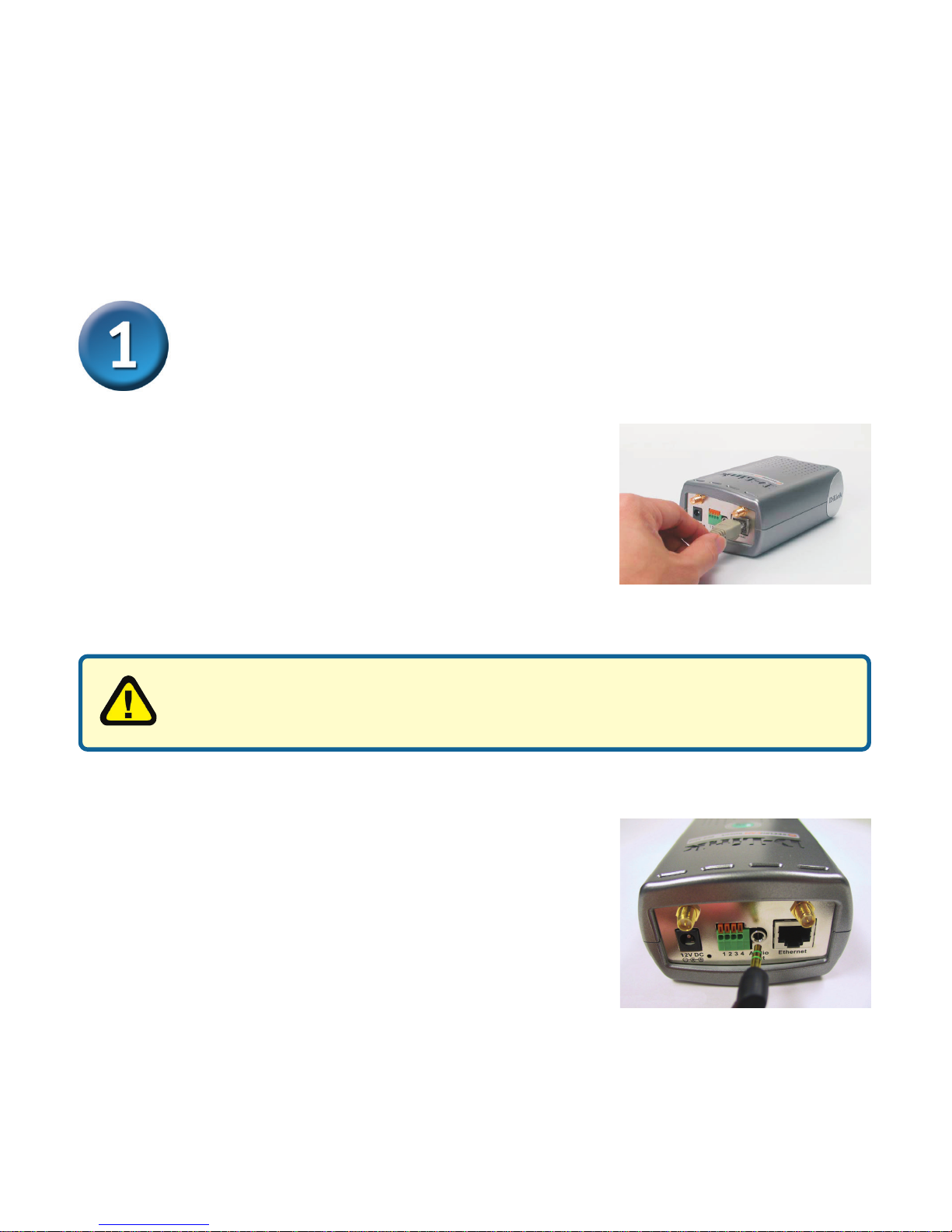

Connect the Ethernet Cable

ConnectanEthernetcabletothenetworkcable connector

locatedonthe Internet Camera’sbackpanel and attachit

to the network.

IfyouconnectthiscameradirectlytoaPC,youwillneedacross-overEthernet

cable. If you plug the camera into a hub or router, you will be able to use the

cableincluded with yourcamera.

Connect an Audio Cable

Connect your speakers to the audio output jack on the

backofthe InternetCamera.Fordetailsonconfiguringthe

sound settings, please see the manual on the CD-ROM.

Hardware Installation (continued)

When you have a proper connection, the LED (Light Emitting Diode) on the front of the

camera will turn from red to green. The light may blink on and off and your computer may

show an intermittant loss of connectivity if you have it directly connected to the camera.

Thisis normal untilyou have configuredyourcamera.

Attach the External Power Supply

Attachtheexternal powersupplyto theDCpower input

connectorlocated on theInternet Camera’s backpanel

(labeled DC 12V) and connect it to anAC power outlet.

Powersourceis confirmed when the LED Power Indicator on the Internet

Cameraisilluminated.

Attach the Antennas

Locatetheantennas included withyourDCS-3200G and

attach them to the antenna connectors located on the

backoftheDCS-3220G

Installing the Installation Wizard

InserttheDCS-3220GCDinto

theCD-ROMdrive.

Click on Install Software

Click on Installation Wizard

Click Next

Installing the Installation Wizard

(continued)

Click Next

Click Finish

Configuring Your Camera with the

Installation Wizard

DoubleclickontheInstallation

Wizard that was created on

yourdesktop.

Thesoftwarewill search forcameras.

TheInstallationWizardwillappear

andshowtheMACaddressofthe

DCS-3220G and an IP Address

(whichmay or may not becorrect

dependingonwhatyouhaveyour

DCS-3220G connectedto).Ifyou

have a DHCP* server on your

network, there will be a valid IP

Addressdisplayedhere,indicated

by a “Yes” under the assigned

column.

*A DHCP server is a device that

supplies IP Addresses to its

clients that are on the same

network.

Once the camera appears,

selectthecamerabyplacing

a Checkmark in the box.

Configuring Your Camera with the

Installation Wizard (continued)

Click Search to refresh the

list of cameras if needed.

If the Installation Wizard does not display

any devices, lightly insert a paper clip into

the reset opening on the unit’s rear panel

until the light starts to cycle (a series of

blinks) twice, then let go.

Click the Setup button

Configuring Your Camera with the

Installation Wizard (continued)

Enter an administrative password

intheRoot password andConfirm

passwordfields.

For details on the Date/Time

Settings,pleaserefer totheUser

ManualontheCD-ROM.

Click the Next button

Configuring Your Camera with the

Installation Wizard (continued)

Uncheck the box labeled

ResetIP address at nextboot

If you need to modify the IP

settings,please refer tothe user

manualontheCD-ROM.

Click the Next button

Click the Apply button

Here you can configure the

WirelessNetworkSettingsforthe

camera. For details on the

Wireless Network Settings,

please refer to the User Manual

onthe CD-ROM.

Configuring Your Camera with the

Installation Wizard (continued)

Click the button labeled

Link to Selected Device(s)

Click the Done button

Afterthesettingshavebeensaved,

theDonebutton will appear.
