D-Link G120 - DNS NAS Server Manuel utilisateur

DWL-AG700AP Install Guide

Version 1.0

DNS-G120

Wireless Network Storage Adapter

2 D-Link Systems, Inc.

DNS-G120 Install GuideSystem Requirements

System Requirements

Computer with Windows XP or 2000 with an installed

Ethernet Adapter*

Internet Explorer 6.0 or Netscape Navigator 7.0 and above

An 802.11g/b wireless network

USB Hard Drive

Manual and Software

on CD

Package Contents

D-Link DNS-G120

Wireless Storage Adapter

Ethernet Cable 5V 2.5A Power Supply

* It is required that an Ethernet cable is used during initial setup. Once your wireless

conﬁ guration is set, you may disconnect the Ethernet cable and reboot the DNS-G120

to connect to your wireless network.

D-Link Systems, Inc. 3

DNS-G120 Install Guide Hardware Overview

Front Panel

Solid green indicates an

Ethernet connection. Blinking

green indicates activity on the

Ethernet network.

Ethernet LED

Indicates that the device

is properly connected to

a wireless network and

blinks when data is being

transmitted.

Wireless LED

Wirelessly connect to WiFi

networks.

Antenna

Solid green indicates

a good power source

connection.

Power LED

Blinking green indicates when the

USB drive is initially connected to the

DNS-G120. Solid green indicates the

USB drive is ready for use.

USB LED

4D-Link Systems, Inc.

DNS-G120 Install GuideHardware Overview

Rear Panel

Press this button to safely

disconnect USB drives from

the DNS-G120.

Disconnect Button

Connects to your router or

switch using the included

Ethernet cable.

Ethernet Port

Receptor for the provided

power adapter.

Power Receptor

This button will restore the

factory default settings.

Reset Button

Connects your USB 1.1 or

2.0 drives to the DNS-G120.

USB Ports

D-Link Systems, Inc. 5

DNS-G120 Install Guide Installation Overview

Installation Overview

Once you’ve completed your DNS-G120 installation, your

network may appear similar to the diagram below.

6D-Link Systems, Inc.

DNS-G120 Install GuideHardware Installation

Installing the Hardware

It is required that an Ethernet cable is used during initial setup. Once your

wireless conﬁ guration is set, you may disconnect the Ethernet cable and

reboot the DNS-G120 to connect to your wireless network.

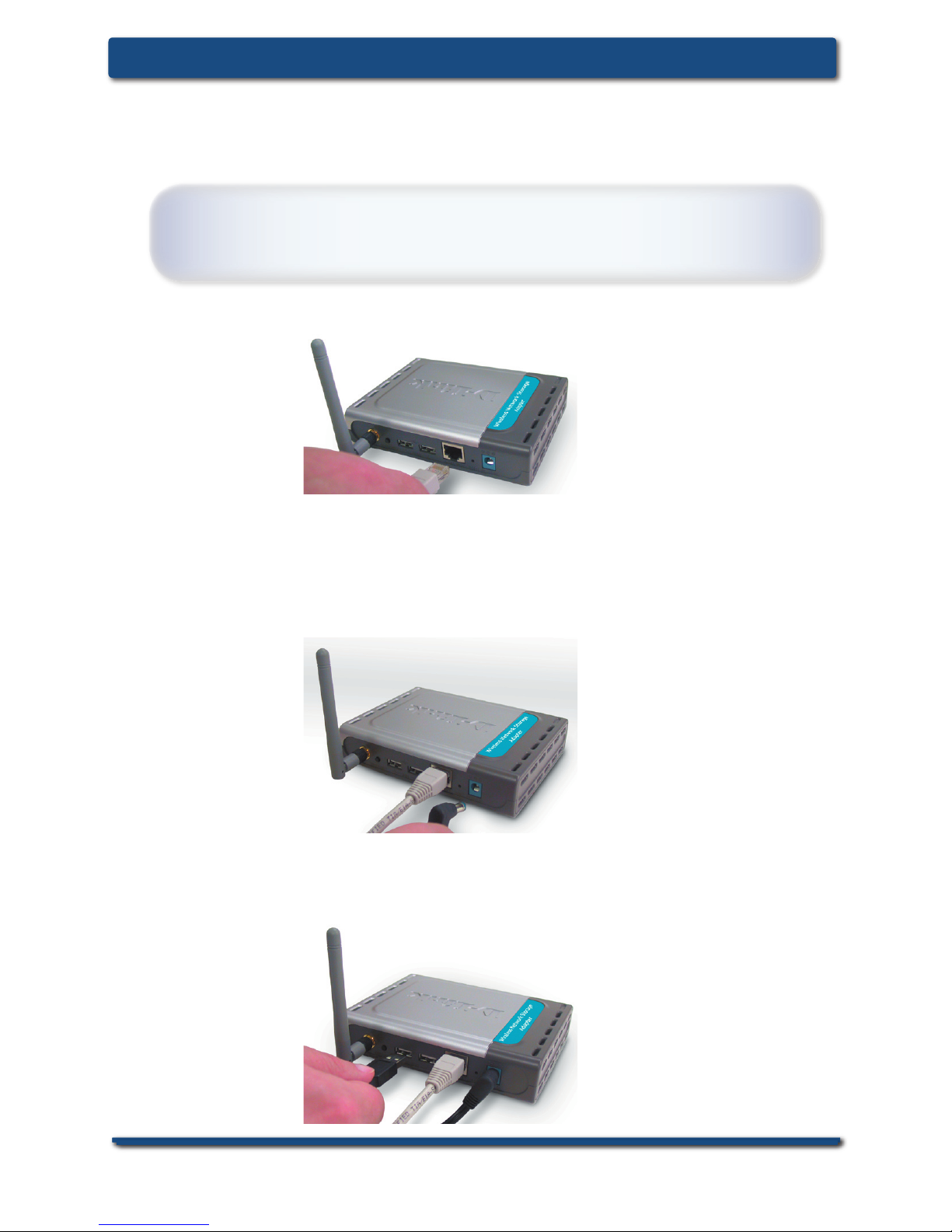

Attach the provided Ethernet cable to the Ethernet port on the rear panel.

Attach the other end of the Ethernet cable to an available Ethernet port on

your router or switch.

Plug the AC adapter into the receptor located on the back of the DNS-G120.

Plug the other end of the AC Adapter into a power strip or wall outlet.

4Attach your USB drive(s) to the USB port(s) located on the rear panel of the

DNS-G120. The USB LED on the front panel will blink until the drive has

been installed. Once the USB LED is solid green, your USB drive is ready

for use.

D-Link Systems, Inc. 7

DNS-G120 Install Guide Windows® Connect Now

Note: This feature is only available through Windows XP with

Service Pack 2 installed.

In this section, you will learn how to use the Wireless Network Setup

Wizard to easily and securely set up the DNS-G120 on a wireless

network. You will need to have a USB ﬂ ash drive available to complete

the WCN wireless setup on the DNS-G120.

If you do not have Windows XP with Service Pack 2 or do not wish

to use WCN, skip to page 11.

Windows® Connect Now (WCN)

Click Start > Accessories >

Communications > Wireless

Network Setup Wizard.

Click Next.

8D-Link Systems, Inc.

DNS-G120 Install GuideWindows® Connect Now

Enter the Network Name (SSID).

If you want Windows to assign a

random network key (encryption

key), select Automatically assign a

network key.

If you want to manually assign

a network key, select Manually

assign a network key.

To use WPA-PSK, select Use WPA

Encryption instead of WEP.

Click Next.

Windows® Connect Now (Continued)

If you have already used WCN to

conﬁ gure other wireless devices on

your network and would like to use the

same settings on your DNS-G120, click

Add new computers or devices to the

‘Wireless Network’ network and skip

to the last step on page 9.

To create new wireless settings, click

Setup a new wireless network.

Click Next.

D-Link Systems, Inc. 9

DNS-G120 Install Guide Windows® Connect Now

This screen appears if you choose

to set the WEP key manually.

Enter the desired encryption key

in the space provided and then

enter the key again to conﬁ rm.

Click Next.

This screen appears if you choose

to set the WPA key manually. Enter

the desired encryption key in the

space provided and then enter the

key again to conﬁ rm.

Click Next.

Windows® Connect Now (Continued)

This screen appears when the

WEP or WPA key has been

assigned. Follow the directions

on the screen to transfer settings

to the USB ﬂ ash drive.

Click Next.

10 D-Link Systems, Inc.

DNS-G120 Install GuideWindows® Connect Now

This screen appears after the settings are successfully transferred to

the USB ﬂ ash drive. Follow the directions on the screen.

When inserting the USB flash

drive into the USB port on the

DNS-G120, the USB LED will

blink slowly as it detects the USB

ﬂ ash drive and then turn off. The

USB LED will then quickly blink 3

times and turn off again. Once the

USB light is solid and the WLAN

LED blinks, you may unplug the

USB ﬂ ash drive.

When the DNS-G120 wireless

setup is successful, a window

similar to this one will appear.

You have completed the wireless

conﬁ guration of the DNS-G120.

Click Finish.

Windows® Connect Now (Continued)

Click Next.

Your wireless setup using WCN is now complete.
