D-Link DVG-2101S Manuel utilisateur

1. If you purchased this VoIP Telephone Adapter to share your high-speed

Internet connection with other computers, you must have an established

Internet account from an Internet Service Provider (ISP).

2. It’s best to use the same computer that is connected to your router for

configuring the DVG-2101S VoIP Telephone Adapter. The DVG-2101S acts

as a DHCP Client and will be assigned all the necessary IP address

information from your network. See the Quick Installation Guide or the Manual

on the CD-ROM for setting each network adapter to automatically obtain an

IP address.

Check Your Package Contents

If any of the above items are missing, please contact your reseller.

respective holders. Software and specifications subject to change without notice.

G-2101S

VoIP Telephone Adapter

Before You Begin

This product can be set up

using any current web browser,

i.e., Internet Explorer 6 or

Netscape Navigator 6.2.3.

D-Link D

G-2101S

oIP Telephone Adapter

CD-ROM (containing Manual and Q.I.G.)

Ethernet Cable

Phone Cable

12V, 1.5A Power Adapter

Quick Installation Guide

Using a power supply

with a different voltage rating

will damage and void the

warranty for this product.

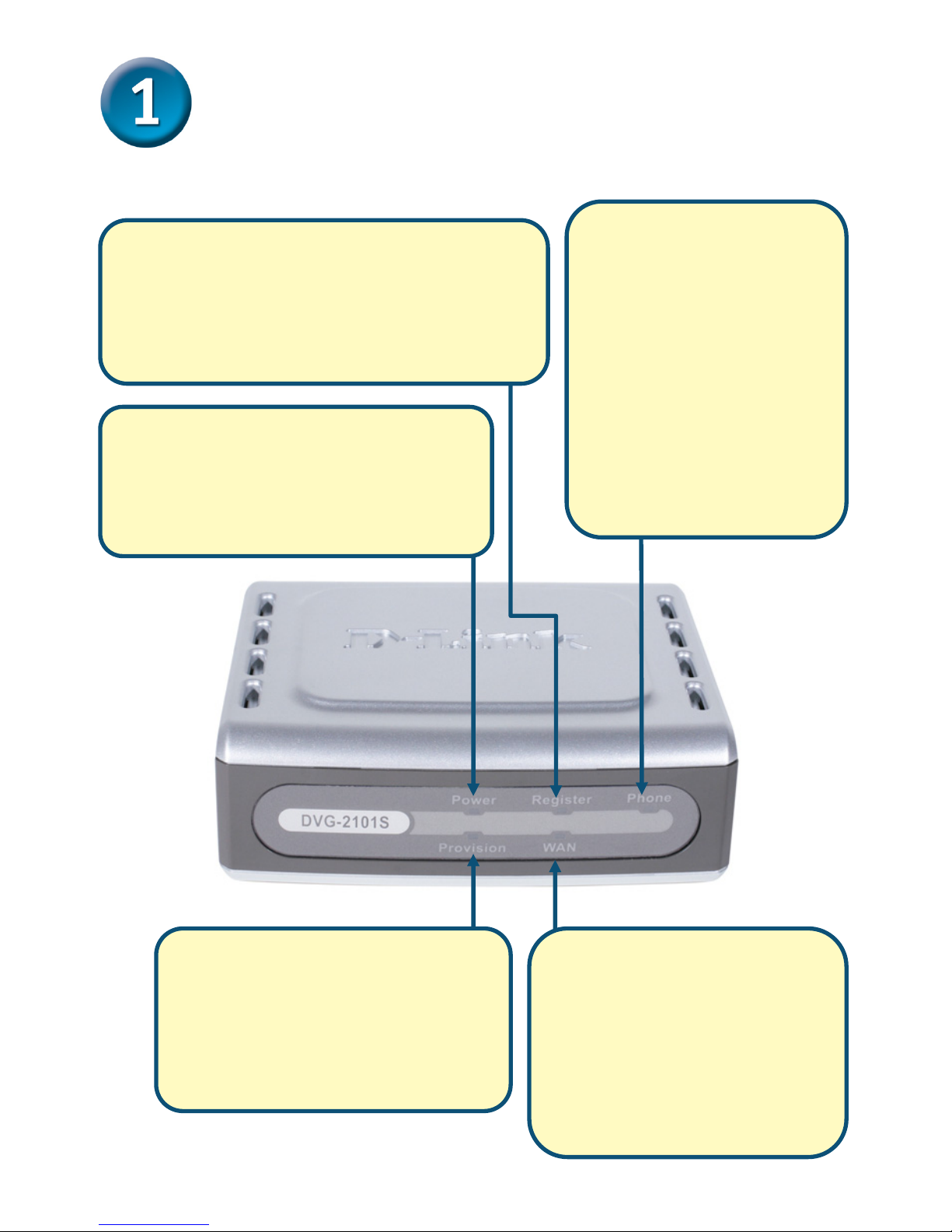

Hardware Overview

Front Panel

This LED will light solid if the phone

account registers successfully. This LED

will flash during registering and light off if

registering fails.

Power LED

This LED will light solid when the

device finishes a self-test and booting

up. This LED will flash during device

self-test and bootin

and li

ht off if

WAN LED

This LED will light solid when a

connection is established and

blink to indicate activity. If this

LED does not light up when a

cable is connected, verify the

cable connections and make

sure your devices are powered

on.

Phone LED

This LED will light solid

when the telephone is

off-hook. A fast blinking

LED indicates an

incoming call and a slow

blinking LED indicates a

message is waiting. This

LED will light off if the

phone connected to the

phone port is on-hook.

Provision LED

This LED will light solid if the

device provisions successfully.

This LED will flash during

provisioning and light off if

provisioning fails.

Rear Panel

Reset Button

Use a paper clip to:

1. Press 1-2 seconds to enable IVR.

2. Press 4-6 seconds to reset this unit.

3. Press 8-10 seconds to restore this

unit’s factory default settings.

Power Receptor

Connects to the provided

power adapter.

Phone Port

Connects to your

phone using a

standard phone cable

(

RJ-11

)

WAN Port

Connects to your

broadband modem

using an Ethernet

cable.

Configure IP Settings

To connect to the network, make sure the network adapter in your computer

is configured properly. Here’s how to assign a static IP address to your PC.

Select Properties.

Click on the

Network

Connections

icon.

Right-click the Local

Area Connection icon,

and then select

Properties.

Go to Start >

click Control

Panel > click on

the Network

Connections

icon.

Click Internet Protocol

(TCP/IP).

The dialog box displays a list

of currently installed network

items.

Make the choice to get the IP

address assigned manually.

Select Use the

following IP address

to get the IP settings

assigned manually.

Click OK.

Select Properties.

Initial Web Configuration

If your computer connects directly to a DSL or Cable modem and

does not connect to a router, follow the steps below to install your DVG-2101S.

For any other configuration, please refer to the user manual located on the CD-

ROM. After the steps are completed, your setup should look similar to the

diagram below.

1. Turn off your Computer.

2. Attach one end of the provided Ethernet

cable (blue) to the WAN port on the rear of

the DVG-2101S.

3. Attach the other end of this Ethernet cable

to the PC for initial configuration described

on the next chapter in this Quick

Installation Guide.

4. Attach one end of the provided phone

cable (gray) to a standard analog

telephone.

5. Attach the other end of the phone cable to

the phone port labeled PHONE on the

rear panel of the DVG-2101S.

6. Unpack the 12V DC Power Adapter that

came with the DVG-2101S. Connect the

power adapter to the power connecter on

the DVG-2101S.

7. Connect the other end of the power

adapter to an available electrical outlet

(wall socket or surge protector).

Note: Make sure all the cables are

connected tightly and properly.

8. Restart your PC. The corresponding LEDs would light on to indicate that the

DVG-2101S is ready for initial web configuration.

9. After finishing your initial configuration as described on the next chapter,

you need to unplug the Ethernet cable from the PC. And attach this end to

the LAN port of your router or Cable/DSL Modem.

The hardware configuration is now complete.

Initial Web Configuration

Open a Web browser and

type http://192.168.1.150 into

the URL address box. Press

the Enter or Return key.

When you first log

in, enter the User

name admin and

leave the Password

blank. These may

be changed later.

Click Setup Wizard.

Click Login button.

Setup Wizard will

guide you through the

quick setup steps.

Step 1

You can change the

this step or just leave

them the same as the

default values.

Step 2

Select your time zone

from the drop-down list.

Then select a NTP time

server or configure your

preferred time server.

Click Next.

Step 3-1

If you selected Static

IP, enter the IP

address, subnet mask

and gateway supplied

by your ISP.

Step 3-1-1

Static IP users have to

set the DNS address.

Step 3-1

If you selected Dynamic

IP, you may enter the

host name in the field.

Click Next.
