Key Features
Power Over Ethernet Adapter
The DWL-P200 Power Over Ethernet (PoE) adapter is designed to supply operational power to surveillance cameras and
wireless LAN devices such as access points, bridges and routers. It enable power current to travel on the Ethernet network
cable, thus eliminates the need to directly connect a power supply to the wireless LAN device. The DWL-P200 supports both
5VDC and 12VDC power requirements. Power requirement can be selected through a DIP switch.
Facilitates Installation
Data and DC Power Transmission on the Same
Network Cable
The Power Over Ethernet allows you to install the wireless
LAN device and surveillance camera at places such as on a
building rooftop, on or near a ceiling, or other difficult places
where power is not easily accessible. The idea is increase the
usefulness of your camera and wireless LAN to provide
connectivity to users regardless of their proximity to a power
outlet or a network cable.
On a standard UTP Category 5 cable, only two pairs (pins 1,
2, 3 and 6) are used for Ethernet data transfer. Power Over
Ethernet is designed to take advantage of the unused pins of
the remaining pair of cable wires. Consequently, a single
Category 5 cable will now carry both Ethernet data and
DC power. The idea is to supply the remote end with
power and the requirements of Ethernet connectivity via a
single Cat 5 cable.

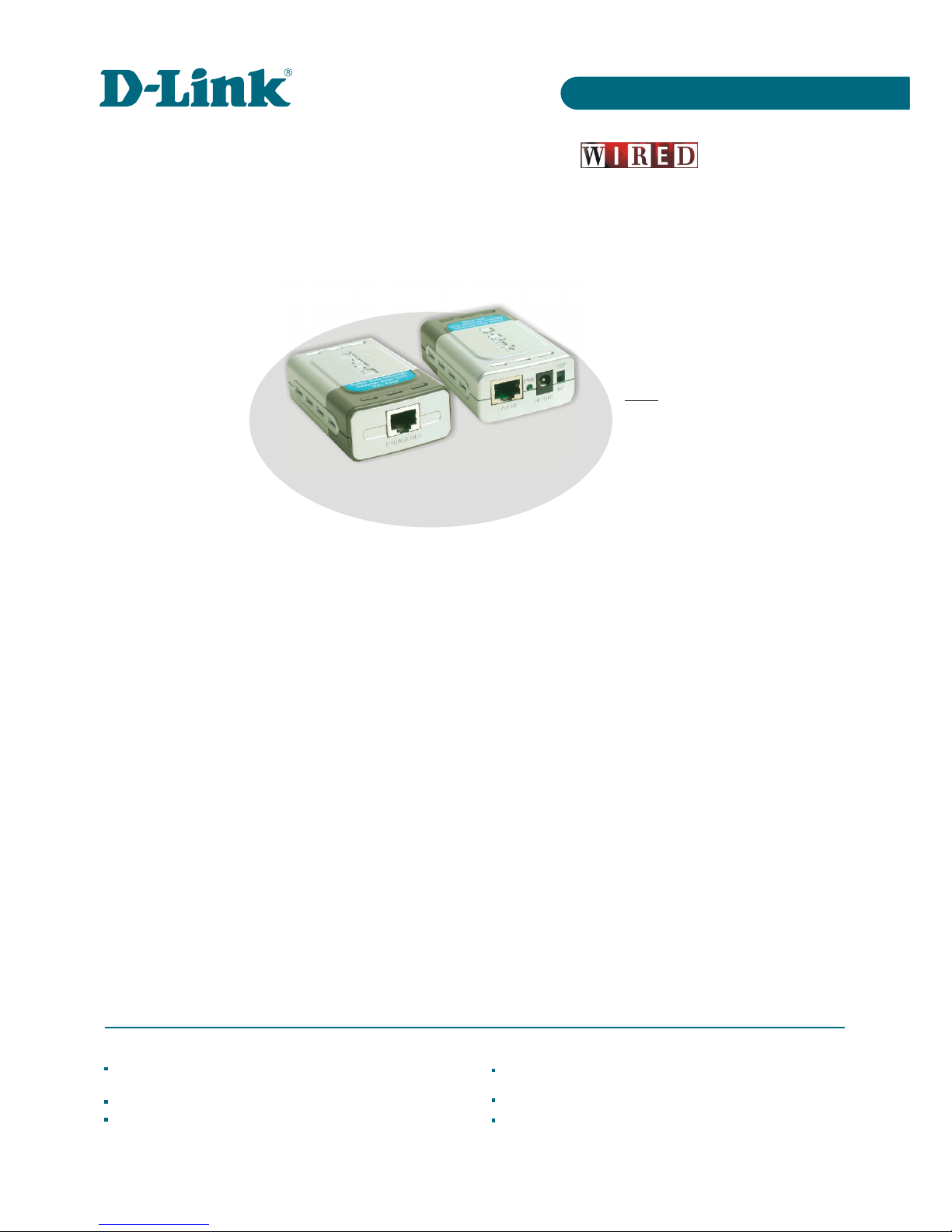

The DWL-P200 includes a base unit and a terminal unit.
At one end, the base unit inserts DC voltage into the
unused wires (pins 4, 5, 7 and 8) of the network cable. At
the other end, the terminal unit splits the data and DC
power apart. Data signals continue to travel on remaining
network cables, while DC power is fed into the power
adapter, which connects to an AC power outlet.
Base Unit and Terminal Unit
Provides DC power over existing Category 5 cable to
wireless LAN device
Cuts costs and provides convenience
Transforms incoming AC power into low-voltage DC power
1 base unit and terminal unit provide power to 1 wireless
LAN device
Protects wireless LAN device from possible power-surges
Supports both 5VDC and 12VDC power (selectable
through a DIP switch)
Gadget that Sets You Free
Wired Magazine Award
February 2004
Ordering Information
Rev. 01 (Apr. 2004)
RECYCLABLE
Specifications subject to change
without prior notice.
D-Link is a registered trademarks of
D-Link Corporation/D-Link System Inc.
All other trademarks belong to their
proprietors.
FAX: 1-866-743-4905
FAX: 1-905-8295223
FAX: 44-20-8731-5511
FAX: 49-6196-7799300
FAX: 33-1-30238689
FAX: 31-10-282-1331
FAX: 32(0)2-517-6500
FAX: 39-2-2900-1723
FAX: 34-93-4910795
()
FAX: 46- 0 8564-61901
FAX: 47-22-309085
FAX: 45-43-424347
FAX: 358-9-2707-5081
FAX: 65-6774-6322
FAX: 61-2-8899-1868
FAX: 81-3-5434-9868
FAX: 86-10-8518-2250
FAX: 91-022-652-8914
FAX: 9714-8834394
FAX: 90-212-335-2500
FAX: 202-415-6704
FAX: 972-9-9715601
FAX: 56-2-232-0923
FAX: 55-11-55039321
()
FAX: 270 1266-52186
FAX: 7-095-744-0099#350
FAX: 886-2-2910-1515
FAX: 886-2-2914-6299
U.S.A
Canada
Europe
Germany
France
Netherlands
Belgium
Italy
Iberia
Sweden
Norway
Denmark
Finland
Singapore
Australia
Japan
China
India
Middle East (Dubai)
Turkey
Egypt
Israel
Latinamerica
Brasil
South Africa
Russia
Taiwan
D-Link Corp.
TEL: 1-714-885-6000
TEL: 1-905-8295033
TEL: 44-20-8731-5555
TEL: 49-6196-77990
TEL: 33-1-30238688
TEL: 31-10-282-1445
TEL: 32(0)2-517-7111
TEL: 39-2-2900-0676
TEL: 34-93-4090770
()
TEL: 46- 0 8564-61900
TEL: 47-22-309075
TEL: 45-43-969040
TEL: 358-9-2707-5080
TEL: 65-6774-6233
TEL: 61-2-8899-1800
TEL: 81-3-5434-9678
TEL: 86-10-8518-2533
TEL: 91-022-652-6696
TEL: 9714-8834234
TEL: 90-212-335-2553
TEL: 202-414-4295
TEL: 972-9-9715700
TEL: 56-2-232-3185
TEL: 55-11-55039320
()
TEL: 27 01266-52165
TEL: 7-095-744-0099
TEL: 886-2-2910-2626
TEL: 886-2-2916-1600
Technical Specifications
DWL-P200
Wireless LAN
Power Over Ethernet Includes
- 1 base unit
- 1 terminal unit
Category 5 Pin Power Usage
- Data: pins 1, 2, 3, 6
- Power: pins 4, 5, 7, 8
Output Voltage
- Input: 48VDC, 400mA
- Output: 5VDC or 12VDC (DIP switch selectable)
Ethernet Cable
- Data rate: 10/100Mbps
- TIA/EIA 568 Cat. 5
- Connector: RJ-45
Dimensions
- Base unit: 81 x 52 x 28 mm
- Terminal unit: 81 x 52 x 28 mm
Operating Temperature
oo
0 to 40 C
Storage Temperature
oo
-40 to 70 C
Operating Humidity
10% to 80% RH
Storage Humidity
5% to 90% RH
EMI Certification
- FCC Part 15 Class B
- CE Class B
Power Adapter Safety Certifications
CSA International
Box Includes
- Power Over Ethernet base unit
- Power Over Ethernet terminal unit
- AC to DC power adapter
- DC power cable
- Quick Installation Guide
- Ethernet cable
DWL-P200 Power Over Ethernet
Please specify your order as follows:
DWL-P200/A US standard power adapter
DWL-P200/B UK standard power adapter
DWL-P200/E EU standard power adapter
DWL-P200/N Australia standard power adapter
DWL-P200/CN China standard power adapter
